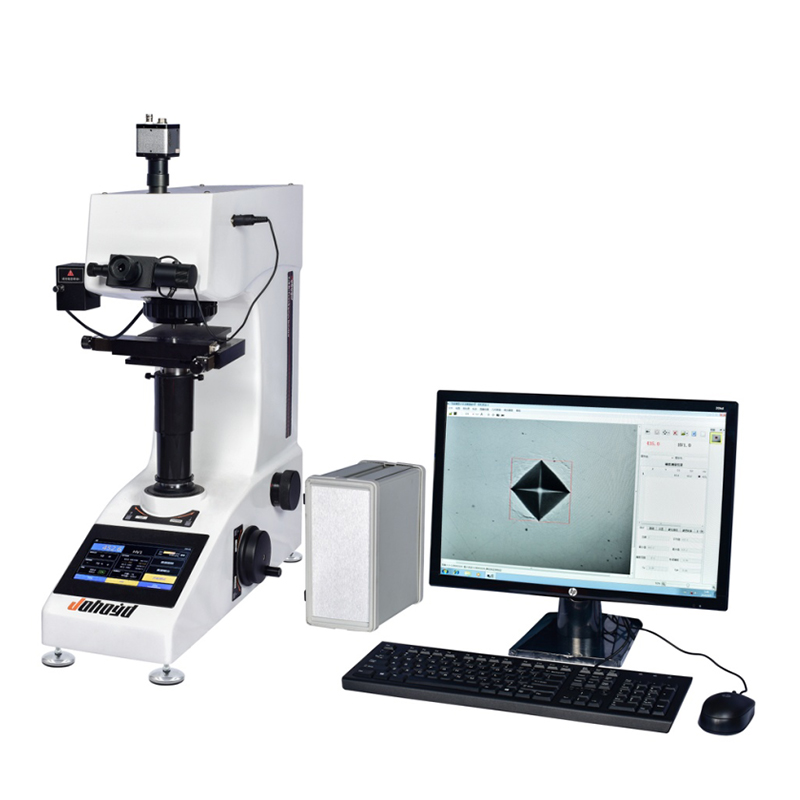

Semi-Automatic Vickers Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Touchscreen interface simplifies setup and enhances usability.
Automatic loading improves repeatability and reduces operator error.
Clear dual-channel imaging ensures precise indentation evaluation.
Product Description
The Semi-Automatic Vickers Hardness Tester is designed to perform stable and efficient Vickers hardness measurements using automatic loading, precise optical imaging, and touchscreen control. The system supports multiple hardness scale groups and a wide range of test forces, allowing flexible configuration for different materials. The dual-channel optical system provides clear observation and accurate measurement of indentation geometry. With automatic loading and digital dwell-time control, the instrument ensures repeatable and consistent hardness results, suitable for metals, coatings, heat-treated layers, foils, microstructures, and laboratory quality-control applications.
Product Advantages
7-inch LCD touchscreen with intuitive operation.
High-precision loading system with automatic control.
Dual optical channels (eyepiece + CCD) for clear observation.
Digital encoder enhances measurement accuracy.
Supports multiple hardness scale groups for flexible selection.
Test force externally selectable via control knob.
Automatic hardness conversion and result evaluation.
Robust cast-aluminum frame ensures long-term stability.
Data output via USB for convenient archiving.
Optional built-in micro-printer.
Supports both observation and measurement under 100× / 200× magnification.
Measuring range up to 400 μm with 0.125 μm resolution.
Suitable for various materials and industrial environments.
Lifetime technical support and parts supply.
Vickers Automatic Measurement & Control System
The instrument automatically completes loading, holding, and unloading, ensuring stable and repeatable test force application. The touchscreen displays key parameters such as test force, dwell time, brightness, and measurement results. The system supports hardness conversion, data review, and multi-language switching, enabling smooth and efficient testing for educational institutions, R&D facilities, and industrial QC environments.
Software Features
Automatic loading, holding, and unloading for consistent force application.
Touchscreen control for dwell time, brightness, test method, and hardness display.
Automatic hardness calculation and data storage.
Supports HV, HK, HBW, and multiple Rockwell scale conversions.
Optical brightness adjustable from 0–100.
Displays average value, maximum deviation, maximum/minimum hardness.
Unit switching between kgf and N.
Supports multilingual interface (Chinese/English).
Direct USB data export for analysis and printing.
Optional built-in printer for instant report output.
Applications
Suitable for hardness testing of metals, foils, coatings, heat-treated layers, microcomponents, alloys, and laboratory samples. Ideal for factories, universities, research institutes, and quality-control centers.
Technical Specifications
| Item | Specification |
|---|---|
| Hardness Scales (4 options) | Option 1: HV0.3, HV0.5, HV1, HV2, HV3, HV5 Option 2: HV0.3, HV0.5, HV1, HV3, HV5, HV10 Option 3: HV1, HV3, HV5, HV10, HV20, HV30 Option 4: HV1, HV5, HV10, HV20, HV30, HV50 |
| Display | 7-inch LCD touchscreen |
| Test Force Range (kg, 4 options) | Option 1: 0.3, 0.5, 1, 2, 3, 5 Option 2: 0.3, 0.5, 1, 3, 5, 10 Option 3: 1, 3, 5, 10, 20, 30 Option 4: 1, 5, 10, 20, 30, 50 |
| Load Control | Automatic (load / hold / unload) |
| Dwell Time | 5–60 s |
| Force Selection | External force knob; digital display |
| Objective Lenses | 10×, 20× |
| Optical Channels | Eyepiece + CCD dual channel |
| Optical System | Total magnification: 100× (observe), 200× (measure) Measuring range: 400 μm Resolution: 0.125 μm |
| Hardness Measurement Range | 5–3000 HV |
| Data Output (Optional) | Built-in printer / USB export |
| Max Specimen Height | 165 mm |
| Max Specimen Width | 130 mm |
| Power Supply | AC220V / 50Hz |
Standard Accessories
| Accessory | Qty | Accessory | Qty |
|---|---|---|---|
| Vickers Indenter | 1 | 10× Objective | 1 |
| 20× Objective | 1 | Weight Set | 1 set |
| Vickers Hardness Blocks | 2 | 10× Micrometer Eyepiece | 1 |
| Motorized Stage Controller | 1 | Motorized XY Worktable | 1 |
| Level Gauge | 1 | Leveling Screws | 4 |
| Screwdrivers | 2 | Power Cable | 1 |
| Dust Cover | 1 | User Manual | 1 |
| Optical Adapter | 1 | USB Dongle | 1 |
| Camera | 1 | Software CD | 1 |
| Control Cable | 1 | RS232 Cable | 1 |
