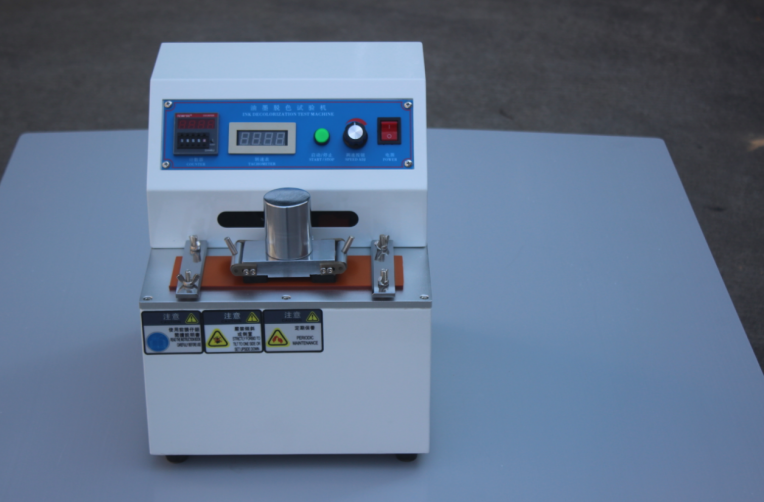

Ink Abrasion Tester for Industrial Measurement

Technical Overview

The Ink Abrasion Tester represents an essential instrument for the printing and packaging industries, designed to evaluate the durability and quality of inks through standardized rubbing tests. This sophisticated equipment simulates real-world wearing conditions to assess ink adhesion properties, helping manufacturers maintain consistent print quality and prevent smudging issues in final products. Compliant with international standards including JIS-5071-1, TAPPI-UM486, and TAPPI-UM487, the tester serves as a reliable solution for quality control laboratories, printing facilities, and packaging manufacturers.

Testing Capabilities and Applications

The machine performs multiple testing methodologies including dry rubbing tests for basic ink adhesion assessment, wet rubbing tests for moisture resistance evaluation, decolorization change analysis for color fastness, paper blurring tests for print clarity maintenance, and specialized friction tests for unique application requirements. These comprehensive testing modes make it suitable for various substrates such as paper, cardboard, plastic films, and other printed materials, ensuring ink performance under different environmental conditions and handling scenarios.

Precision Engineering Specifications

The tester features four programmable speed settings (21, 43, 85, and 106 revolutions per minute) allowing simulation of different abrasion intensities. The dual-load system provides 908g and 1810g pressure options for varying test severity requirements. The 60mm friction stroke ensures consistent test coverage, while the generous 50×100mm test area accommodates samples of different sizes. The automatic cycle counter supports up to 99,999 test cycles with precision auto-stop functionality, ensuring reliable and repeatable results.

Operational Excellence

With compact dimensions of 300×325×300mm and low power consumption (40W), the tester fits comfortably in laboratory environments while maintaining energy efficiency. The intuitive control interface enables easy parameter setting and real-time monitoring of test progress. The robust construction ensures long-term reliability, while the standardized test conditions guarantee result comparability across different testing sessions and laboratories.

Quality Assurance Features

The equipment incorporates multiple precision elements including a calibrated loading system that maintains consistent pressure throughout testing, a precision guide mechanism that ensures straight-line rubbing motion, and a durable sample clamping system that prevents movement during testing. These features combine to deliver accurate and reproducible results that meet international quality standards for ink and printing product evaluation.

Industry Applications

Widely used in printing factories, packaging manufacturers, ink producers, and quality inspection agencies, the tester helps prevent common issues such as ink rubbing off during handling, color transfer during storage, and image degradation during transportation. It serves particularly well for evaluating product labels, packaging materials, security documents, and commercial prints where ink durability is critical for product appearance and information retention.

Compliance and Certification

The instrument meets rigorous international standards, ensuring global acceptance of test results. The JIS-5071-1 compliance makes it suitable for Japanese market requirements, while TAPPI-UM486/487 certifications address North American standards. This multi-standard capability makes the tester invaluable for companies engaged in international trade and exporting activities.

User-Friendly Design

The tester incorporates several user-centric features including a large digital display for clear parameter reading, simple control buttons for intuitive operation, and a sturdy construction that withstands continuous use in industrial environments. The standardized test procedures require minimal operator training, while the automatic functions reduce human error and increase testing efficiency.

Maintenance and Reliability

Designed for long-term operation with minimal maintenance requirements, the tester features easily accessible components for routine cleaning and calibration. The durable construction materials resist wear from continuous operation, while the precision engineering ensures consistent performance over extended periods. Regular calibration services and technical support ensure ongoing accuracy and reliability.
