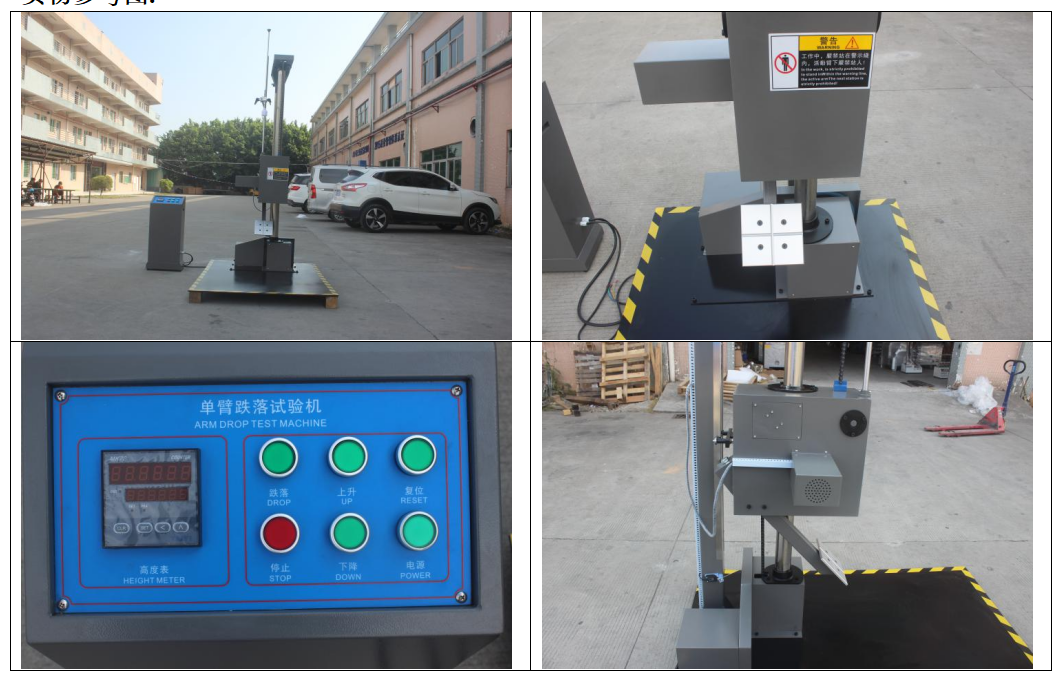

Single Arm Drop Testing Machine for Industrial Measurement
This Single Arm Drop Testing Machine evaluates packaging integrity under vertical impact, supporting face, edge, and corner drop tests per ISO 2248/JIS/GB standards. Key features include electric-controlled drops, 300–1500mm adjustable height (±10mm precision), 80kg payload capacity, and encoder-based height tracking. Its-arm dual-column design enables easy sample placement, while buffering mechanisms enhance durability. Ideal for assessing transport safety, it offers automated lifting, reset functions, and complies with industrial safety requirements for packaging quality validation.
Single Arm Drop Testing Machine Applications and Related Testing Solutions
Single Arm Drop Testing Machine supports industrial testing and quality inspection applications that require stable operation, clear measurement results, and dependable process control.
Related Products: Electromagnetic Vibration Test System | Automatic Bursting Strength Tester | Ink Abrasion Tester
Overview and Applications
The Single Arm Drop Testing Machine is engineered to simulate real-world handling and transportation impacts on product packaging. By conducting controlled free-fall tests, it helps manufacturers identify design weaknesses, optimize protective materials, and ensure compliance with international standards like ISO 2248, JIS Z0202-87, and GB/T 4857.5-92. This equipment is critical for industries involving fragile goods, electronics, and consumer products, where packaging durability directly impacts product safety and cost efficiency.
Technical Specifications
The machine operates within a drop height range of 300–1500mm, adjustable with a precision error of ≤±10mm or 1% of the set value. It accommodates samples up to 800×800×1000mm in size and 80kg in weight, ensuring versatility for various packaging types. The impact plate measures 1700×1200mm with a 10mm thick solid iron baseplate for stability. Power requirements include AC 380V±10% voltage, 50Hz frequency, and 1.85kWA consumption. The overall dimensions are approximately 1700×1200×2315mm, with a net weight of 300kg.
Design and Functionality
Featuring a single-arm dual-column structure, the tester allows effortless sample positioning and secure handling. The electric drive system enables automated lifting, dropping, and reset functions, reducing manual intervention. A digital height display integrated with an encoder ensures accurate real-time height monitoring. The proprietary buffering mechanism minimizes mechanical stress, extending service life while maintaining operational smoothness and safety. Testing modes include comprehensive face, edge, and corner drops to simulate multi-angle impacts during logistics.
Performance and Precision
The machine achieves exceptional accuracy with a drop height deviation of ≤±10mm and impact plate parallelism error ≤1°. During drops, the sample’s contact surface maintains a ≤1° deviation from horizontal, ensuring consistent test conditions. The system automatically records data, supporting repeatable experiments for quality benchmarking. Environmental operating conditions require temperatures of 5–28°C (24-hour average ≤28°C) and relative humidity ≤85% RH, with three-phase power supply and protective grounding.
Industry Applications
Widely used in packaging manufacturing, logistics, and quality control labs, this tester validates the resilience of cartons, wooden cases, and foam-cushioned packages. It helps reduce product damage rates during shipping, lowering warranty claims and enhancing brand reputation. By identifying failure points early, companies can iterate designs faster and meet international shipping regulations.
Compliance and Safety
Designed for industrial durability, the machine adheres to electrical safety standards and features overload protection. Its user-friendly interface simplifies operation, while the robust construction withstands frequent use. The tester’s data output aids in certification processes, providing documented evidence of packaging performance for clients and regulators.
