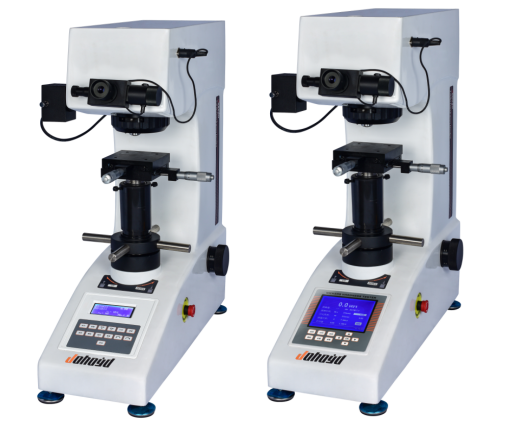

HVS-10 Digital Manual Turret Vickers Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Manual turret design ensures stable optical alignment for microhardness testing.
Digital micrometer eyepiece enables direct indentation readings with precision.
LCD interface organizes measurement data for a clear, guided workflow.
Product Description
The HVS-10 Digital Manual Turret Vickers Hardness Tester is built for applications requiring high measurement accuracy, stable optical imaging and simplified operation. The upgraded digital micrometer eyepiece reads indentation lengths directly, reducing manual estimation errors and enabling quicker hardness calculations. Its optical system, designed by professional optical engineers, produces bright, clear images and supports microstructure inspection in addition to hardness testing.
The cast-aluminum structure enhances rigidity and minimizes deformation during long-term use. The LCD display presents hardness value, indentation lengths, applied force, dwell time, test count and date in an organized layout, helping users maintain consistent testing routines. With selectable forces from 0.3 to 10 kgf, the HVS-10 supports hardness evaluation across metals, coatings, heat-treated layers, thin plates, ceramics, and brittle materials. Optional additions such as a large LCD screen, built-in printer and computer software expand data processing efficiency and streamline reporting.
Product Advantages
Optical system engineered for clarity and adjustable illumination ensures comfortable long-term viewing.
LCD interface displays hardness values, diagonals, dwell time, test force and test count with organized clarity.
Cast-aluminum housing formed in a single piece provides excellent structural stability and surface durability.
Digital micrometer eyepiece allows direct indentation length confirmation for faster hardness calculation.
Manual turret mechanism provides controlled switching without mechanical wear from motorized components.
Force options from 0.3 to 10 kgf support microhardness evaluation for multiple material types.
Optional LCD large-screen module and built-in printer expand test monitoring and data-output capability.
Dual optical channels support both eyepiece viewing and CCD camera connection.
Application Range
Steel, non-ferrous metals, hard alloys and thin sheets
Carburized, nitrided, hardened and microstructure layers
Coatings, electroplated layers and heat-treated surfaces
Glass, wafers, ceramics and carbonized materials
Laboratory microstructure and hardness analysis
Technical Specifications
| Parameter | Value |
|---|---|
| Hardness scales | HV0.3, HV0.5, HV1.0, HV3.0, HV5.0, HV10.0 |
| Display | 5-digit hardness value, 4-digit diagonals, force, dwell time, count |
| Test forces | 0.3 / 0.5 / 1.0 / 3.0 / 5.0 / 10.0 kgf |
| Loading control | Automatic load / dwell / unload |
| Dwell time | 1–99 s |
| Optical channels | Eyepiece + CCD port |
| Objectives | 10×, 20× |
| Eyepiece | 10× digital micrometer |
| Total magnification | 100× / 200× |
| Measurement range | 400 μm |
| Resolution | 0.125 μm |
| XY stage | 100×100 mm, travel 25×25 mm, minimum reading 0.01 mm |
| Hardness range | 5–3000 HV |
| Max specimen height | 165 mm |
| Max specimen width | 130 mm |
| Data output | Built-in mini printer interface reserved. (RS232 Serial Interface) Optional Installation |
| Power | AC220V / 50Hz |
| Dimensions | 585×200×630 mm |
| Weight | 42 kg |
Standard Accessories
| Item | Qty |
|---|---|
| Main unit | 1 |
| Weights | 3 |
| Cross measurement stage | 1 |
| Flat clamp stage | 1 |
| Leveling screws | 4 |
| Power cable | 1 |
| 10× digital micrometer eyepiece | 1 |
| Vickers hardness blocks | 2 |
| Spare fuse (2A) | 2 |
| User manual | 1 |
| Certificate | 1 |
Note:
Optional hardness tester measurement software is available to eliminate human error, enable computer operation, improve efficiency, and achieve more precise accuracy.
Optional built-in printer is available for one-touch printing of measurement data.
