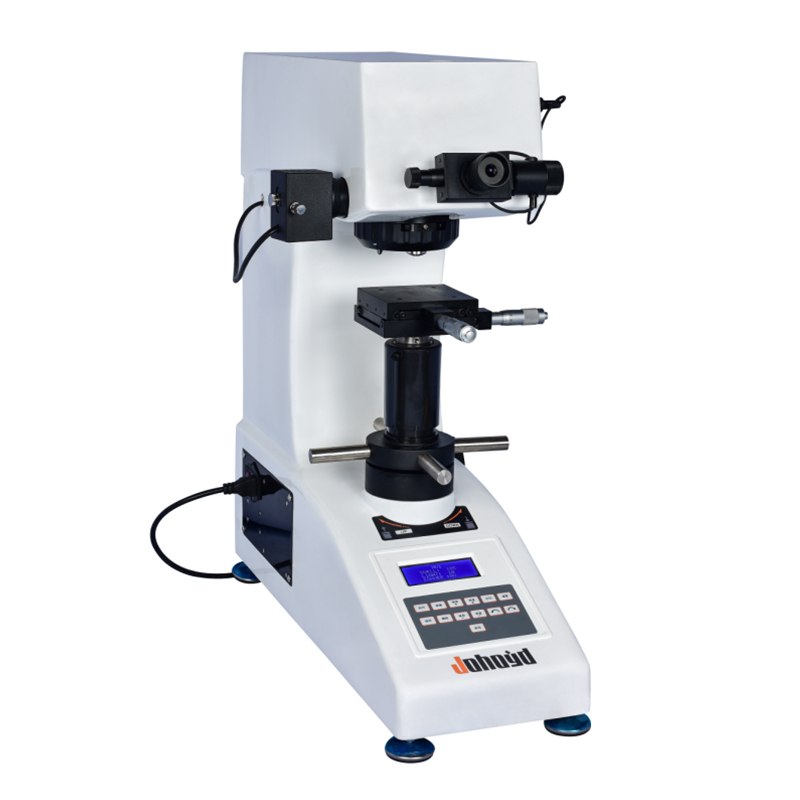

CHVS-50 Digital Vickers Hardness Tester

Product Description

The CHVS-50 Digital Vickers Hardness Tester is an optical-mechanical-electronic integrated testing instrument designed with a closed-loop loading control structure to ensure high force accuracy and excellent repeatability across HV0.3–HV50 ranges. Its industrial digital display clearly presents indentation length, hardness value, dwell time, loading level, test count, conversion scales, and illumination settings. With a digital micrometer eyepiece, the operator only needs to measure the indentation and press the eyepiece button—hardness is calculated and displayed automatically without any conversion tables.
Built with a rigid one-piece cast-aluminum body and engineered optical system, the CHVS-50 provides stable imaging and consistent mechanical alignment. It supports manual switching between observation, loading, and measuring positions, offering precise control for micro-indentation evaluation of metallic materials, thin sheets, coatings, surface-treated layers, and brittle materials.

Product Advantages

1. High-grade optical system designed by professional optical engineers provides bright, distortion-free images suitable for micro-structure observation; brightness is adjustable for long-term use.

2. Large industrial digital display shows four-digit hardness values, diagonal lengths (D1/D2), dwell time (1–98 s), test force (0.3–50 kgf), conversion scales, measurement count, and light intensity.

3. One-piece cast-aluminum housing offers excellent rigidity, long-term dimensional stability, and high scratch resistance with automotive-grade coating.

4. Digital micrometer eyepiece supports direct length-to-hardness conversion, improving efficiency and eliminating manual calculation errors.

5. Manual turret switching provides reliable mechanical alignment for observation, loading, and measuring positions.

6. Closed-loop loading ensures precise force output across all HV0.3–HV50 test levels, enhancing repeatability and reducing operator influence.

7. Dual optical channels (eyepiece + CCD) allow simultaneous visual observation and digital image capture.

8. Optical resolution of 0.125 μm and a 400 μm measuring range enable micro-indentation evaluation of thin layers, coatings, and micro-features.

9. Optional hardness software and printer allow automated data saving, reporting, and PC-based measurement.

Application Range

• Suitable for hardness inspection of thick sections, forged surfaces, large components, and medium-scale metallic structures.

• Ideal for deep-layer hardness evaluation on carburized, quenched, diffusion-treated, and heavy-duty surface-engineered zones.

• Supports hardness verification of large mechanical parts, industrial metal plates, heat-treated assemblies, and welded structures.

• Useful for evaluating coating systems on tooling blocks, wear-resistant surfaces, and heavy coatings.

• Applicable to laboratories conducting heat-treatment development, metallurgical evaluation, industrial process monitoring, and structural quality validation.

Technical Parameters

Standard Accessories

Note: Hardness tester measuring software is available as an optional accessory to eliminate human errors, enable computer-based operation, improve efficiency, and achieve higher precision.
