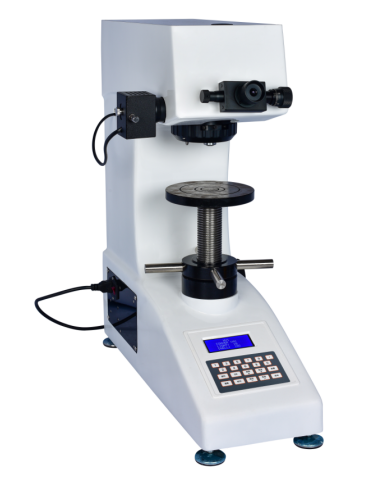

CHV-30Z Vickers Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Auto turret system enables seamless switching between view and load.
High-resolution optics ensure crisp, accurate indentation outlines.
Digital interface displays diagonals, force, dwell time, and hardness.
Product Description
The CHV-30Z Vickers Hardness Tester integrates optical measurement, mechanical precision, electronic control, and digital data processing into a high-stability hardness testing platform. It features a closed-loop loading system, automatic turret switching, dual optical channels, adjustable illumination, and a high-definition optical imaging system. The digital interface allows direct input of indentation diagonals and automatically calculates the hardness value. With a one-piece cast-aluminum structure and smooth testing workflow, the CHV-30Z is ideal for evaluating metals, hardened layers, thin sheets, carbonized structures, coatings, and brittle materials such as ceramics and glass.
Product Advantages
The optical system designed by senior optical engineers provides sharp, bright, distortion-free images; illumination level is adjustable for extended operation.
Industrial display panel shows four-digit hardness value, diagonal lengths (D1/D2), dwell time (1–98 s), test force, measurement count, and conversion scales.
One-piece cast-aluminum body ensures excellent structural rigidity, long-term dimensional stability, and enhanced scratch resistance.
Automatic turret switching enables rapid transitions between observation, loading, and measurement, reducing operator time and repetitive motion.
Closed-loop loading maintains high test-force accuracy across HV0.2–HV30 ranges, improving repeatability and minimizing operator influence.
Dual optical channels (eyepiece + CCD imaging) allow simultaneous observation and digital capture without switching optical paths.
Measurement precision supported by 0.5 μm optical resolution and 400 μm measuring range, suitable for thin layers and micro-indentation analysis.
Supports HV/HK modes, auto loading, and sample heights up to 165 mm.
Application Range
Steel, non-ferrous metals, thin plates, foils, microstructures
Carburized, nitrided, hardened, and decarburized layers
Electroplated coatings, thin films, heat-treated components
Glass, wafers, ceramics, brittle materials
Technical Parameters
| Parameter | Value |
|---|---|
| Hardness Scales | HV0.2–HV30 |
| Display | Hardness (4 digits), D1/D2, dwell time, brightness, count |
| Test Forces | 0.2 / 0.3 / 0.5 / 1 / 2 / 2.5 / 3 / 5 / 10 / 20 / 30 kgf |
| Test Modes | HV / HK |
| Turret Switching | Automatic |
| Objectives | 10×, 20× (optional 40×) |
| Total Magnification | 100×, 200× |
| Resolution | 0.5 μm |
| Measurement Range | 400 μm |
| Dwell Time | 1–98 s |
| Loading Control | Automatic Load / Hold / Unload |
| Optical Channels | Eyepiece + CCD imaging |
| Hardness Range | 5–9999 HV |
| XY Stage (Optional) | 100×100 mm, 25×25 mm travel, 0.01 mm min. reading |
| Max Sample Height | 165 mm |
| Max Sample Width | 130 mm |
| Power Supply | AC220V / 50Hz |
| Dimensions | 585×200×630 mm |
| Weight | 42 kg |
| Standards | ISO 6507 / ASTM E92 / JIS Z2244 |
Standard Accessories
| Item | Qty |
|---|---|
| Main Unit | 1 |
| Large & Medium V-Type Test Tables | 1 each |
| Leveling Screws | 4 |
| Power Cable | 1 |
| 10× Measuring Eyepiece | 1 |
| Vickers Hardness Blocks | 2 |
| 2A Fuses | 2 |
| Certificate | 1 |
| User Manual | 1 |
Note: Hardness tester measuring software is available as an optional accessory to eliminate human errors, enable computer-based operation, improve efficiency, and achieve higher precision.
