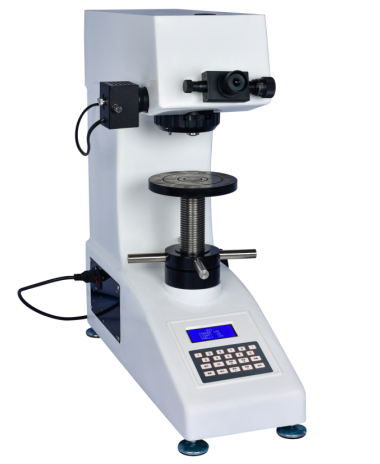

CHV-30 Vickers Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
High-stability load system maintains force accuracy across HV ranges.
Precision optics provide uniform illumination and sharp indent edges.
Rigid metrology frame reduces structural drift during micro-testing.
Measurement engine supports consistent diagonal reading and low error.
Product Description
The CHV-30 Vickers Hardness Tester is a high-precision optical–mechanical–electronic integrated system featuring a closed-loop loading structure for stable and accurate test forces. It incorporates a high-magnification optical system, dual optical channels, adjustable brightness, and a clear digital display. The instrument allows direct input of indentation diagonal length through the keypad, automatically calculating and displaying the hardness value. With a solid cast-aluminum body, scratch-resistant finish, and ergonomic operation, the CHV-30 is ideal for metals, hardened layers, thin plates, carbonized structures, coatings, and brittle materials such as ceramics and glass.
Product Advantages
High-grade optical system designed by professional optical engineers provides bright, sharp images and can also be used as a simple microscope; brightness is adjustable for long sessions.
Industrial LCD panel displays hardness values (four digits), diagonal lengths (D1/D2), test force, dwell time (1–98 s), count, converted scales, and brightness levels.
Cast-aluminum housing formed in one piece ensures rigidity, long-term dimensional stability, and excellent scratch resistance.
Manual turret switching enables rapid transition between observation, indentation, and measurement, allowing efficient workflow control.
Closed-loop loading ensures force accuracy across HV0.2–HV30 levels, reducing operator influence and improving repeatability.
Dual optical channels (eyepiece + CCD) provide simultaneous viewing and digital capture without changing optical paths.
Measurement precision supported by 0.5 μm resolution and a 400 μm measuring range, suitable for micro-indentation and thin-layer hardness evaluation.
Application Range
Steel, non-ferrous metals, metal foil, thin plates, microstructure analysis
Carburized, nitrided, decarburized and hardened layers
Electroplated coatings, thin films, heat-treated parts
Glass, wafers, ceramics, brittle materials
Technical Parameters
| Parameter | Value |
|---|---|
| Hardness Scales | HV0.2–HV30 |
| Display | 4-digit hardness, D1/D2, dwell time, brightness, count |
| Test Forces | 0.2 / 0.3 / 0.5 / 1 / 2 / 2.5 / 3 / 5 / 10 / 20 / 30 kgf |
| Test Modes | HV / HK |
| Turret Switching | Manual |
| Objectives | 10×, 20× (Optional 40×) |
| Total Magnification | 100×, 200× |
| Measurement Range | 400 μm |
| Resolution | 0.5 μm |
| Loading Control | Automatic load / hold / unload |
| Dwell Time | 1–98 s |
| Optical Channels | Eyepiece + CCD |
| Hardness Range | 5–9999 HV |
| XY Stage (Optional) | 100×100 mm, 25×25 mm travel, 0.01 mm min. reading |
| Max Sample Height | 165 mm |
| Max Sample Width | 130 mm |
| Power Supply | AC220V / 50Hz |
| Dimensions | 585×200×630 mm |
| Weight | 42 kg |
| Standards | ISO 6507 / ASTM E92 / JIS Z2244 |
Standard Accessories
| Item | Qty |
|---|---|
| Main Unit | 1 |
| Large / Medium V-type Test Tables | 1 each |
| Leveling Screws | 4 |
| Power Cable | 1 |
| 10× Measuring Eyepiece | 1 |
| Vickers Hardness Blocks | 2 |
| Fuses (2A) | 2 |
| Certificate | 1 |
| User Manual | 1 |
Note: Hardness tester measuring software is available as an optional accessory to eliminate human errors, enable computer-based operation, improve efficiency, and achieve higher precision.
