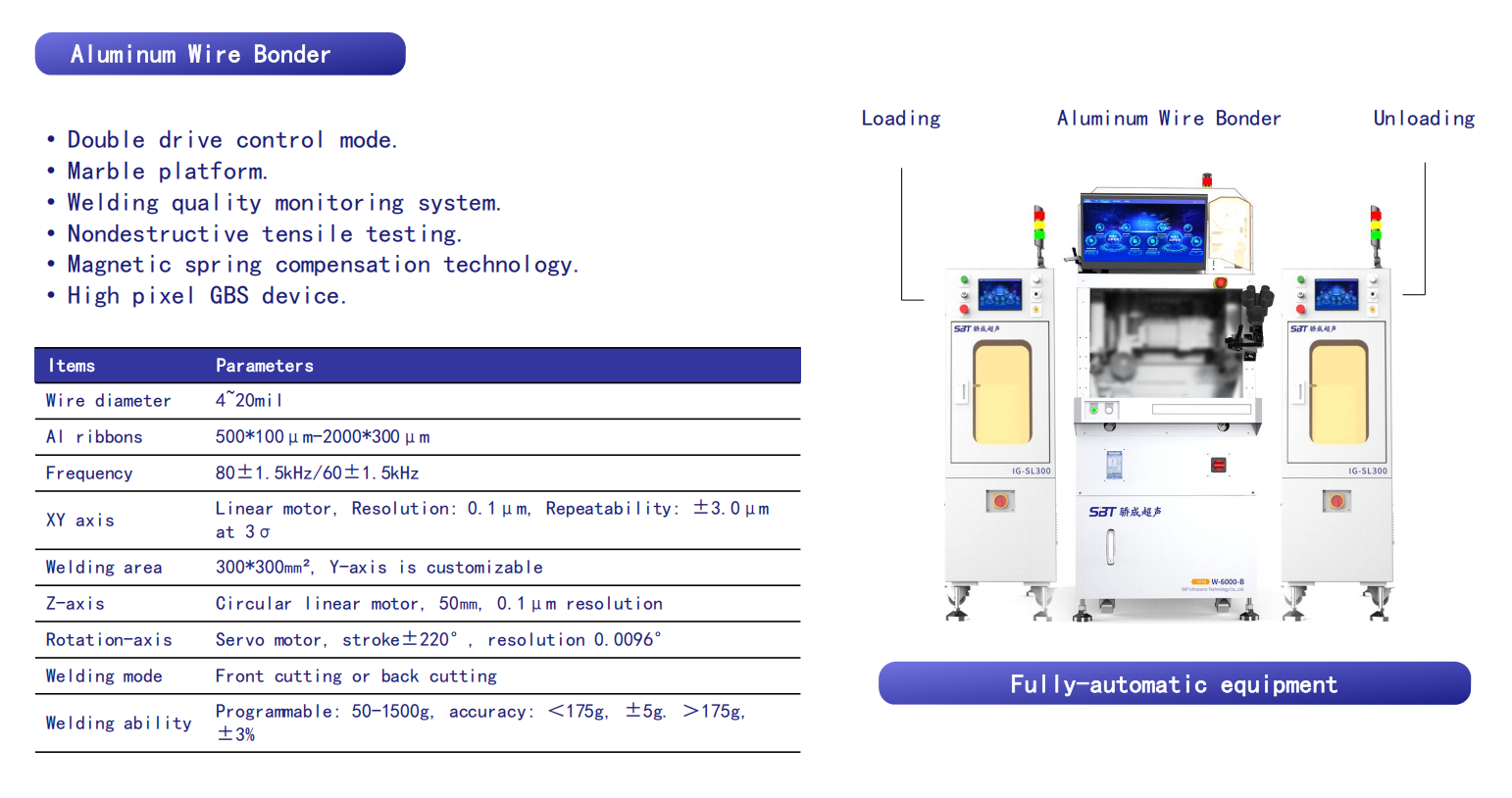

Wire Bonder for Industrial Welding Applications
• Double drive control mode. • Marble platform. • Welding quality monitoring system. • Nondestructive tensile testing. • Magnetic spring compensation technology. • High pixel GBS device.
Wire Bonder Applications and Related Testing Solutions
Wire Bonder supports industrial testing and quality inspection applications that require stable operation, clear measurement results, and dependable process control.
Related Products: C-SAM/SAT (Scanning Acoustic Microscope) | Pin Ultrasonic Welder | Terminal Ultrasonic Welder
Items | Parameters |
|---|---|
Wire diameter | 8~20 mil |
Frequency | 80±1.5kHz/60±1.5kHz |
XY axis | Linear motor, Resolution: 0.1μm, Repeatability: ±3.0μm at 3σ |
Welding area | 300×300mm², Y-axis is customizable |
Z-axis | Circular linear motor, 50mm stroke, 0.1μm resolution |
Rotation-axis | Servo motor, stroke±220°, resolution 0.0096° |
Loading mode | Bin/flow line/modular and fully automated system |
Welding mode | Front cutting or back cutting |
Welding ability | Programmable: 50-5000g, accuracy: <175g±5g, >175g±3% |
