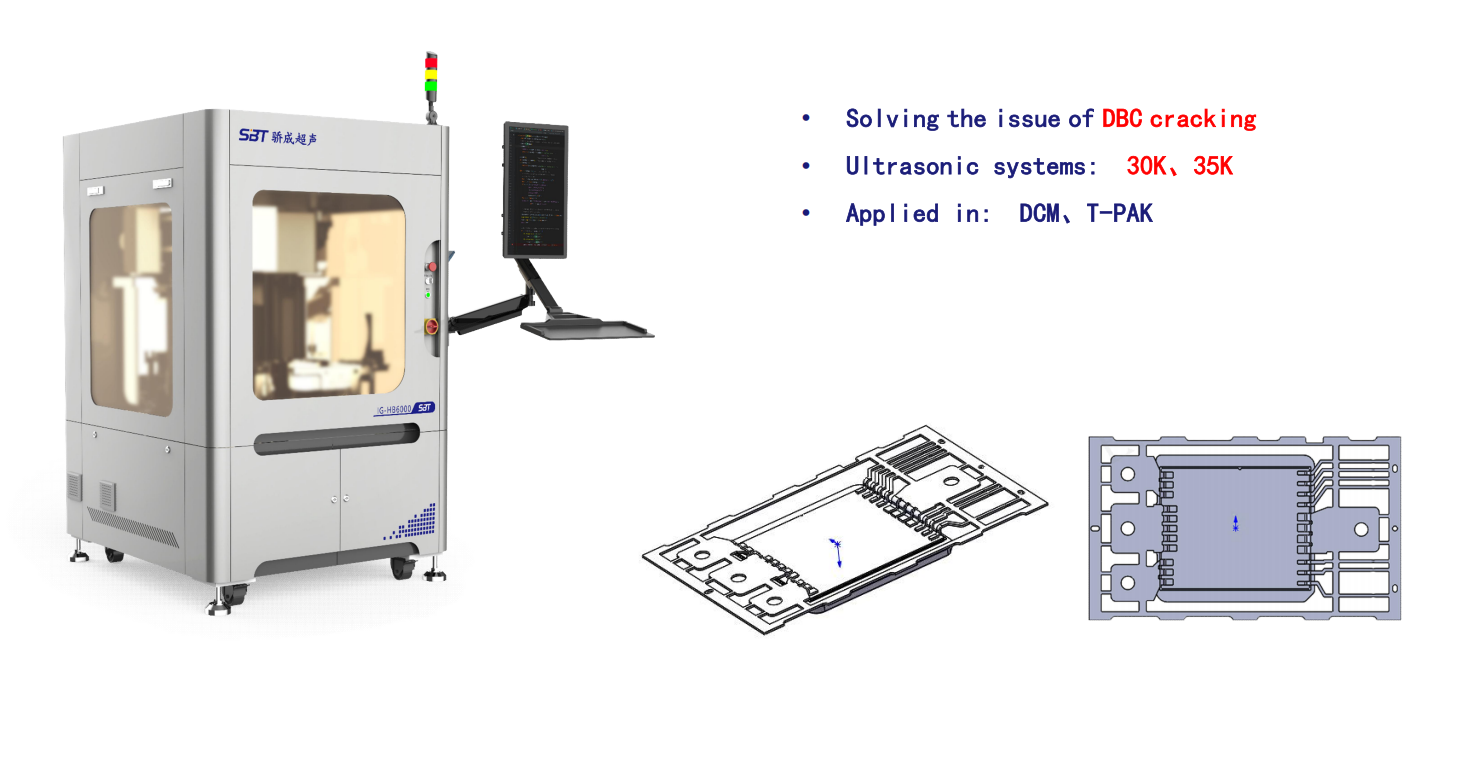

Terminal Ultrasonic Welder for Industrial Welding Applications

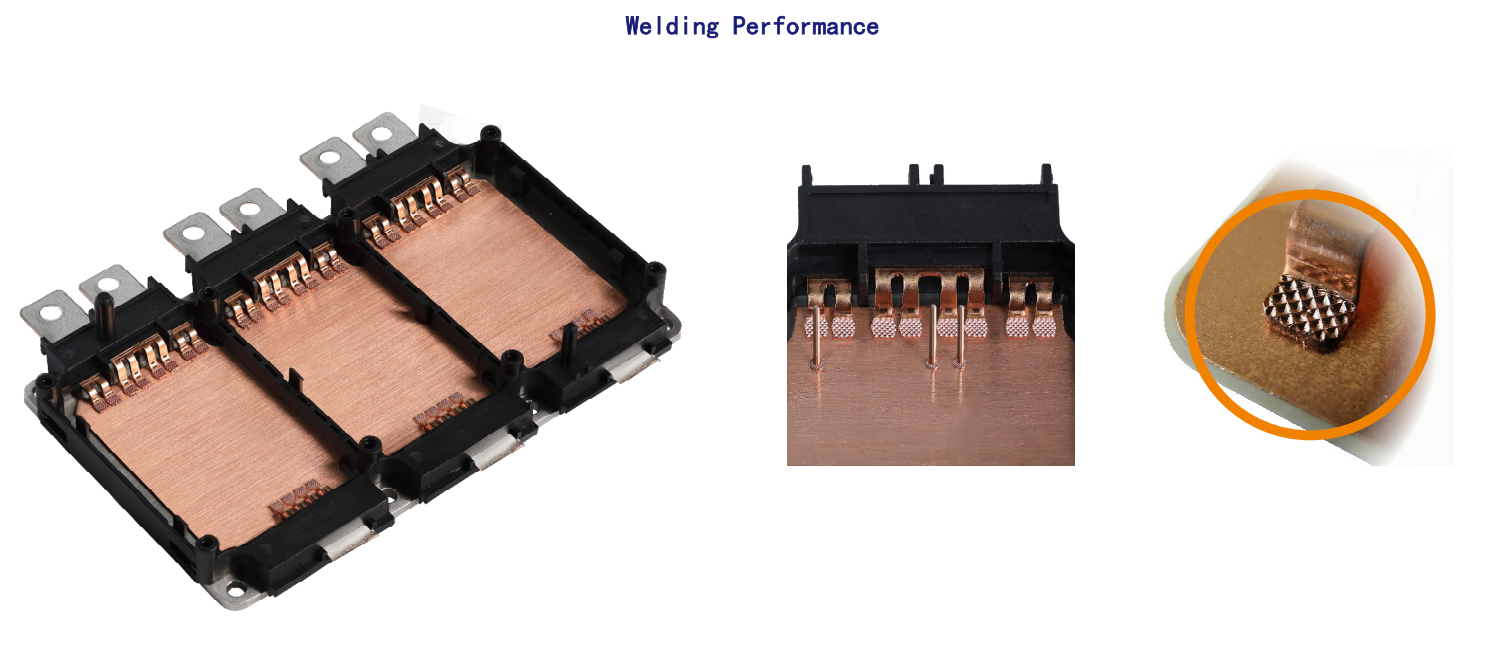

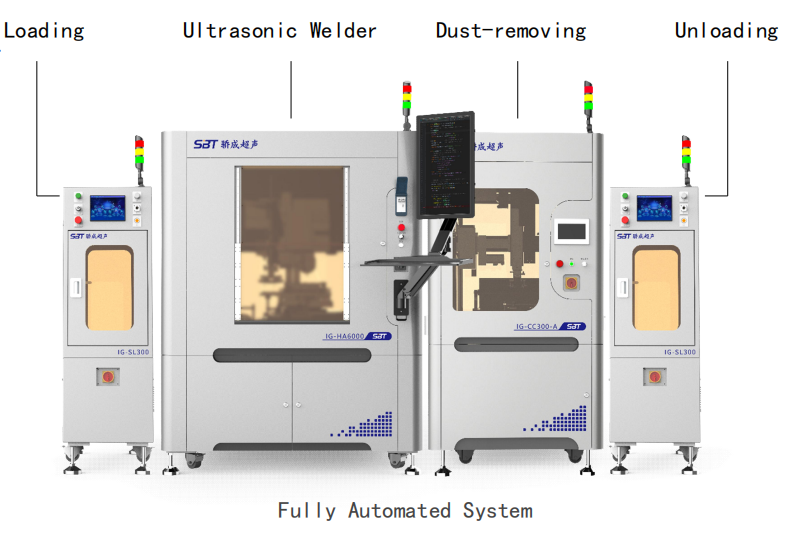

Excellent welding performance. Wide welding area. Equipped with CCD camera line scanning for automatic positioning and welding. High - precision motion control enables multi - parameter precise regulation. Flexible automation system support
Terminal Ultrasonic Welder Applications and Related Testing Solutions
Terminal Ultrasonic Welder supports industrial testing and quality inspection applications that require stable operation, clear measurement results, and dependable process control.
Related Products: C-SAM/SAT (Scanning Acoustic Microscope) | Wire Bonder | Pin Ultrasonic Welder
Technical Parameters
Items | Parameters |
|---|---|
Welding mode | Time/Energy/Height |
Loading mode | Semi - automatic/Fully automatic |
Amplitude range | 50% ~ 100% |
Weldable area | 2 ~ 25 mm² |
Weldable thickness | 0.3 ~ 1.5 mm |
Positioning system | Visual positioning & visual guidance |
Motion system | Fully servo control |
Quality monitoring | Various data monitoring, process control |
MES system | Available |
Optional | Scanning gun, dust - removing system |
