SHBRV-187.5F Touchscreen Digital Brinell-Rockwell-Vickers Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Combines Brinell, Rockwell, and Vickers hardness tests in one.
Sensor-based system ensures precise and stable test results.
7-inch touchscreen shows multi-scale hardness data in real time.
Auto calibration, data storage, USB output, and multi-language support.
Product Description

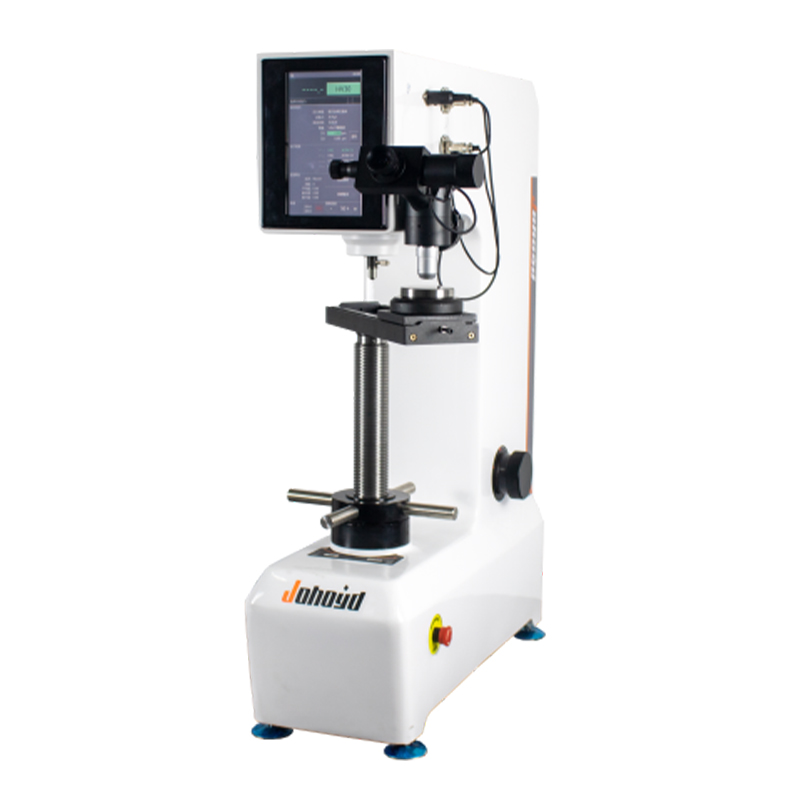

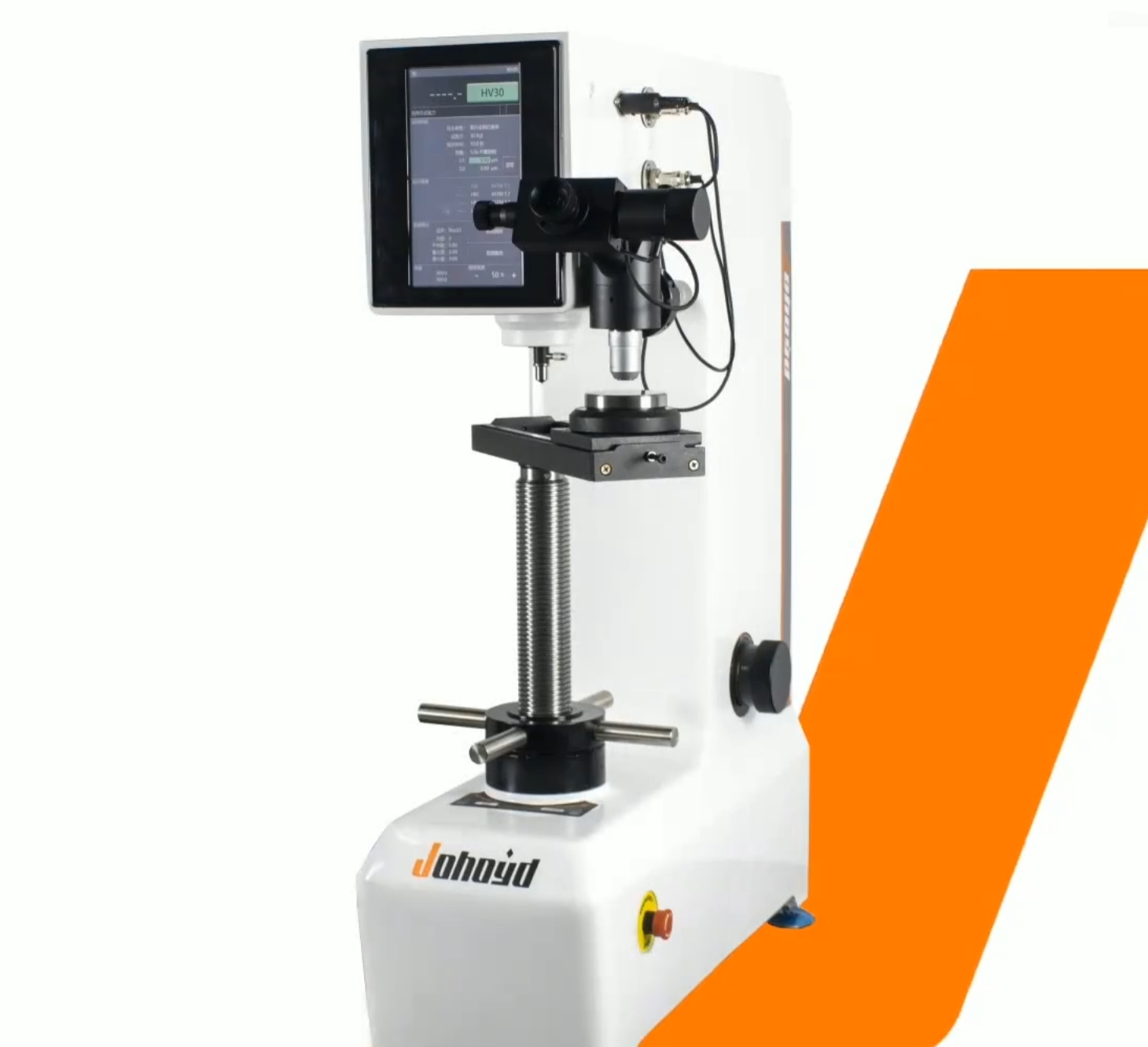

The SHBRV-187.5F Touchscreen Digital Brinell-Rockwell-Vickers Hardness Tester is a high-tech instrument that integrates optical, mechanical, and electronic systems.
It combines three hardness testing methods—Brinell, Rockwell, and Vickers—offering 23 hardness scales to meet diverse testing requirements.
This instrument features a closed-loop loading control system, ensuring high precision, repeatability, and stable readings.

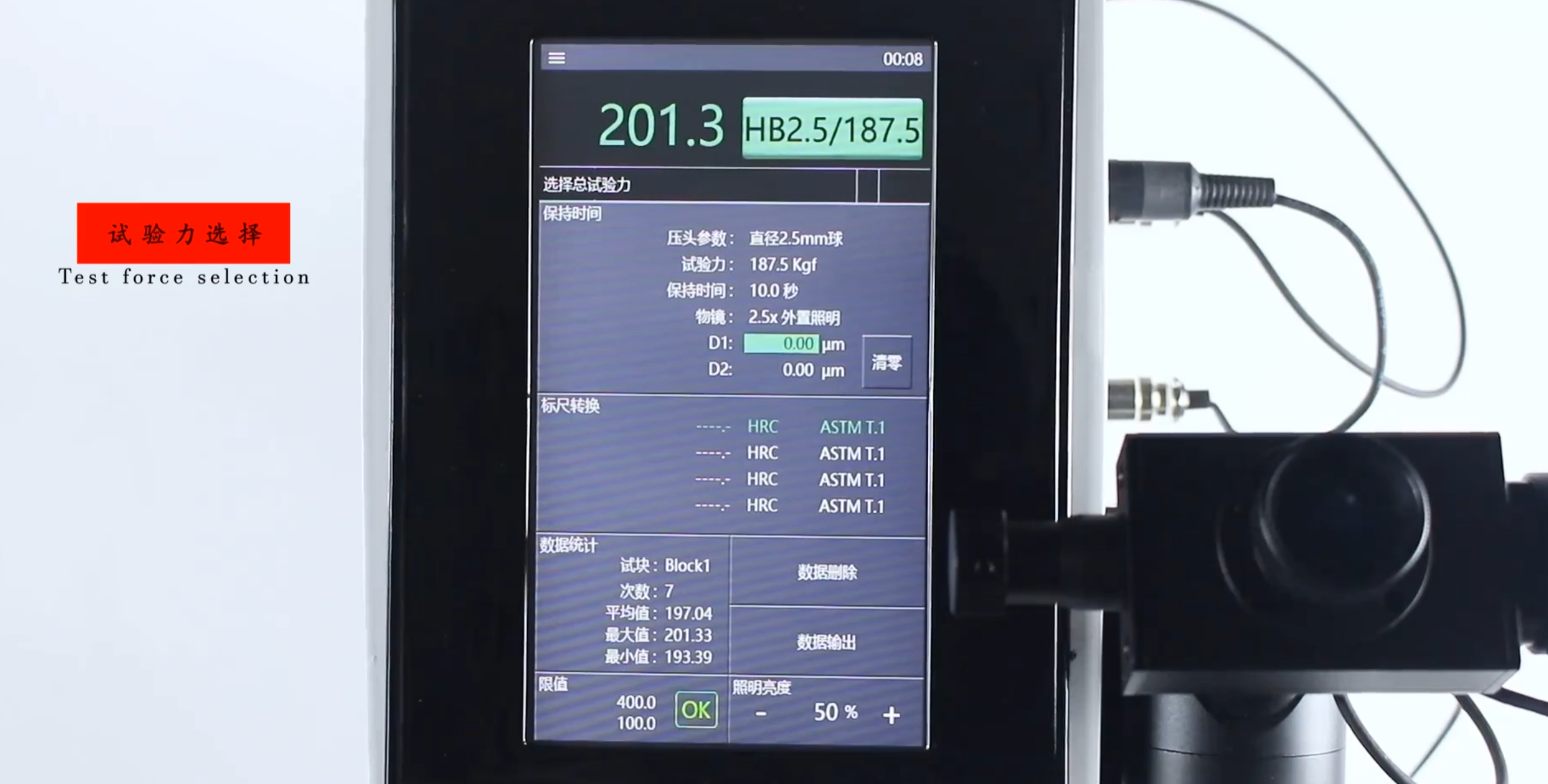

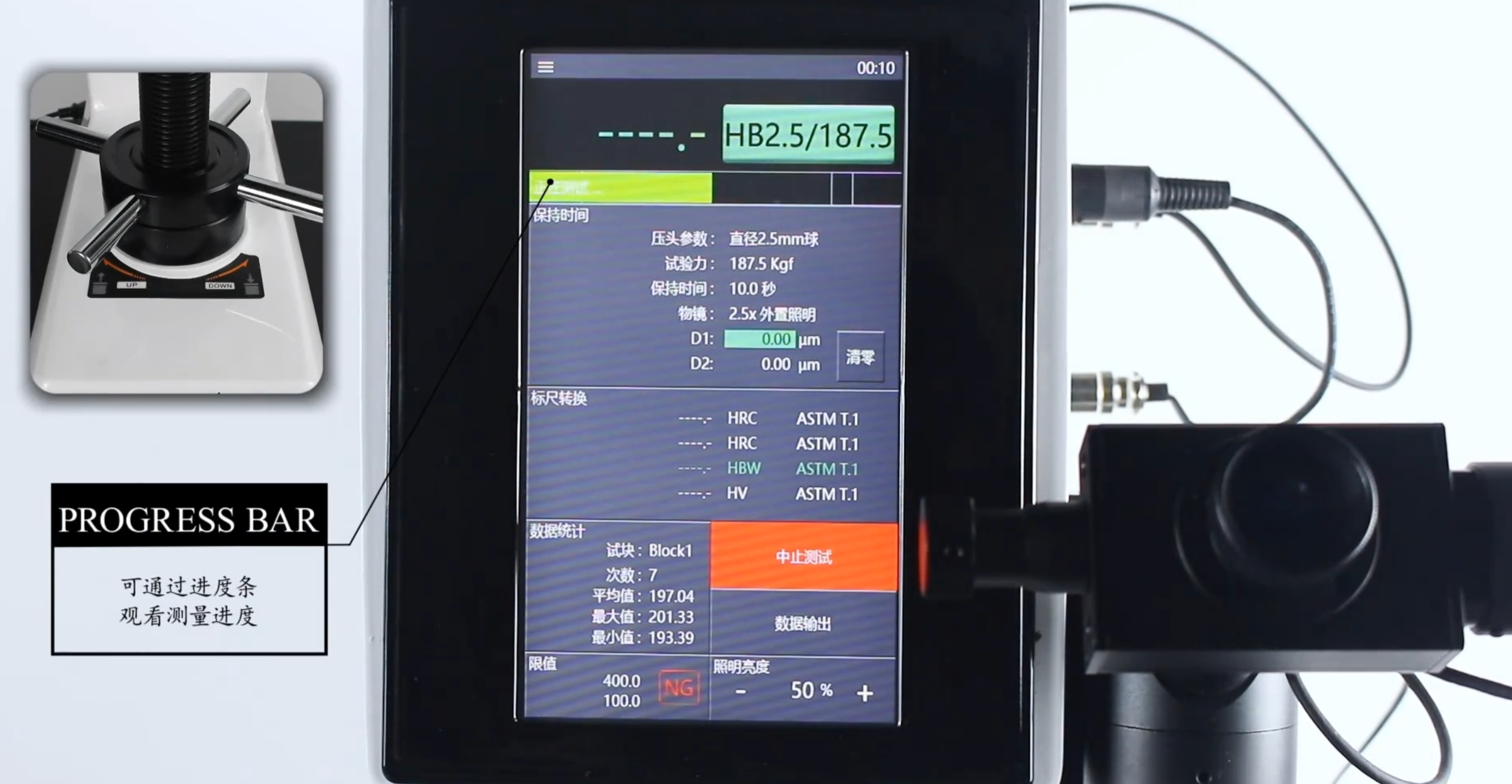

The 7-inch touchscreen provides a clear and intuitive interface for test operation and display. It shows test method, load, brightness, dwell time, number of tests, and statistical data in real time.

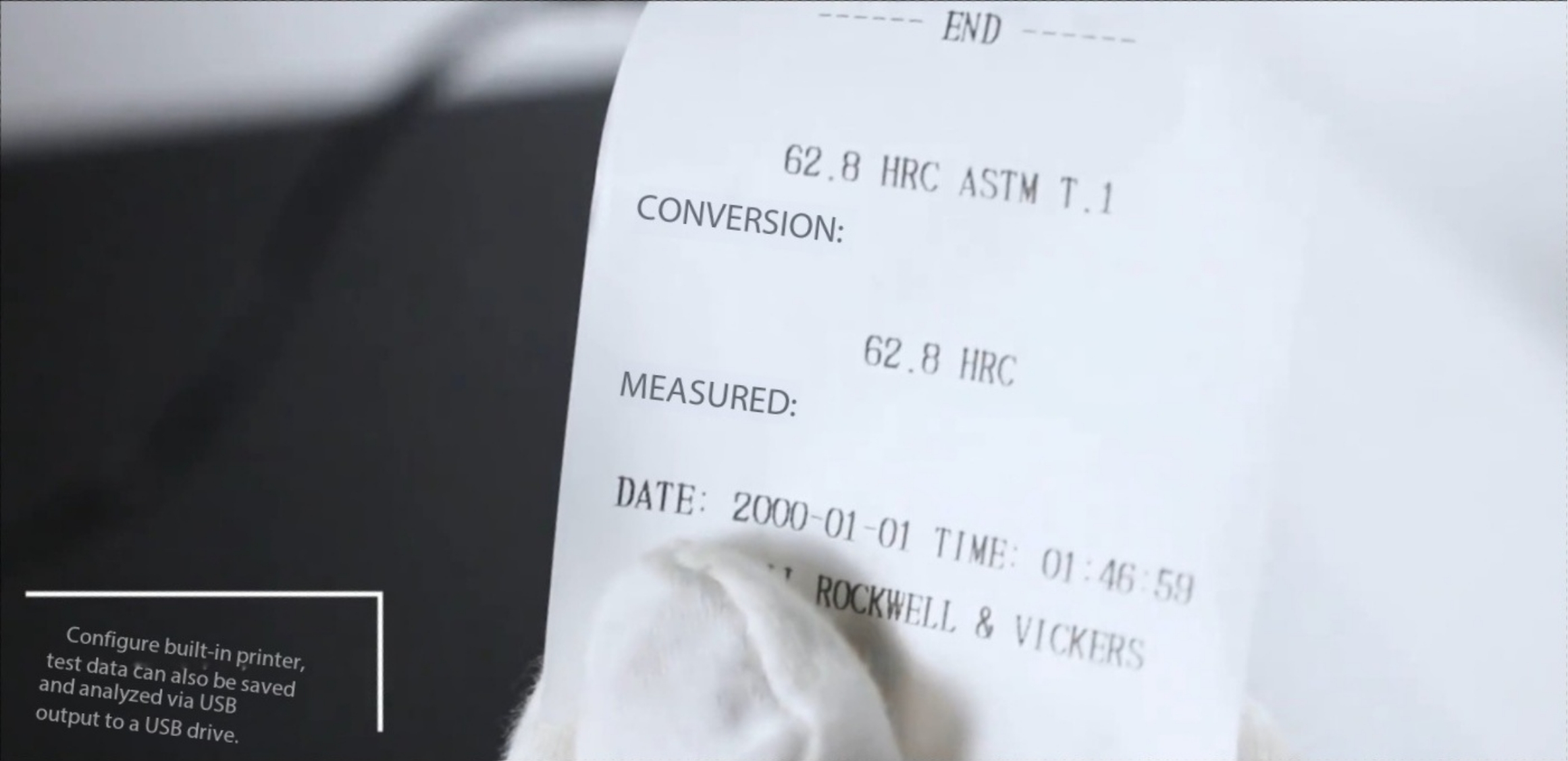

Equipped with an internal printer and USB output, results can be printed directly or exported for analysis.
The tester supports 13 languages, automatic calibration, upper and lower limit alarm, and multiple hardness conversions (GB, ASTM, ISO standards).
The all-cast metal shell with automotive-grade white paint provides rigidity, scratch resistance, and lasting brightness, making it an ideal choice for factories, laboratories, and research institutions.
Product Advantages

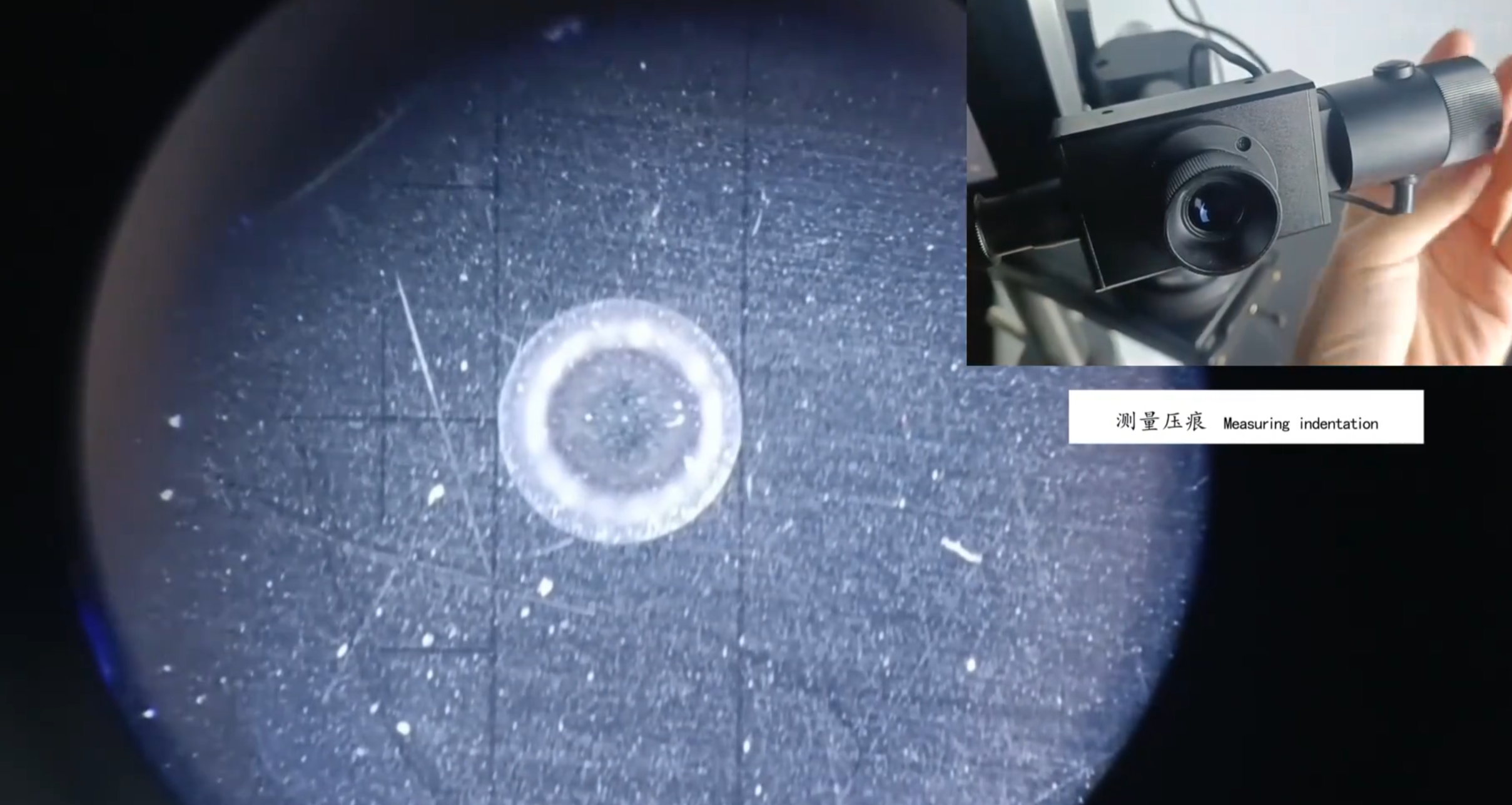

High-clarity optical system designed by senior engineers, adjustable brightness, comfortable for long use, doubles as a basic microscope.
7-inch touchscreen displays hardness value, conversion, test method, load, dwell time, statistics, and test records.
Built-in calibration allows manual correction of measurement errors.
Automatic radius correction when testing curved surfaces.
Adjustable LED brightness (0–100) with anti-fatigue viewing experience.
Stores 100 sets of test data, supports data review and deletion.
Test force units can be switched between Kgf and N.

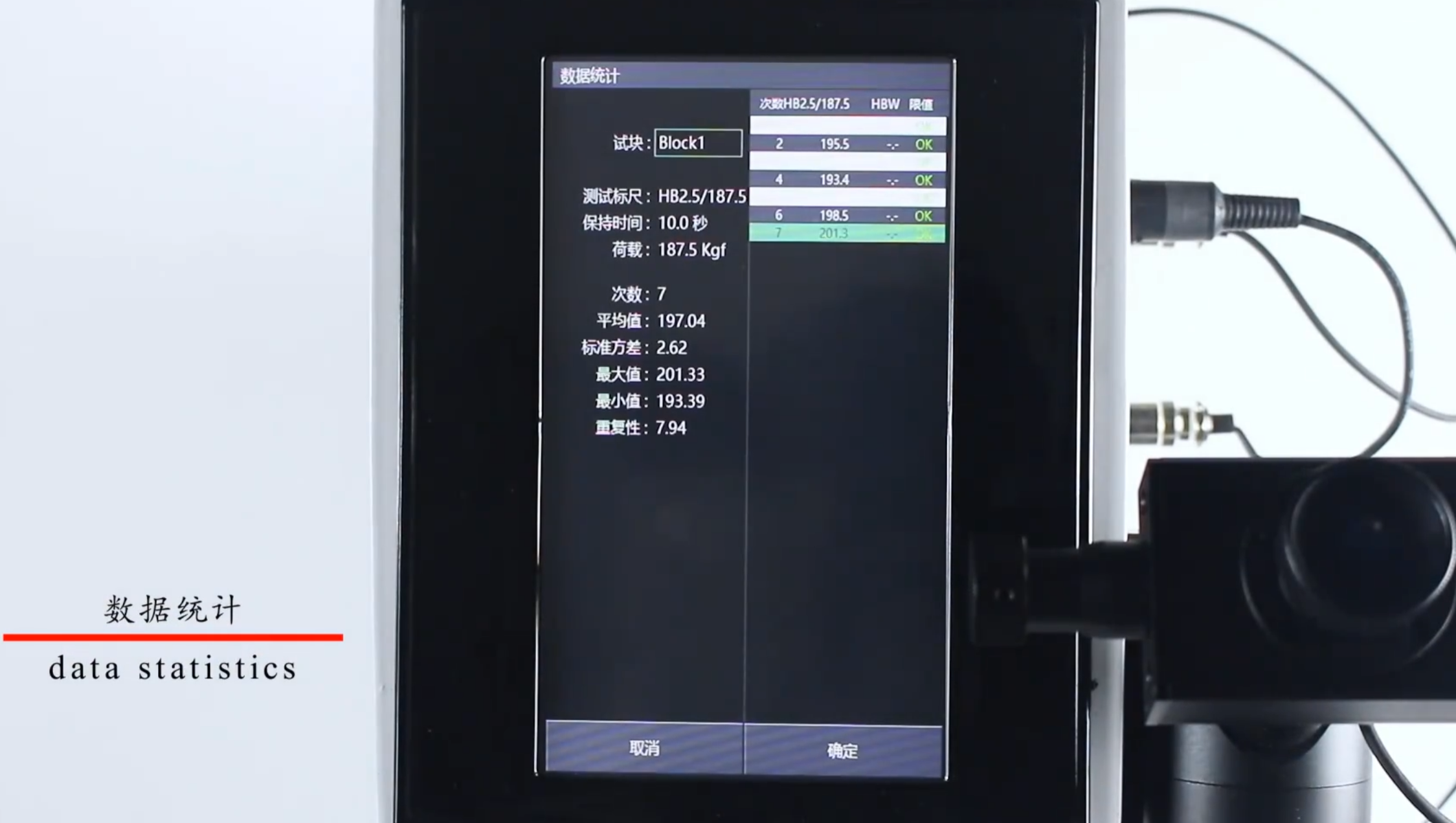

Displays maximum, minimum, average values, test times, and sample name.
Supports 21 hardness scales across GB, ASTM, and ISO standards.
Memory function retains data after shutdown; no reset needed.
Upper/lower limit alarms automatically mark failed values.
13-language interface: Chinese, English, Russian, German, French, Spanish, Portuguese, Turkish, Czech, Japanese, Korean, Thai, Vietnamese.
Combines Brinell, Rockwell, and Vickers tests with seven test forces.
Internal printer and USB output for report generation and data export.
Cast metal structure, rigid and stable, resistant to deformation.
Automotive-grade coating, scratch-resistant, bright, and durable.
Lifetime parts replacement and upgrade support.
Application Range
The SHBRV-187.5F is suitable for testing ferrous, nonferrous, and alloy materials using Brinell, Rockwell, and Vickers methods.
It can measure castings, annealed steel, normalized steel, quenched and tempered materials, and coatings, thin sheets, and small components.
It is widely used in heat treatment, surface engineering, manufacturing, and material research.
Technical Parameters
| Item | Specification |
|---|---|
| Model | SHBRV-187.5F |
| Brinell Scales | HB1/30, HB2.5/31.25, HB2.5/62.5, HB2.5/187.5, HB5/62.5, HB10/100 |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRS, HRV |
| Vickers Scales | HV30, HV100 |
| Rockwell Test Forces | 60, 100, 150 kgf (588, 980, 1471 N) |
| Brinell Test Forces | 30, 31.25, 62.5, 100, 187.5 kgf (294–1839 N) |
| Vickers Test Forces | 30, 100 kgf (294, 980 N) |
| Magnification | Brinell: 37.5×; Vickers: 75× |
| Calibration | Standard hardness blocks calibration |
| Max Specimen Height | Rockwell: 230 mm; Brinell/Vickers: 180 mm |
| Indenter–Wall Distance | 165 mm |
| Hardness Range | Rockwell: 20–88HRA, 20–100HRB, 20–70HRC; Brinell: 5–650HBW; Vickers: 10–3000HV |
| Reading | Automatic calculation |
| Power Supply | AC220V ±5%, 50–60Hz |
| Dimensions (mm) | 550 × 200 × 720 |
| Weight | 85 kg |
Standard Accessories
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| Digital Eyepiece | 1 | Objective Lenses (2.5×, 5×) | 1 each |
| Vickers Lamp | 1 | Brinell Lamp | 1 |
| Rockwell 1/16” Steel Ball Indenter | 1 | Rockwell Diamond Indenter | 1 |

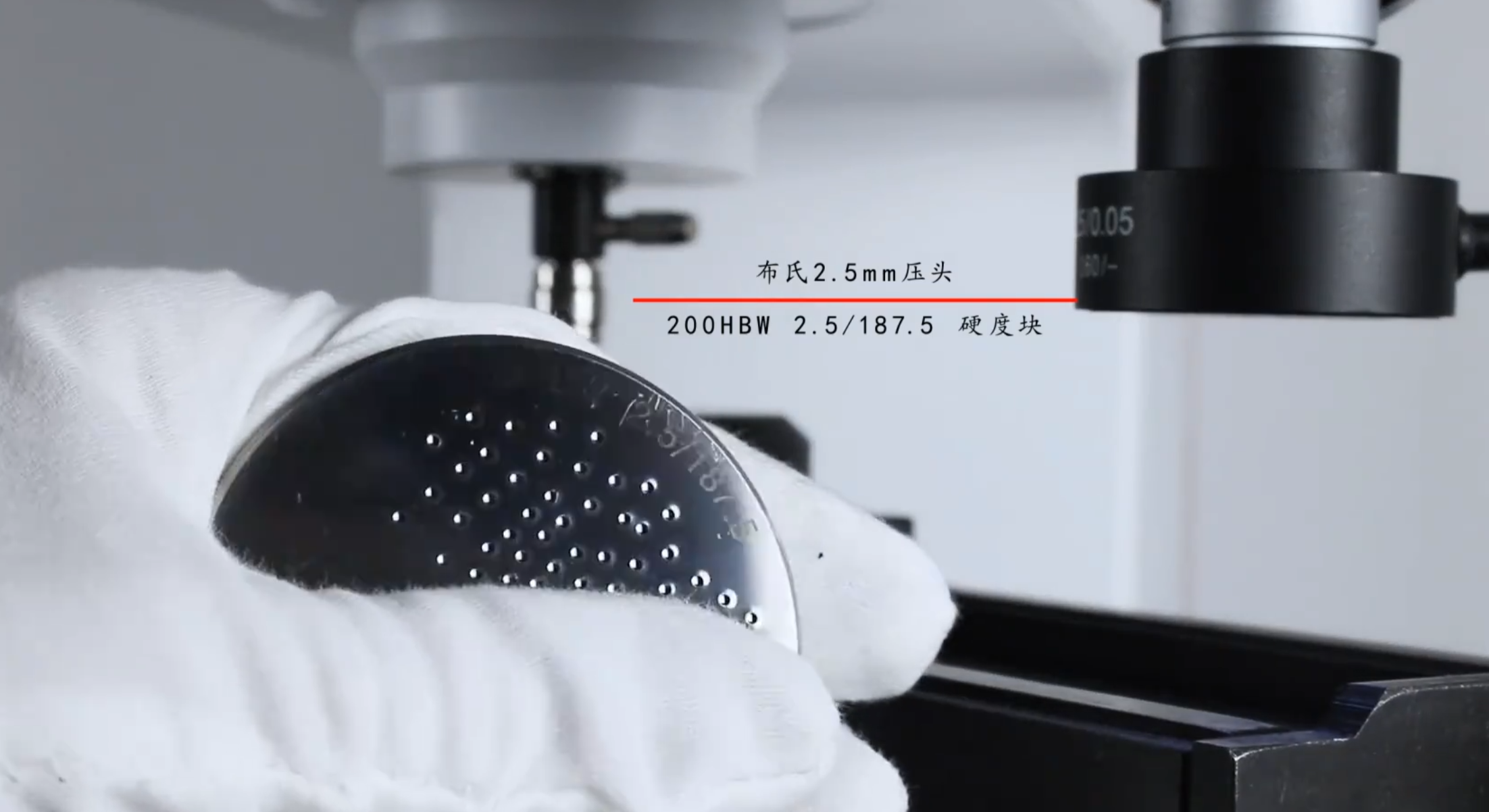

| Brinell Indenters (2.5mm, 5mm) | 1 each | Vickers Diamond Indenter | 1 |
| Standard Rockwell Blocks | 3 | Standard Brinell Block | 1 |
| Standard Vickers Block | 1 | Flat, Medium, V-type Test Tables | 1 each |
| Sliding Test Table | 1 | Power Cable | 1 |
| Dust Cover | 1 | Manual & Certificate | 1 each |
