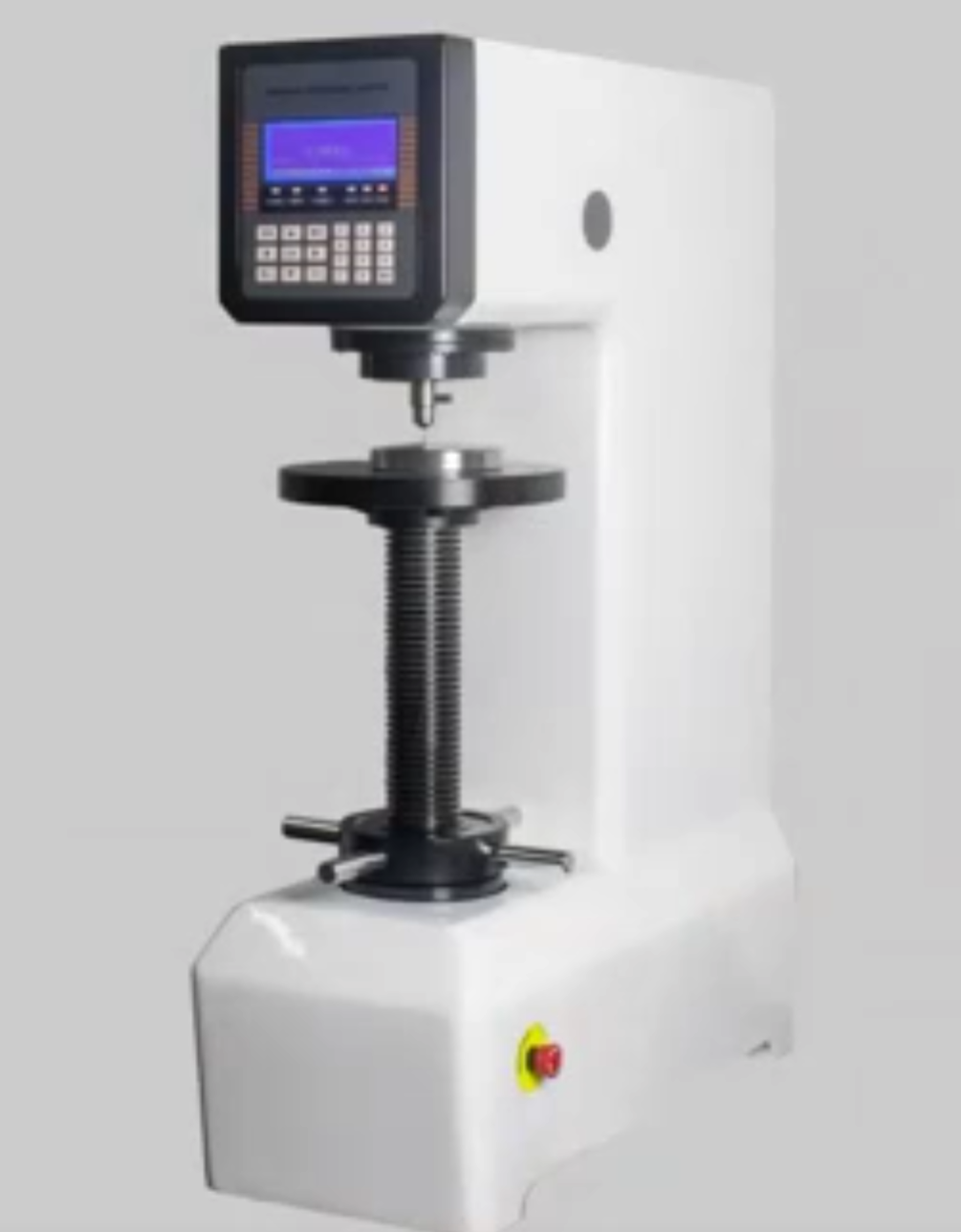

HBE-3000A Electronic Brinell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Advanced CPU system ensures precise test force control.
Built-in printer for direct data recording and reports.
Durable cast shell maintains accuracy in harsh conditions.
Low-noise motorized loading for smooth testing operation.
Product Description

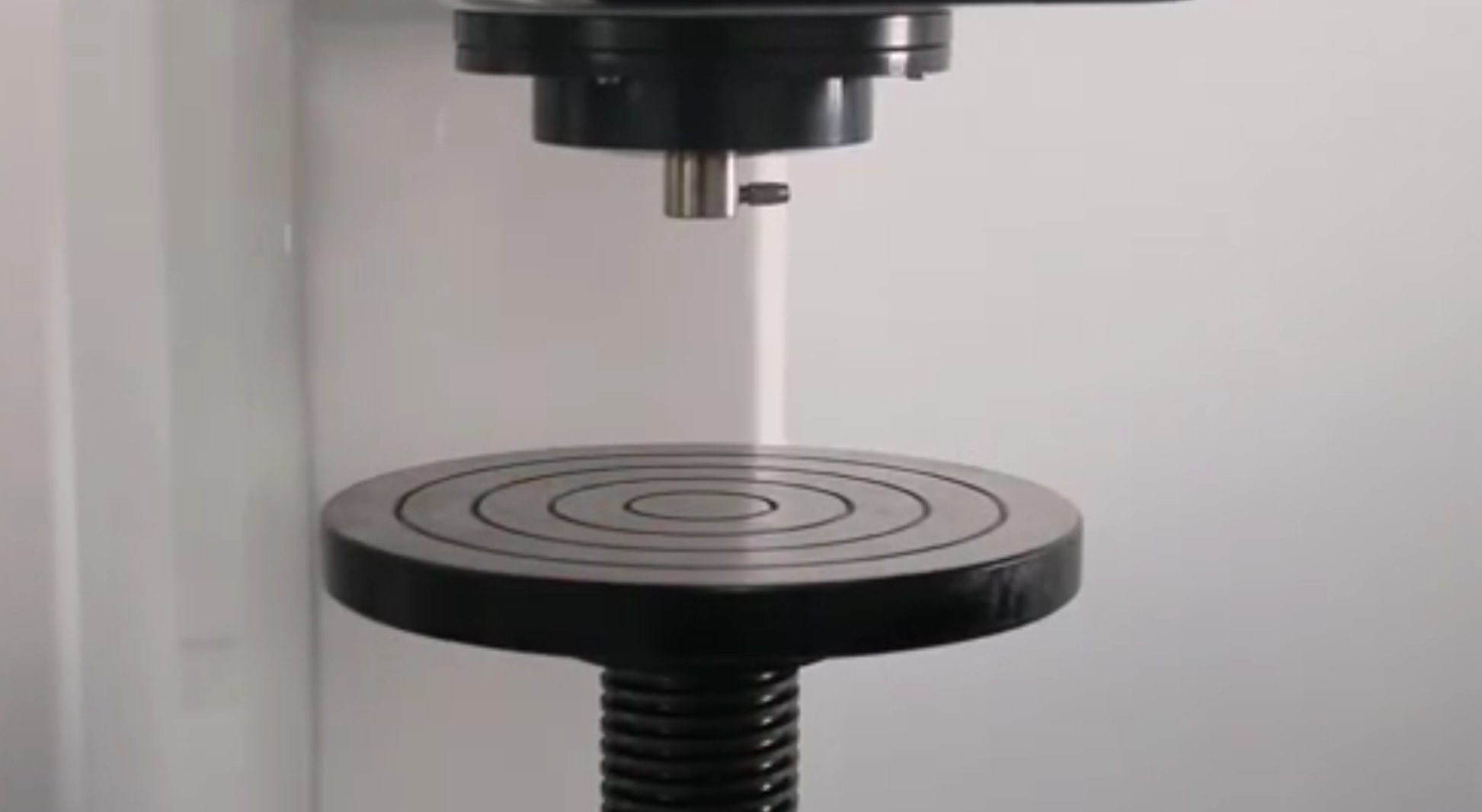

The HBE-3000A Electronic Brinell Hardness Tester adopts advanced electronic sensor loading technology with a closed-loop control system. Controlled by a CPU microcomputer, the system automatically loads and unloads the test force through a stepper motor and compensates for force deviation in real time, ensuring more accurate and stable readings.

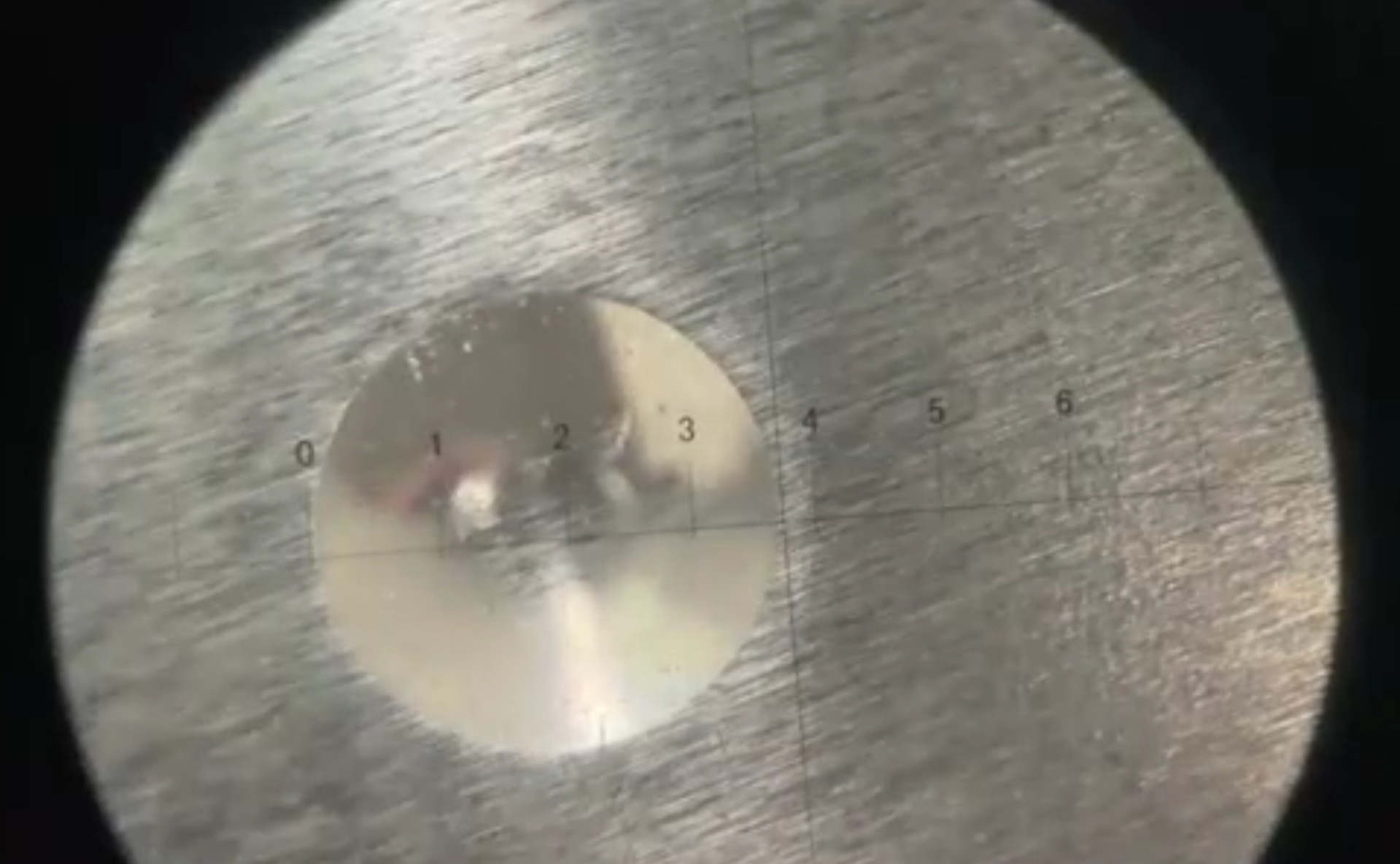

After measuring the indentation through the optical microscope, users can input the indentation length directly to obtain the hardness value, improving efficiency and repeatability. The tester also includes an emergency stop function and complies with EU CE safety standards, offering reliable operation, high precision, and excellent cost performance. It is widely used in factories, laboratories, universities, and research institutes.
Product Advantages

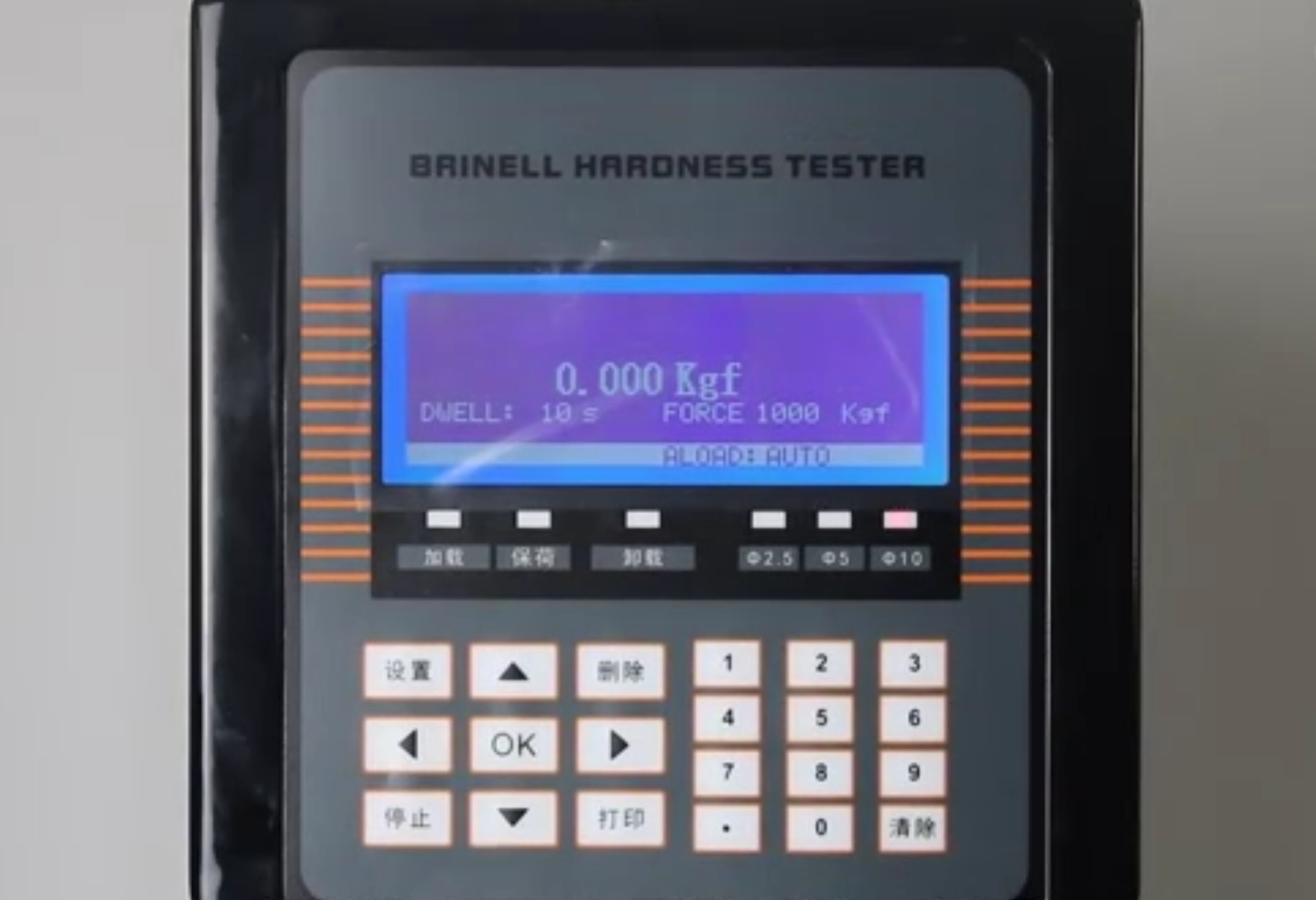

Equipped with precision sensors and CPU control for automatic compensation and stable test results.
Provides 10 levels of test force for a wide measuring range.
Measures indentation via microscope and calculates hardness directly.
Built-in printer for data analysis and record output.
High-performance stepper motor provides automatic load/unload with minimal noise.
Cast metal housing ensures structure stability and deformation resistance.
Automotive-grade paint finish with strong scratch resistance and long-lasting gloss.
Optional Brinell image measuring software improves working efficiency.
Technical Parameters
| Item | Specification |
|---|---|
| Model | HBE-3000A |
| Brinell Scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test Force | 62.5kgf (612.9N), 100kgf (980.7N), 125kgf (1226N), 187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N), 750kgf (7355N), 1000kgf (8907N), 1500kgf (14710N), 3000kgf (29420N) |
| Load Control | Automatic (Loading / Holding / Unloading) |
| Max Specimen Height | 220 mm |
| Minimum Measuring Unit | 0.005 mm |
| Holding Time | 0–60 s |
| Hardness Range | 3.18–653 HBW |
| Total Magnification | 20X |
| Distance (Indenter–Wall) | 135 mm |
| Distance (Indenter–Upper Wall) | 55 mm (customizable) |
| Reading Method | Measure indentation, input length, auto hardness value |
| Data Output | Built-in printer (conditions, average, max/min, error) |
| Power Supply | AC220V ±5%, 50–60Hz |
| Dimensions (mm) | 520 × 210 × 745 |
| Weight | 120 kg |
| Standards | EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150-2005 |
Accessories
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| Optical Measuring Microscope | 1 set | Ball Indenters (2.5mm, 5mm, 10mm) | 1 each |
| Standard Hardness Blocks | 3 pcs | Large, Medium, V-type Test Table | 1 each |
| Power Cable | 1 pc | Certificate & Instruction Manual | 1 set |
| Fuse | 2 pcs | Dust Cover | 1 pc |
Application Range
The HBE-3000A is suitable for testing materials with large grain metal structures, providing accurate results that reflect overall mechanical performance.
It is widely used for testing cast iron, steel, nonferrous metals, and alloys, particularly soft metals such as aluminum, lead, and tin.
It can also be used to measure hard plastics, bakelite, and certain nonmetal materials.
