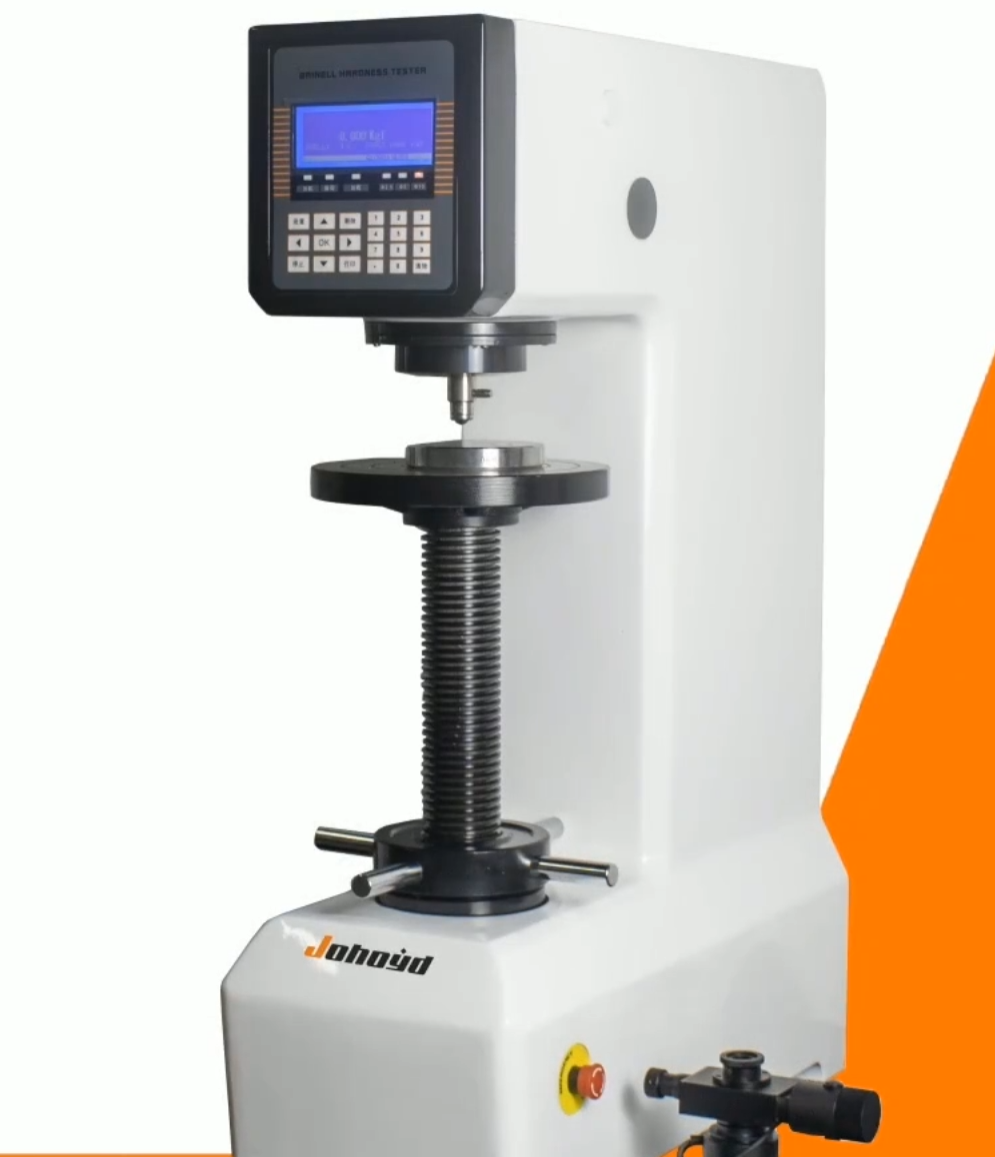

HBE 3000AS Digital Electronic Brinell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Digital Brinell hardness testing improves measurement display and operation. Stable loading supports repeatable testing for steel castings and metal parts. Used in manufacturing laboratories and incoming material inspection.
HBE 3000AS Digital Electronic Brinell Hardness Tester Applications and Related Testing Solutions
HBE 3000AS Digital Electronic Brinell Hardness Tester supports hardness testing and material verification workflows that require stable measurement, practical operation, and reliable quality control data.
Related Products: HBE 3000A Electronic Brinell Hardness Tester | Model 934 1 Barcol Hardness Tester | Precision Granite Surface Plate
Product Description

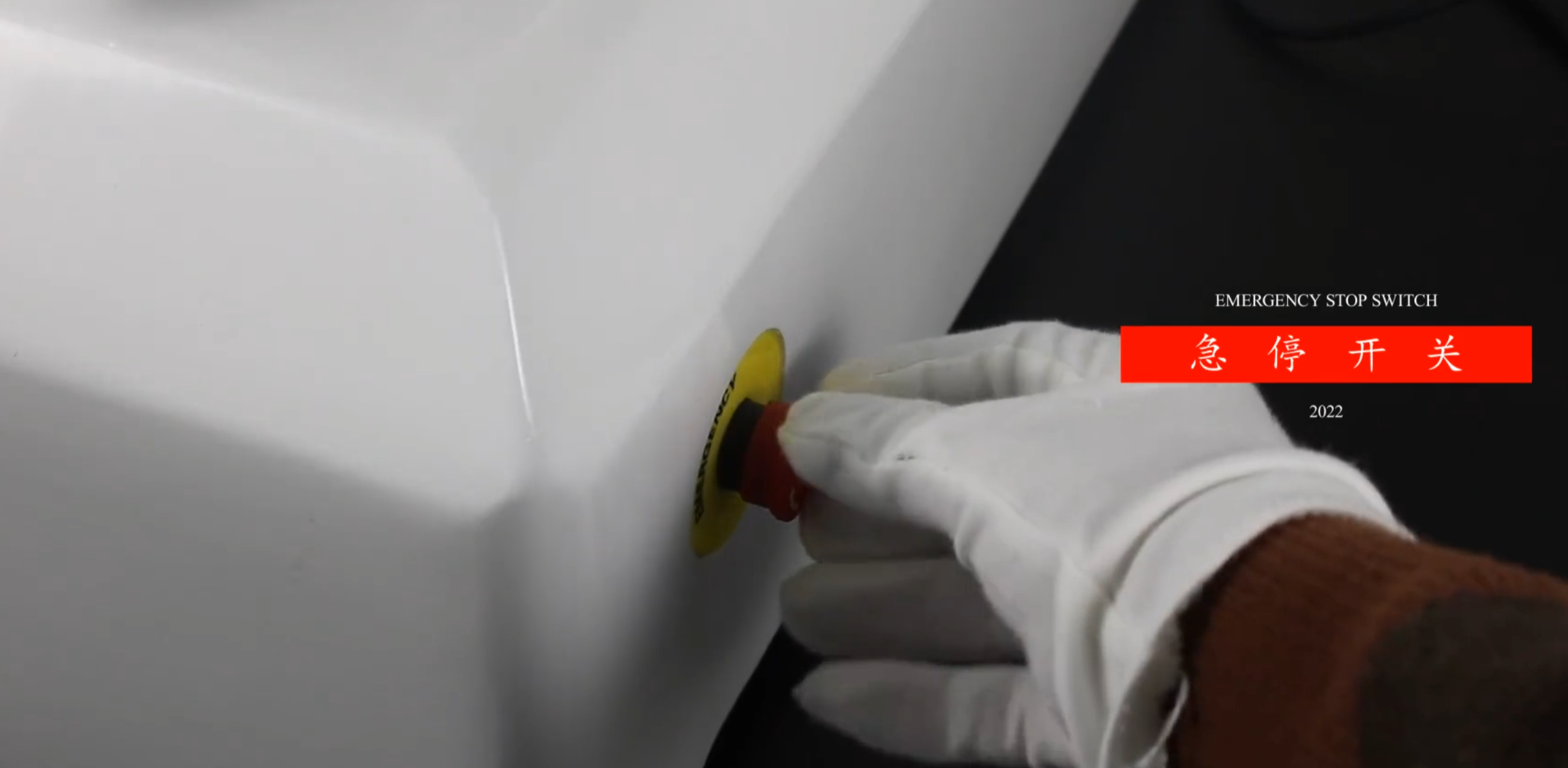

The HBE-3000AS Digital Electronic Brinell Hardness Tester adopts advanced electronic sensor loading technology and a closed-loop control system. Controlled by a CPU microcomputer, the sensor collects and compensates signals automatically to ensure highly accurate and stable force values. The indentation is measured directly through the digital eyepiece to obtain hardness values instantly, improving work efficiency. The device is also equipped with an emergency stop function, complies with CE safety standards, and offers high cost performance. It is widely used in factories, laboratories, universities, and research institutions.
Product Advantages
Equipped with precision sensors and CPU micro-control for automatic compensation and stable results.
Ten levels of test force provide a wider testing range.

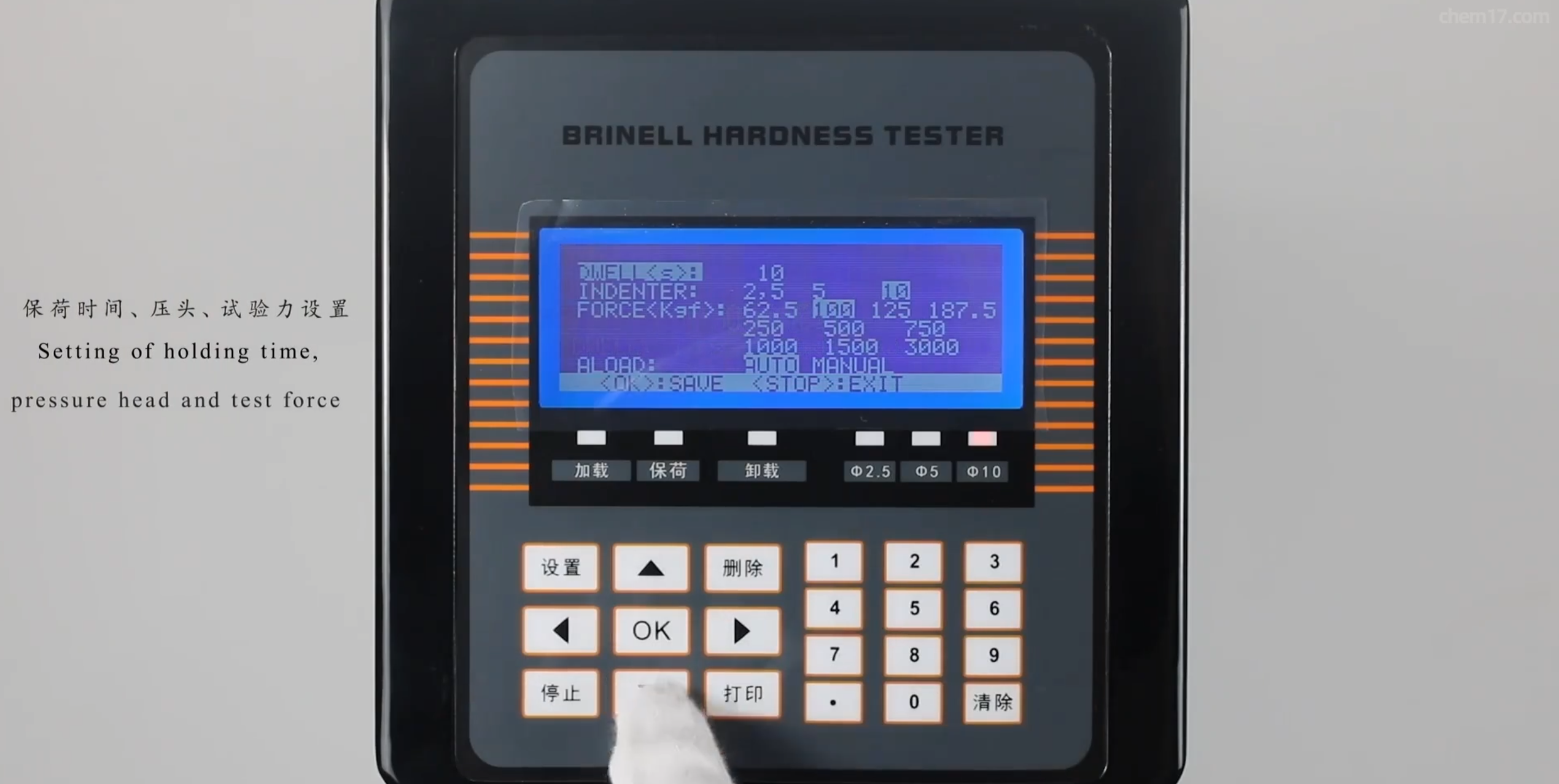

The digital eyepiece directly measures indentation length and hardness.
Built-in printer for convenient data analysis and printing.
High-performance stepper motor ensures automatic loading/unloading with low noise.
One-piece cast shell structure, stable and deformation-resistant for harsh environments.
Automotive-grade paint surface, scratch-resistant and long-lasting gloss.
Optional Brinell image measurement software greatly improves efficiency.
Application Range
This hardness tester is suitable for measuring metals with large crystal grains and can reflect the overall mechanical properties of materials.
It is ideal for cast iron, steel, nonferrous metals, and alloys, especially soft metals such as aluminum, lead, and tin.
It can also be used to test hard plastics, bakelite, and other non-metal materials.
Technical Parameters
| Item | Specification |
|---|---|
| Model | HBE-3000AS |
| Brinell Scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test Force | 62.5–3000 kgf (10 levels) |
| Load Control | Automatic (Loading / Holding / Unloading) |
| Max Test Piece Height | 220 mm |
| Indentation Measurement | Digital eyepiece with built-in light source |
| Minimum Unit | 0.001 mm |
| Dwell Time | 0–60 s |
| Hardness Range | 3.18–653 HBW |
| Total Magnification | 20X |
| Distance (Indenter–Wall) | 135 mm |
| Distance (Indenter–Upper Wall) | 55 mm (customizable) |
| Data Output | Built-in Printer |
| Power Supply | AC220V ±5%, 50–60Hz |
| Dimensions (mm) | 520 × 210 × 745 |
| Weight | 120 kg |
| Standards | EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150-2005 |
Accessories
| Item | Quantity | Item | Quantity |
|---|---|---|---|

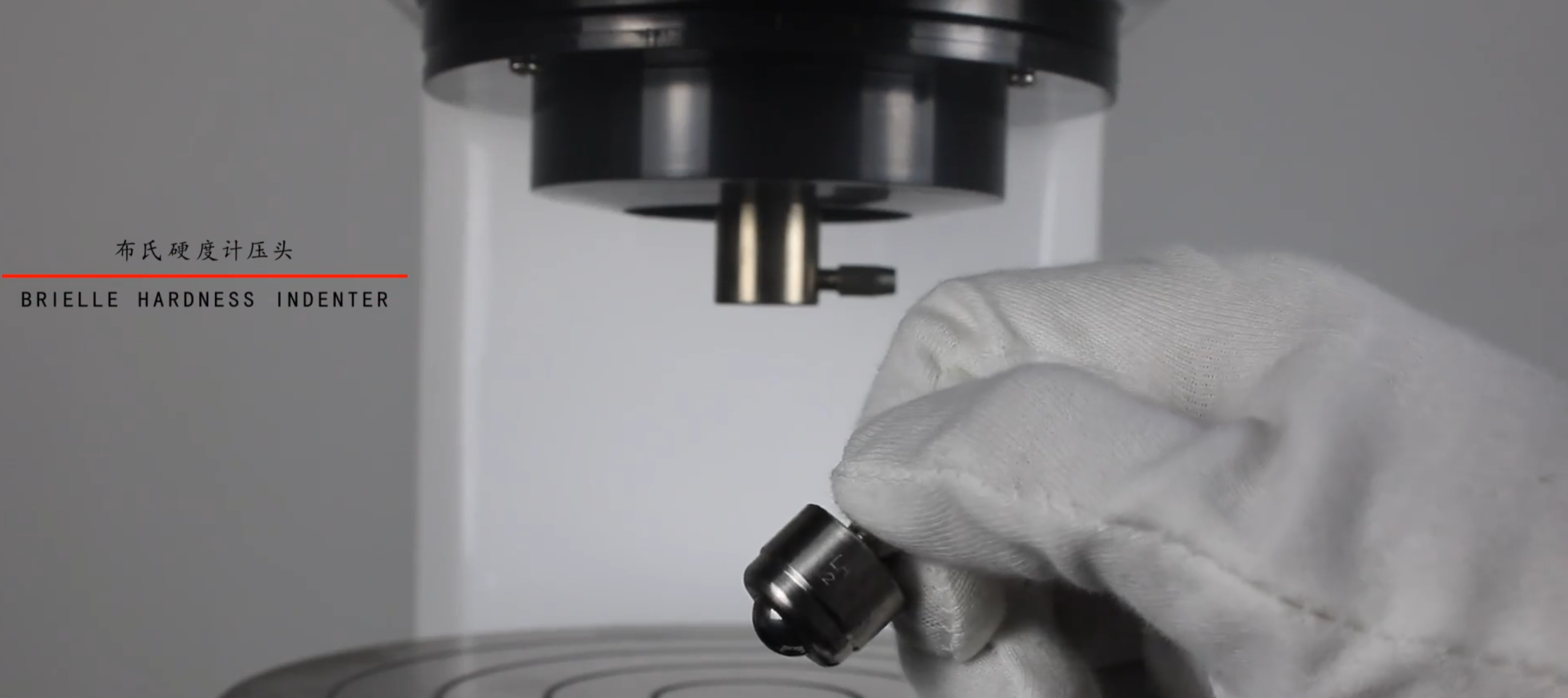

| Digital Reading Eyepiece | 1 set | Ball Indenters (φ2.5/5/10mm) | 1 each |
| Standard Hardness Blocks | 3 pcs | Large, Medium, V-type Table | 1 each |
| Power Cable | 1 pc | Certificate & Manual | 1 set |
| Fuse | 2 pcs | Dust Cover | 1 pc |
