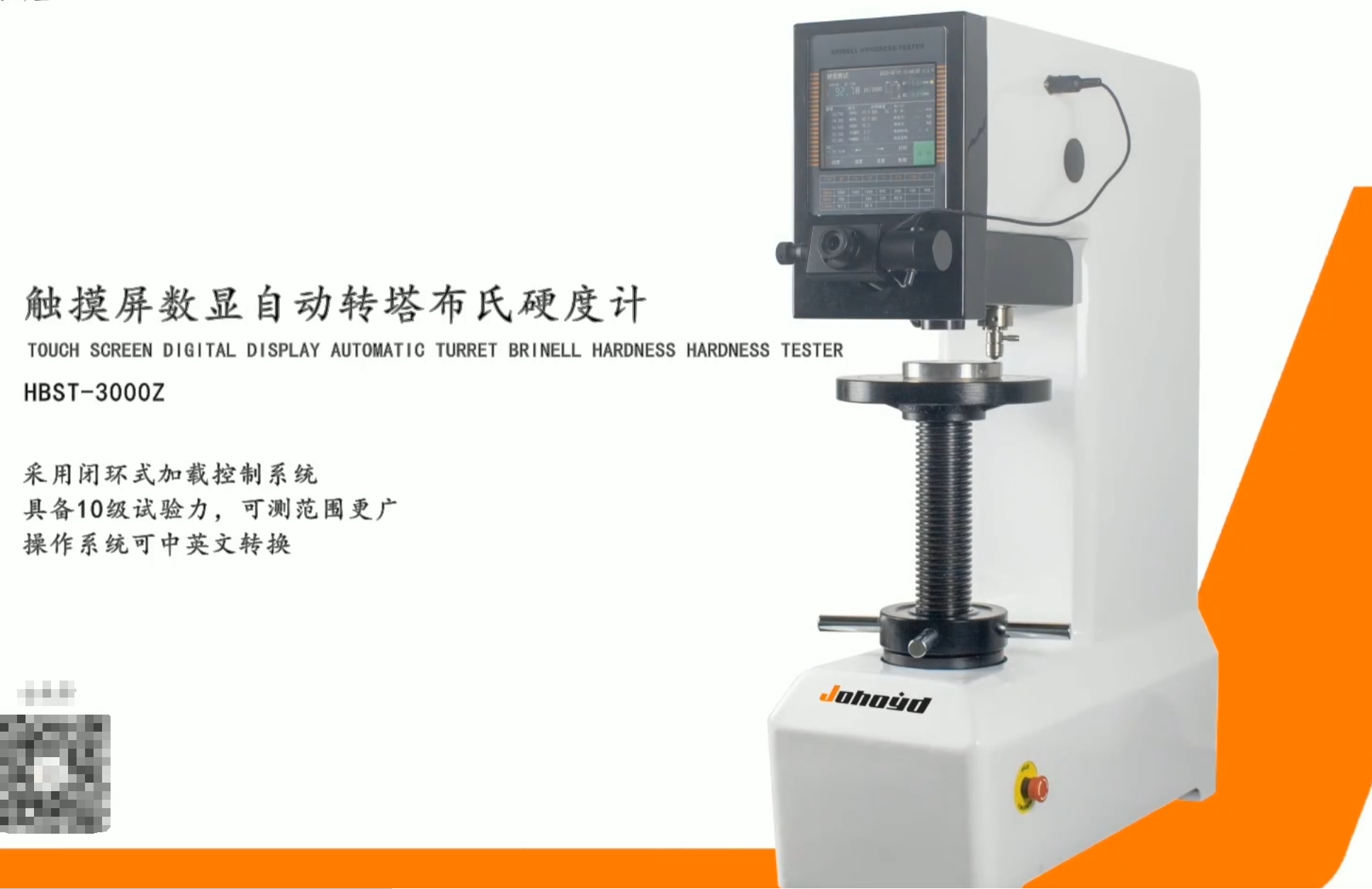

HBST-3000Z Touchscreen Digital Automatic Turret Brinell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Smart touchscreen interface with real-time data display.
Auto turret rotation and LED imaging for easy operation.
Eleven force levels ensure precise multi-range testing.
High stability cast body with CE-compliant safety design.
Product Description
The HBST-3000Z Touchscreen Digital Automatic Turret Brinell Hardness Tester adopts intelligent software programming and photoelectric sensing technology.
Through the 5.6-inch multifunctional touchscreen, users can easily set test conditions and view test methods, upper/lower limits, indentation size, hardness value, conversion results, test force, dwell time, and measurement count. It can also record date and output results via the built-in printer or connect to a computer for data management.

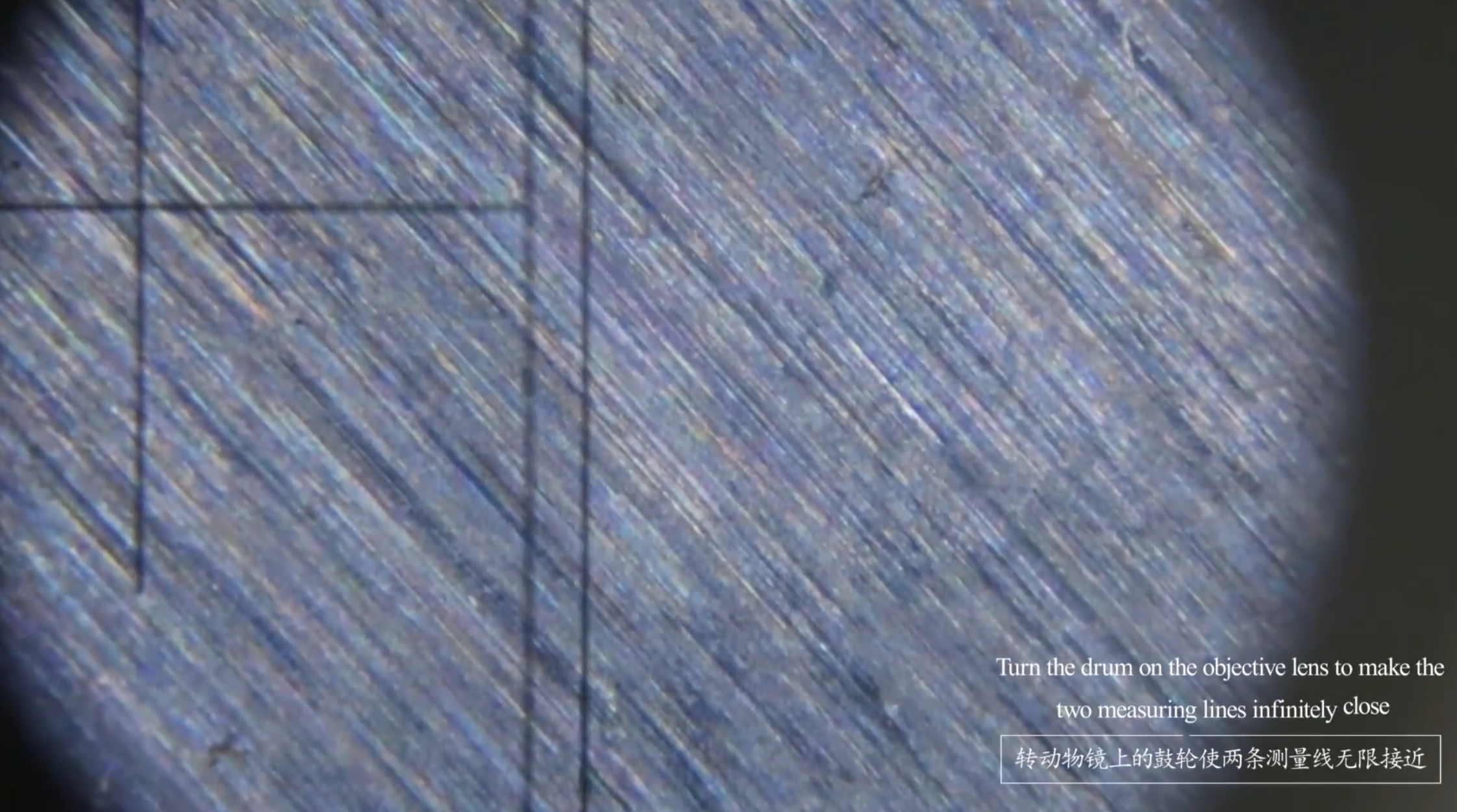

The optical LED imaging system provides high clarity and adjustable brightness for comfortable long-term operation. The hardware integrates advanced electronic sensor loading and closed-loop CPU control, ensuring precise and stable test force through automatic compensation.
An automatic turret system allows the indenter and objective lens to rotate automatically, improving efficiency and safety. Equipped with an emergency stop function and CE-certified design, the HBST-3000Z ensures reliable, stable, and intelligent hardness testing for industrial and laboratory applications.
Product Advantages
High accuracy, repeatability, and stability with easy operation.
Eleven levels of testing force provide an extended measurement range.
Automatic turret design allows indenter and objective to switch automatically.
Built-in digital eyepiece and data system display hardness directly.
Built-in calibration functions for instrument and optical magnification.
Adjustable LED brightness range: 0–100.
Stores up to 100 test data sets.
Dual-language interface (Chinese/English) with 5 conversion scales shown simultaneously.

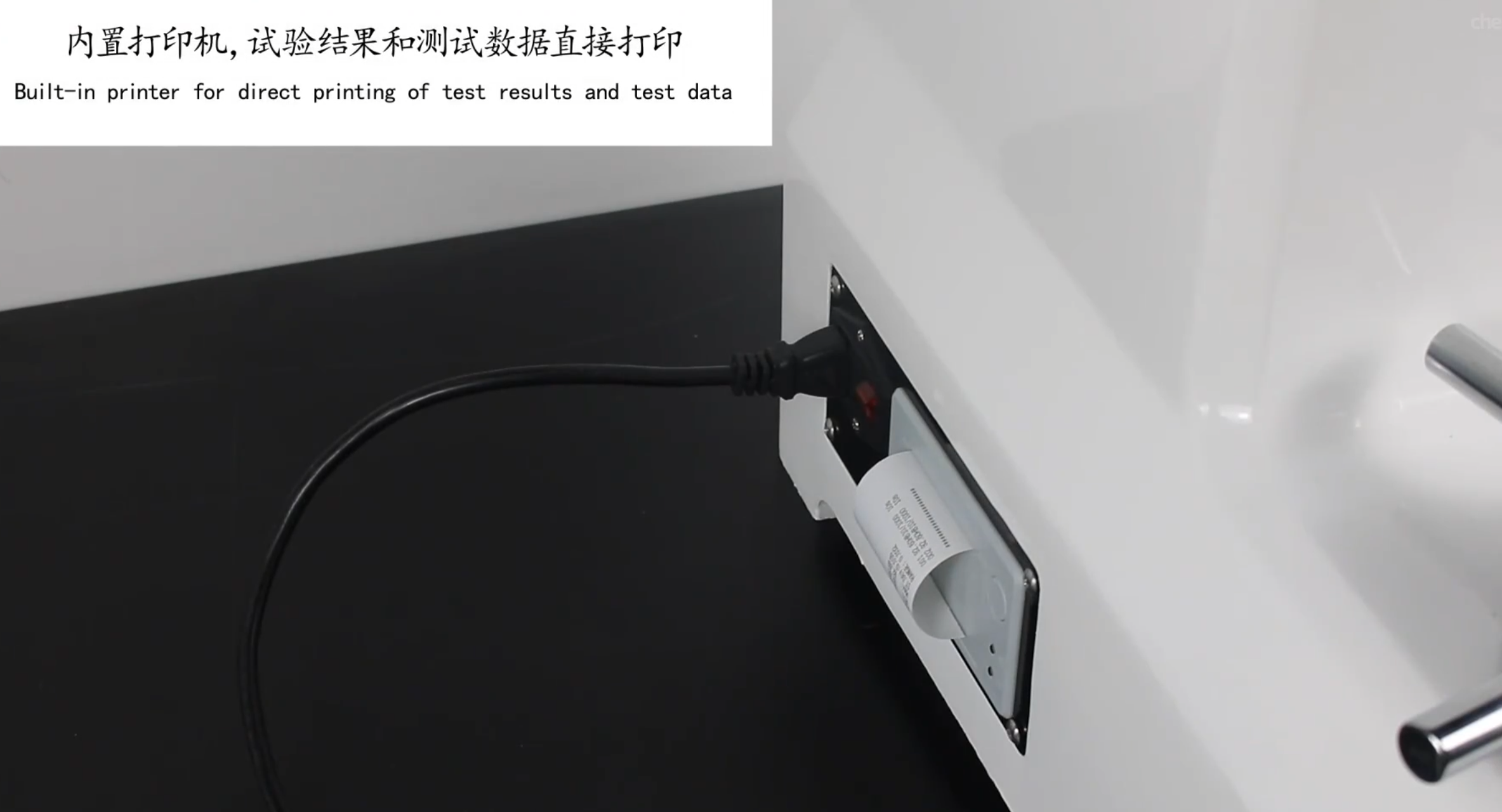

Integrated printer for data output; PC connection for editing and storage.
Stepper motor enables automatic loading/unloading with minimal noise.
Photoelectric and CPU control automatically compensate for test force.
Auto indentation diameter input and dual-unit hardness display.
Clear high-magnification LED imaging, fatigue-free viewing.
One-piece cast body ensures strength and deformation resistance.
Automotive-grade coating with scratch resistance and long-lasting gloss.
Application Range
The HBST-3000Z is suitable for testing metals with large crystal grains, providing accurate results reflecting material strength and hardness. It can test cast iron, steel, nonferrous metals, and soft metals such as aluminum, lead, and tin. It also supports hard plastics, bakelite, and other nonmetal materials, making it ideal for industrial production, research laboratories, and quality control centers.
Technical Parameters
| Item | Specification |
|---|---|
| Model | HBST-3000Z |
| Brinell Scales | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test Force (11 Levels) | 31.25kgf(306.5N), 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Conversion | Automatic conversion between Brinell, Rockwell, and Vickers |
| Load Control | Automatic (Loading / Holding / Unloading) |
| Turret | Automatic rotation, indenter and objective auto-switch |
| Max Specimen Height | 220 mm |
| Indenter–Wall Distance | 135 mm |
| Indenter–Upper Wall Distance | 55 mm (customizable) |
| Minimum Measuring Unit | 0.125 µm |
| Dwell Time | 0–60 s |
| Hardness Range | 3.18–653 HBW |
| Total Magnification | 20× |
| Reading | Automatic calculation |
| Data Output | Built-in printer and PC data port |
| Power Supply | AC220V ±5%, 50–60Hz |
| Dimensions (mm) | 520 × 210 × 745 |
| Weight | Approx. 125 kg |
| Standards | EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150-2005 |
Accessories
| Item | Quantity | Item | Quantity |
|---|---|---|---|

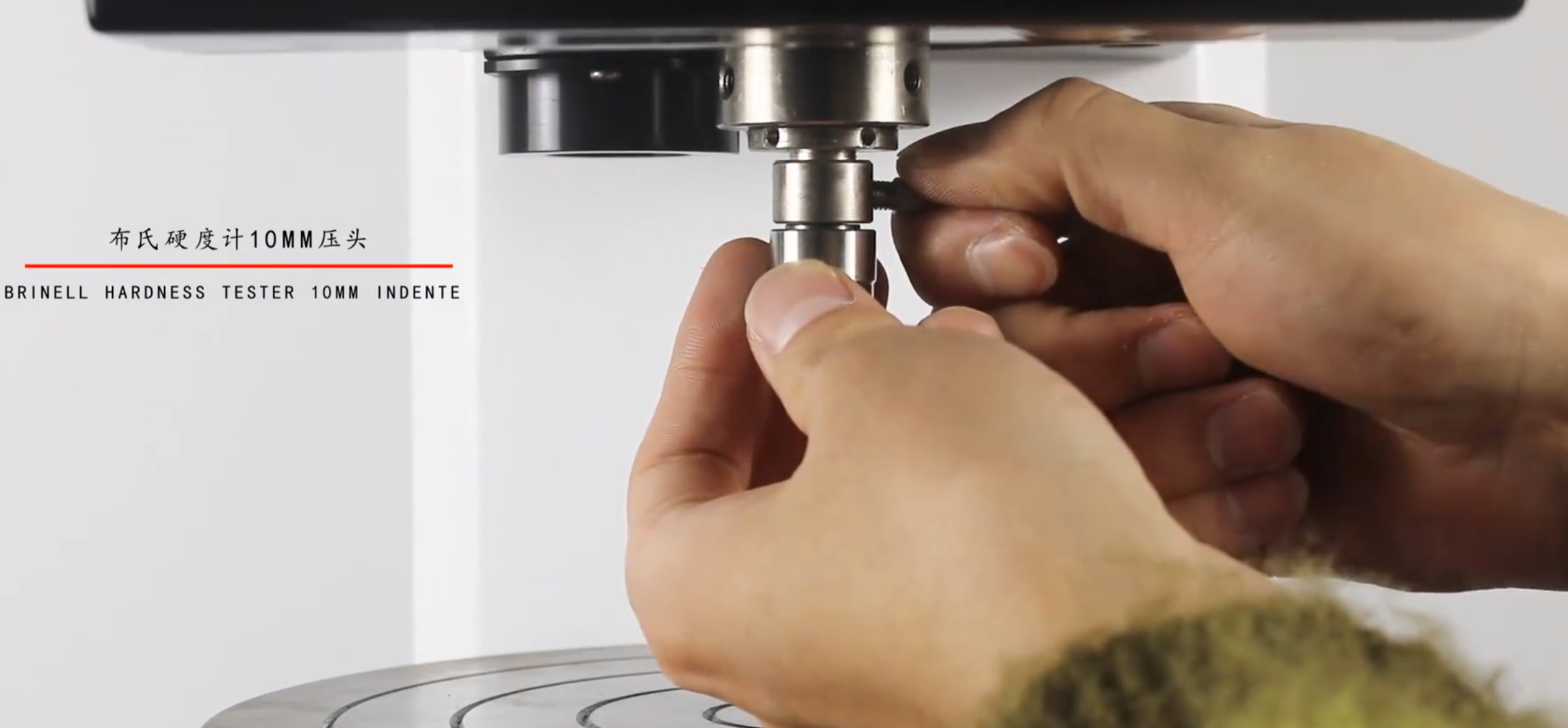

| Digital Measuring Microscope | 1 set | Carbide Ball Indenters (2.5mm, 5mm, 10mm) | 1 each |

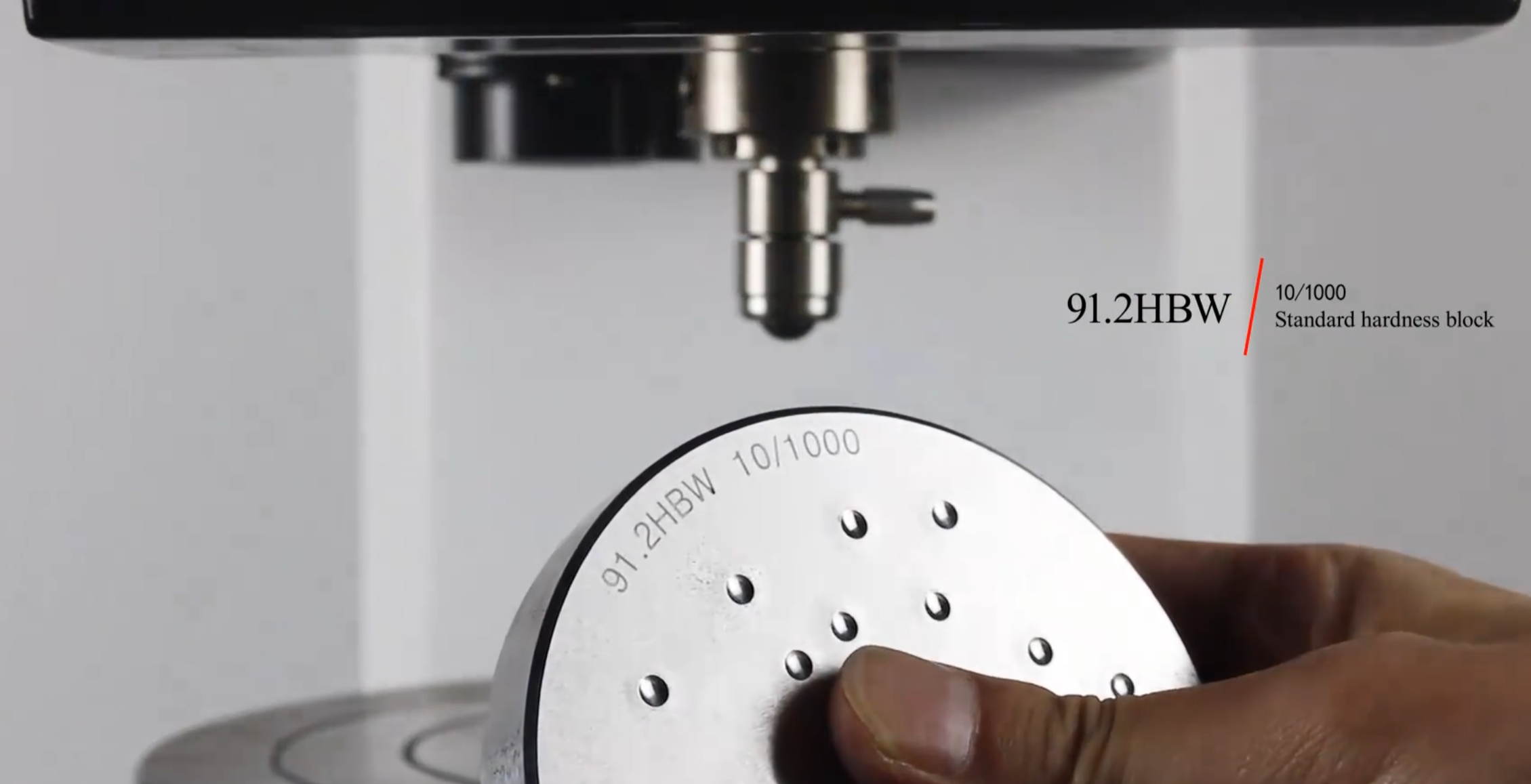

| Standard Hardness Blocks | 3 pcs | Large, V-Type Test Tables | 1 each |
| Power Cable | 1 pc | Certificate & Manual | 1 each |
| Fuse | 2 pcs | Printer Paper | 1 roll |
| Level Gauge | 1 pc | Dust Cover | 1 pc |
