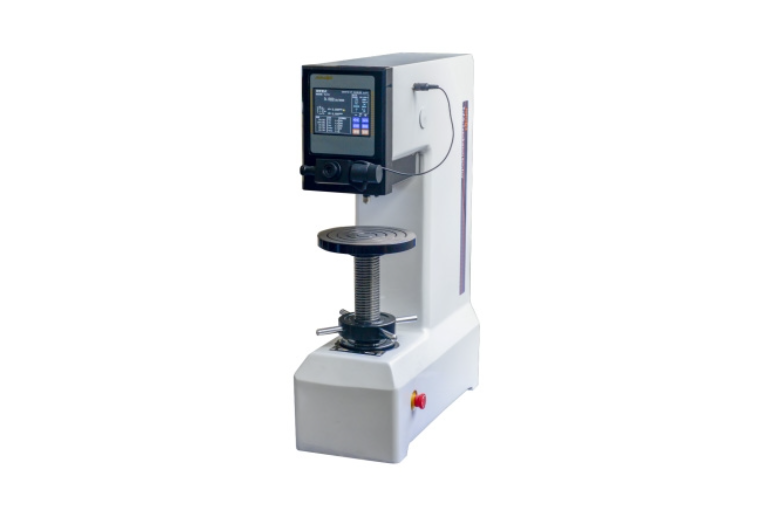

HBST-3000 Touchscreen Digital Brinell Hardness Tester

Product Description

The HBST-3000 Touchscreen Digital Brinell Hardness Tester features an intelligent computer control system with photoelectric sensing technology.
The 5.6-inch multifunctional touchscreen displays testing methods, upper/lower limits, indentation diameter, hardness value, conversion results, test force, dwell time, and the number of tests. Users can input date and time, and view or print results directly using the built-in printer or transfer data to a computer for further analysis.
The high-magnification LED optical system provides clear imaging with adjustable brightness, ensuring fatigue-free operation.
The hardware system uses advanced electronic sensor loading technology and a closed-loop control system, automatically compensating for test force errors through CPU control for stable and precise readings.
With a one-piece cast housing, high-precision motorized loading system, and CE-certified safety design, the HBST-3000 is ideal for factories, laboratories, universities, and research institutes that require precise and efficient hardness testing.

Product Advantages

1. High accuracy, repeatability, and stability with simple operation.

2. Eleven test force levels expand the testing range.

3. Equipped with a digital measuring eyepiece and automatic hardness calculation.

4. Built-in calibration function for instrument and magnification correction.

5. Adjustable LED brightness range: 0–100.

6. Stores up to 100 sets of test data.

7. Dual-language system (Chinese/English) for easy operation.

8. Displays five hardness conversion scales simultaneously.

9. Built-in printer and PC connection for data output and storage.

10. Stepper motor for automatic loading/unloading with low noise.

11. Photoelectric sensor and microcomputer control ensure accurate compensation.

12. Automatic diameter input and dual hardness unit display.

13. High-definition LED optical imaging, clear and fatigue-free.

14. One-piece cast housing, stable and deformation-resistant.

15. Automotive paint finish with high scratch resistance and lasting gloss.

Application Range

The HBST-3000 is suitable for testing large-grain metals and other materials to reflect comprehensive mechanical performance.
It is widely used for cast iron, steel, nonferrous metals, and soft metals such as pure aluminum, lead, and tin, and is also applicable for hard plastics, bakelite, and nonmetal materials.
An ideal instrument for industrial production, research laboratories, and quality inspection centers.

Technical Parameters

Accessories
