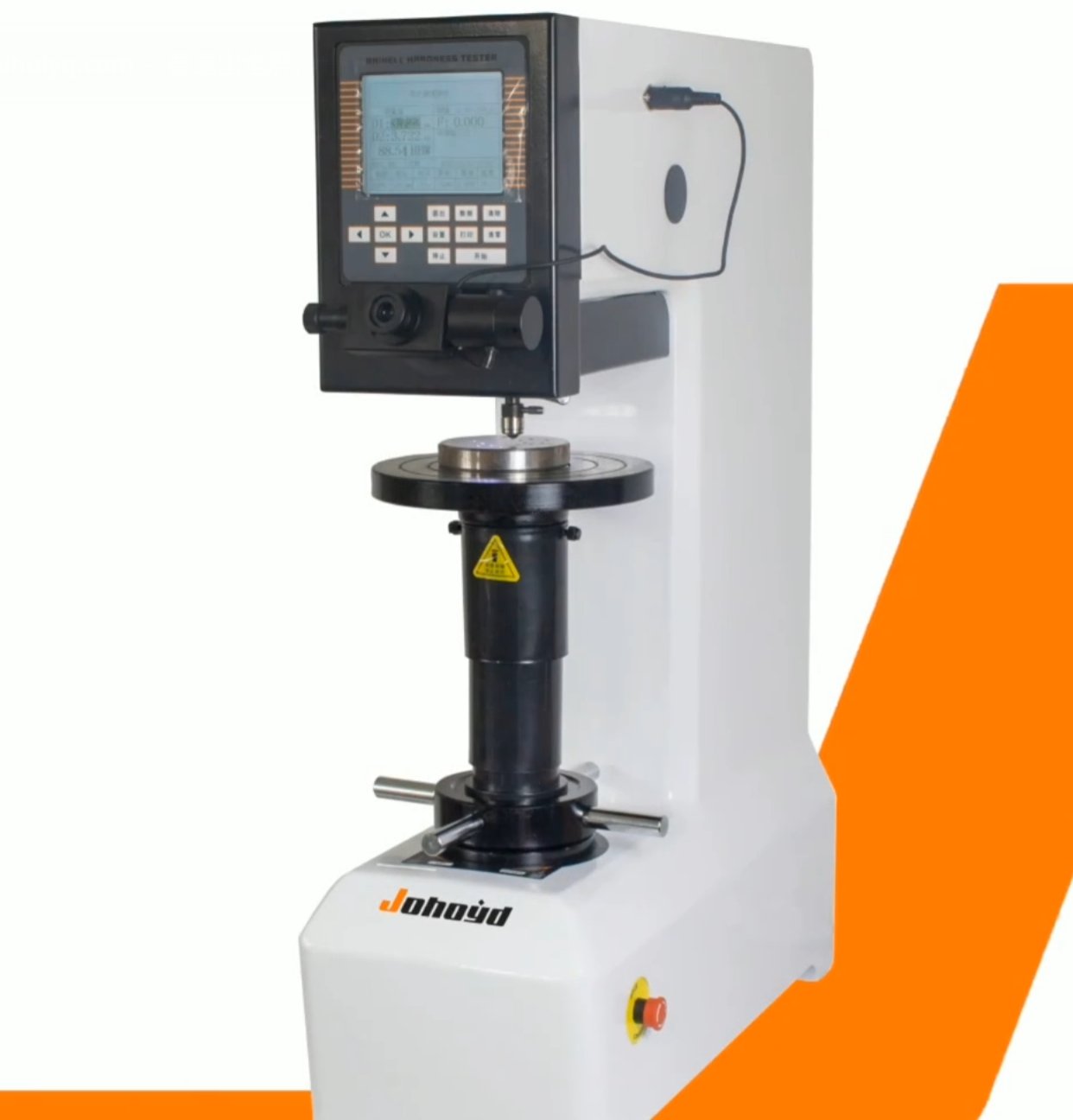

HBS-3000 Digital Brinell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Intelligent LCD system displays full testing parameters.
Automatic loading and unloading for precise force control.
Digital eyepiece and data storage improve efficiency.
Cast body with CE safety standards for stable operation.
Product Description
The HBS-3000 Digital Brinell Hardness Tester adopts advanced computer programming and photoelectric sensing technology.

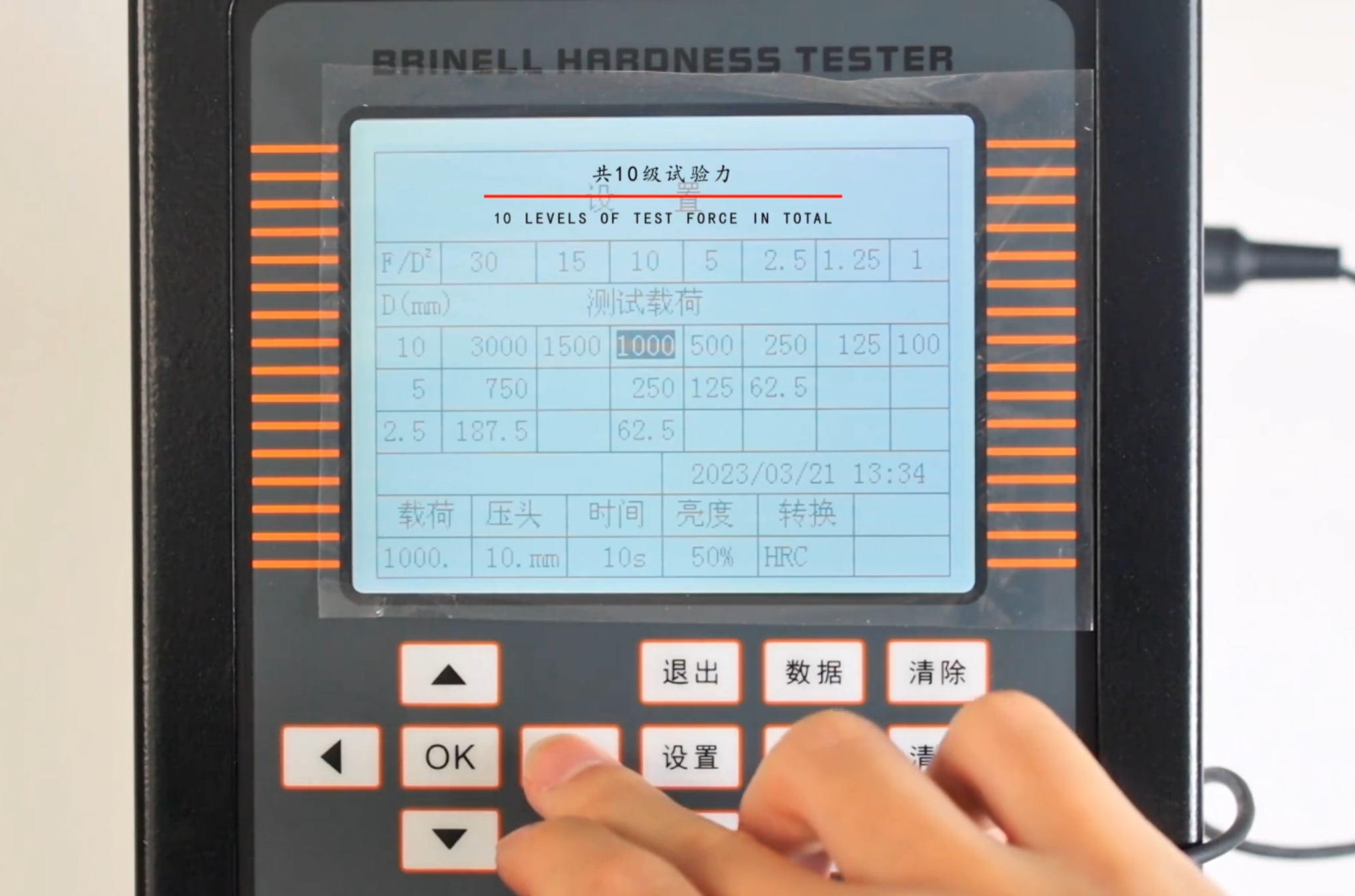

Its LCD screen displays all testing parameters such as testing method, upper/lower limit, indentation size, hardness value, conversion result, test force, dwell time, and number of tests, allowing users to input date and save records.

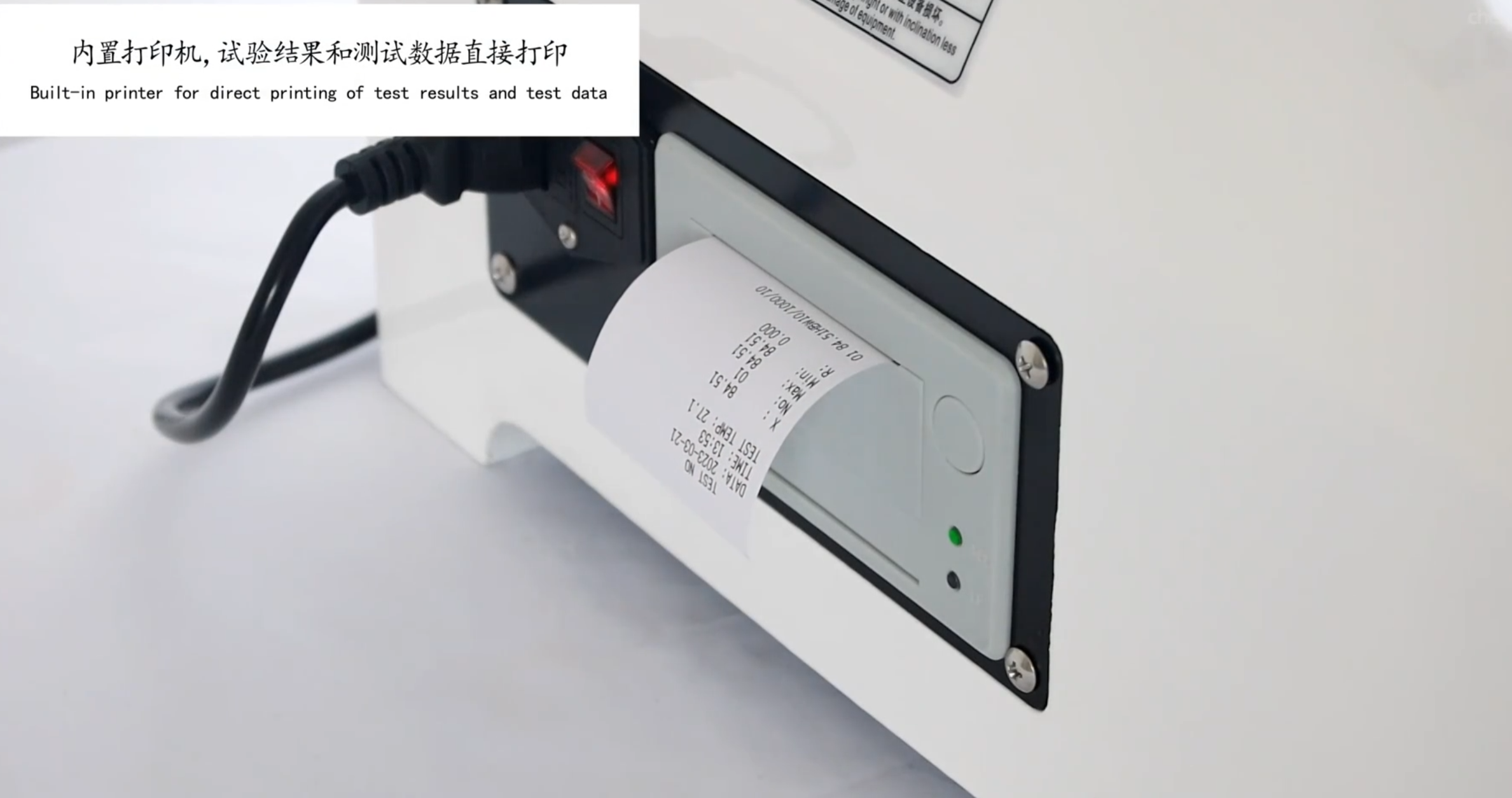

The system includes an integrated printer for direct data output or PC connectivity for analysis and archiving.
It features a high-magnification LED optical system with adjustable brightness, providing clear imaging and comfortable long-term operation.
Using a closed-loop control system and electronic sensor technology, the CPU automatically compensates for test force to ensure higher precision and stable readings.
It also includes an emergency stop device and conforms to EU CE safety standards, offering reliability, durability, and high cost performance for industrial and laboratory testing applications.
Product Advantages
High precision, repeatability, and stability; simple operation and strong practicality.
Automatic prompt for minimum sample thickness.
Ten levels of testing force cover a wide measuring range.

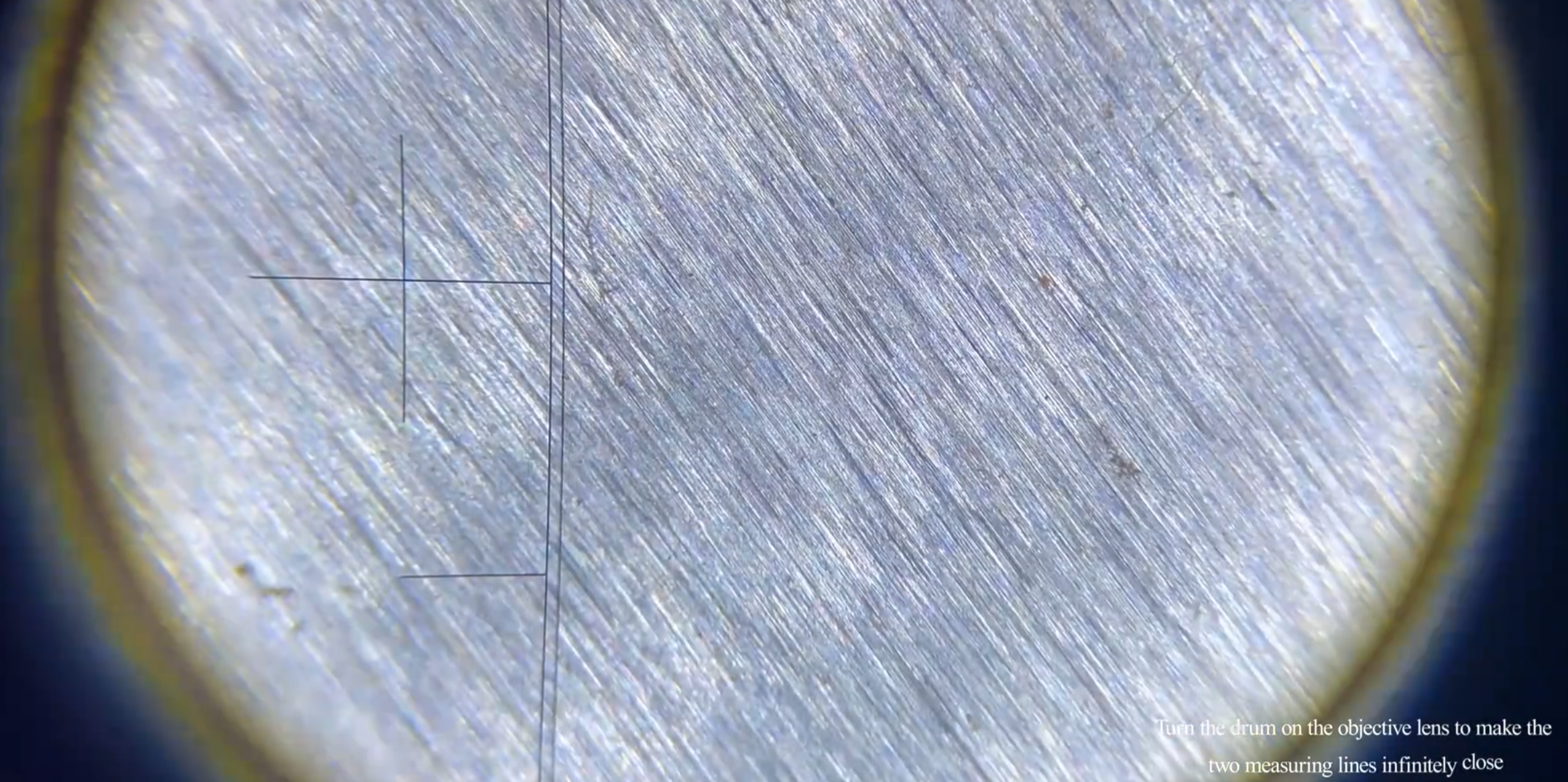

Digital micrometer and data calculation system display results instantly.
Built-in printer and PC connectivity for data transmission and saving.
Stepper motor enables automatic loading/unloading with low noise.
Photoelectric sensing and microcomputer control ensure automatic force compensation and accuracy.
Direct hardness display with dual hardness units for convenient comparison.
High-brightness LED optical system with adjustable light intensity.
One-piece cast housing provides stable structure and resistance to deformation.
Automotive paint finish offers strong scratch resistance and long-lasting gloss.
Application Range
The HBS-3000 is suitable for testing metals with large crystal grains, reflecting the overall mechanical performance of materials.
It can test cast iron, steel, nonferrous metals, and especially soft metals such as aluminum, lead, and tin.
It is also applicable to hard plastics, bakelite, and certain nonmetal materials, making it ideal for industrial workshops, research institutions, and quality inspection laboratories.
Technical Parameters
| Item | Specification |
|---|---|
| Model | HBS-3000 |
| Brinell Scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test Force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N) |
| Load Control | Automatic (Loading / Holding / Unloading) |
| Max Specimen Height | 220 mm |
| Indenter–Wall Distance | 135 mm |
| Indenter–Upper Wall Distance | 55 mm (customizable) |
| Minimum Measuring Unit | 0.125 µm |
| Dwell Time | 0–60 s |
| Hardness Range | 3.18–653 HBW |
| Total Magnification | 20× |
| Standards | EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150-2005 |
| Reading | Automatic Calculation |
| Data Output | Built-in Printer, PC Interface |
| Power Supply | AC220V ±5%, 50–60Hz |
| Dimensions (mm) | 520 × 210 × 745 |
| Weight | Approx. 125 kg |
Accessories
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| Digital Measuring Microscope | 1 set | Carbide Ball Indenters (2.5mm, 5mm, 10mm) | 1 each |

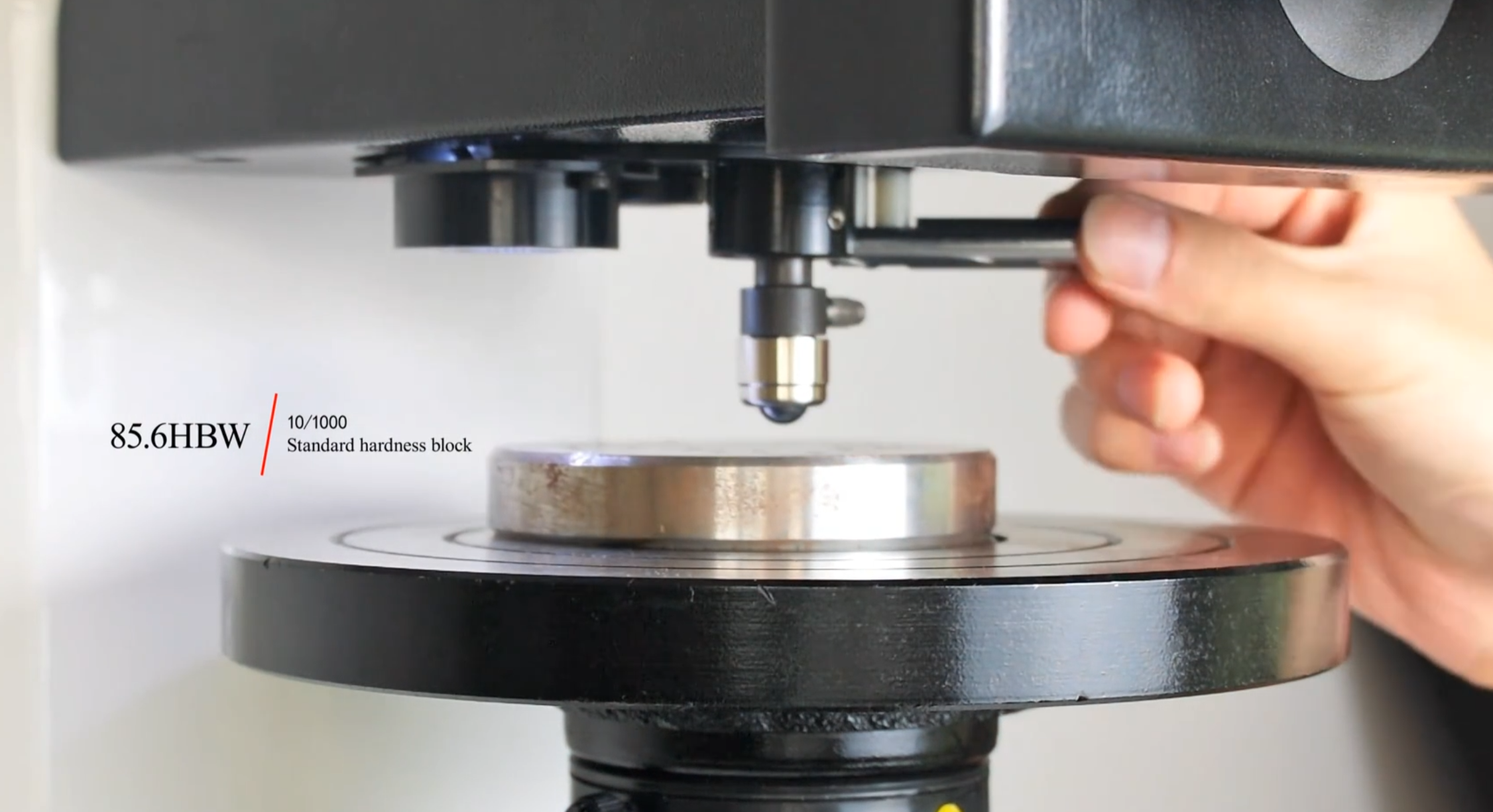

| Standard Hardness Blocks | 3 pcs | Large, V-Type Test Tables | 1 each |
| Power Cable | 1 pc | Certificate & User Manual | 1 each |
| Fuse | 2 pcs | Printer Paper | 1 roll |
| Level Gauge | 1 pc | Dust Cover | 1 pc |
