Polarizing Microscope CX43P/CX43MP & Fluorescence Microscope CX43Y/CX53Y

Polarizing Microscope CX43P/CX43MP

Designed for advanced polarization microscopy, the CX43P/CX43MP series integrates professional optical systems andprecision mechanical components** to realize exceptional birefringence observation.

At its core, there's a specialized conoscopic observation intermediate tube, which comes with a built - in Bertrand lens and multiple compensator slots (accommodating λ/4 wave plates, quartz wedges, etc.). This setup allows for adjustable interference figure visualization, crucial for analyzing the optical properties of anisotropic samples. The rotatable polarizer set is a standout feature, enabling 360° rotation with 2° angular accuracy and 6° division, ensuring smooth and accurate adjustment even for complex samples.

Optically, it adopts an infinite parfocal achromatic objective system. For instance the wide - field Plan APO objectives provide uniform illumination across the field of view, enhancing image clarity. The 30° inclined binocular/trinocular head has an interpupillary distance range of 50–75mm and a diopter adjustment of ±5, ensuring ergonomic comfort during long - term observation sessions. When it comes to documentation, optional camera adapters (compatible with 5MP/12MP cameras) and imaging software enable high - resolution image capture, making it easy to record and analyze experimental results.

Mechanically, the coarse/fine focus mechanism features an anti - slip design and an upper limit stop, guaranteeing stable navigation of samples. Substage components include Abbe condensers (with a numerical aperture of 1.25) and filter carriers, which optimize light transmission for sensitive samples. Whether it's geological thin sections, liquid crystal research, or other applications that require precise polarization analysis, these microscopes offer reliable and high - precision performance.

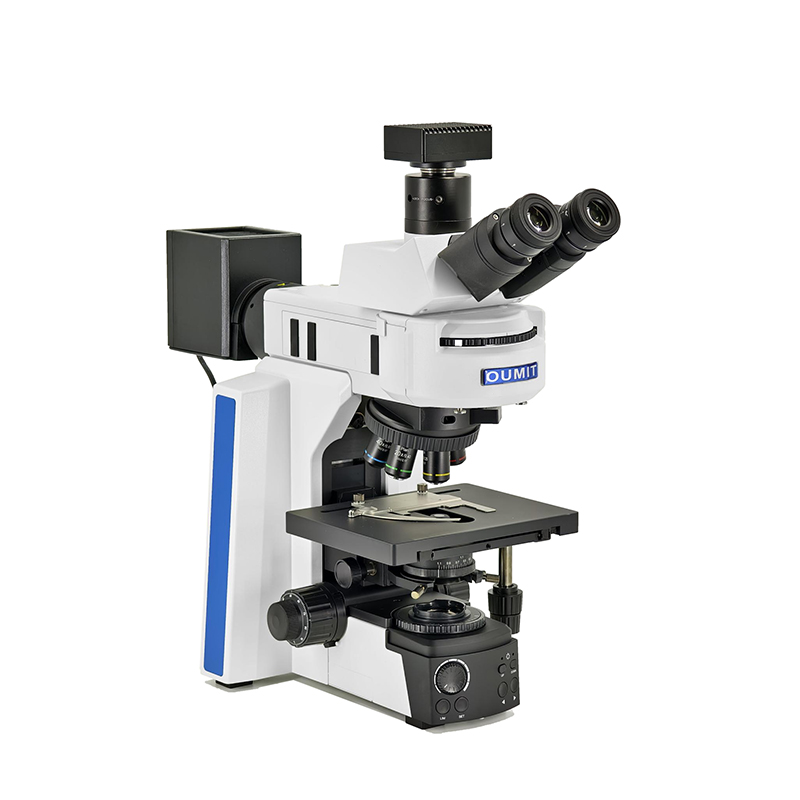

Fluorescence Microscope CX43Y/CX53Y

Engineered for fluorescent imaging across diverse fields like life sciences, materials science, and clinical diagnostics, the CX43Y/CX53Y series combines high - brightness LED illumination with intelligent automation for efficient and reproducible results.

The episcopic fluorescence illumination system, powered by high - power LEDs, provides uniform and flicker - free excitation for fluorophore - labeled samples. The semi - achromatic or plan fluorite objectives (ranging from 4× to 100× magnification) minimize chromatication, ensuring sharp fluorescence images. The 30° inclined binocular/trinocular head (with an optional 2× magnification) offers comfortable viewing, and the coded nosepiece can automatically record objective data such as magnification and aperture. This data then syncs with OMT software, eliminating manual recording errors.

Operation is made simple through a coarse/fine focus system with tension and lock adjustments, as well as a stable mechanical stage that has a 76×50mm travel range and 0.1μm vernier accuracy. For multi - channel imaging, the filter cube set (supporting UV, blue, and green excitation) enables simultaneous multicolor fluorescence capture. Its applications span from live cell tracking using GFP/RFP markers to semiconductor defect inspection, leveraging the system's flexibility and precision.
