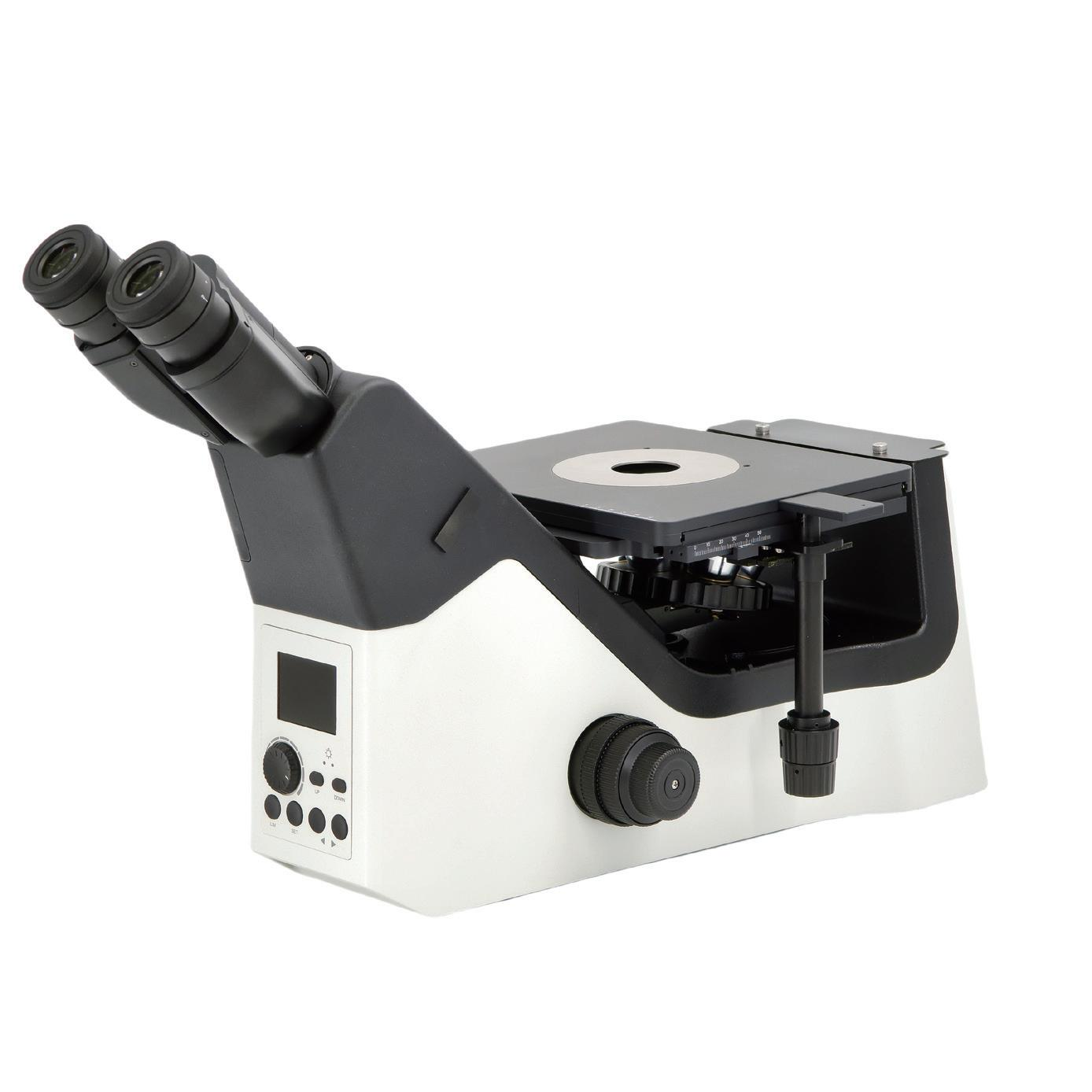

ME Series Inverted Metallurgical MicroscopesME200 & ME800 for Material Science
ME Series inverted metallurgical microscopes excel in material science. With an inverted design, they enable easy observation of samples placed above. Ideal for steel, auto, machinery sectors, they handle 5kg+ heavy/bulky samples and offer 30X–thousands magnification. Integrated with metallographic software, they accelerate testing, measurement, and microstructure analysis.
Product Description
The ME Series Inverted Metallurgical Microscopes (including ME200 and ME800 models) are purpose - engineered for material science applications across industries like steel, automotive, machinery, and electronics. Their innovative inverted design redefines sample observation: rather than positioning samples beneath the objective lens, they rest on a top - mounted platform. This allows effortless examination of irregularly shaped or large - volume samples, eliminating the need for complex sample preparation.
A key strength lies in its specimen stage. Capable of supporting samples up to 5kg, it’s perfect for large or heavy specimens that require stable placement during analysis. The stage features a low - position XY manipulation system, ensuring precise positioning, while the shock - resistant glass surface offers a reliable platform for accurate observations.
Optical performance is a cornerstone of the ME series. Different models cater to diverse needs:
ME200: Equipped with an OTM (Infinity - Corrected) achromatic optical system, it delivers sharp imaging across a wide magnification range (30X to thousands of times). Its objectives (5X, 10X, 20X, 50X, 100X) and wide - field eyepieces (some with built - in scales) ensure versatility for routine metallographic exams.
ME800: Boasts an OMT (Infinity - Corrected) apochromatic optical system, providing exceptional resolution and color correction. This makes it ideal for analyzing complex microstructures in great detail, especially for large - scale or challenging samples.
To boost productivity, the ME series integrates seamlessly with metallographic analysis software. This software enables users to capture high - res images, perform precise measurements (like grain size, phase analysis), and generate professional reports—all within a unified workflow. Whether researching process impacts on microstructure or conducting QC checks, the software streamlines every step from observation to final documentation.
Lighting is critical for image clarity. The microscopes use high - quality light sources (halogen lamps or LEDs, adjustable brightness), ensuring uniform illumination. This reduces glare and enhances contrast, even when observing fine details.
Accessories further expand functionality. Options include digital cameras or advanced imaging systems, enabling real - time sharing of microscopic views for team collaboration. These add - ons make the ME series adaptable to various research and industrial workflows.
When choosing between ME200 and ME800:
Opt for the ME200 if you need a cost - effective solution for standard metallographic testing, valuing a balance of performance and affordability.
Select the ME800 for scenarios demanding ultra - high - resolution imaging and analysis of large, complex samples, thanks to its advanced optical system and enhanced imaging capabilities.
Available Models
Both the ME200 and ME800 models are available to meet different budgetary and application requirements.
