Metallographic Microscope CX43M & CX33M
These two metallographic microscopes combine precision and usability: CX43M features a sturdy all - metal T - type frame, 5 - hole encoder nosepiece with light memory for auto - brightness adjustment, and seamless software integration. CX33M boasts an ergonomic observation tube (reducing fatigue) and customizable pupil distance. Both support brightfield/polarized observation, ensuring accurate metallographic analysis.
Product Descriptions

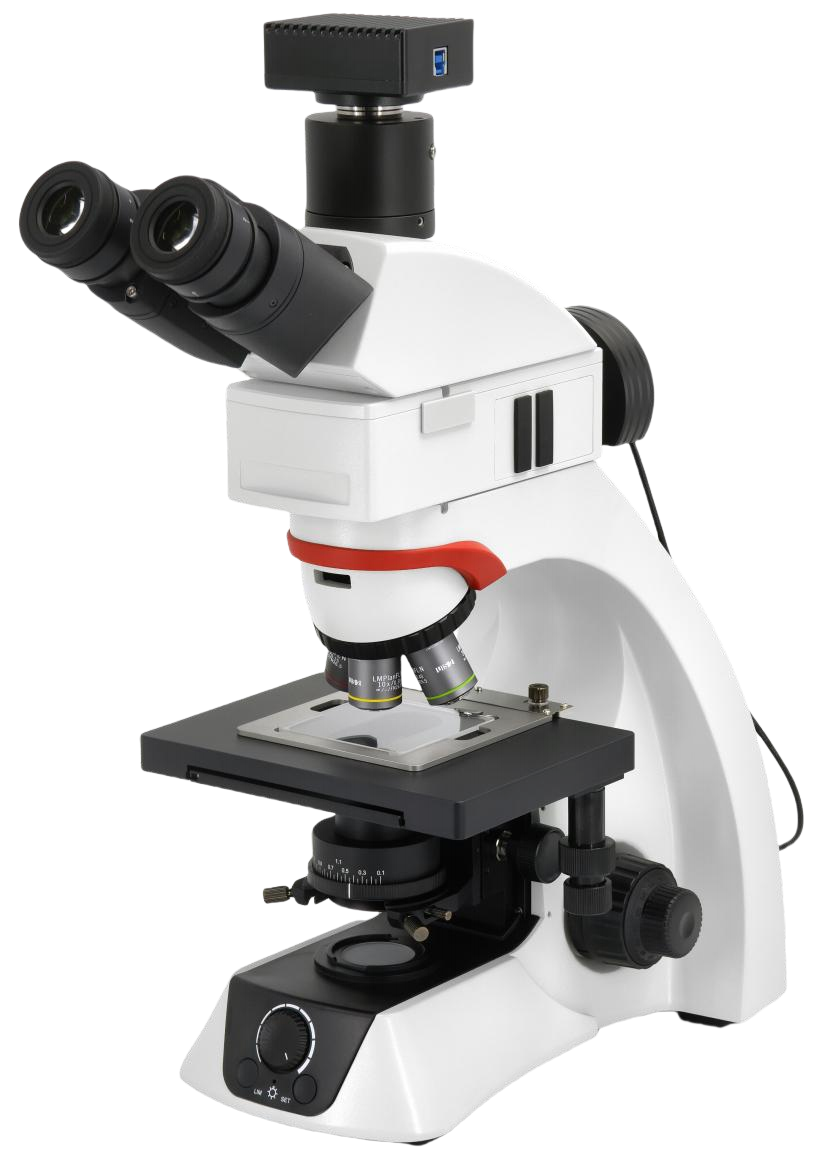

1. Metallographic Microscope CX43M
The CX43M redefines high - end metallographic and industrial inspection with its robust design and intelligent features. Its one - piece integrated T - type frame, crafted from full - metal high - pressure magnesium alloy, guarantees outstanding stability—even at high magnifications, there’s no image shake, ensuring precise measurement of minute details.
Equipped with a 5 - hole brightfield encoder nosepiece, it merges hardware configurations with OMAX image analysis software. This means the magnification is displayed on the screen, and when you switch objectives, the light memory functionautomatically adjusts the illumination brightness. This not only cuts down on visual fatigue but also speeds up workflow efficiency.
For optics, it uses an infinite parfocal achromatic objective system. The 30° inclined binocular tube (optional trinocular) offers ergonomic viewing. The nosepiece options are extensive: 5X/10X/20X/50X/100X (oil immersion), 5X/10X/20X/50X (semi - plan), etc., meeting diverse testing demands.
Accessories enhance its capabilities too. A 4K high - definition camera, USB3.0 digital imaging system, and professional software for measurement, particle size analysis, and more make it a top choice for advanced R&D and quality control in industries like metallurgy, electronics, and materials science.
2. Upright Metallographic Microscope CX33M
The CX33M delivers cost - effective excellence in metallographic and industrial inspection, prioritizing user comfort without compromising on performance. Its observation tube adopts a design inspired by the optimal angle for infant sleep—a design that eases tension during long working hours. What’s more, the scale on the tube lets users tailor the interpupillary distance for the most comfortable viewing.
Optically, it boasts an infinite parfocal achromatic system. The 30° inclined binocular tube allows for adjustable interpupillary distance (50–75mm) and ±6 diopter correction. For observation modes, it supports brightfield and darkfield, while the encoder nosepiece syncs magnification with software, ensuring zero errors in calibration.
Its objective lineup is versatile: 5X/10X/20X/50X/100X (oil), 5X/10X/20X/50X (semi - plan), and 5X/10X/20X/50X/100X (infinity plan) cover everything from routine sample checks to detailed defect analysis. Standard accessories include imaging systems, cameras, and measurement tools, making it perfect for daily metallographic analysis in workshops, labs, and educational institutions.
Both CX43M and CX33M models are available for selection.
