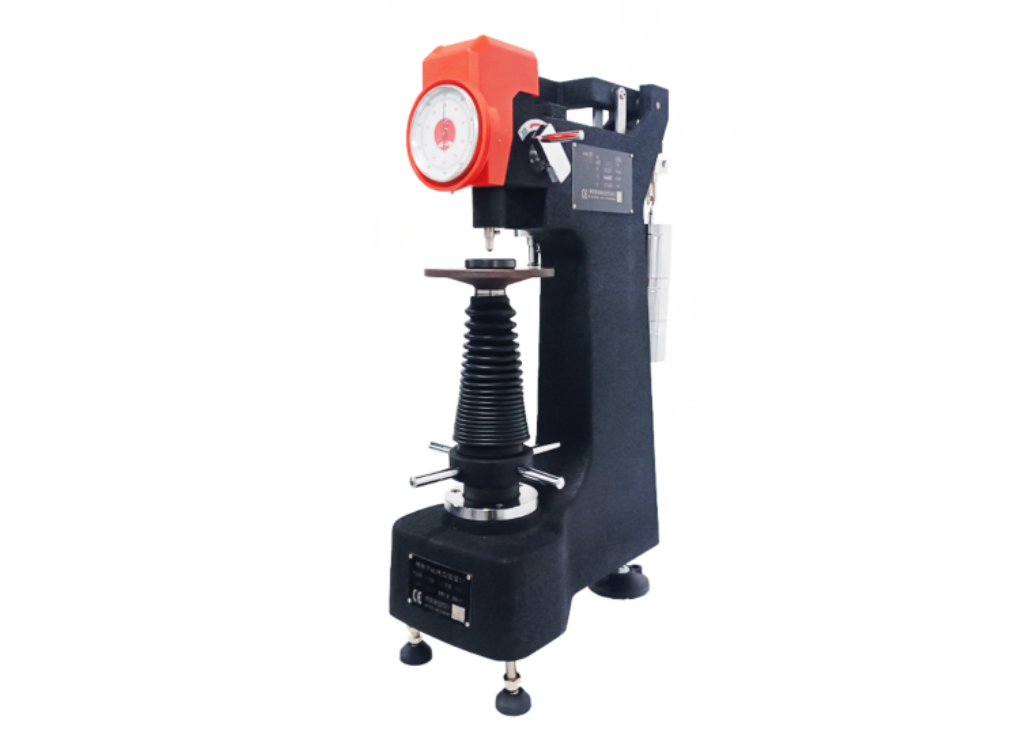

JH-150HR High Precision Rockwell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Manual force control system maintains ±1% test-force accuracy.
High-sensitivity dial gauge enables 0.1 HR resolution readings.
Precision-ground spindle ensures linear and stable indenter motion.
Product Description
The JH-150HR High Precision Rockwell Hardness Tester is a classic mechanical model designed for stable and accurate hardness measurement.
It operates with a manual loading system, requiring no external power supply, providing consistent and precise test-force control.
The high-sensitivity dial indicator enables direct and reliable hardness readings with minimal operator influence.
The main frame is made by a one-piece casting process, ensuring long-term dimensional stability and high mechanical strength.
The outer surface adopts an automotive-grade baked enamel finish, which is scratch-resistant, corrosion-proof, and maintains gloss after years of use.
This instrument is suitable for a wide range of metallic materials and is ideal for industrial inspection, tool manufacturing, and educational laboratories.
Fully compliant with ASTM E18, ISO 6508, and EN 10109 international standards.
Product Advantages (Main Features and Functions)
Dial indicator display enables direct hardness reading with high sensitivity.
Manual mechanical loading ensures stable test force and repeatability.
±1% test-force precision, suitable for high-accuracy applications.
One-piece cast housing resists deformation and vibration.
High-quality enamel coating prevents corrosion and surface damage.
Compact and durable structure — ideal for harsh industrial conditions.
Low maintenance design with long operational lifespan.
Independent R&D and manufacturing, offering lifetime service support.
Application Range
Applicable for testing quenched steel, tempered steel, annealed steel, bearing steel, strip steel, hardened thin plates, and hard alloys.
Widely used in machinery, metallurgy, tools, automotive, and laboratory testing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | JH-150HR |
| Preliminary Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK |
| Test Range | HRA: 20–88; HRB: 20–100; HRC: 20–70; HRD: 40–77; HRF: 60–100; HRG: 30–94; HRH: 80–100; HRK: 40–100 |
| Data Reading | Dial indicator |
| Compliant Standards | ASTM E18, ISO 6508, EN 10109 |
| Max Sample Height | 190 mm |
| Indenter–Wall Distance | 140 mm |
| Dimensions (mm) | 500 × 210 × 660 |
| Net Weight | 70 kg |
Standard Accessories
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| Diamond Rockwell Indenter | 1 pc | Φ1.5875 mm Ball Indenter | 1 pc |
| Standard Hardness Blocks (HRC high/medium/low, HRB, HRA) | 5 pcs | Large, Medium, "V" Type Test Tables | 3 pcs |
| User Manual | 1 copy | Certificate of Conformity | 1 copy |
