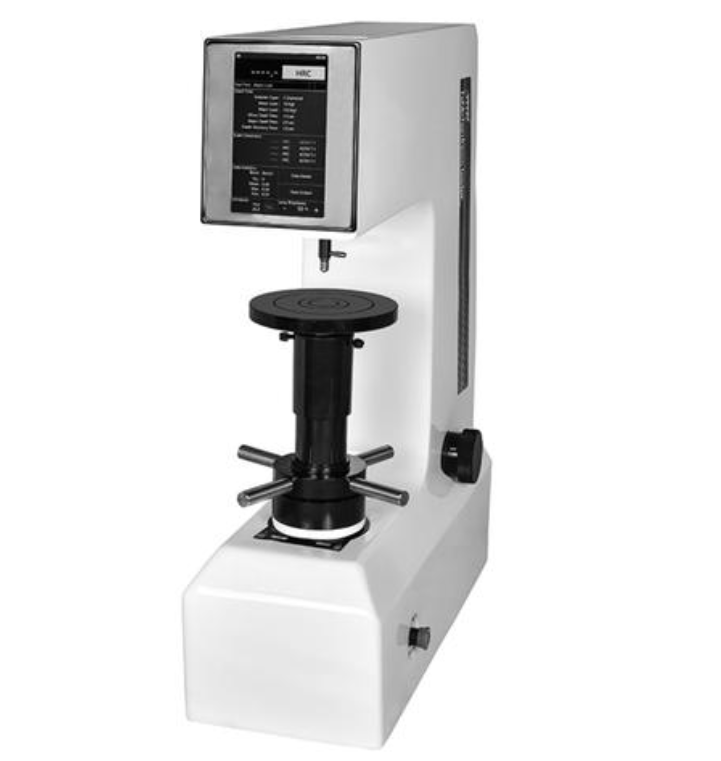

XHRTS-150 Touch Screen Digital Plastic Rockwell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Motor-driven loading ensures consistent and repeatable pressure.
Built-in optical sensor provides 0.1 HR digital accuracy.
Intelligent calibration minimizes deviation in multi-scale tests.
Dual output via USB and printer for instant data verification.
Product Description
The XHRTS-150 Touch Screen Digital Plastic Rockwell Hardness Tester is a new-generation multi-function, high-precision instrument designed for stable performance and intuitive operation.
The tester features a 7-inch color touch interface with menu-driven design, providing easy and visual operation.
The measuring system adopts an optical grating sensor combined with microcomputer control, displaying hardness values directly on the LCD screen.
It supports automatic hardness scale conversion, minimum thickness detection, and automatic correction for cylindrical test samples.
With a built-in printer, emergency stop device, and automated control for loading and unloading, the tester minimizes human error and ensures safe, accurate operation.
Product Advantages (Main Features and Functions)
7-inch LCD touch display shows hardness value, scale, test force, dwell time, recovery time, count, and statistics.
Built-in calibration function automatically adjusts error range (80–120%) or performs low/high value calibration separately.
Curved surface correction according to standard radius during tests.
Stores up to 100 groups of test data, with options to view or delete data.
Test force units can be switched between Kgf and N.
Displays maximum, minimum, average value, test count, and product name.
Supports conversion among 20 hardness scales including HRA–HRR, HBW, HS, HV, HK, and tensile strength (Rm), compliant with ASTM, ISO, and international standards.
Auto sleep mode saves energy after inactivity.
User-defined upper/lower limits; out-of-range results trigger automatic alarm.
Operating system supports 14 languages including English, German, French, Spanish, Japanese, and more.
Built-in printer and USB port for direct data output and analysis.
One-piece cast housing ensures rigidity, precision alignment, and long-term stability.
Automotive-grade enamel coating offers scratch resistance and durable finish.
Emergency stop function enhances operational safety.
Manufacturer offers lifetime component replacement and upgrade service.
Application Range
Suitable for testing plastics, hard rubber, synthetic resins, friction materials, soft metals, steel, and nonferrous alloys.
Widely used in automotive, aerospace, forging, molding, and laboratory applications.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | XHRTS-150 |
| Preliminary Test Force | 10 kgf (98.07 N), error ±2.0% |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Rockwell Scales | HRE, HRM, HRL, HRR, HRF, HRG, HRH, HRK |
| Accuracy | 0.1 HR |
| Holding Time | 1–60 s adjustable |
| Display Mode | 7-inch LCD touch screen |
| Max Sample Height | 230 mm |
| Indenter–Wall Distance | 165 mm |
| Power Supply | AC 220V / 50Hz |
| Dimensions (mm) | 550 × 220 × 730 |
| Weight | 85 kg |
| Hardness Range | HRD: 40–77, HRE: 70–94, HRF: 60–100, HRG: 30–94, HRH: 80–100, HRK: 40–100, HRL: 100–120, HRM: 85–110, HRR: 114–125 |
Standard Accessories
| No. | Name / Specification | Quantity |
|---|---|---|
| 1 | Φ3.175 mm Ball Indenter | 1 pc |
| 2 | Φ6.35 mm Ball Indenter | 1 pc |
| 3 | Φ12.7 mm Ball Indenter | 1 pc |
| 4 | Large, Medium, and "V" Type Test Tables | 3 pcs |
| 5 | HRE, HRL, HRM, HRR Plastic Rockwell Blocks | 4 pcs |
| 6 | Fuse 2A | 2 pcs |
| 7 | Power Cable | 1 pc |
| 8 | USB Communication Cable | 1 pc |
| 9 | Counterweights A, B, C | 3 pcs |
| 10 | Dust Cover | 1 pc |
| 11 | Certificate of Conformity | 1 copy |
| 12 | Printer Paper & Printer Manual | 1 set |
| 13 | User Manual | 1 copy |
