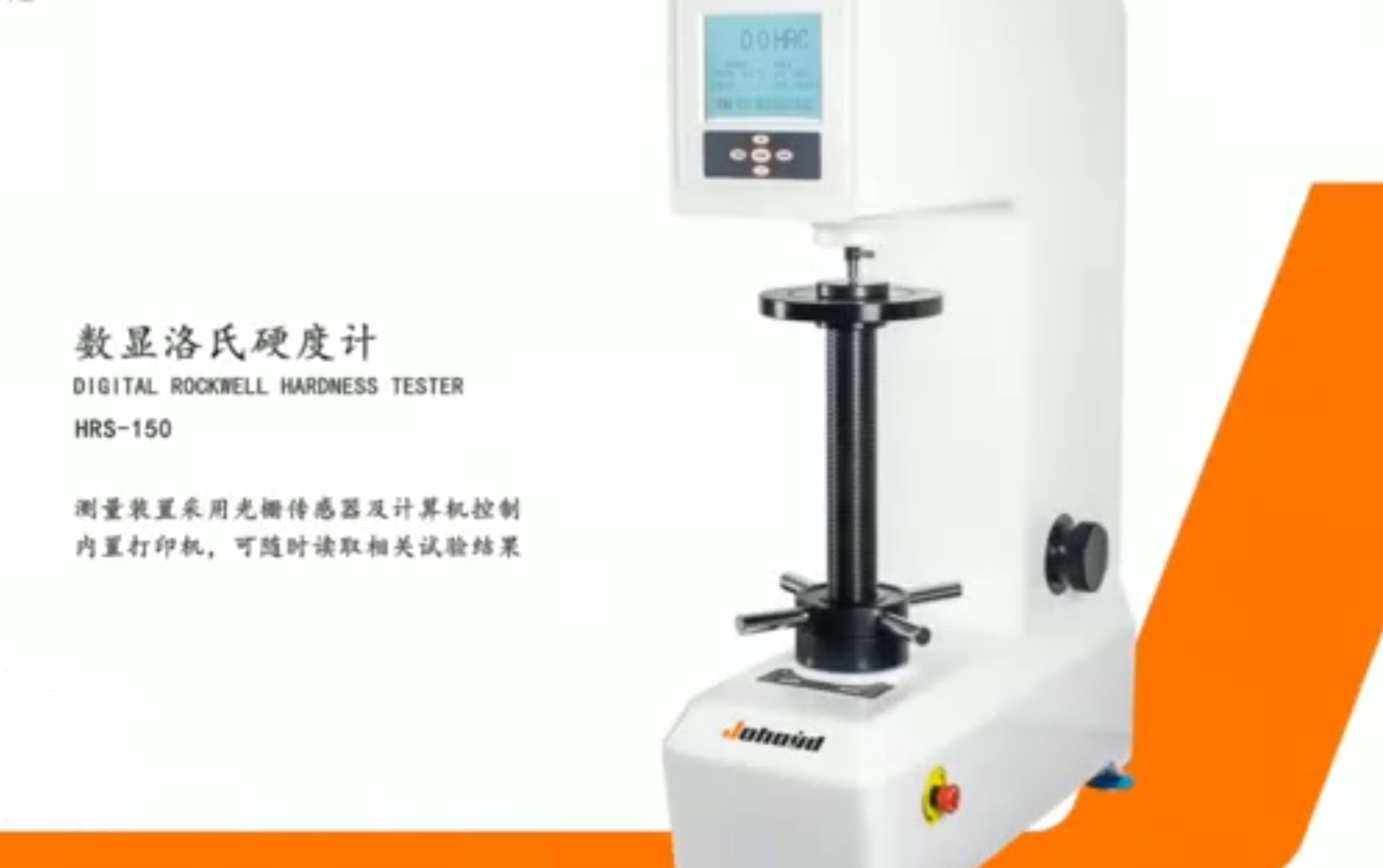

HRS-150 Digital Automatic Rockwell Hardness Tester

Product Description

The HRS-150 Digital Automatic Rockwell Hardness Tester integrates optical sensing, computer control, and electronic data processing for high-precision hardness measurement.
It adopts an automatic loading, dwell, and unloading system, completely eliminating operator errors.
Hardness values are displayed directly on the LCD screen with a resolution of 0.1 HR, and automatic unit conversion between HR, HB, and HV is supported.
The built-in printer allows quick output of measurement results, while the RS-232 interface provides easy data transfer to external devices.
Its cast aluminum body, made by one-piece sand casting, guarantees long-term mechanical stability.
The automotive-grade enamel coating provides superior scratch and corrosion resistance.
Fully compliant with ASTM E18, ISO 6508, and EN 10109 international standards, this instrument is ideal for industrial quality inspection and laboratory testing.

Product Advantages (Main Features and Functions)

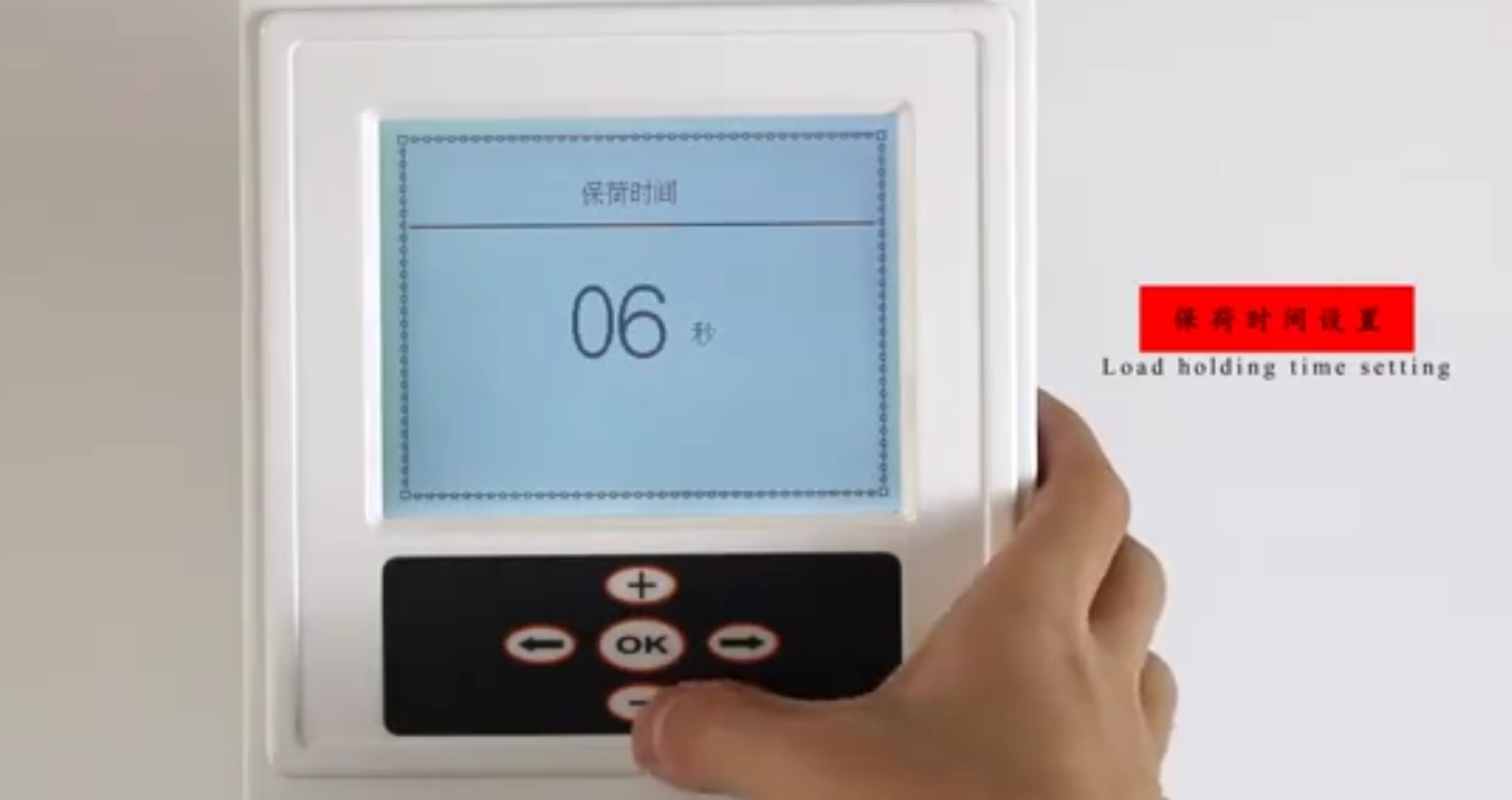

1. LCD digital display directly shows hardness, dwell time, and temperature.

2. Optical grating sensor improves reading precision and repeatability.

3. Automatic test-force system for loading, holding, and unloading.

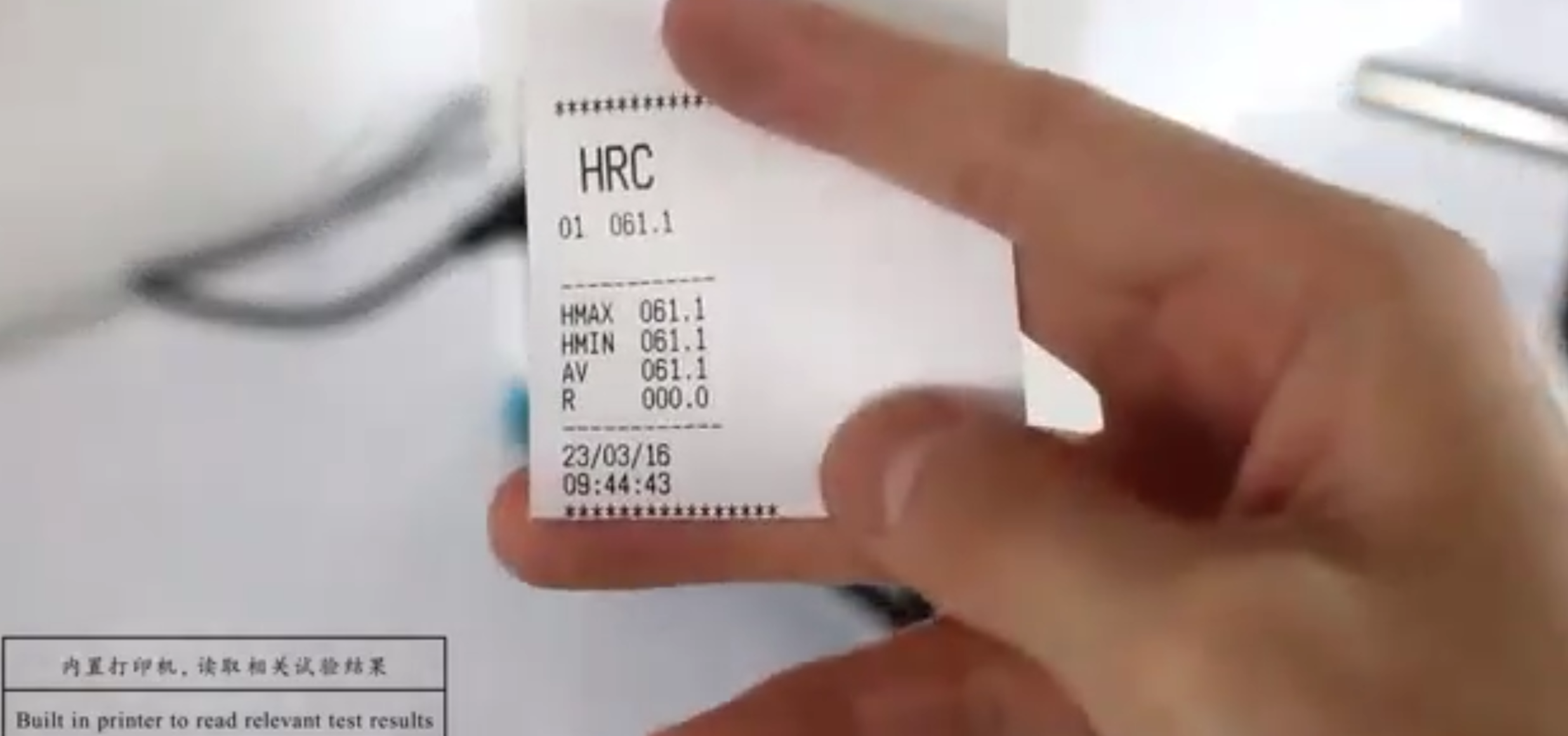

4. Built-in printer for instant data recording and report output.

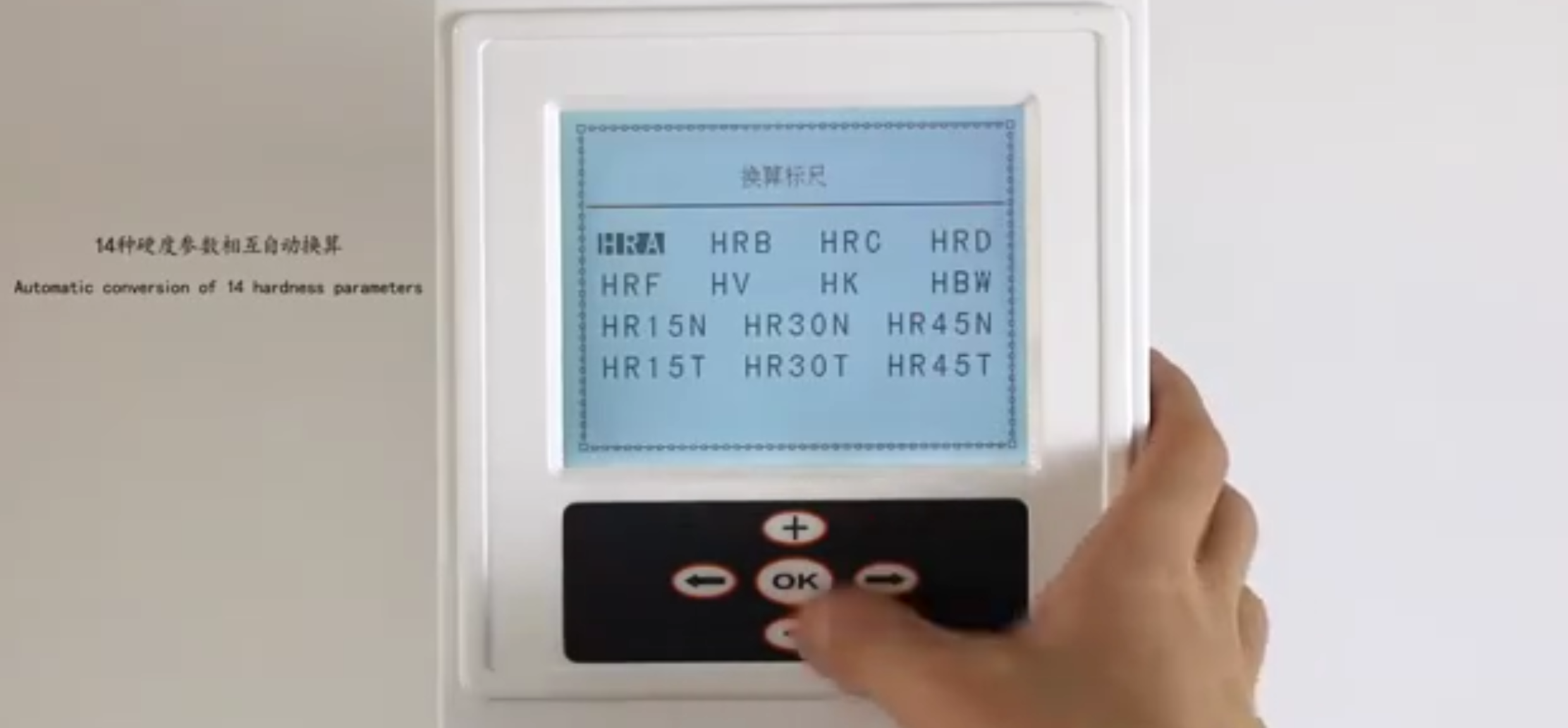

5. Automatic unit conversion between Rockwell, Brinell, and Vickers scales.

6. Rigid one-piece cast structure, resistant to deformation and vibration.

7. High-quality enamel finish for corrosion and abrasion protection.

8. RS-232 communication port supports data export and system connection.

9. In-house R&D and lifetime technical support guarantee reliability.

Application Range

Applicable for testing quenched steel, tempered steel, annealed steel, bearing steel, strip steel, hard alloys, and coated metals.
Widely used in automotive, aerospace, metallurgy, tool manufacturing, and laboratory inspection.

Technical Parameters

Standard Accessories
