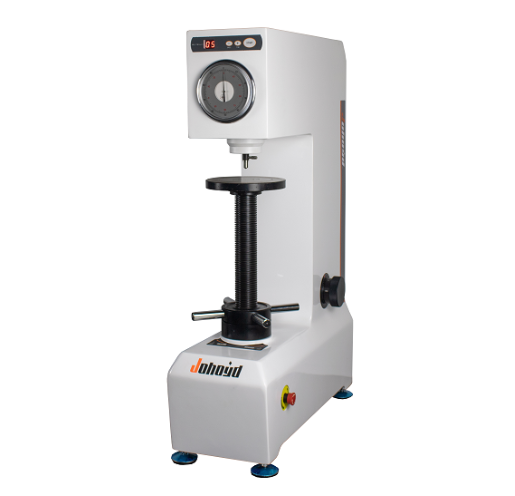

HRM-45DT Electric Superficial Rockwell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Motorized loading and unloading system ensures ±1% force accuracy.
Sensitive dial gauge provides direct, stable, high-precision reading.
Automatic test-force conversion via rotation of load handwheel.
Product Description
The HRM-45DT Electric Superficial Rockwell Hardness Tester is a precision instrument that integrates automatic control and stable mechanical performance.
It adopts a motor-driven loading and unloading system, which guarantees test-force accuracy and eliminates operator influence.
Hardness values are read directly through the high-sensitivity dial indicator, providing rapid and repeatable measurement results.
The outer shell is produced by a one-piece sand-casting process, ensuring mechanical stability, rigidity, and long service life even in challenging environments.
The surface finish uses automotive-grade enamel, providing scratch resistance and maintaining a polished appearance for years.
Designed for workshop and laboratory applications, this model ensures consistent performance across steel, alloys, and hard-coated materials, in compliance with ASTM E18, ISO 6508, and EN 10109 international standards.
Product Advantages (Main Features and Functions)
Motorized system — automatic loading, dwell, and unloading.
High-precision dial indicator for direct, accurate readings.
Rotational load selection handwheel for convenient test-force switching.
Automatic operation minimizes human error and improves repeatability.
Rigid one-piece cast shell ensures long-term dimensional stability.
Premium enamel coating resists corrosion and surface wear.
Fast test cycle and simple operation suitable for continuous testing.
High consistency and low maintenance requirements.
In-house manufacturing and lifetime after-sales service.
Application Range
Suitable for testing quenched steel, tempered steel, annealed steel, bearing steel, strip steel, hardened thin plates, and hard alloys.
Widely used in machinery, metallurgy, automotive manufacturing, tools, and laboratories.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HRM-45DT |
| Preliminary Test Force | 3 kgf (29.42 N) |
| Total Test Force | 15 kgf (147.1 N), 30 kgf (294.2 N), 45 kgf (441.3 N) |
| Rockwell Scales | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Display | Dial indicator |
| Compliant Standards | ASTM E18, ISO 6508, EN 10109 |
| Max Sample Height | 230 mm |
| Indenter–Wall Distance | 165 mm |
| Power Supply | AC 220V ±5%, 50–60Hz |
| Dimensions (mm) | 520 × 240 × 700 |
| Net Weight | Approx. 70 kg |
