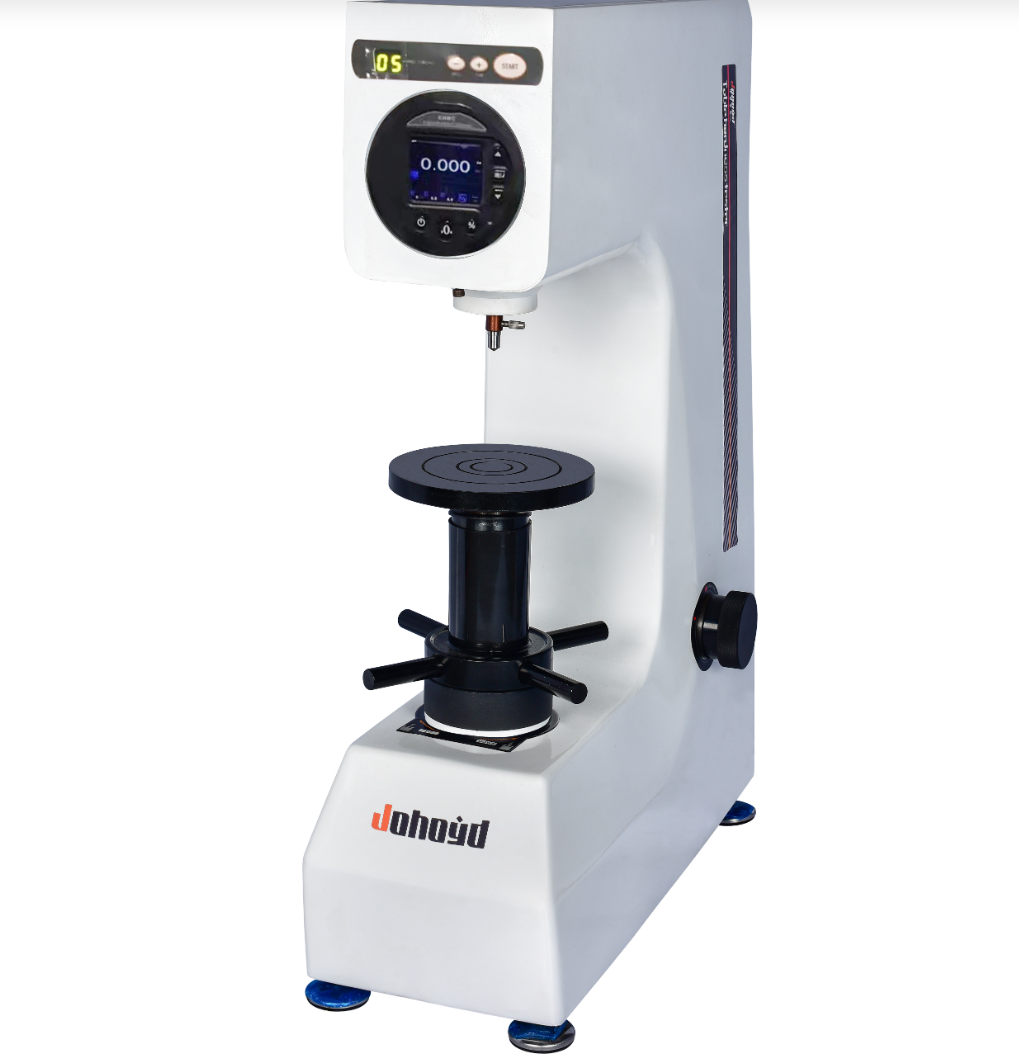

HR-150DTS Digital Electric Rockwell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Motorized loading and unloading ensure precise test force.
Digital display provides direct hardness reading with 0.1 accuracy.
Supports HV and HB conversion for versatile hardness testing.
Low-power lithium battery design enables long continuous use.
Product Description
The HR-150DTS Digital Electric Rockwell Hardness Tester features a fully automated loading and unloading system for reliable and consistent hardness measurement.
It eliminates manual zero adjustment — results are displayed directly on the digital screen with 0.1 resolution for fast and accurate readings.
This model supports automatic hardness conversion between HV, HB, and HR scales, extending its usability across multiple material types.
Its cast aluminum housing, made through a one-piece sand-casting process, provides excellent rigidity and stability, suitable for long-term industrial use.
The instrument operates with a 3.7V lithium battery and requires minimal power, offering extended operation time and built-in data output for connection with a printer or PC.
Compliant with ASTM E18 and ISO 6508 international standards, the HR-150DTS ensures consistent results for workshop and laboratory applications.
Product Advantages (Main Features and Functions)
Motorized test force control — automatic loading, dwell, and unloading.
Digital display for direct hardness value reading, resolution 0.1 HR.
Hardness unit conversion between Rockwell, Brinell, and Vickers.
Ultra-low power consumption with built-in 3.7V 800mAh lithium battery.
Data output interface — connectable to PC or mini printer.
Time display and long battery life for continuous operation.
Cast aluminum body, one-piece sand-cast structure, non-deformable.
High-quality enamel finish, scratch-resistant and glossy for years.
Self-developed manufacturing and lifetime maintenance service.
Application Range
Ideal for testing quenched, tempered, and annealed steel, as well as bearing steel, strip steel, hardened thin plates, and hard alloys.
Widely applied in automotive manufacturing, metallurgy, tool production, and research laboratories.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HR-150DTS |
| Preliminary Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK |
| Test Range | HRA: 20–88; HRB: 20–100; HRC: 20–70; HRD: 40–77; HRF: 60–100; HRG: 30–94; HRH: 80–100; HRK: 40–100 |
| Display | Digital display (0.1 HR resolution) |
| Conversion Units | HV / HB / HR |
| Compliant Standards | ASTM E18, ISO 6508 |
| Max Sample Height | 230 mm |
| Indenter–Wall Distance | 165 mm |
| Power Supply | AC 220V ±5%, 50–60Hz |
| Dimensions (mm) | 520 × 240 × 700 |
| Net Weight | 70 kg |
Standard Accessories
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| Diamond Rockwell Indenter | 1 pc | Φ1.5875 mm Ball Indenter | 1 pc |
| Standard Hardness Blocks | 3 pcs | Large, Medium, "V" Type Test Tables | 3 pcs |
| Screwdriver | 1 pc | Dust Cover | 1 pc |
| Power Cable | 1 pc | Fuse | 2 pcs |
| User Manual | 1 copy | Accessory Box | 1 pc |
