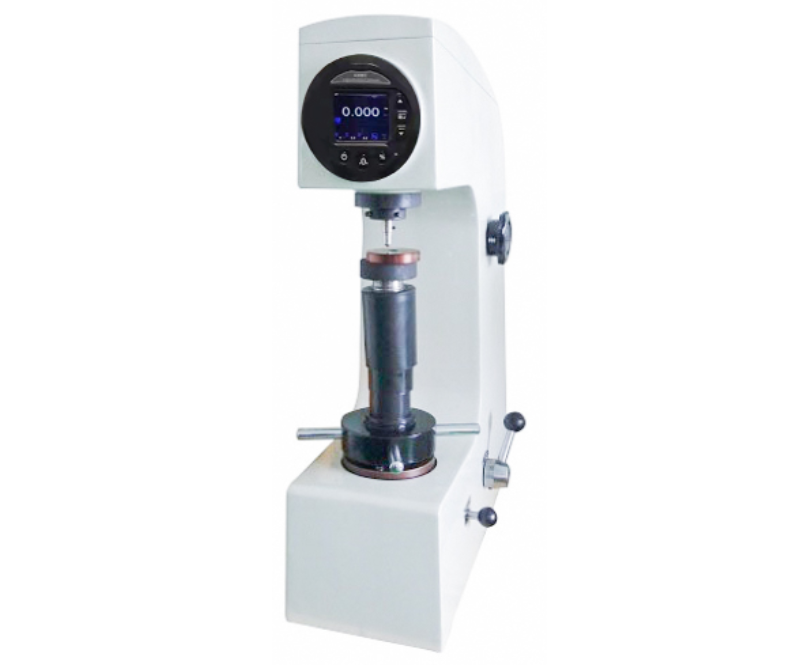

HR-150AS Manual Digital Rockwell Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Manual Rockwell tester with digital display and stable accuracy.
Direct hardness reading with automatic unit conversion.
Low power consumption, supports data output to printer or PC.
Product Description
The HR-150AS Manual Digital Rockwell Hardness Tester is a classic, reliable testing instrument suitable for industrial and laboratory use.
It adopts a mechanical manual loading system, requiring no external power supply, making it ideal for stable, efficient operation in varied environments.
The hardness value can be read directly on the digital display, with a resolution of 0.1 HR, and supports conversion to Vickers (HV) and Brinell (HB) hardness units.
Its cast body is made through a one-piece sand-casting process, ensuring long-term stability and high resistance to deformation.
The surface uses automotive-grade baked enamel, providing excellent scratch resistance and a glossy finish even after years of use.
This model combines the traditional mechanical system's simplicity with modern digital precision, making it both economical and reliable for daily hardness testing.
Product Advantages (Main Features and Functions)
Digital display directly shows hardness values with 0.1 HR resolution.
Supports automatic conversion between Rockwell, Brinell, and Vickers hardness units.
Stable and reliable mechanical manual loading; no power required.
Low power consumption, long battery life, with time display function.
Data output port for connection to printer or computer.
Independent calibration for each measurement unit for better precision.
Cast aluminum shell, formed in one piece through special sand-casting process, prevents deformation.
High-quality enamel coating with anti-scratch surface, maintains brightness for years.
In-house R&D and production ensure lifetime support, spare parts replacement, and upgrades.
Application Range
Applicable for testing quenched steel, tempered steel, annealed steel, bearing steel, strip steel, hardened thin plates, and hard alloys.
Widely used in machinery manufacturing, metallurgy, tools, automotive, and research institutions.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HR-150AS |
| Preliminary Test Force | 10 kgf (98.07 N) |
| Total Test Force | 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N) |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK |
| Measuring Range | HRA: 20–88; HRB: 20–100; HRC: 20–70; HRD: 40–77; HRF: 60–100; HRG: 30–94; HRH: 80–100; HRK: 40–100 |
| Display | Digital display |
| Calibration | Each unit can be individually calibrated |
| Compliant Standards | ASTM E18, ISO 6508 |
| Max Specimen Height | 170 mm |
| Indenter-to-Wall Distance | 135 mm |
| Dimensions (L×W×H) | 466 × 238 × 630 mm |
| Net Weight | Approx. 65 kg |
Standard Accessories
| Name | Quantity | Name | Quantity |
|---|---|---|---|
| Diamond Rockwell Indenter | 1 pc | Φ1.5875 mm Steel Ball Indenter | 1 pc |
| Standard Hardness Blocks (HRC high/medium/low, HRB, HRA) | 5 pcs | Large, Medium, and “V” Type Test Tables | 3 pcs |
| Large & Small Screwdrivers | 2 pcs | Dust Cover | 1 pc |
| User Manual | 1 copy | Certificate of Conformity | 1 copy |
