EASY-G 1310M Gas Pycnometer
The EASY-G 1310M gas pycnometer delivers ±0.02% accuracy and ±0.01% repeatability in true density measurement. Features 3-sample chambers, 13.3" embedded computer, integrated pipeline system, and dual-pressure modes (negative/positive). Ideal for powders, batteries, coal, soil, and food, with rapid industrial QC capabilities.
roduct Description
The EASY-G 1310M Gas Pycnometer is a state-of-the-art true density analyzer designed for rapid, accurate measurement of solids, powders, and porous materials. Based on the gas displacement principle, it integrates advanced hardware and intelligent software to serve industrial production lines and research labs with high efficiency and reliability.
Core Design & Technology
The EASY-G 1310M builds on the EASY-G series’ strengths, featuring a multi-sample chamber design (3 independent chambers) for parallel testing, boosting throughput and cost-effectiveness. Its integrated metal pipeline system ensures large heat capacity, maintaining temperature uniformity throughout testing to minimize errors. The high-precision digital acquisition system resists interference and uses advanced algorithms to enhance accuracy, while the sample chamber’s bottom filtering device prevents sample ingestion into pipelines, and the air-inlet design avoids splashing.
A standout feature is the tenon-type sample tube installation, simplifying setup with a tool-free, secure fit. The 13.3-inch embedded test computer eliminates the need for external devices, offering a compact, stable interface for operation and data management.
Technical Specifications
Model: EASY-G 1310M
Test Capacity: 3 samples simultaneously
Sample Cell Volume: 10mL
Test Gas: High-purity He/N₂ (99.999%)
Accuracy: ±0.02%; Repeatability: ±0.01%; Resolution: 0.0001g/cc
Test Modes: Selectable negative pressure (0–1 Bar) or positive pressure (1–2 Bar)
Pressure Sensor: 3 Bar range, 0.05% FS accuracy, 0% FS long-term stability
Pipeline Structure: Integrated stainless steel system with pneumatic valves
Degassing: Compatible with room temperature–400°C pretreatment
Applications
The EASY-G 1310M excels in diverse industries:
Powder Metallurgy: Measure density of metal powders for quality control.
Battery Industry: Analyze electrode material density to optimize performance.
Coal & Mining: Determine coal lump density for sorting and valuation.
Environmental Science: Assess soil density for geotechnical studies.
Food Processing: Verify density of baked goods (e.g., bread slices) for consistency.
Advantages Over Conventional Pycnometers
Efficiency: 3-sample parallel testing cuts time by 60% vs. single-chamber models.
Precision: Dual-pressure modes and high-accuracy sensors ensure reliable results for porous/non-porous materials.
Usability: Embedded computer and tenon-type installation simplify operation, reducing training needs.
Durability: Integrated pipeline system and anti-splash design minimize maintenance.
Software & Data Management

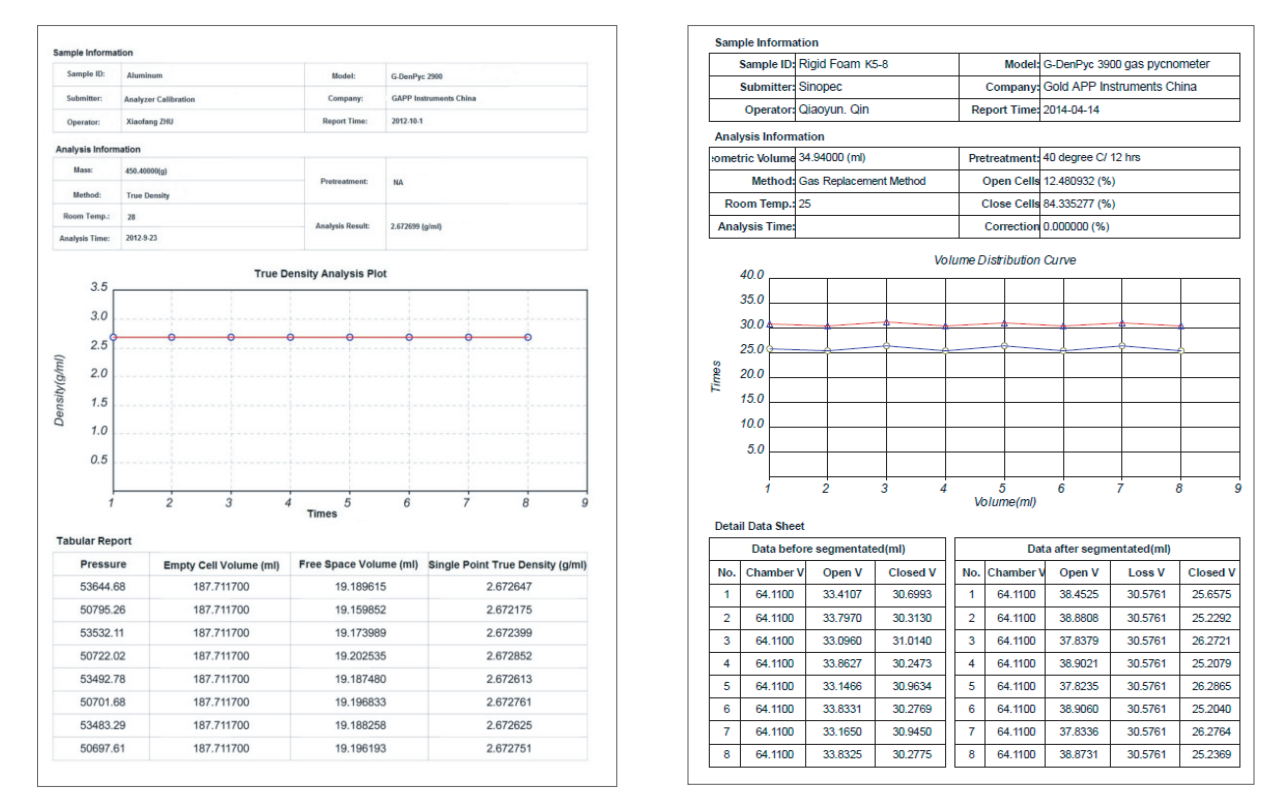

The embedded software supports real-time monitoring, automated data logging, and report generation (including adsorption/desorption curves and density trends). Data exports in standard formats (CSV, PDF) facilitate integration with lab information systems (LIMS).
