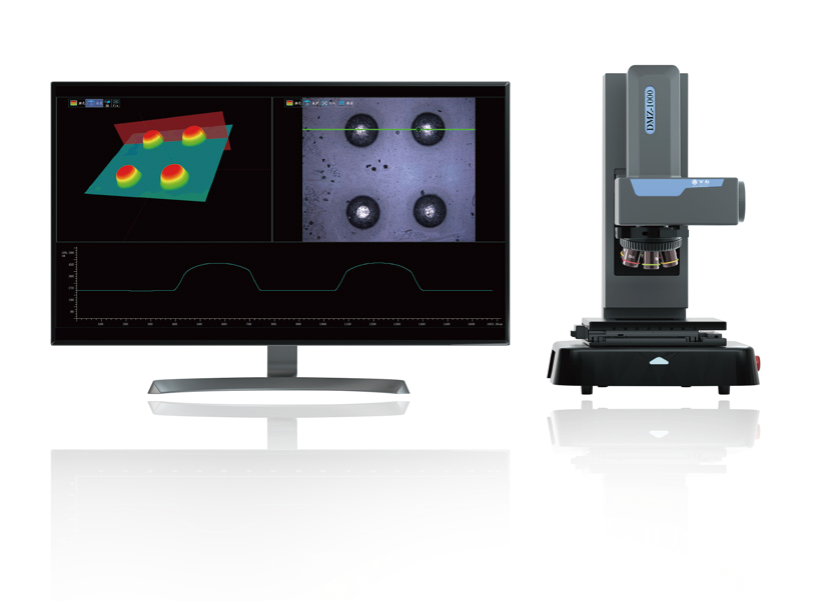

DMZ1000 Series Microscopic Automation System

The DMZ1000 Series represents a breakthrough in microscopic automation, combining advanced optical systems with intelligent motion control and data analysis capabilities. This system addresses the growing need for high-precision, automated inspection solutions in modern manufacturing environments, particularly in sectors requiring microscopic-level quality control such as electronics, semiconductors, and precision engineering.

Core System Components

The system integrates three fundamental subsystems that work in seamless coordination:

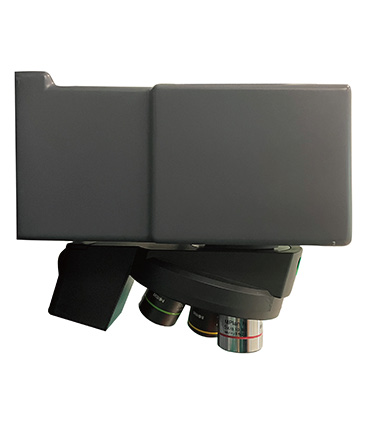

Optical Imaging System

• Infinite optical path design with semi-apochromatic objectives (5X-100X)




• Multiple observation modes: brightfield, darkfield, mixed, polarized light, DIC




• Optional fluorescence and infrared imaging capabilities




• High-resolution camera system (5MP, 2464×2056 resolution)

•

Motion Control System

• Linear motor driven XYZ stages with 0.1μm resolution




• Platform strokes ranging from 100×100mm to 700×600mm




• Load capacity up to 30kg for large sample handling




• ±1.7μm positioning repeatability ensuring measurement consistency




Intelligent Software Platform

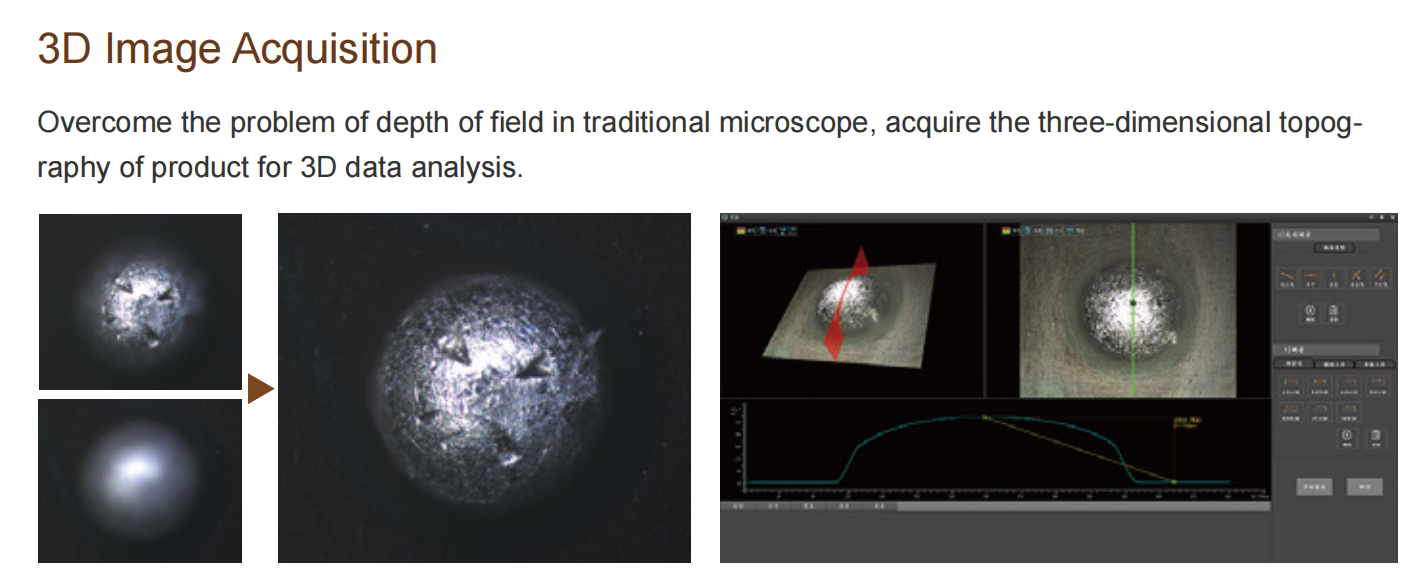

• Automated 2D/3D image stitching and navigation




• Advanced measurement tools for dimensional analysis




• Q-DTS data interconnection for real-time MES integration




• Customizable analysis algorithms for specific application needs




•

Key Technological Advantages

The DMZ1000 demonstrates significant improvements over traditional microscopy solutions through several innovative features:

Precision Engineering

The integration of high-resolution grating scales (0.1μm) in all three axes ensures exceptional measurement accuracy. The linear motor drive system provides rapid positioning while maintaining sub-micron precision, crucial for modern manufacturing tolerances.

Adaptive Optical System

Unlike conventional microscopes, the DMZ1000 offers unprecedented flexibility in observation methods. The system can seamlessly switch between brightfield, darkfield, and advanced contrast techniques like DIC, accommodating various sample types and inspection requirements without hardware changes.

Smart Automation Capabilities

The system's automated features significantly dependency and measurement variance. The one-button operation for image acquisition, stitching, and analysis minimizes human error while increasing throughput. The automated magnification recognition and calibration maintenance ensure consistent results across multiple operators and sessions.

Application Scenarios

Electronics Manufacturing

• PCB trace width and spacing measurements




• Solder joint quality inspection




• Component placement verification




• Via and plating quality assessment




Semiconductor Industry

• Wafer defect detection and classification




• Chip package inspection




• Wire bonding quality control




• Surface topology analysis




Advanced Materials Research

• Microstructure characterization




• Coating thickness- Material failure analysis




• Quality verification of additive manufacturing




Technical Specifications Deep Dive

The system's performance characteristics demonstrate its capability to handle diverse industrial requirements:

Optical Performance

• Magnification range: 150X-6000X (depending on configuration)




• Field of view: 3.52mm-0.88mm (objective dependent)




• Numerical aperture: 0.04-0.9 across objective range




• Working distance: 10-40mm based on magnification




Mechanical Performance

• Maximum speed: 200mm/s (XY axes)




• Acceleration0.5G maximum




• Vertical resolution: 0.1μm




• Maximum sample height: 90mm




Software Capabilities

• Measurement accuracy: ±1% of reading




• Reporting formats: PDF, Excel, custom templates




• Data export: Compatible with major MES systems




• User management: Multi-level access control




Customization and Support

The modular design allows for specific configurations:

• DMZ1000: Standard configuration for general purpose inspection




• DMZ1000D: PCB industry-optimized with larger platform




• DMZ1000L: Extended Z-axis for tall components




All systems include comprehensive training, documentation, and support services to ensure optimal operation and quick integration into existing quality control processes.
