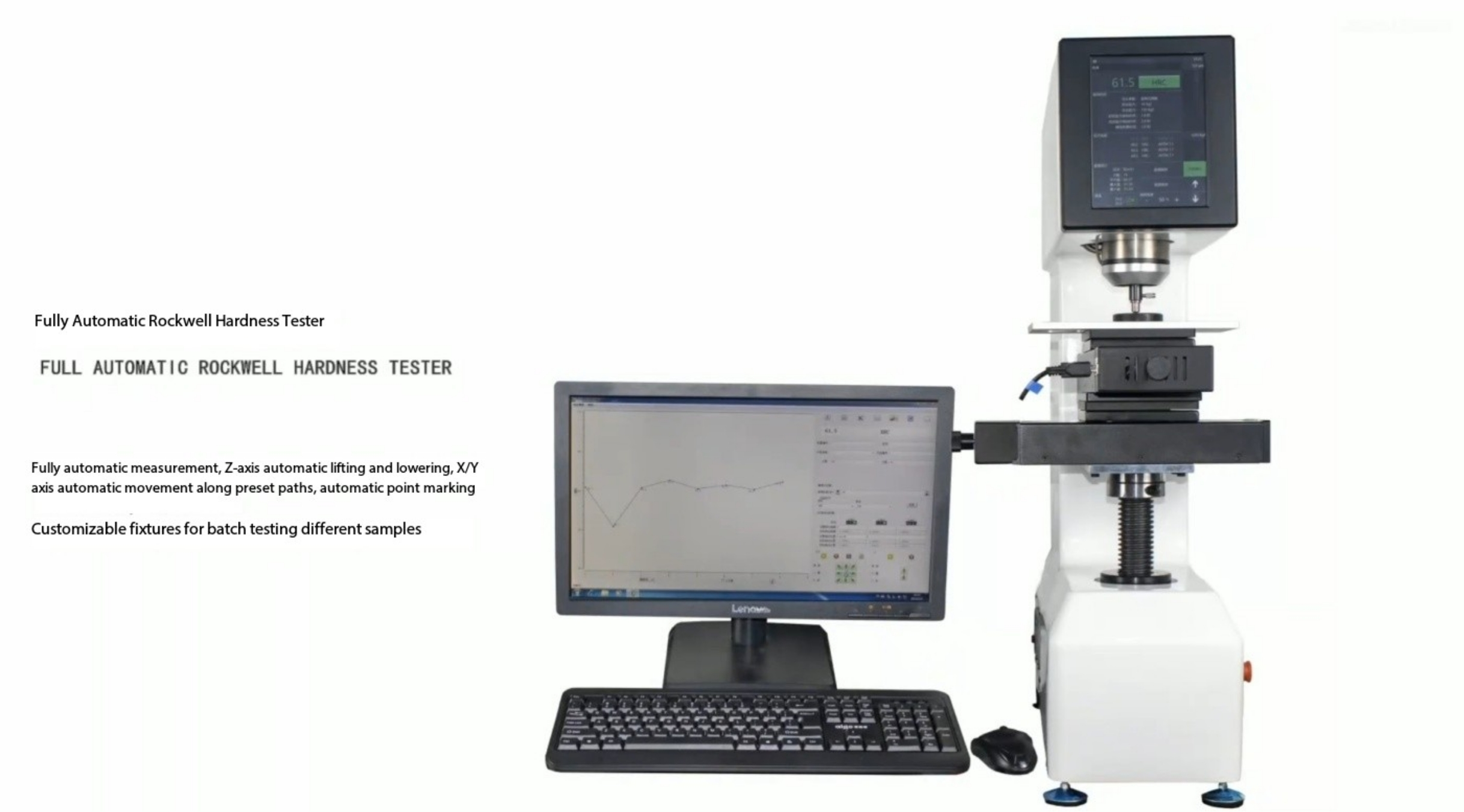

DCHRTS-150ZXY Fully Automatic Rockwell Hardness Tester

Product Description

The DCHRTS-150ZXY Fully Automatic Rockwell Hardness Tester represents a new generation of high-precision intelligent testing instruments.
It adopts a closed-loop servo control system, ensuring stable and accurate test force application with excellent repeatability.
This tester features automatic loading, holding, and unloading, as well as a programmable XY electric stage for multi-point Rockwell hardness testing.
The system supports one-key operation, automatic path setup, and continuous testing, eliminating manual errors.
Equipped with an 8-inch color touchscreen, it clearly displays test parameters, results, dwell time, and statistics.

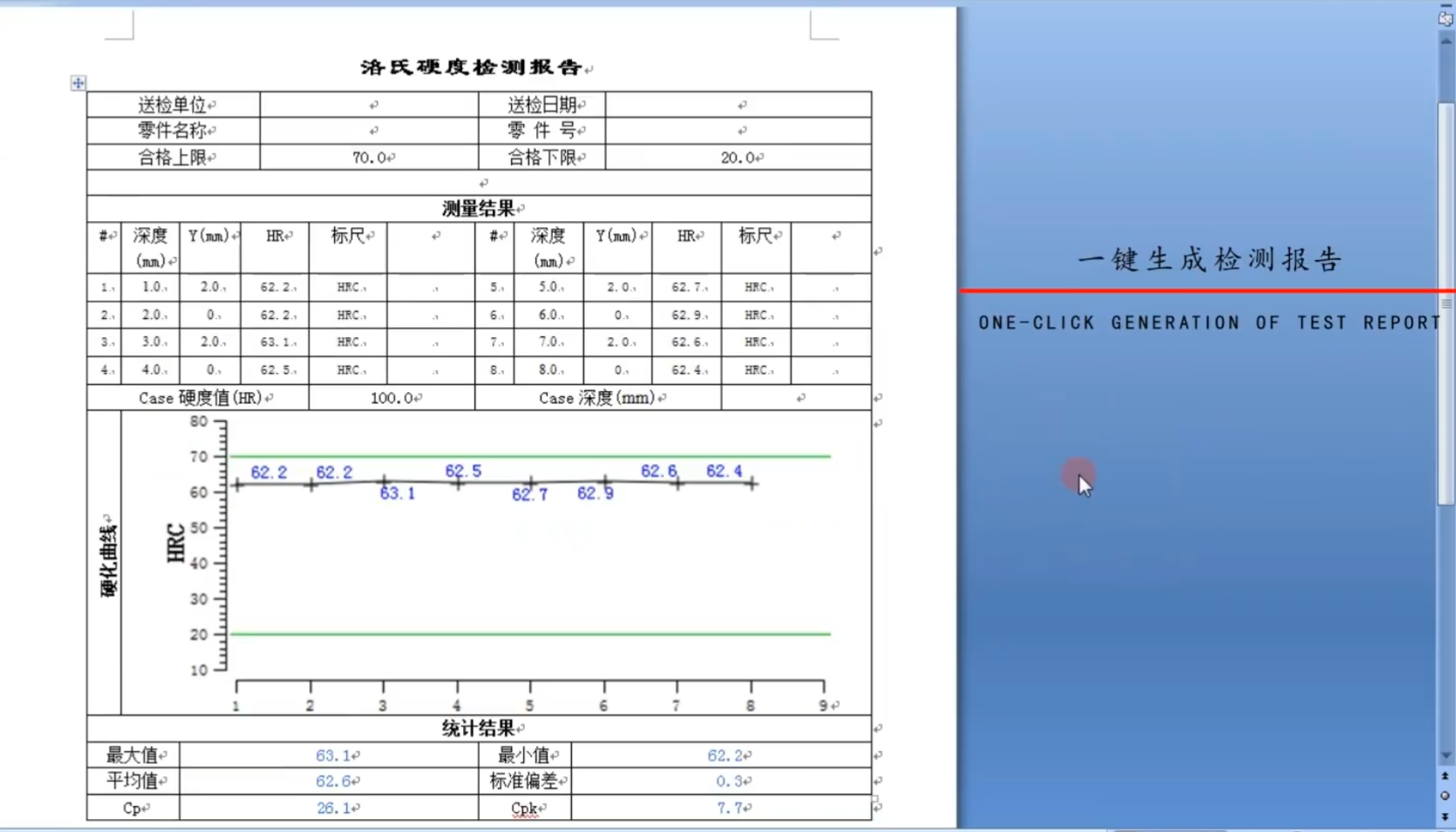

Optional PC software allows remote control, hardness curve plotting, statistical analysis, and report generation in Word or Excel format.
Its cast-aluminum body and automotive-grade baked enamel finish provide strength, durability, and an elegant appearance.
Compliant with ASTM E18, ISO 6508, and EN 10109 international standards, it is ideal for industrial quality inspection and laboratory research.

Product Advantages (Main Functions and Features)

1. 8-inch touchscreen display shows hardness values, test method, test force, dwell time, elastic recovery, test count, and statistical data.

2. One-key automatic testing: sample lifting, loading, holding, unloading, and reset are fully automated.

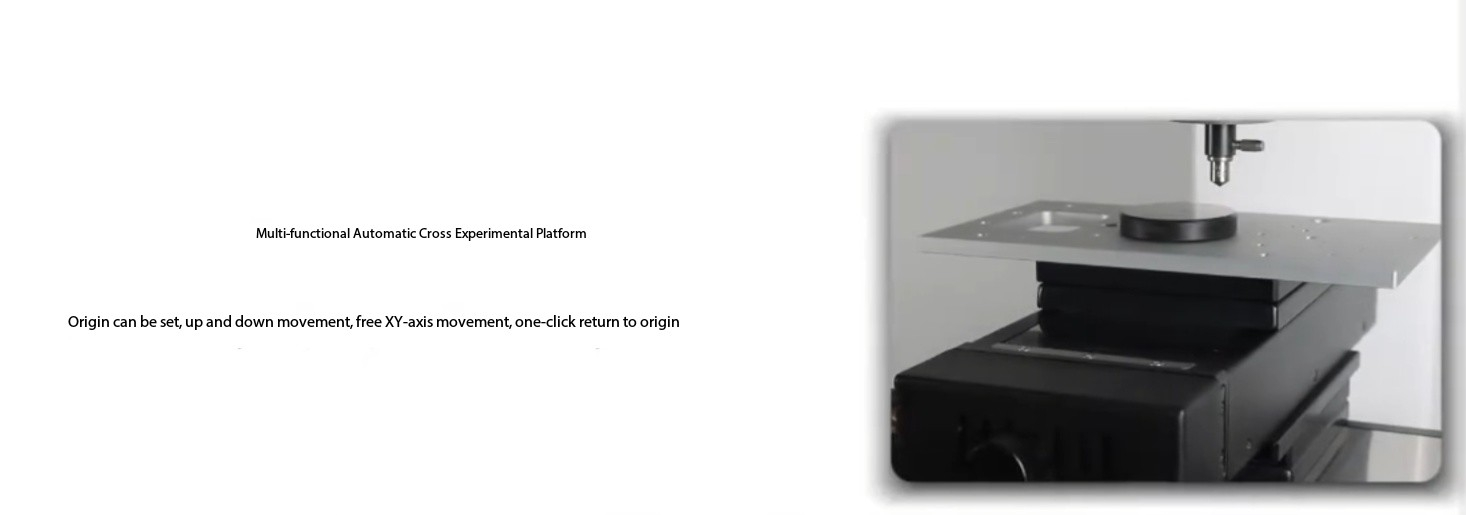

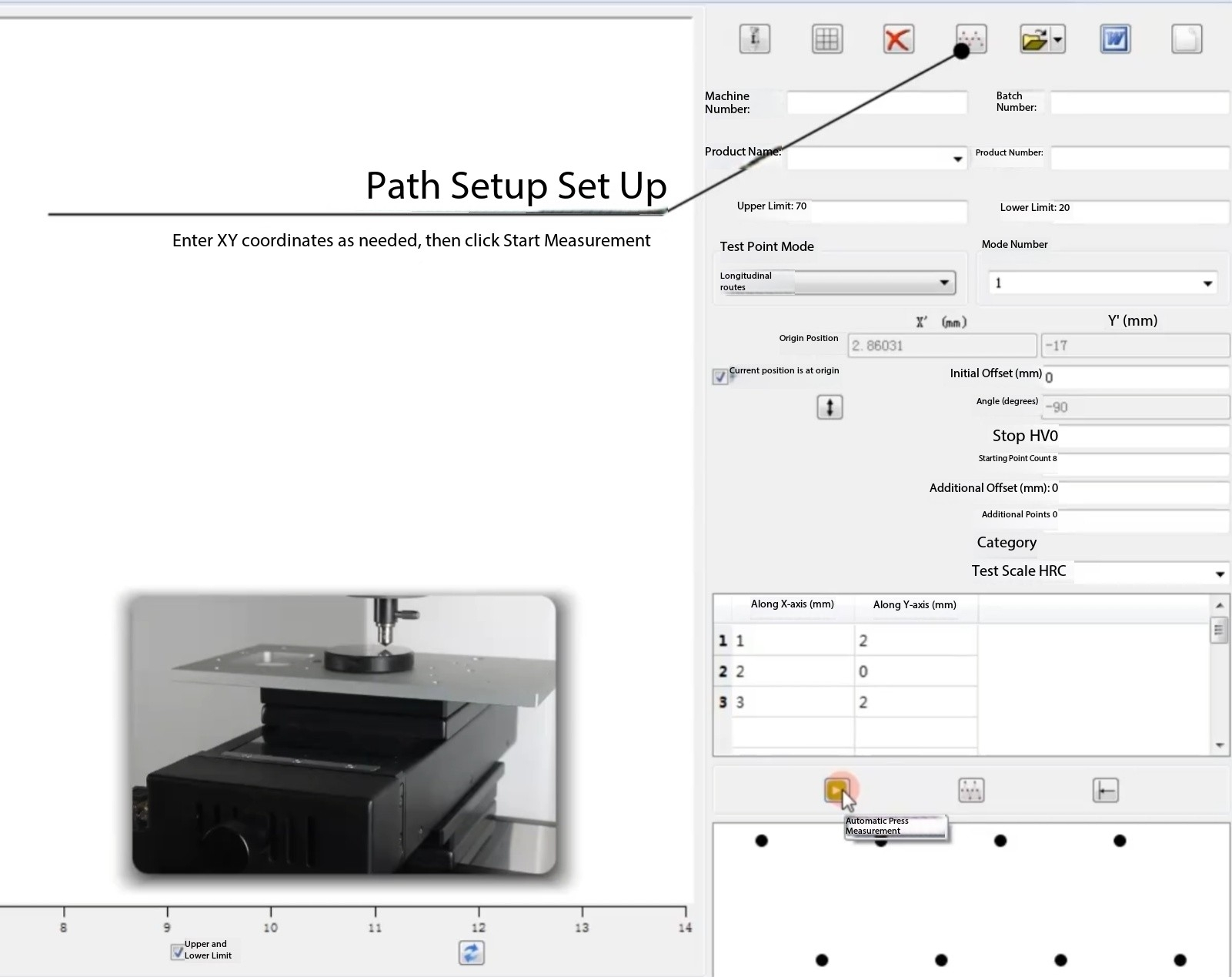

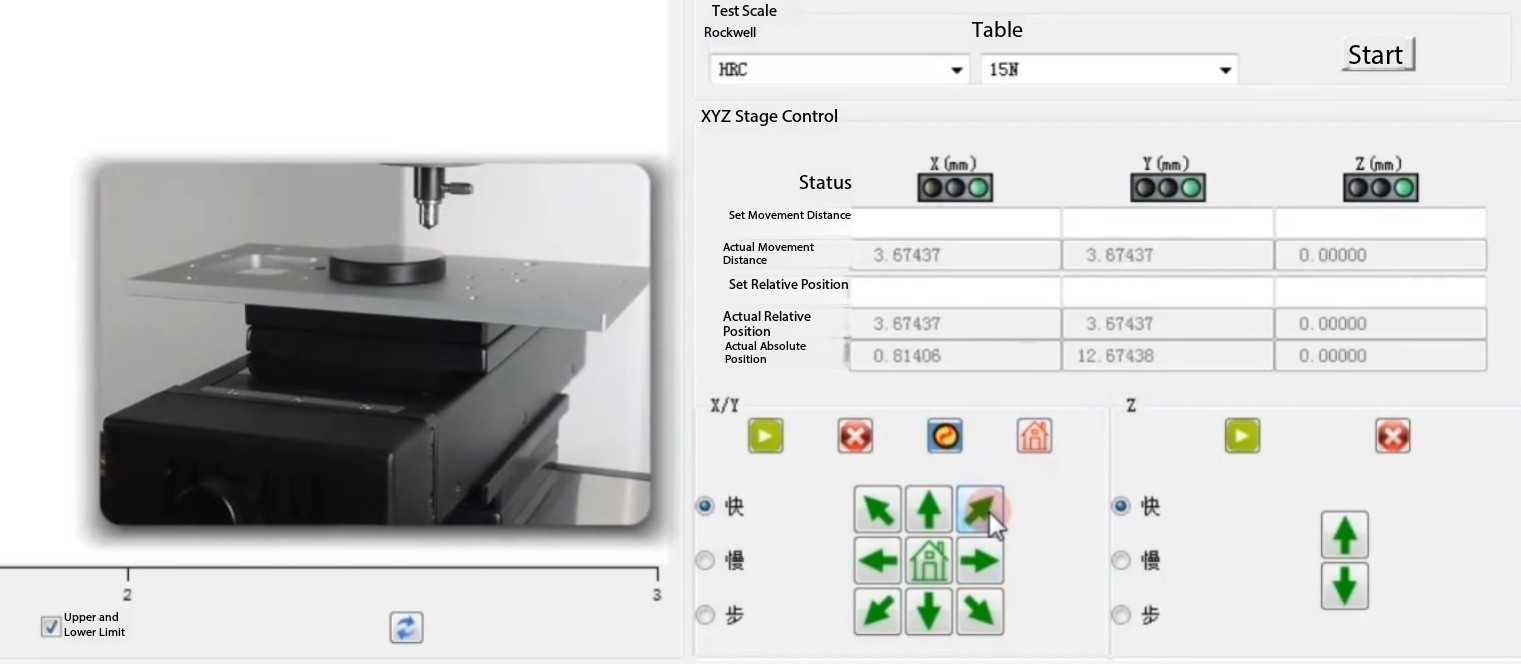

3. XY automatic stage supports programmable paths and continuous multi-point testing.

4. Built-in auto calibration system adjusts within 80–120% range or calibrates independently for high/low values.

5. Curved surface correction automatically compensates according to standard radius.

6. Stores 100 groups of test data with functions to view, delete, or clear all records.

7. Test force units are switchable between Kgf and N.

8. Displays average value, test count, and product name on-screen.

9. Supports 20 hardness scales with ASTM/ISO standard conversion, including HRA–HR45Y, HK, HBW, HS, HV, and Rm.

10. Sleep mode activates automatically when idle for energy efficiency.

11. Upper/lower limit alarms alert when results exceed tolerance.

12. 14 interface languages including English, German, French, Spanish, Korean, and Arabic.

13. Built-in printer and USB output allow data export and analysis.

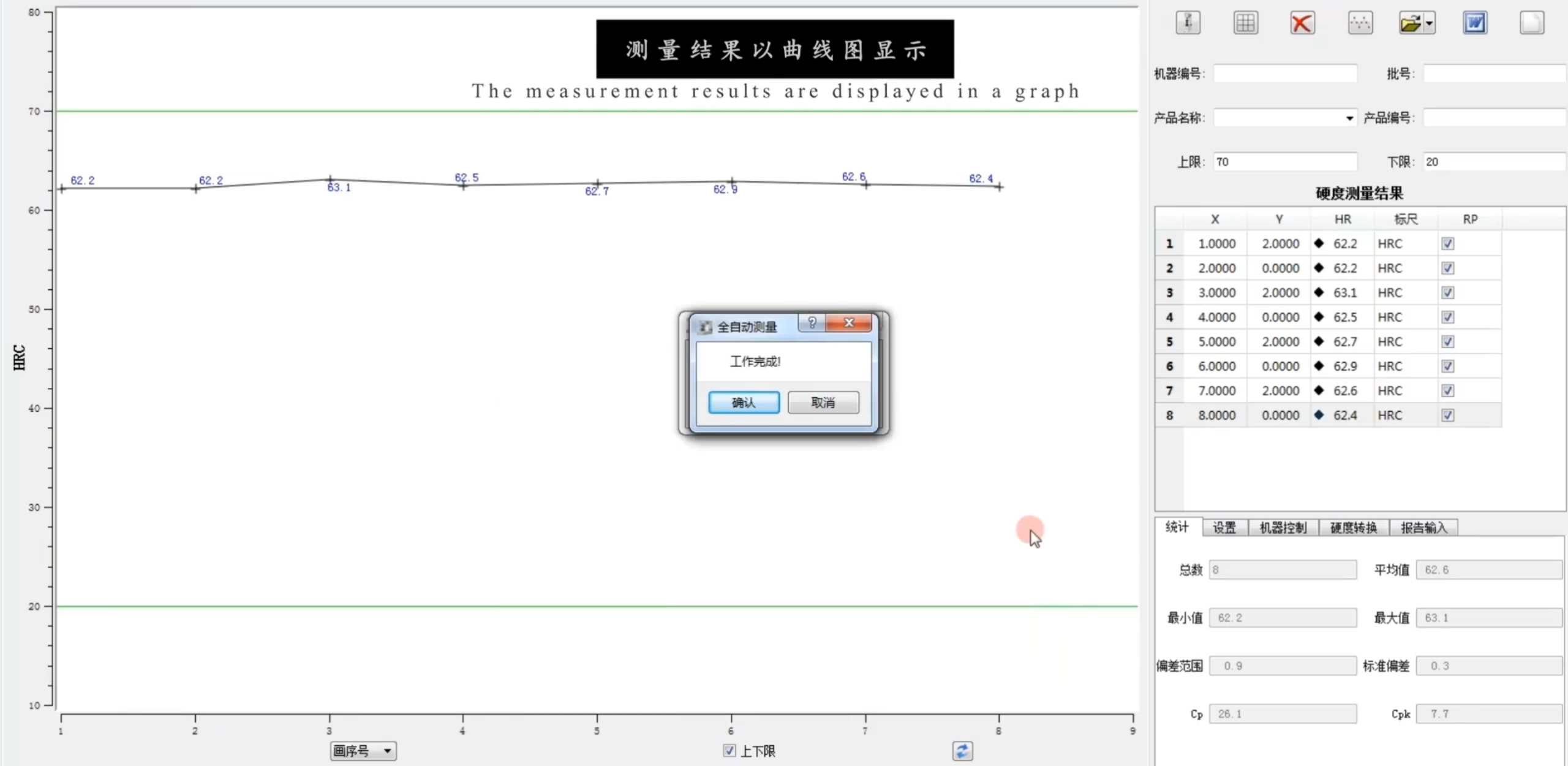

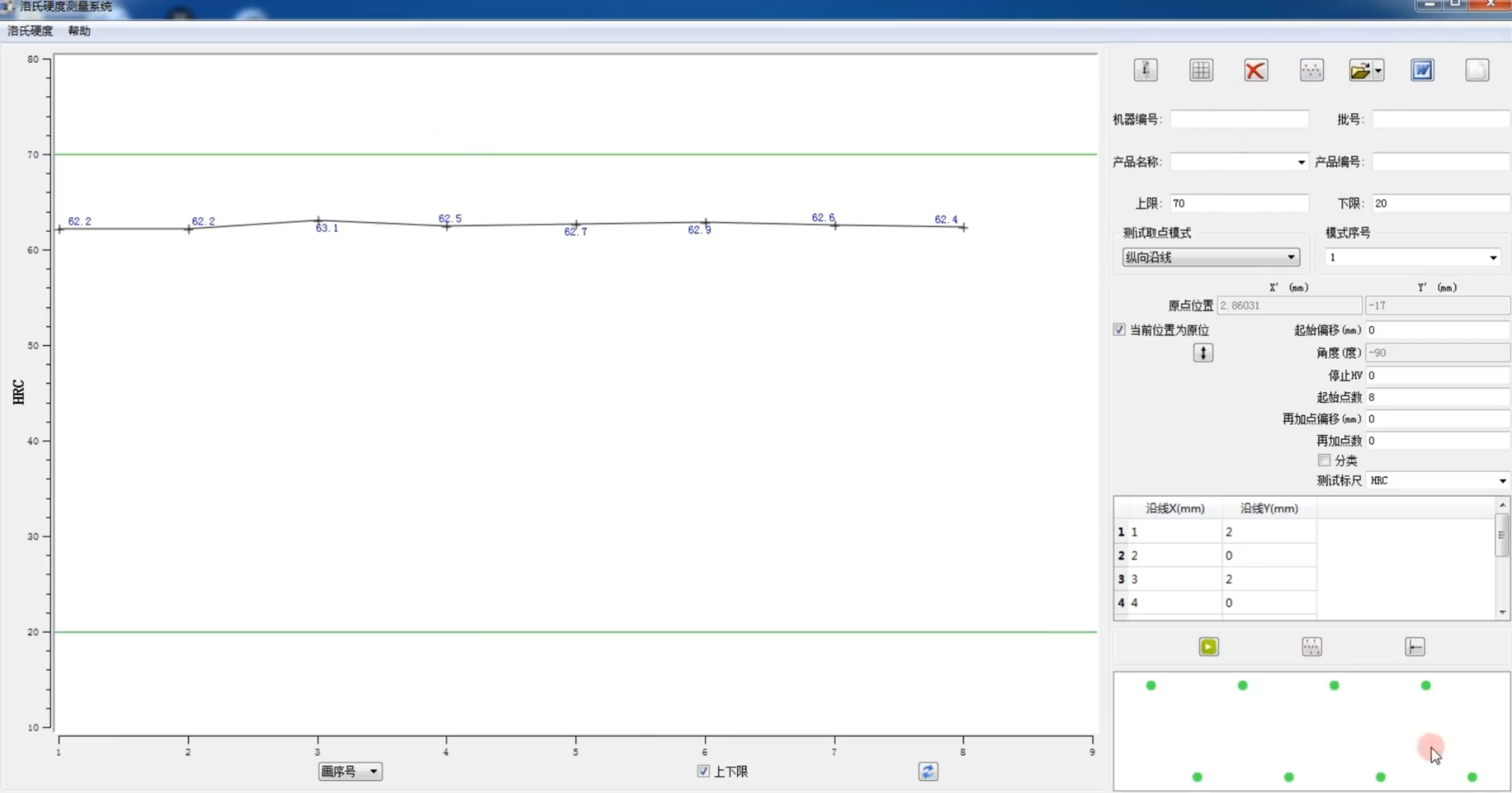

14. PC software supports curve drawing, report generation, and network data transmission.

15. Cast-aluminum housing with white enamel finish — rigid, corrosion-resistant, and long-lasting.

Application Range

Suitable for Rockwell hardness testing of ferrous and non-ferrous metals, alloy steels, quenched/tempered materials, and soft metals.
Widely used in automotive, aerospace, machinery manufacturing, metallurgy, and quality inspection laboratories.

Technical Parameters

Standard Accessories
