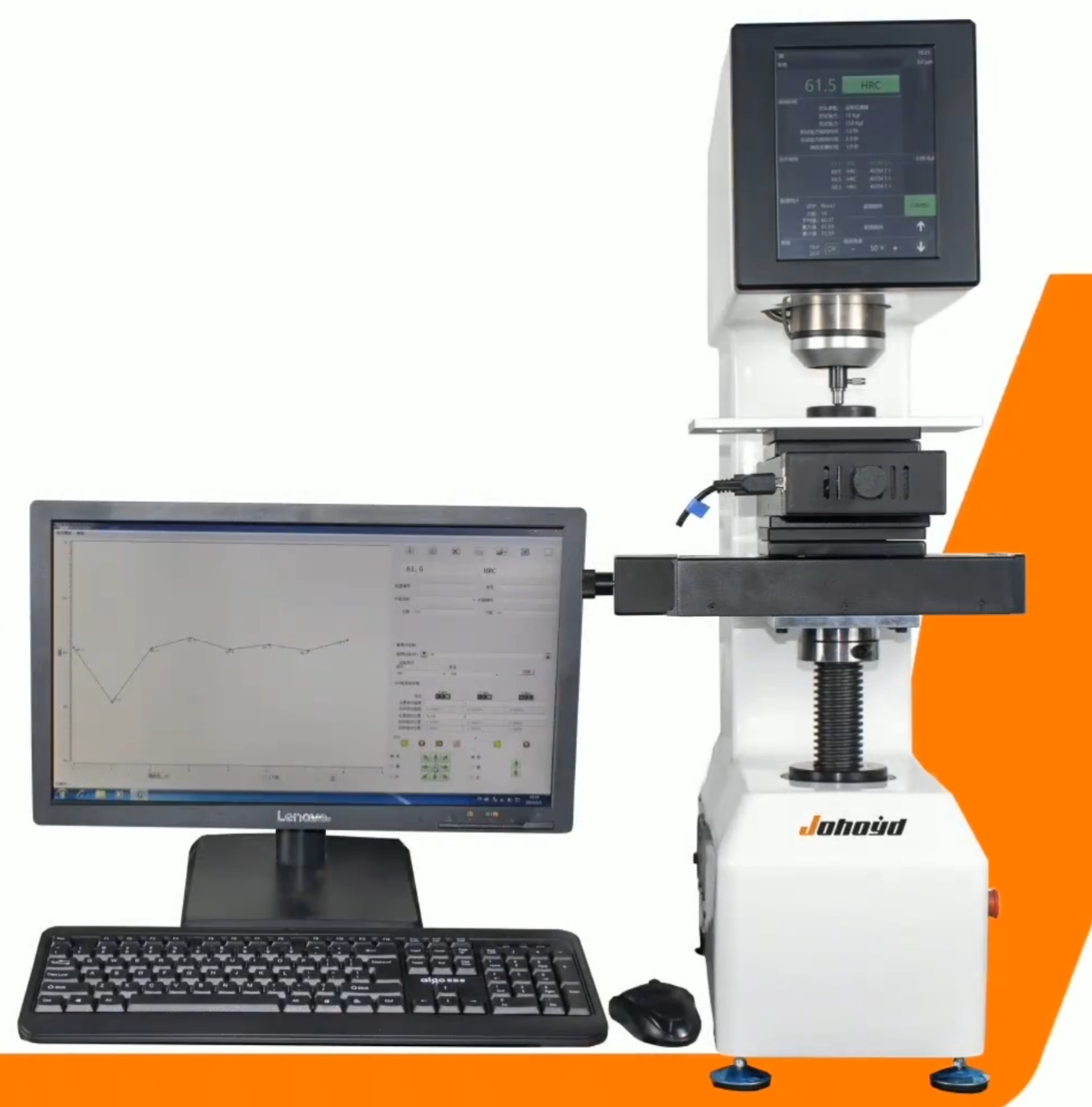

DCHRTS-150ZXY Fully Automatic End-Quench Curve Hardness Tester

Product Description

The DCHRTS-150ZXY Fully Automatic End-Quench Curve Hardness Tester is a next-generation intelligent instrument designed for precision hardness curve testing.
It adopts a closed-loop servo control system for stable, accurate force loading and repeatable performance.
The tester features automatic loading, holding, and unloading, combined with an XY electric stage for programmable multi-point hardness testing.
The system supports one-key operation, automatic path setup, and test execution — ideal for Jominy end-quench testing and other continuous Rockwell hardness measurements.

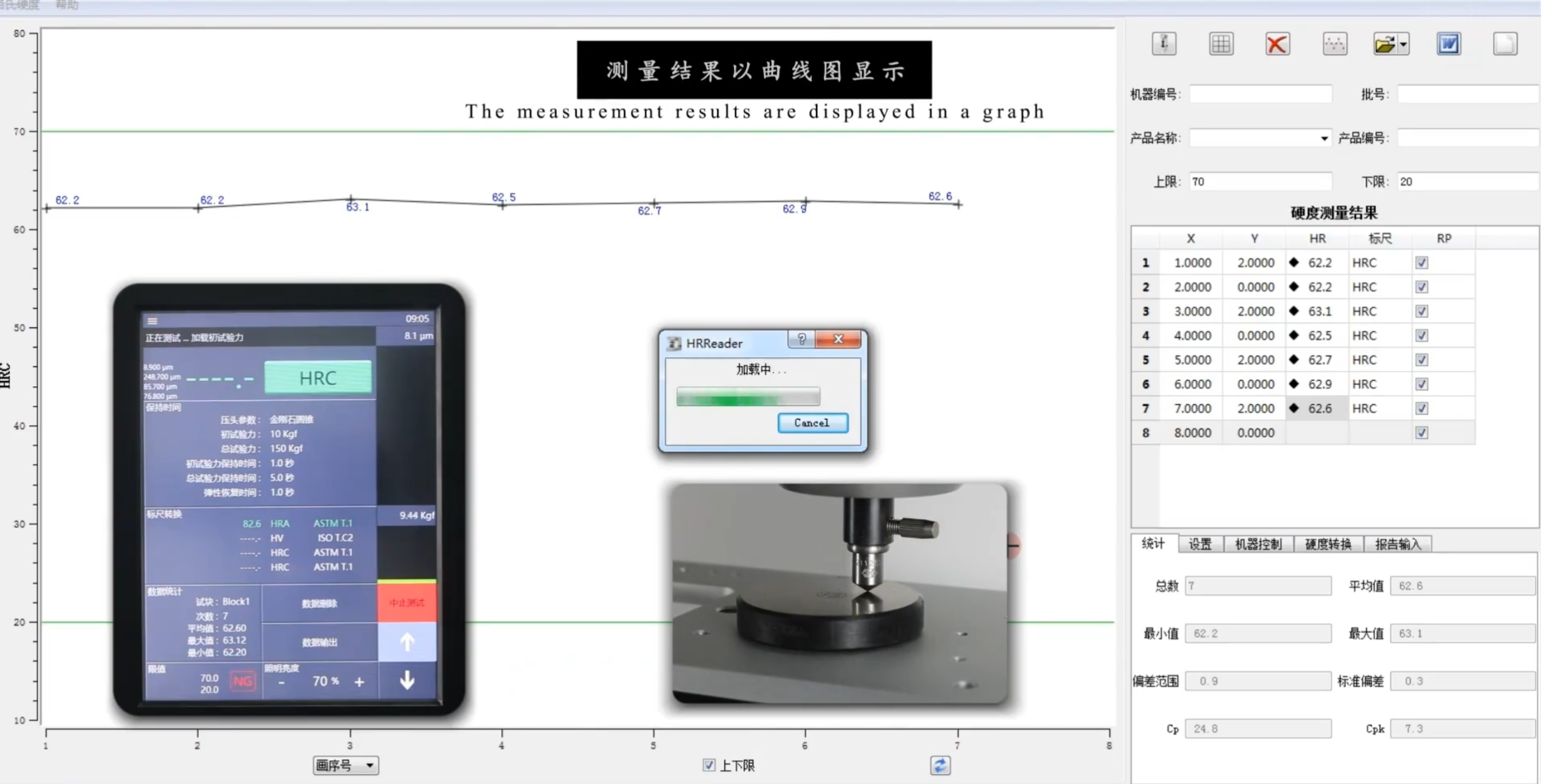

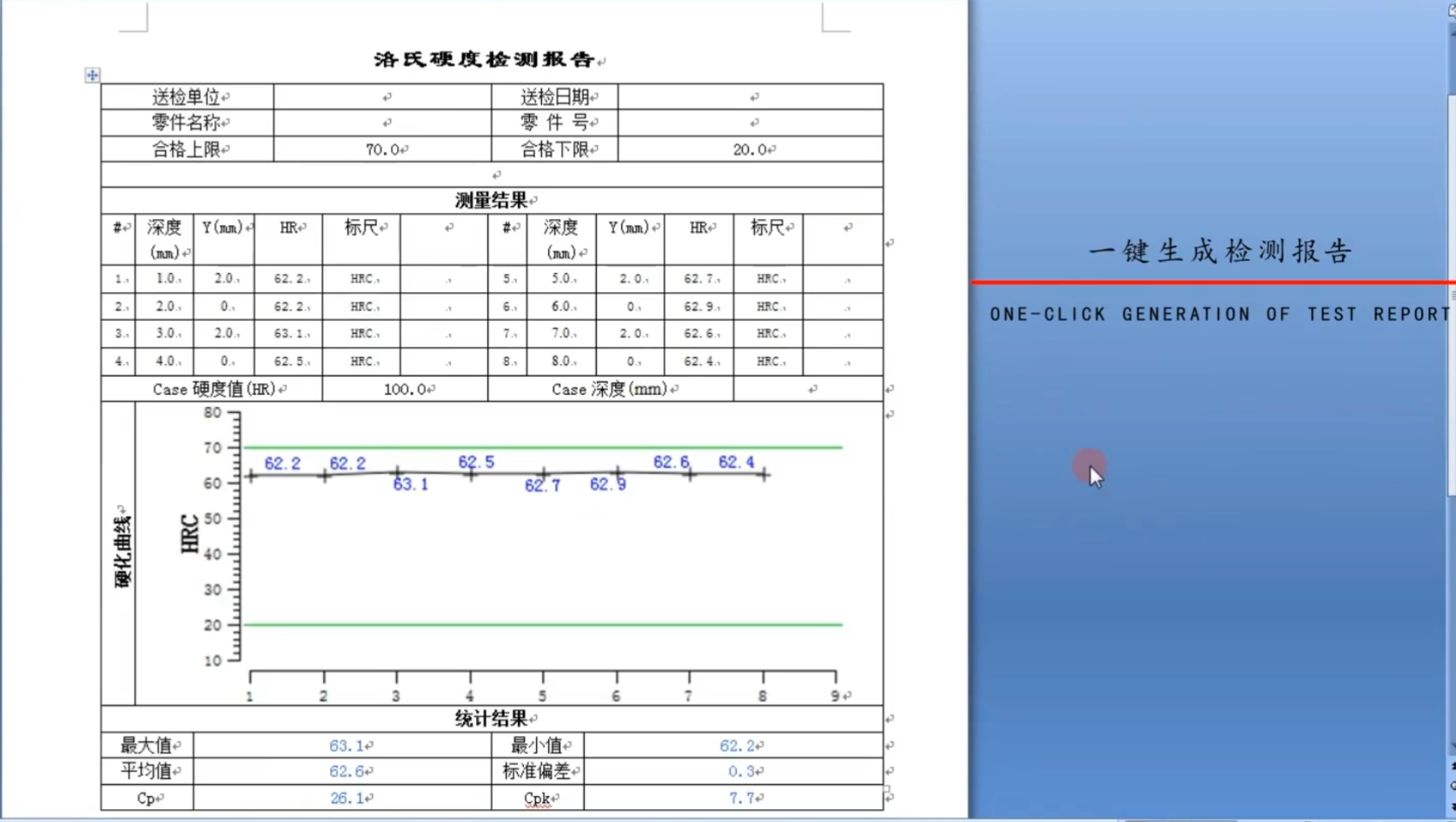

An 8-inch color touchscreen displays all parameters and results clearly, while the PC software enables hardness curve plotting, data conversion, and automatic report generation in Word or Excel formats.
With its integrated cast-aluminum structure and automotive-grade enamel coating, the machine ensures long-term durability and precise performance.
Compliant with ASTM E18, ISO 6508, EN 10109 standards, it delivers reliable results for industrial and laboratory applications.

Product Advantages (Main Functions and Features)

1. 8-inch LCD touchscreen displays test status, hardness values, method, force, dwell times, recovery, test count, and data statistics.

2. One-key automation: specimen lifting, loading, holding, unloading, and returning to start position.

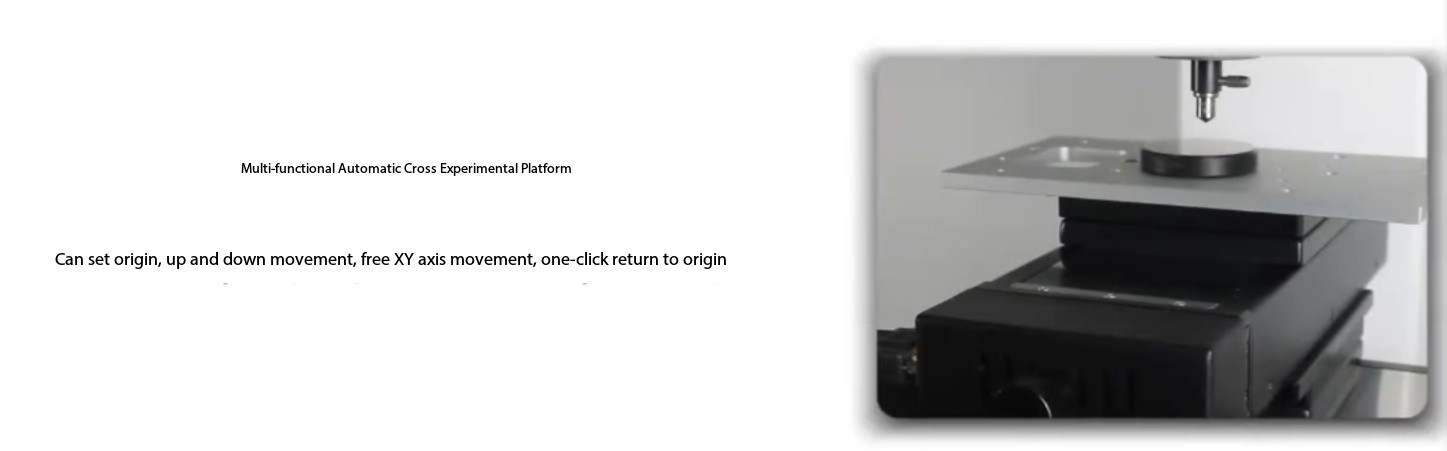

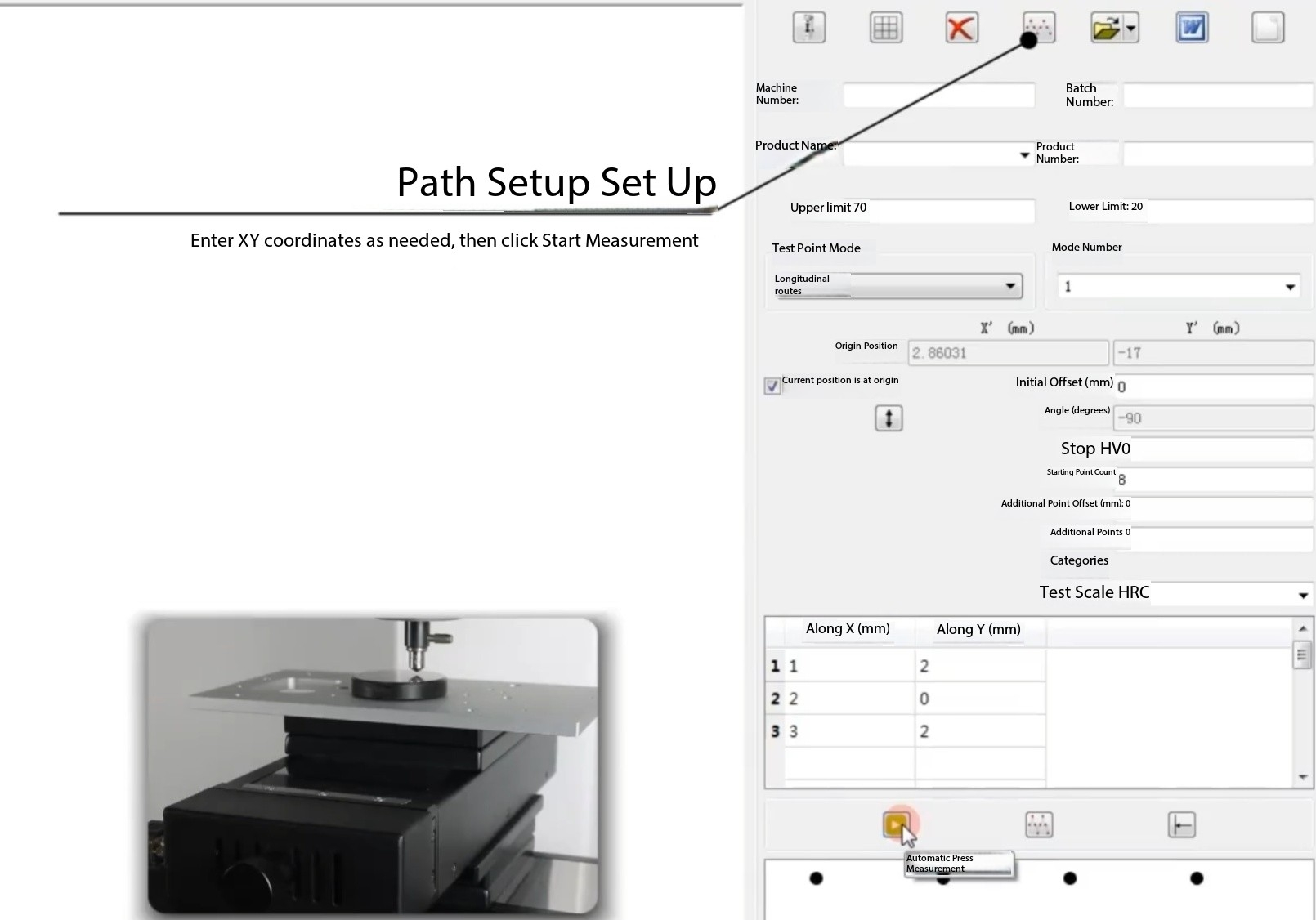

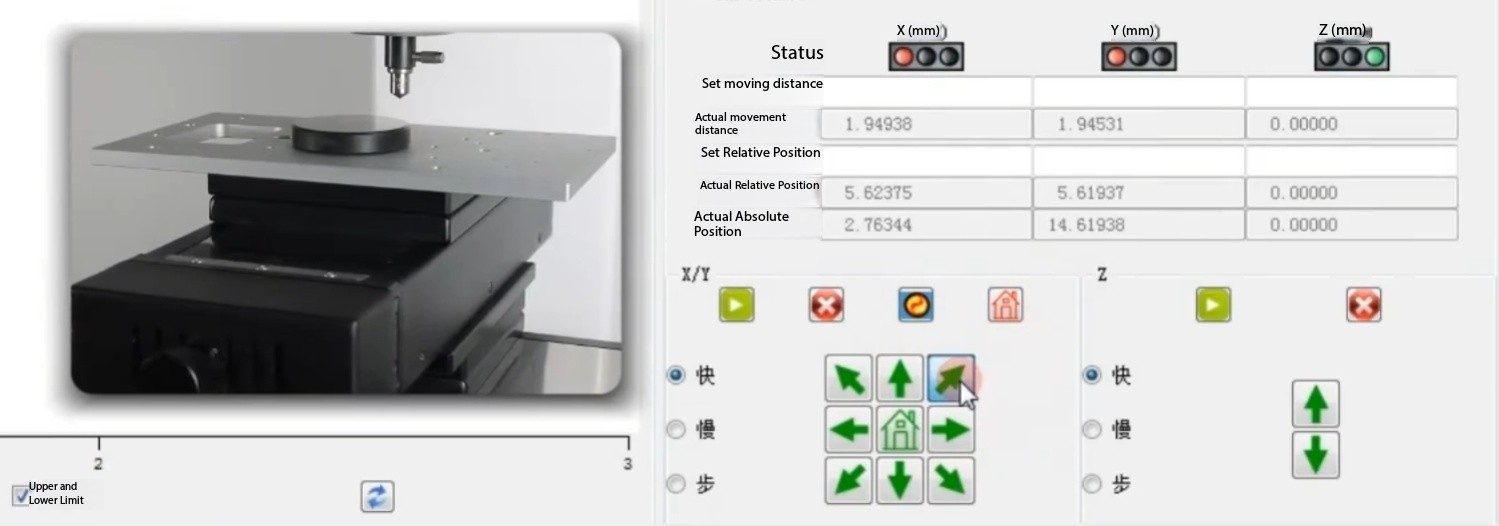

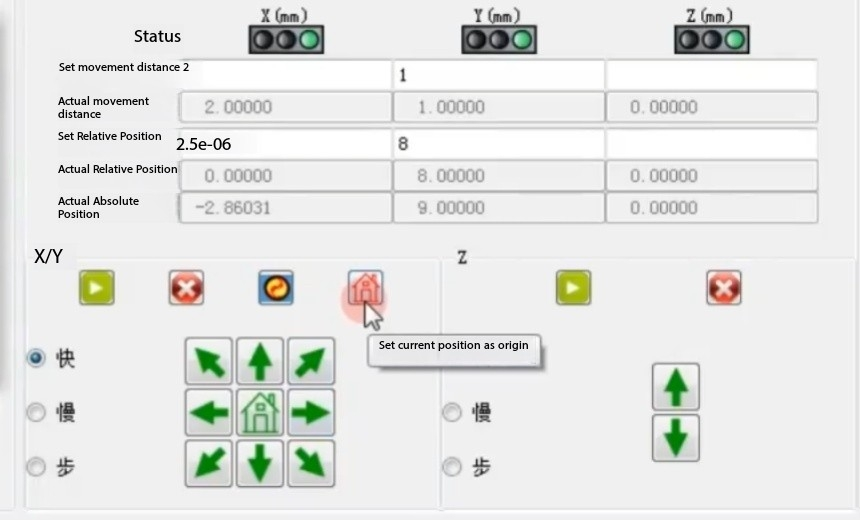

3. XY automatic stage allows path programming for continuous hardness testing.

4. Built-in auto calibration system adjusts range (80–120%) or separately calibrates high/low values.

5. Curved surface correction compensates based on the standard curvature radius.

6. Stores 100 groups of test data, with view, delete, and clear options.

7. Force units switchable between Kgf and N.

8. Displays average value, test count, and product name simultaneously.

9. Supports 20 conversion scales and ASTM/ISO standard switching (HRA–HR45Y, HK, HBW, HS, HV, Rm).

10. Sleep mode activates automatically when idle.

11. Pass/fail alarm for out-of-range results.

12. 14 interface languages including English, German, French, Spanish, Korean, and Arabic.

13. Built-in printer and USB data export functions.

14. PC control software supports data acquisition, multi-point curve plotting, report generation, and network communication.

15. Cast-aluminum housing with white enamel coating — rigid, corrosion-resistant, and elegant.

Application Range

Used for Rockwell hardness testing and Jominy end-quench curve analysis of ferrous and non-ferrous metals, alloys, quenched/tempered steels, and cast materials.
Widely applied in automotive, aerospace, metallurgical, machinery, and heat treatment industries.

Technical Parameters

Standard Accessories
