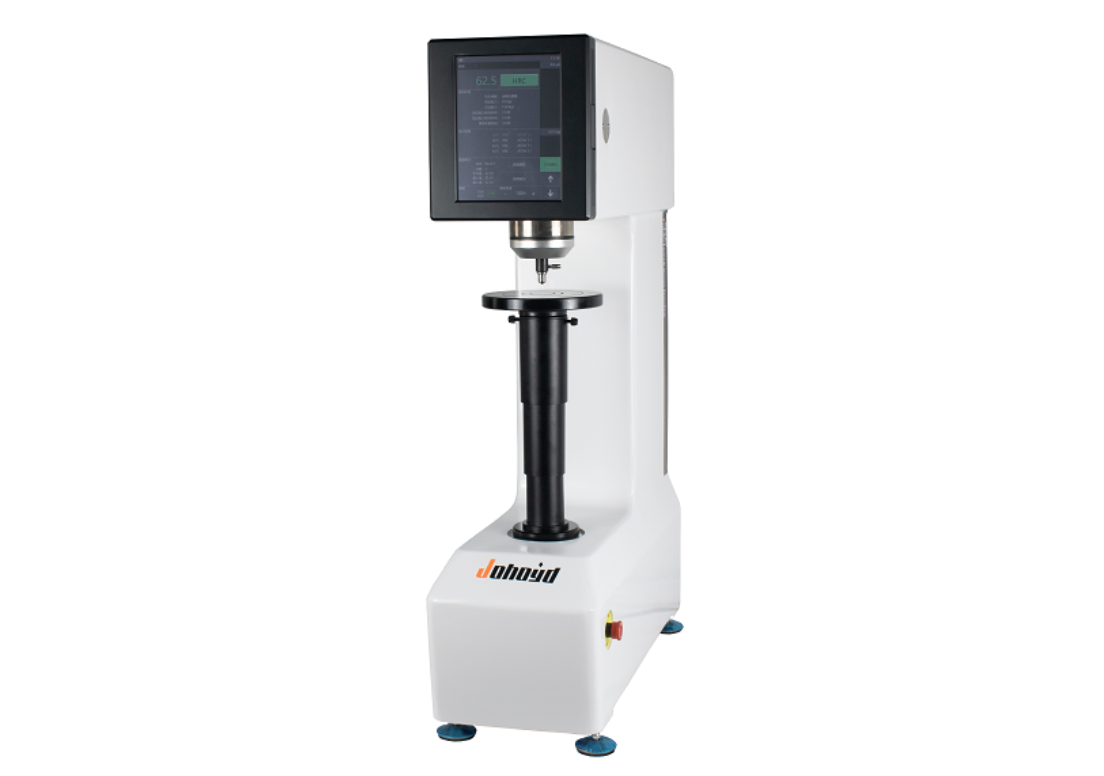

CHRTS-150ZX Fully Automatic Plastic Rockwell Hardness Tester

Product Description

The CHRTS-150ZX Fully Automatic Plastic Rockwell Hardness Tester is a new-generation intelligent testing instrument designed for non-metal materials such as plastics, hard rubber, and synthetic resins.
It features a closed-loop servo control system, providing high precision, repeatability, and stability.
The integrated cast-aluminum body with automotive-grade white enamel coating is durable, rigid, and scratch-resistant.
The system supports automatic loading, dwell, and unloading of test forces, eliminating manual error and ensuring consistency.
An 8-inch color touchscreen provides an intuitive display of test process, hardness values, dwell time, and statistics.
Optional XY automatic stage and PC software enable automated programming, positioning, and data analysis.
Complying with ASTM E18, ISO 6508, and EN 10109 international standards, this instrument ensures accuracy and long-term reliability for laboratory and industrial use.

Product Advantages (Main Functions and Features)

1. 8-inch color touchscreen display shows hardness value, conversion scale, test method, force, brightness, preliminary dwell time, total dwell time, elastic recovery time, test count, statistical data, and test time.

2. Built-in auto calibration system adjusts error range between 80–120% or calibrates independently for high/low values.

3. Curved surface correction automatically compensates based on the standard curvature radius.

4. 100 data storage groups, reviewable, deletable, or fully clearable.

5. Test force units switchable between Kgf and N.

6. Simultaneous display of average value, test count, and product name.

7. Supports 20 conversion scales, including HRA, HRB, HRC, HRD, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HK, HBW, HS, HBS, HV, and Rm.

8. Auto sleep mode saves energy when idle for long periods.

9. Upper/lower limit alarms automatically prompt when test results exceed range.

10. Supports 14 interface languages, including English, German, French, Spanish, Russian, Japanese, Korean, Thai, and Arabic.

11. Built-in printer and USB port for data export and analysis.

12. One-piece cast-aluminum frame, with white baked enamel finish, durable and stylish.

13. Developed and produced in-house, with lifetime service and part replacement.

Application Range

Ideal for hardness testing of non-metallic materials such as plastics, hard rubber, synthetic resins, friction materials, and soft metals.
Widely used in research laboratories, material testing centers, and production workshops.

Technical Parameters

Standard Accessories
