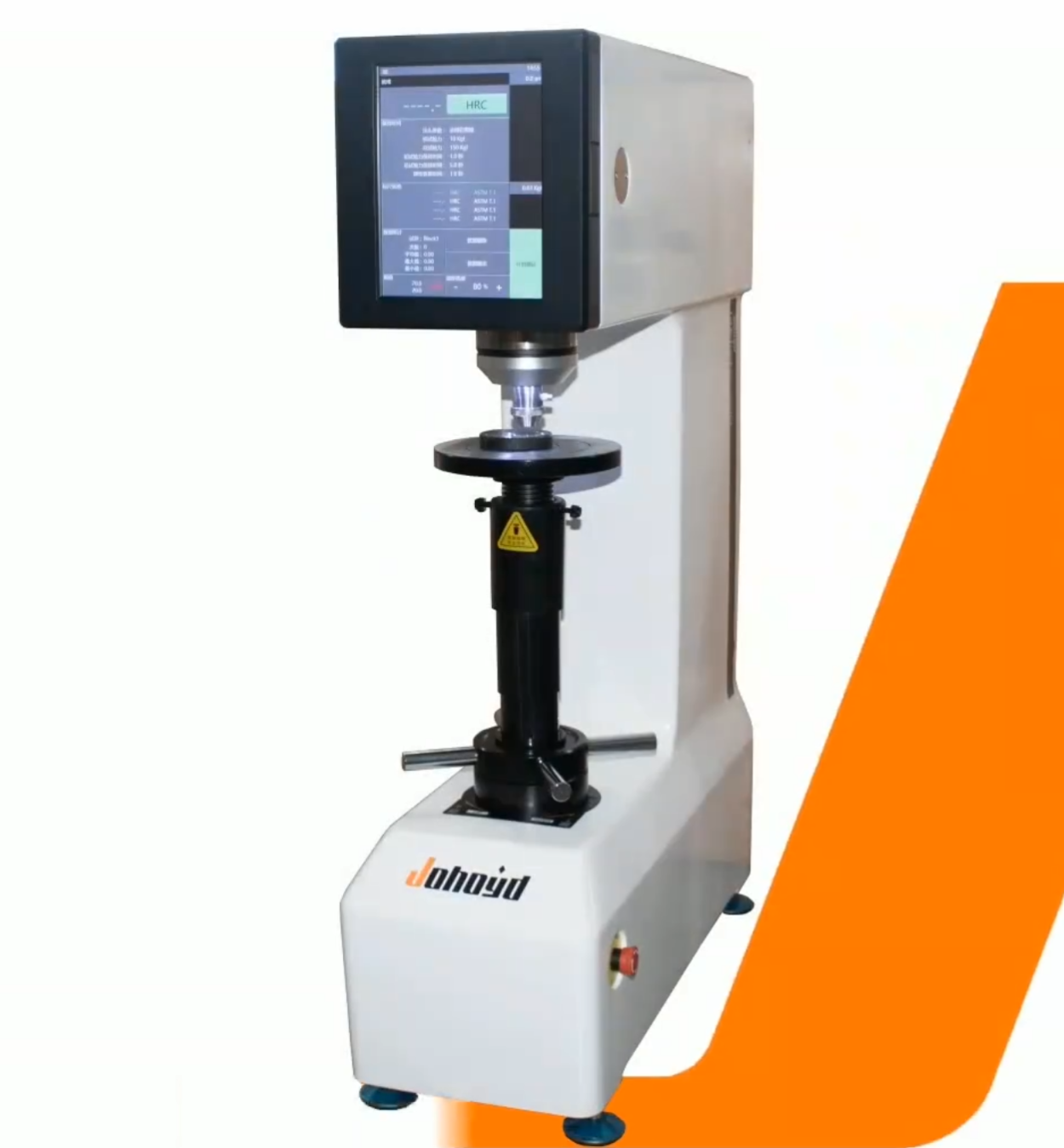

CHRTS-150S Touch Screen Dual Rockwell Hardness Tester

Product Description

The CHRTS-150S Touch Screen Dual Rockwell Hardness Tester represents a new generation of intelligent hardness testing instruments.
It adopts a closed-loop servo loading control system, ensuring high precision and stability.
The device features automatic loading, dwell, and unloading of the test force, eliminating manual error and ensuring consistent results.
The cast aluminum body with automotive-grade baked enamel coating offers strength, durability, and a modern appearance.
The tester supports all Rockwell and Superficial Rockwell scales, automatic curve correction, data statistics, and test record printing.
Equipped with an 8-inch color touchscreen, built-in printer, and USB interface, the CHRTS-150S provides easy data output and on-screen hardness conversion between Brinell, Rockwell, and Vickers scales.
It fully complies with ASTM E18, ISO 6508, and EN 10109 international standards.

Product Advantages (Main Functions and Features)

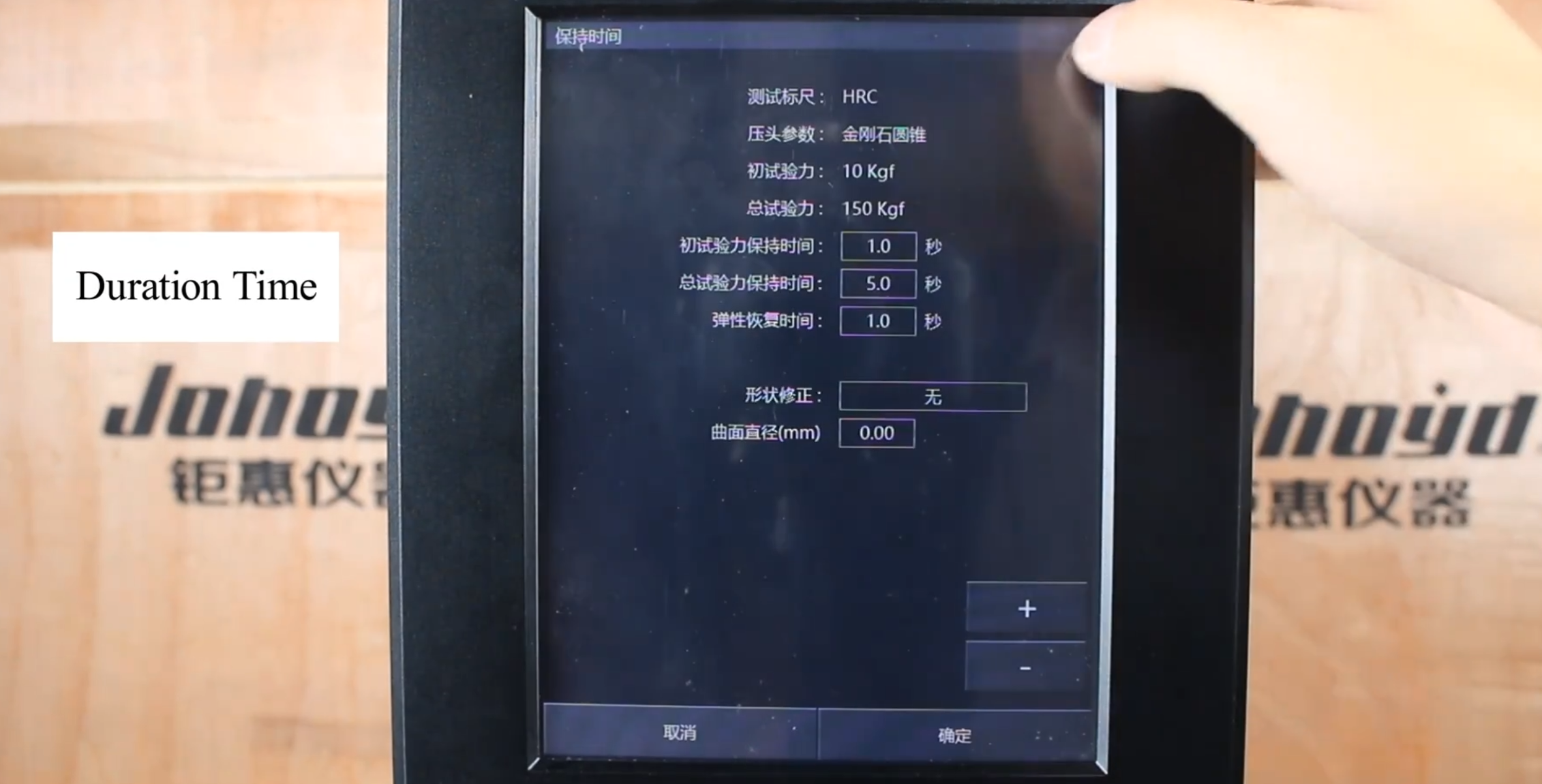

1. 8-inch color touchscreen displays hardness value, conversion, test method, force, brightness, dwell time, recovery time, measurement count, statistics, and time.

2. Built-in calibration system automatically adjusts within 80–120% range, with independent high/low value calibration.

3. Curved surface correction automatically compensates based on the standard radius.

4. Stores 100 groups of data with view, delete, and full-clear options.

5. Units switchable between Kgf and N.

6. Displays average value, test count, and product name simultaneously.

7. Main interface supports four conversion scales and switching between ASTM / ISO standards.

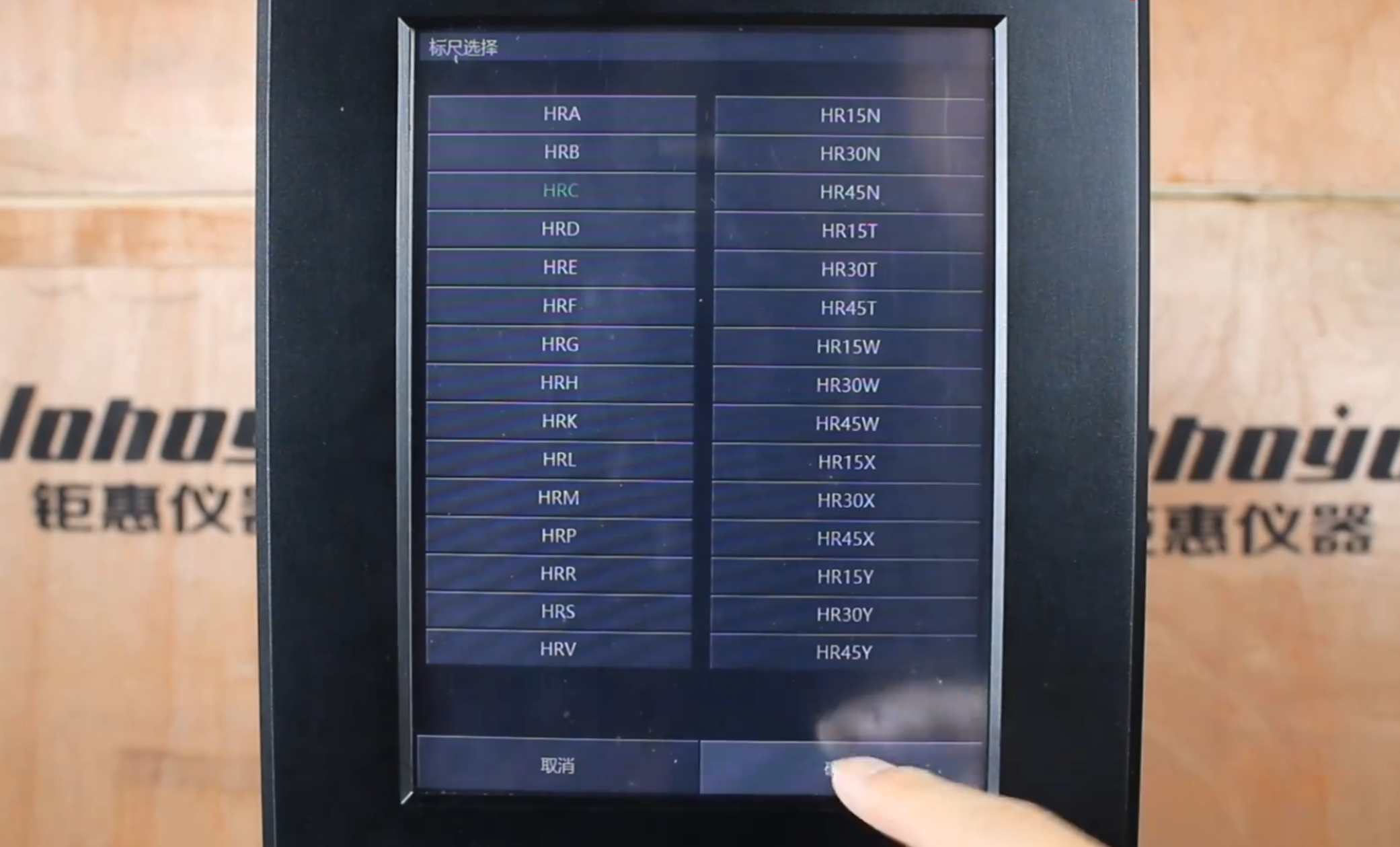

    Supports 30 Rockwell scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y, HRL, HRM, HRP, HRR, HRS, HRV.

8. Screen sleep mode for power saving during long idle times.

9. Upper/lower limit alarm for out-of-range test values.

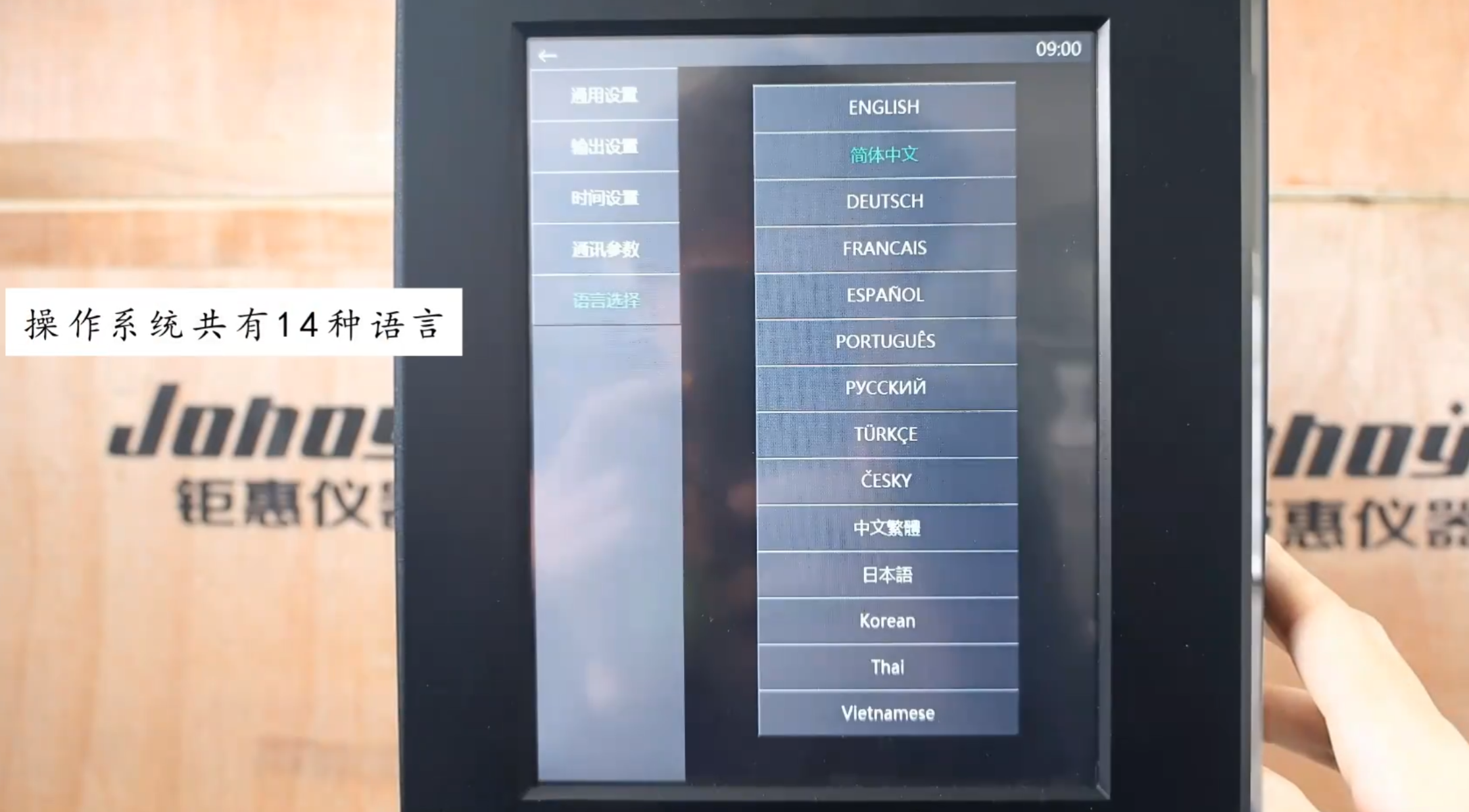

10. Supports 14 interface languages including English, German, Spanish, French, Russian, Korean, and more.

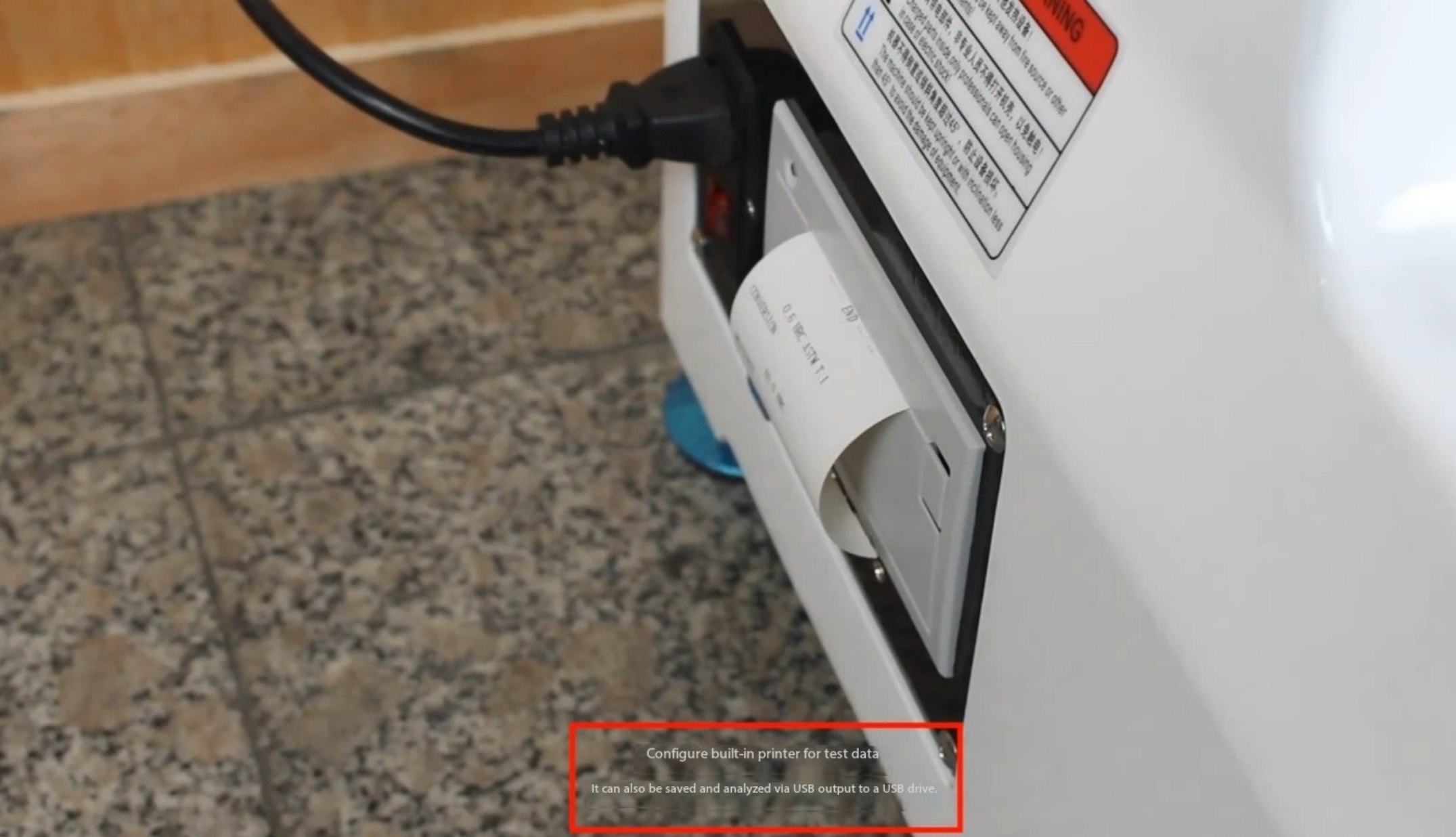

11. Built-in printer and USB output for saving and analyzing test data.

12. One-piece cast body with glossy baked enamel coating, scratch-resistant and durable.

13. Lifetime technical support with component replacement and service upgrades.

Application Range

Applicable for ferrous and non-ferrous metals, alloy steels, hard alloys, and heat-treated materials.
It is widely used in metal manufacturing, automotive, aerospace, machinery, and research laboratories for Rockwell hardness testing.

Technical Parameters

Standard Accessories
