CAN400 Intelligent Liquid-State NMR Spectrometer
The CAN400 features a 9.39 Tesla 400 MHz superconducting magnet with 54 mm bore for ultra-high homogeneity. Its distributed console supports 2–8 RF channels, 4 ns timing resolution, and software-controlled power management. Equipped with a 72-slot auto sample changer, intelligent touchscreen, and multi-nucleus probe, it enables rapid, automated analysis. Ideal for chemistry, energy, and pharma, it offers in-situ experiments, remote access, and versatile applications from battery research to drug screening.
Product Description
The CAN400 Intelligent Liquid-State NMR Spectrometer is a state-of-the-art analytical instrument designed for high-resolution molecular structure determination, dynamic studies, and compositional analysis. Combining a 400 MHz superconducting magnet, distributed architecture, and intelligent automation, it addresses the needs of research labs and industrial facilities across diverse fields.
Core Components & Technology

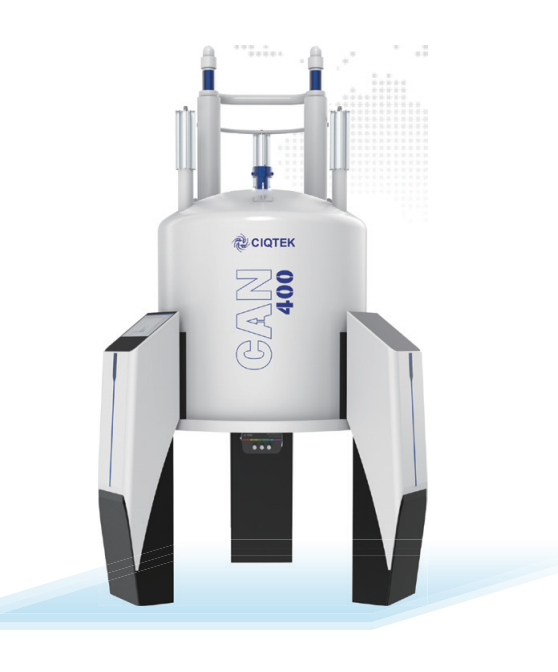

1. 9.39 Tesla Superconducting Magnet
The heart of the CAN400 is its high-homogeneous, ultra-shielded 400 MHz superconducting magnet, generating a 9.39 Tesla magnetic field. With a 54 mm standard bore, it accommodates various probes while maintaining radial/vertical 5 Gauss lines at 0.6 m/1.0 m for safety. Key features include long liquid helium hold time, an intelligent level gauge with low-helium alarms, and a control screen for real-time status monitoring—ensuring stable, high-quality signal acquisition.

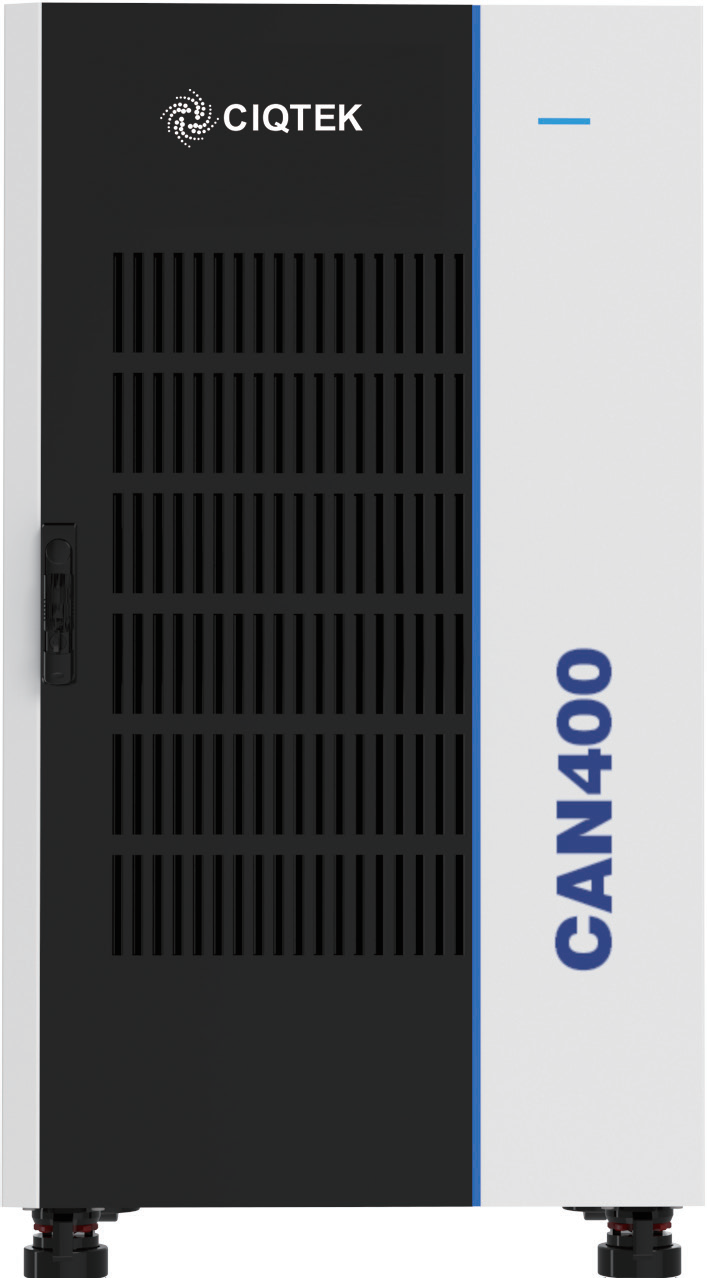

Distributed Console with High-Precision Control
The console adopts an advanced distributed architecture, defaulting to 2 RF transceiver channels (expandable to 8) for scalable performance. It delivers exceptional precision: 4 ns timing resolution, 0.0005 Hz frequency resolution, and 0.001° phase resolution, with simultaneous setting of frequency, amplitude, and phase. High-speed data acquisition (16-bit resolution, 250 MS/s sampling rate) and ±12.5 MHz receiver spectral width support complex experiments. Software-controlled power-up/down enhances user convenience.
3. Multi-Nucleus Probe & Auto-Tuning
The probe supports 5 mm sample tubes and detects multiple nuclei (¹H, ¹³C, ¹⁵N, ³¹P, ¹⁹F, etc.), including rare isotopes like ¹⁰⁹Ag. It features deuterium lock for stability, 50 G/cm maximum Z-gradient strength, and rapid automatic tuning/matching. ¹H/¹⁹F decoupling experiments, it ensures high sensitivity and resolution across wide temperature ranges.

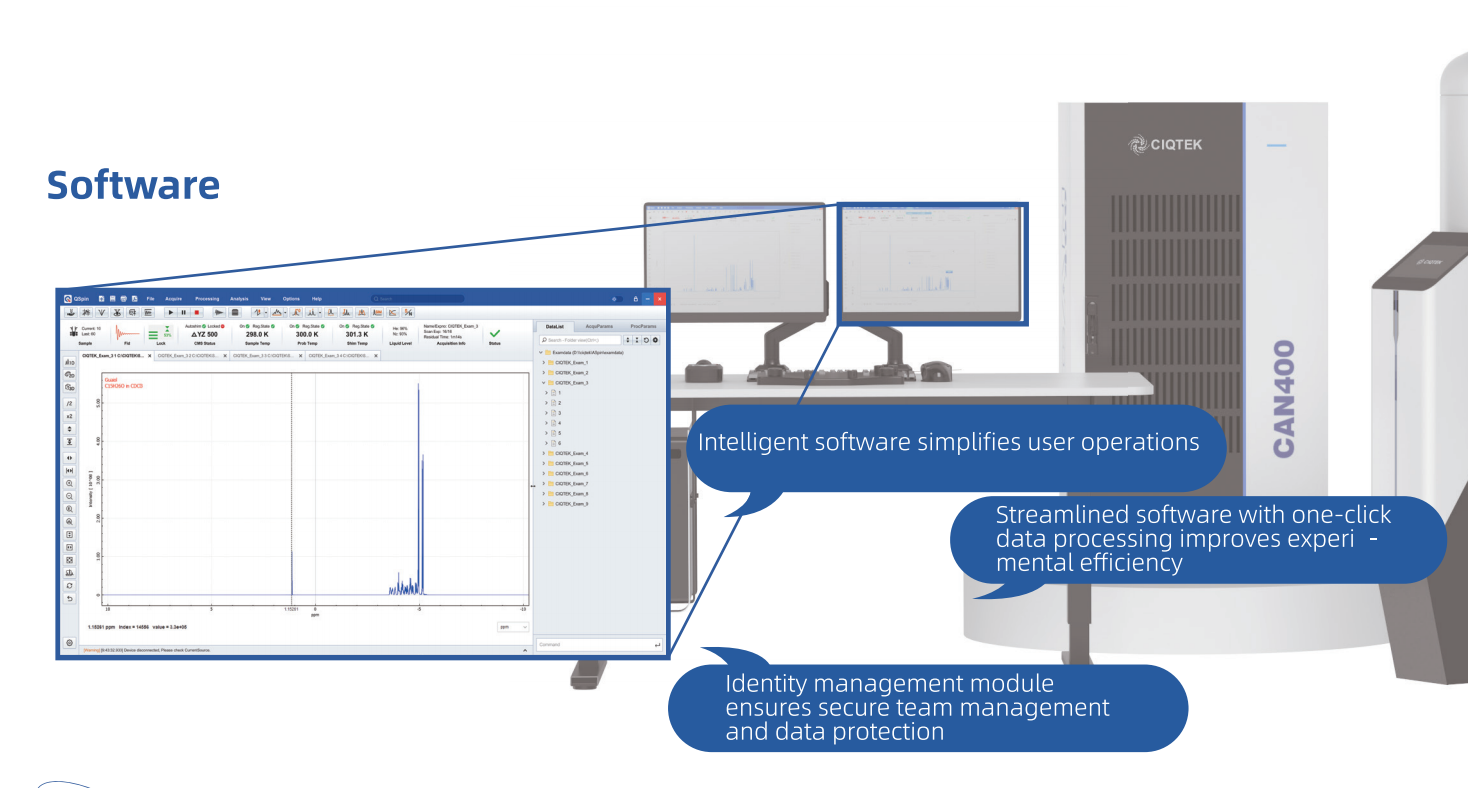

4. Intelligent Software & Automation
Running on Windows, the software enables 1D/2D NMR experiments, pulse sequence editing (graphical interface), and universal data format export. Remote access allows real-time monitoring and control, while the 72-slot auto sample changer (installed at the magnet waist) uses bidirectional rotation and a quick pre-sample device for second-level sample switching—boosting throughput for high-volume studies.
Technical Specifications
Component | Key Parameters |
|---|---|
Magnet | 9.39 Tesla field, 54 mm bore, 0.6 m (radial)/1.0 m (vertical) 5 Gauss lines, long He hold time. |
Console | 2–8 RF channels, 4/0.0005 Hz frequency resolution, 16-bit/250 MS/s acquisition. |
Probe | Detects ¹H/¹³C/³¹P/¹⁹F/¹⁰⁹Ag; 50 G/cm Z-gradient, deuterium lock, auto-tuning. |
Auto Sampler | 72 slots, bidirectional rotation, quick pre-sample device (second-level switching). |
Software | Windows OS, English interface, 1D/2D experiment support, remote control. |
Applications & Case Studies
The CAN400 excels in diverse applications:
Energy Research: In-situ NMR analyzed electrolyte decomposition in redox flow batteries (Nature, 2020), revealing self-discharge mechanisms.
**Materials Science ³¹P NMR characterized hardwood poplar lignin functional groups (Nature Protocols, 2019).
Pharmaceuticals: Determined disease-causing protein structures and screened drug candidates via high-throughput assays.
Chemistry/Industry: Studied reaction kinetics, catalyst structures, and food additive detection.

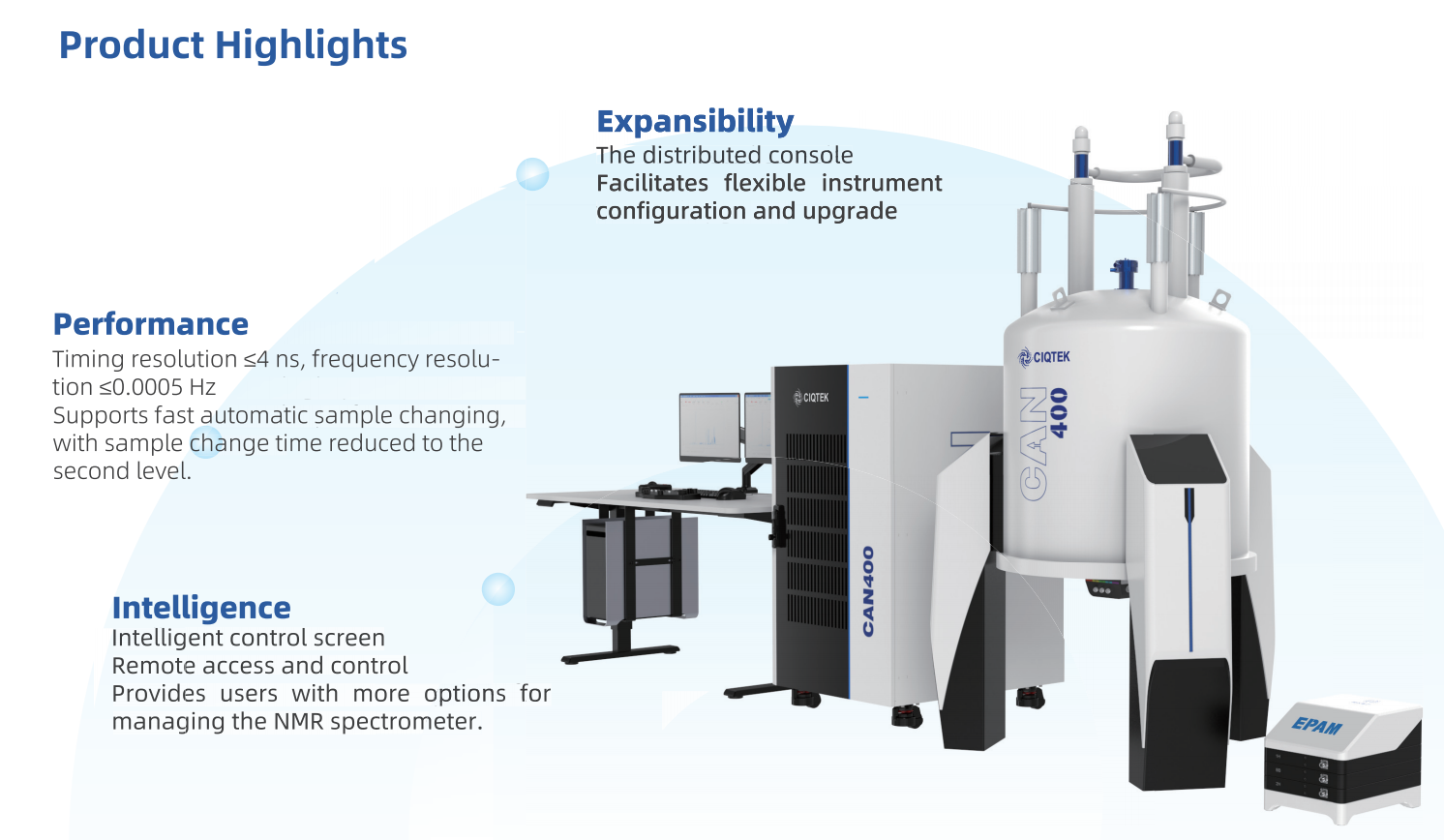

Advantages Over Conventional NMR
Speed: Second-level sample switching (72-slot auto changer) and 4 ns timing resolution accelerate experiments.
Versatility: Multi-nucleus probe and expandable RF channels support complex, multi-modal analysis.
Usability: Intelligent touchscreen, remote access, and software-controlled automation reduce operator dependency.
Reliability: Ultra-shielded magnet and low-consumption design ensure long-term stability for 24/7 operation.
