How To Select A Hardness Tester For Heat Treatment Quality Control
How To Select A Hardness Tester For Heat Treatment Quality Control
Hardness testing is one of the most important quality control methods for heat treatment processes. Quenching, tempering, carburizing, nitriding, induction hardening, and surface hardening all require reliable hardness verification. To choose the right hardness tester, buyers should consider the material, heat treatment process, hardness scale, sample size, case depth requirement, testing volume, and reporting needs.
Fast Batch Inspection
Rockwell testers are widely used for quick HRC checks after quenching, tempering, and routine heat treatment production.
Case Depth Analysis
Vickers and Micro Vickers testers help evaluate carburized, nitrided, and induction-hardened surface layers.
Traceable QC Reports
Digital and automatic systems support test records, batch comparison, image storage, and customer documentation.
Heat treatment changes the mechanical properties of metal parts by controlling heating, holding, cooling, and tempering processes. After quenching, tempering, carburizing, nitriding, or induction hardening, hardness testing is often the fastest way to confirm whether the part has reached the required strength, wear resistance, and process consistency. In a heat treatment workshop, hardness values are used to verify process stability, compare production batches, check customer specifications, and detect abnormal furnace conditions. If the hardness is too low, the part may not meet strength or wear requirements. If the hardness is too high, the part may become brittle or fail during service. Choosing the right hardness tester is therefore not only a laboratory decision. It directly affects production control, rejection rate, customer approval, and product reliability. Buyers should select equipment according to the heat treatment process, part geometry, required hardness scale, testing volume, and documentation requirements. Different heat treatment processes require different hardness testing methods. For standard quenched and tempered steel parts, Rockwell hardness testing is often the most efficient choice. For carburized or nitrided layers, Micro Vickers testing may be needed to measure hardness changes from the surface to the core. For large forged or cast heat-treated parts, Brinell testing may provide more representative results.1. Why Hardness Testing Matters In Heat Treatment QC

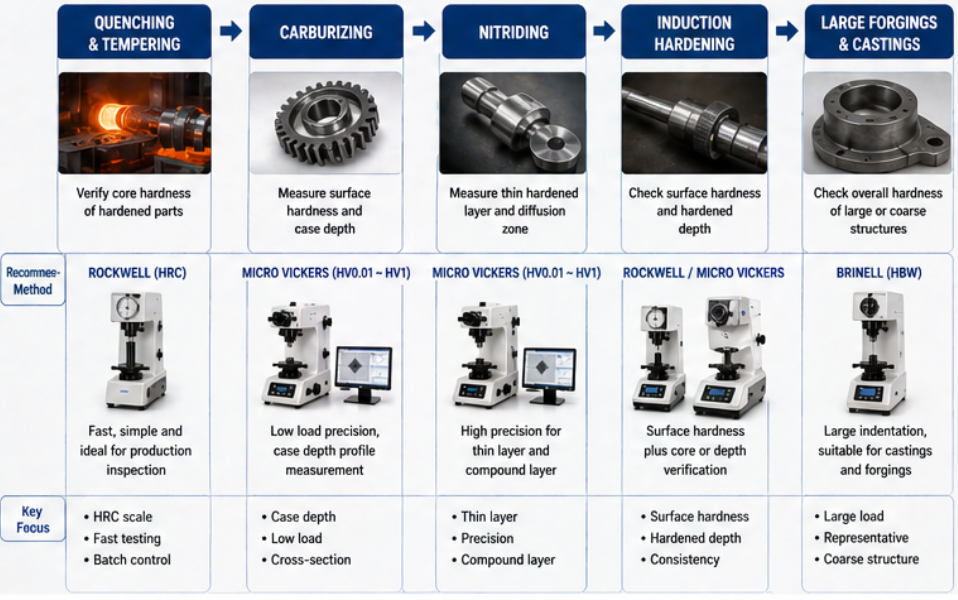

2. Match The Tester To The Heat Treatment Process
Heat Treatment Process Common Testing Method Selection Focus Quenching and tempering Rockwell / Vickers Fast HRC inspection, stable loading, batch records Carburizing Micro Vickers Case depth profile, low-load testing, polished cross-section Nitriding Micro Vickers / Vickers Thin hardened layer, precise indentation, optical measurement Induction hardening Rockwell / Micro Vickers Surface hardness plus hardened depth verification Large forged parts Brinell / Rockwell Large sample capacity and representative indentation
Heat treatment quality control often uses Rockwell HRC because it is fast, direct-reading, and practical for hardened steel parts. For many production workshops, a digital Rockwell hardness tester is the first choice for routine batch inspection. It helps operators check whether parts meet the required hardness range after quenching and tempering. However, HRC testing is not enough for every heat treatment application. When the buyer needs to analyze a hardened layer, measure case depth, or evaluate hardness distribution across a cross-section, Vickers or Micro Vickers testing is more suitable. For large heat-treated castings and forgings, Brinell testing may be used because the larger indentation can better represent coarse or uneven material structures. Heat-treated parts can include gears, shafts, bearings, molds, fasteners, dies, tools, springs, rings, plates, castings, and forged components. These parts have different sizes, shapes, weights, and surface conditions. The hardness tester must provide enough sample height, throat depth, stage support, and fixture compatibility. For small flat samples, a bench-type Rockwell or Vickers tester may be enough. For large parts, buyers should check maximum test height and throat depth. For round shafts or curved parts, proper anvils or fixtures may be required. For very large or immovable parts, portable hardness testing may be considered, but it should be matched carefully to the required standard and accuracy level. Testing location is also important. A heat-treated part may have different hardness at the surface, core, edge, weld zone, or hardened track. The tester and fixture should allow the operator to place the indentation at the correct position safely and repeatably.3. Choose The Right Hardness Method And Scale
Method Best Heat Treatment Use Buyer Checkpoint Rockwell HRC Fast inspection of hardened steel parts Confirm scale, test force, sample thickness, and calibration blocks Vickers HV Precision testing and hardness comparison Check optics, load range, software, and sample polishing Micro Vickers Case depth, thin hardened layers, coatings Check low-load accuracy, automatic measurement, and XY stage Brinell HBW Large forgings, castings, and coarse materials Check force capacity, ball indenter, and sample space 4. Consider Sample Size, Shape, And Testing Location
For carburized, nitrided, induction-hardened, or surface-hardened parts, surface hardness alone may not be enough. Buyers may need to know how hardness changes from the surface to the core. This is where Micro Vickers testing and metallographic sample preparation become important. Case depth testing normally requires cutting the sample, mounting it, grinding and polishing the cross-section, then measuring multiple hardness points from the surface inward. The tester should support low-load testing, clear optical measurement, accurate positioning, and software functions for hardness profiles or case depth analysis. If the lab needs to perform case depth analysis regularly, an automatic Micro Vickers hardness tester with motorized XY stage, programmable test points, image capture, and report export can improve both efficiency and repeatability. Metallographic cutting and mounting equipment. Grinding and polishing for a clear cross-section. Micro Vickers low-load testing capability. Stable sample stage and accurate point positioning. Software for multi-point data recording and profile analysis. Report export for customer or internal QC documentation. For heat treatment quality control, the automation level should be selected according to testing volume and reporting needs. Manual testers may be suitable for occasional inspection or basic workshops. Digital hardness testers are more practical for routine production QC because they provide clearer results and easier operation. Automatic systems are better when the lab needs high repeatability, batch records, image capture, or case depth analysis. Heat treatment QC often involves repeated daily testing. To keep results reliable, the tester should be verified with suitable hardness test blocks. The test blocks must match the method and hardness range used in production, such as HRC blocks for Rockwell testing or HV blocks for Vickers testing. Buyers should confirm which calibration blocks, indenters, anvils, fixtures, and documentation are included with the machine. Regular verification helps detect abnormal readings caused by worn indenters, incorrect setup, machine drift, poor sample surface, or operator mistakes. For formal quality systems, the lab may also need calibration certificates, maintenance records, operator training documents, and test report templates. Heat treatment quality control usually requires batch records. The lab may need to record part number, furnace batch, material grade, heat treatment process, test location, hardness value, operator, test time, and customer specification. Manual paper records may be enough for small workshops, but digital reporting is more efficient for factories handling many batches. Digital and automatic hardness testers can support data storage, statistics, report export, image capture, and software-based traceability. This is useful when customers request inspection reports or when internal teams need to compare hardness trends across production batches.5. When Case Depth Testing Is Required
Case depth testing usually needs:

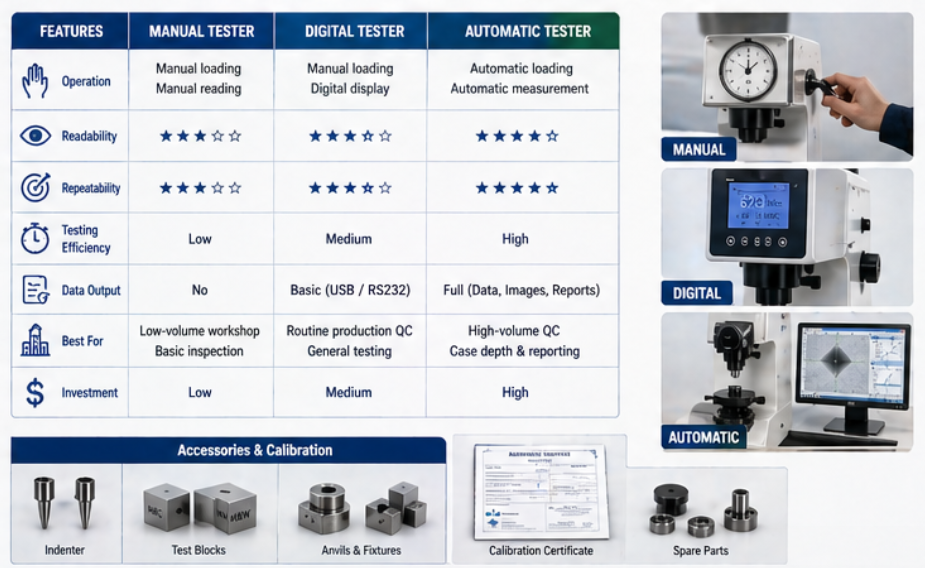

6. Manual, Digital, Or Automatic Tester?
Tester Type Best Heat Treatment Use Main Advantage Manual Tester Low-volume workshop inspection Lower initial cost and simple operation Digital Tester Routine batch hardness checking Clear display, easier reading, better daily QC efficiency Automatic Vision Tester Case depth, hardness profile, high-repeatability lab testing Automatic measurement, images, reports, and traceable data 7. Calibration, Test Blocks, And Daily Verification
8. Data Recording And Quality Documentation

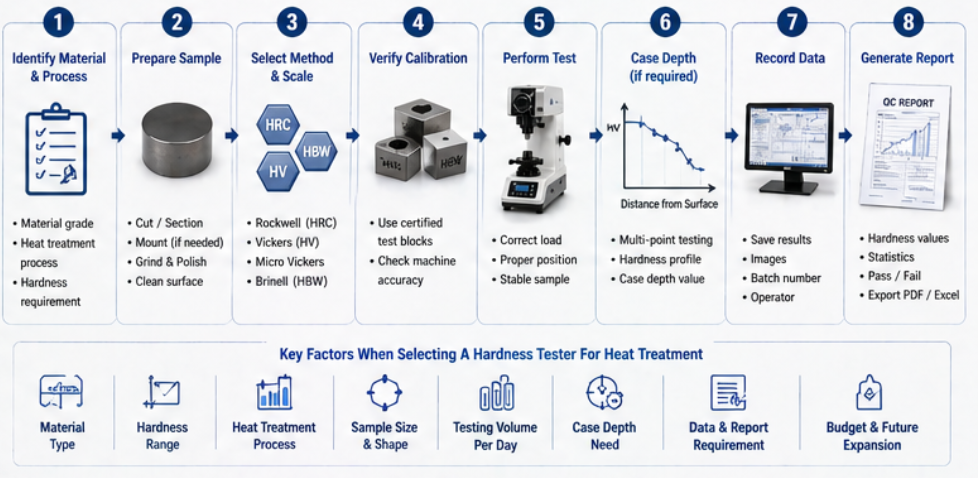

Before requesting a hardness tester for heat treatment quality control, buyers should prepare clear information about the material, process, sample size, method, and reporting needs. This helps the supplier recommend a practical configuration instead of a generic machine. What material and grade will be tested? What heat treatment process is used: quenching, tempering, carburizing, nitriding, induction hardening, or surface hardening? What hardness scale is required: HRC, HRB, HV, micro HV, or HBW? What is the expected hardness range? What are the sample size, thickness, shape, and weight? Is the test for surface hardness only or case depth analysis? How many samples or batches are tested per day? Do you need manual, digital, or automatic testing? Do you need sample cutting, mounting, grinding, and polishing equipment? Do you need test reports, image storage, statistics, or data export? What test blocks, indenters, fixtures, and calibration documents are required? Selecting a hardness tester for heat treatment quality control should start from the actual process and inspection purpose. Rockwell testers are highly practical for fast batch inspection after quenching and tempering. Vickers and Micro Vickers testers are better for precision testing, case depth analysis, carburized layers, nitrided layers, and hardness profiles. Brinell testers may be suitable for large heat-treated castings and forgings. Buyers should not compare only price. They should evaluate hardness method, scale, load range, sample size, fixtures, calibration blocks, automation level, sample preparation needs, and data reporting functions. A well-selected tester helps improve production control, reduce quality disputes, and provide reliable documentation for customers. If your heat treatment process involves multiple materials and hardness requirements, a complete solution may include Rockwell testing for fast production checks and Micro Vickers testing for detailed layer analysis. Rockwell hardness testers are commonly used for fast HRC inspection of hardened steel parts after quenching and tempering. Micro Vickers testing is needed for case depth analysis, carburized layers, nitrided layers, thin hardened zones, and hardness profile measurement. For basic Rockwell testing, the surface should be clean and stable. For Vickers, Micro Vickers, and case depth testing, cutting, mounting, grinding, and polishing are usually required. Digital testers are practical for routine batch checks. Automatic systems are better when the lab needs case depth analysis, multi-point testing, image storage, and traceable reports.9. Key Questions Before Requesting A Quote
Conclusion: Select The Tester Based On Heat Treatment Control Requirements
FAQ
Which hardness tester is most common for heat treatment QC?
When is Micro Vickers testing needed?
Do heat-treated samples need preparation before testing?
Should a heat treatment workshop choose digital or automatic hardness testers?
Need A Hardness Testing Solution For Heat Treatment QC?
Share your material grade, heat treatment process, hardness scale, sample size, case depth requirement, daily testing volume, and report needs. We can help recommend a suitable hardness tester or complete quality control solution.
