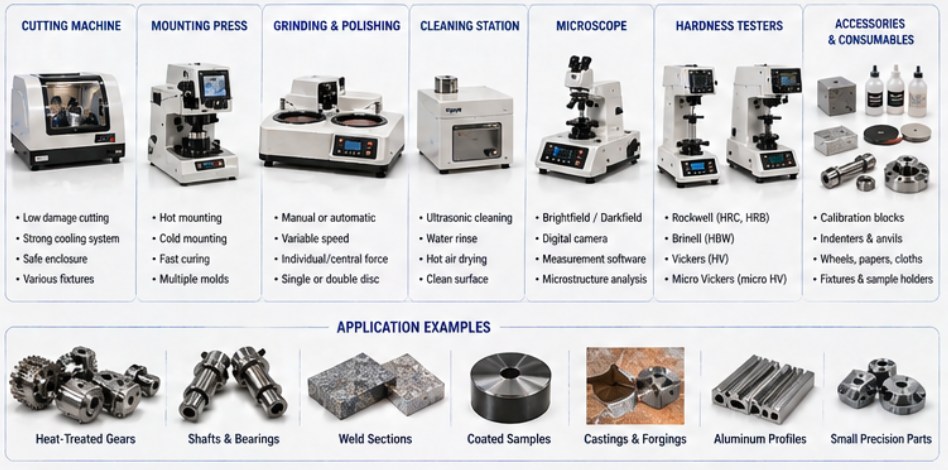

A complete metallographic and hardness testing laboratory helps factories verify material quality, heat treatment results, coating performance, weld quality, case depth, microstructure, and production consistency. To build a reliable industrial QC lab, buyers should plan sample preparation equipment, hardness testers, microscopes, calibration tools, consumables, software reports, laboratory layout, and operator training as one complete workflow.
Sample Preparation
Cutting, mounting, grinding, polishing, and cleaning create reliable samples for testing.
Hardness Testing
Rockwell, Brinell, Vickers, Micro Vickers, Barcol, or universal testers should match your materials.
Microscope Analysis
Microscopes help inspect microstructure, coatings, weld zones, case depth, and preparation quality.
QC Reports
Software, image capture, statistics, and report export support traceable quality documentation.
Industrial quality control is not only about checking whether a part looks acceptable. Many factories need to verify material structure, heat treatment quality, coating performance, weld reliability, case depth, hardness distribution, and production batch consistency. A complete metallographic and hardness testing laboratory helps turn these quality requirements into measurable data. A single hardness tester may be enough for simple inspection, but many industrial applications require a complete workflow. Samples may need to be cut, mounted, ground, polished, cleaned, observed under a microscope, and then tested with the correct hardness method. If one step is missing or poorly planned, final results may be unstable or difficult to trust. For factories in automotive parts, heat treatment, metal processing, casting, forging, welding, coatings, tool steel, precision machining, aerospace components, and materials research, a complete QC lab can reduce quality disputes, improve process control, support customer audits, and provide stronger documentation. Before choosing equipment, buyers should define the purpose of the laboratory. A heat treatment workshop may need fast HRC testing and case depth analysis. A foundry may need Brinell testing and microstructure inspection. A coating company may need cross-section preparation, microscope observation, and Micro Vickers testing. A general QC lab may need several testing methods to cover different products. The lab configuration should be based on real samples, not only equipment catalogues. Material type, hardness range, sample size, thickness, production volume, required standards, and report needs all affect the final setup.1. Why Build A Complete Metallographic And Hardness Testing Lab?

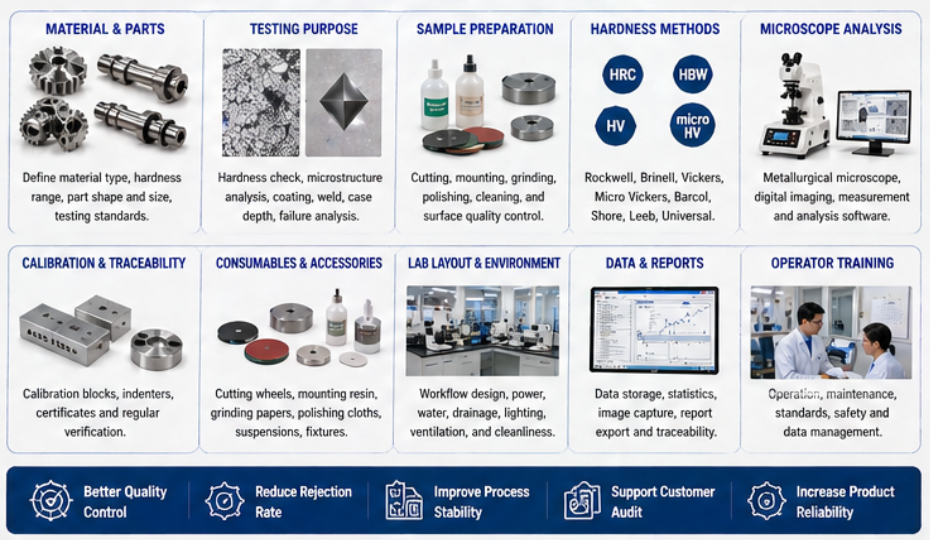

2. Start With Your Testing Purpose And Material Types
Industry / Application Common Testing Need Recommended Lab Focus Heat treatment plants Surface hardness, core hardness, case depth Rockwell tester, Micro Vickers tester, sample preparation line Casting and forging factories Representative hardness and microstructure Brinell tester, cutting machine, microscope, polishing system Coating and surface treatment Coating thickness, layer hardness, cross-section quality Precision cutting, cold mounting, polishing, Micro Vickers, microscope Automotive parts inspection Gears, shafts, bearings, fasteners, heat-treated parts Rockwell, Vickers, Micro Vickers, fixtures, report software
Sample preparation is the foundation of a reliable metallographic and hardness testing lab. A poor sample surface can lead to unclear indentation, unstable hardness values, scratches under microscope observation, edge rounding, or misleading microstructure results. A complete sample preparation workflow usually includes cutting, mounting, grinding, polishing, cleaning, and final inspection. Each step should be matched to the material and testing purpose. For example, coating samples may need cold mounting and excellent edge retention, while heat-treated steel samples may require low-damage cutting and controlled polishing. A QC lab may need one or multiple hardness testing methods. The correct choice depends on the material, part size, surface condition, hardness range, testing standard, and inspection purpose. Buyers should not choose a tester only because it is popular. The equipment should match the real inspection tasks. Rockwell testers are suitable for fast production inspection of metals and some plastics. Brinell testers are used for large castings, forgings, and coarse materials. Vickers and Micro Vickers testers are used for precision testing, coatings, thin layers, case depth, and small samples. Barcol and Shore testers are useful for aluminum, plastics, composites, rubber-like materials, and portable inspection.3. Plan The Complete Sample Preparation Workflow
Preparation Equipment Function Buyer Checkpoint Metallographic cutting machine Obtains representative sample sections Check cutting capacity, coolant, wheel type, and clamping Mounting press Supports small or irregular samples Choose hot mounting, cold mounting, or both Grinding and polishing machine Creates flat, clean, scratch-controlled surfaces Check manual/automatic mode, disc size, pressure, and speed control Cleaning station Removes residue, abrasive particles, and polishing suspension Check ultrasonic cleaning, drying method, and contamination control 4. Choose The Right Hardness Testing Equipment
Hardness Tester Best For Lab Configuration Focus Rockwell hardness tester Fast production QC for heat-treated parts HRC/HRB scales, indenters, anvils, calibration blocks Brinell hardness tester Castings, forgings, large metal parts High force, ball indenters, digital diameter measurement Vickers / Micro Vickers tester Coatings, case depth, small samples, precision testing Optics, low load, automatic vision, XY stage, software reports Universal hardness tester Labs with multiple standards and material types Wide load range, multiple methods, advanced software
Metallographic analysis often requires microscope inspection after polishing. A microscope can help evaluate grain structure, coating thickness, weld zones, case depth, defects, inclusions, cracks, and preparation quality. For many laboratories, microscopy and hardness testing should be planned together. Buyers should decide whether they need a simple metallurgical microscope, digital microscope, image capture system, measurement software, or report export function. If the lab needs coating measurement, grain size analysis, case depth analysis, or failure investigation, software capability becomes more important. Many lab setup problems happen because buyers only purchase main machines and forget accessories. A complete lab needs proper test blocks, indenters, anvils, sample fixtures, objective lenses, cutting wheels, mounting materials, grinding papers, polishing cloths, diamond suspension, cleaning supplies, and spare parts. These items directly affect daily operation. Without the right test blocks, the hardness tester cannot be verified properly. Without suitable fixtures, irregular samples may not be positioned correctly. Without matched consumables, sample preparation quality may be unstable. Rockwell, Brinell, Vickers, and Micro Vickers calibration blocks. Diamond cone, Vickers diamond, Brinell ball, Barcol, or Shore indenters. Flat anvils, V anvils, sample stages, small-part fixtures, and custom supports. Metallographic cutting wheels and coolant. Hot mounting resin, cold mounting resin, molds, and release agents. Grinding papers, polishing cloths, diamond suspension, alumina, and colloidal silica. Microscope objectives, camera system, measurement software, and report tools. Laboratory layout affects both safety and efficiency. A logical workflow usually starts from sample receiving, cutting, mounting, grinding and polishing, cleaning, microscope inspection, hardness testing, data analysis, and report export. If equipment is placed without workflow planning, operators may waste time moving samples back and forth. Wet preparation equipment such as cutting and grinding machines should be planned with water supply, drainage, cleaning access, and splash protection. Precision measurement equipment such as hardness testers and microscopes should be placed in a cleaner, more stable area. The lab should also consider power supply, ventilation, lighting, vibration control, bench strength, storage, and operator safety.5. Include Microscope And Image Analysis Requirements
6. Plan Calibration Blocks, Indenters, Fixtures, And Consumables
Common lab accessories and consumables include:

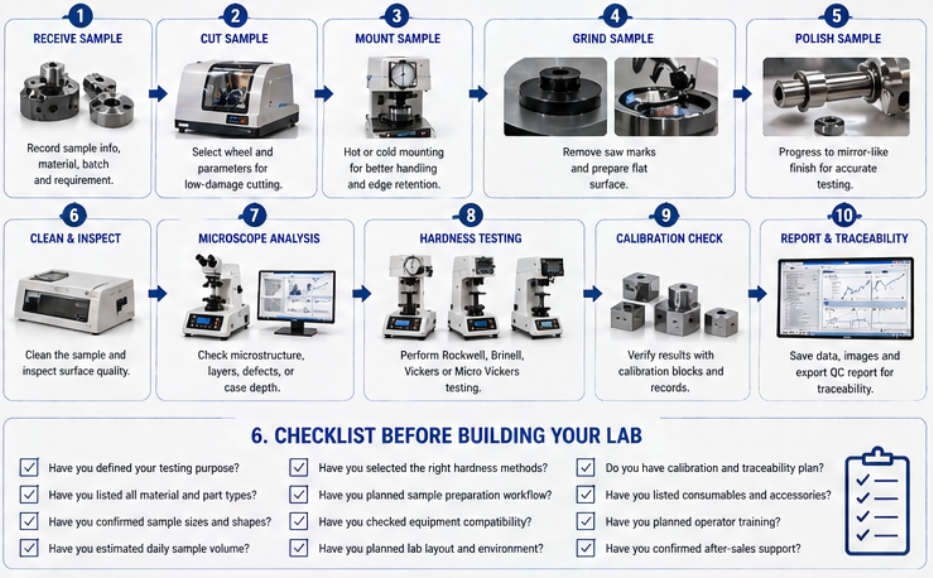

7. Design The Lab Layout Around Workflow
Modern industrial QC labs need more than test values. They often need sample IDs, batch numbers, operator information, test images, hardness profiles, statistics, microscope images, calibration records, and customer-ready reports. Digital systems and software can improve traceability and reduce manual record mistakes. Buyers should confirm whether hardness testing software and microscope software can export Excel, PDF, images, or customer report formats. For case depth testing and coating analysis, image capture and measurement functions can improve documentation quality. For production QC, batch statistics and traceable records help compare process stability over time. A complete laboratory is only effective when operators know how to use it properly. Training should cover sample preparation methods, hardness testing standards, calibration verification, microscope operation, software reporting, consumable replacement, and daily maintenance. Buyers should also check installation guidance, user manuals, spare parts availability, remote support, calibration service, and troubleshooting support. For industrial QC labs, stable after-sales support is important because equipment downtime can delay production inspection and customer delivery. Before requesting a quotation, buyers should prepare clear technical and workflow information. This helps the supplier recommend a complete lab configuration instead of quoting unrelated individual machines. What industries and materials will the lab support? What samples will be tested: steel, cast iron, aluminum, copper alloy, coatings, welds, plastics, composites, or ceramics? What testing purpose is required: hardness testing, microstructure analysis, case depth, coating inspection, weld inspection, or failure analysis? Which hardness methods are required: Rockwell, Brinell, Vickers, Micro Vickers, Barcol, Shore, Leeb, or universal testing? What sample sizes, shapes, thicknesses, and hardness ranges are expected? How many samples need to be prepared and tested per day? Do you need manual, digital, automatic, or automatic vision testing equipment? Do you need cutting, mounting, grinding, polishing, microscope, hardness tester, and report software together? What calibration blocks, indenters, fixtures, sample holders, and consumables are required? What report format, data storage, image capture, and traceability functions are needed? What is the available lab space, power supply, water supply, drainage, and installation condition? Do you need installation support, operator training, maintenance guidance, and spare parts? A metallographic and hardness testing laboratory should be planned as one connected quality control workflow. The goal is not just to buy several machines, but to create a reliable process from sample cutting to final report. When sample preparation, hardness testing, microscopy, calibration, data management, and operator training are planned together, the lab can deliver more stable and trustworthy results. For industrial buyers, the best lab setup depends on material type, testing purpose, daily workload, required standards, report needs, and future expansion plans. A simple lab may only need basic cutting, polishing, and hardness testing. A more advanced lab may need automatic sample preparation, Micro Vickers case depth analysis, metallurgical microscopy, image software, and full report traceability. Before building or upgrading a QC lab, provide your material details, sample information, testing standards, and workflow requirements. This allows the supplier to recommend a practical, scalable, and cost-effective laboratory solution. A complete lab may include a cutting machine, mounting press, grinding and polishing machine, cleaning station, microscope, hardness tester, calibration blocks, fixtures, consumables, and report software. Not every lab needs a full setup. However, Vickers, Micro Vickers, coatings, case depth, weld sections, and microstructure analysis usually require sample preparation equipment. It depends on the materials and testing purpose. Rockwell is common for fast production QC, Brinell for large castings and forgings, and Vickers or Micro Vickers for precision testing and case depth analysis. Report software helps save test data, images, statistics, batch records, and customer-ready documents, improving traceability and reducing manual record errors.8. Data Management And QC Report Output
9. Operator Training, Maintenance, And After-Sales Support
10. Key Questions Before Requesting A Complete Lab Proposal
Conclusion: Build The Lab As One Complete QC Workflow
FAQ
What equipment is needed for a metallographic and hardness testing lab?
Does every lab need both metallographic preparation and hardness testing equipment?
Which hardness tester is best for industrial QC labs?
Why is report software important?
Need A Complete Metallographic And Hardness Testing Lab Solution?
Share your material type, sample size, testing purpose, daily workload, required standards, laboratory space, and report needs. We can help recommend a complete metallographic sample preparation and hardness testing solution for your industrial QC laboratory.
