Automatic Vickers Hardness Tester With Vision Software: What Buyers Should Confirm Before Ordering

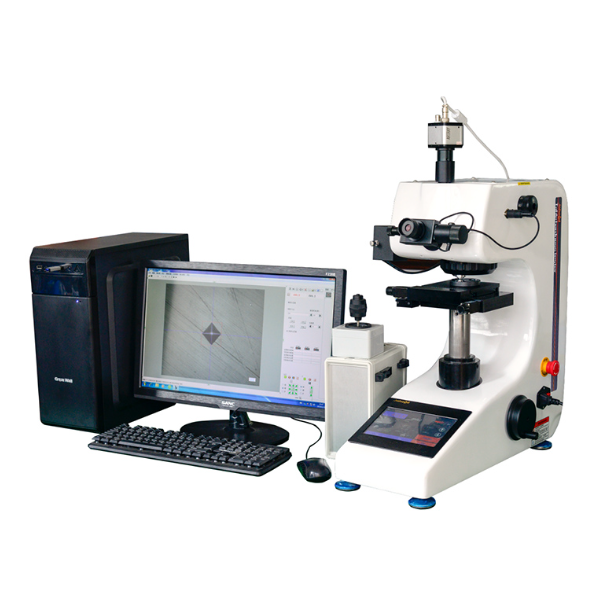

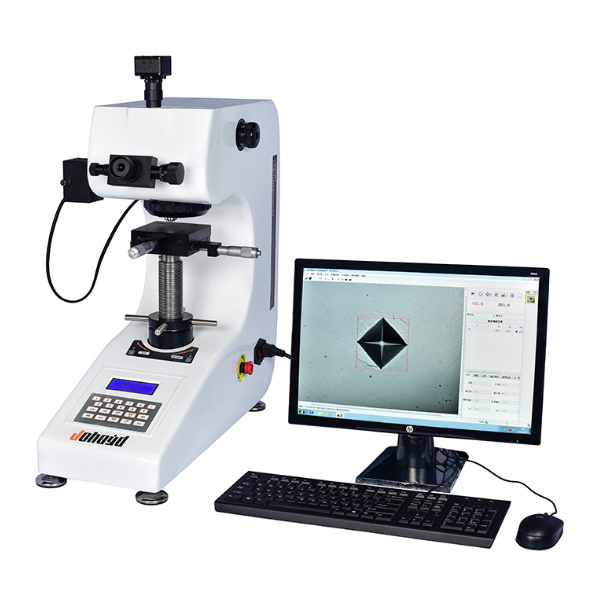

An automatic Vickers hardness tester with vision software can improve indentation measurement accuracy, reduce operator error, save test images, generate hardness reports, and support case depth or hardness profile testing. Before ordering, buyers should confirm load range, optical system, camera resolution, software functions, XY stage, sample size, calibration blocks, report export, and after-sales support.
Vision Measurement
Automatically captures indentation images and calculates Vickers hardness values.
Case Depth Testing
Supports hardness profile testing for carburized, nitrided, and induction-hardened parts.
Report Export
Saves images, test points, curves, hardness values, and PDF or Excel reports.
Complete Configuration
Buyers should confirm tester, software, stage, calibration blocks, fixtures, and training.
Why Buyers Choose Automatic Vickers Hardness Testers
Vickers hardness testing is widely used for metal parts, heat-treated components, weld sections, coatings, thin layers, tool steel, mold components, gears, shafts, fasteners, and precision samples. Compared with simple manual hardness testing, an automatic Vickers hardness tester with vision software helps improve consistency when the lab needs many test points, image records, and customer-facing reports.
Manual Vickers testing depends heavily on the operator’s ability to focus, identify indentation corners, measure diagonal length, calculate hardness values, and record results. When different operators read the same indentation, the final value may vary. Automatic vision software reduces this problem by capturing images and measuring indentation diagonals through software.
For industrial buyers, the main value is not only faster testing. The bigger value is traceability. The system can save indentation images, test point positions, hardness values, hardness profile curves, sample information, calibration records, and report files. This is useful for customer audits, supplier approval, heat treatment QC, and shipment inspection.
1. Confirm The Required Load Range
Before ordering an automatic Vickers hardness tester, buyers should confirm the required test force range. Different samples require different loads. Standard Vickers testing may be used for larger polished samples, while Micro Vickers testing is needed for thin layers, small areas, case depth testing, coatings, and precision components.
If the load is too high, the indentation may be too large and affected by the substrate or nearby structure. If the load is too low, the indentation may be too small to measure clearly. The correct load range should match material type, sample thickness, surface condition, expected hardness, and test standard.
| Application | Recommended Testing Need | Buyer Checkpoint |
|---|---|---|
| Heat-treated steel parts | Surface hardness and cross-section hardness | Confirm HV scale, expected hardness range, and sample thickness |
| Carburized or nitrided parts | Case depth and hardness profile testing | Confirm low-load Micro Vickers capability and profile software |
| Coatings and thin layers | Small indentation and substrate influence control | Confirm minimum load, optical clarity, and sample preparation method |
| Weld sections | Hardness path across weld metal, HAZ, and base metal | Confirm test point spacing, XY stage, and report layout |
2. Check The Vision Software Functions
Vision software is the main reason many factories upgrade from manual Vickers testing. Buyers should not only ask whether the machine has software. They should confirm what the software can actually do. A useful system should support indentation image capture, automatic diagonal measurement, hardness calculation, test point storage, data export, and report generation.
For case depth testing, the software should also support hardness profile curves. For weld samples, it should help record test positions across weld metal, HAZ, and base metal. For customer reports, it should export clear data and images in a format that buyers can review.
Important software functions include:
Automatic indentation image capture.
Automatic or assisted diagonal measurement.
Hardness value calculation.
Test point position and coordinate recording.
Hardness profile curve generation.
Case depth analysis.
Indentation image storage.
PDF and Excel report export.
Sample ID, batch number, operator, and inspection date records.
Calibration record input or export.
3. Confirm Camera, Optical System And Image Quality
Automatic measurement depends on image quality. If the camera, lens, lighting, or optical system is not stable, the software may not identify the indentation clearly. Buyers should confirm camera resolution, objective magnification, illumination quality, focusing method, and whether the system can capture clear indentation edges on real samples.
This is especially important for Micro Vickers testing, nitrided layers, coatings, thin sections, and samples with fine microstructure. The indentation may be very small, so poor image quality can directly affect repeatability.
| Optical Item | Why It Matters | What Buyers Should Ask |
|---|---|---|
| Camera resolution | Affects indentation image clarity | Can the system capture clear Vickers indentation corners? |
| Objective lens | Affects magnification and measurement field | Which objectives are included for normal HV and Micro HV testing? |
| Illumination | Poor lighting makes indentation edges unclear | Is lighting adjustable for polished and etched samples? |
| Focusing method | Improves image repeatability and operator efficiency | Is focusing manual, assisted, or automatic? |
4. Decide Whether You Need Manual Or Motorized XY Stage
The XY stage controls sample movement and test point positioning. For simple Vickers testing, a manual stage may be enough. For case depth, weld hardness paths, multi-point batch testing, or repeated profile testing, a motorized or high-precision XY stage can improve efficiency and reduce positioning errors.
Buyers should confirm sample size, stage travel range, positioning accuracy, fixture options, and whether the software can record coordinates. If the lab tests mounted cross-sections, gear teeth, shafts, weld sections, or coatings, XY stage quality becomes very important.
XY stage selection should consider:
Maximum sample size and mounted sample size.
Travel range in X and Y directions.
Manual or motorized movement.
Positioning accuracy and repeatability.
Coordinate recording function.
Compatibility with case depth profile testing.
Fixture or sample holder options.
5. Confirm Sample Preparation Requirements
Automatic Vickers testing still requires good sample preparation. The software cannot correct a poor sample surface. If the sample has cutting damage, deep scratches, edge rounding, oil, oxide scale, or uneven polishing, the indentation may be unclear and the result may become unreliable.
For case depth testing, coating hardness, weld sections, and Micro Vickers testing, buyers may also need metallographic cutting machine, mounting press, grinding and polishing machine, microscope, and cleaning tools. A complete quotation should consider both the hardness tester and the preparation workflow.
| Testing Application | Sample Preparation Needed | Recommended Equipment |
|---|---|---|
| General Vickers testing | Clean and flat polished surface | Grinding and polishing tools |
| Case depth testing | Cross-section cutting, mounting, grinding, polishing | Cutting machine, mounting press, grinding-polishing machine |
| Weld hardness testing | Weld cross-section preparation | Cutting, mounting, polishing, microscope inspection |
| Coatings and thin layers | High-quality edge retention and polishing | Precision sample preparation and Micro Vickers testing |
6. Check Calibration Blocks, Indenter And Accessories
A complete automatic Vickers hardness tester quotation should include the required calibration blocks, Vickers diamond indenter, objective lenses, sample holders, software, computer if needed, data cable, and operation manual. Buyers should also ask whether installation, training, and software support are included.
Calibration blocks should match the expected hardness range and test load. For Micro Vickers testing, Micro HV blocks are important. For standard Vickers testing, HV blocks should match the working range. The report should record calibration verification before important batch inspection.
Quotation should confirm:
Main tester model and load range.
Vickers diamond indenter.
Objective lenses and optical configuration.
Camera and vision software package.
Manual or motorized XY stage.
HV and Micro HV calibration blocks.
Sample holders and fixtures.
Computer, monitor, and report export options.
Installation, training, warranty, and technical support.
Recommended Configuration By Buyer Type
Different buyers need different configurations. A small QC lab may only need automatic image measurement and report export. A heat treatment factory may need Micro Vickers profile testing. A research or advanced industrial lab may need motorized stage, case depth curves, and full metallographic preparation equipment.
| Buyer Type | Recommended Configuration | Main Purpose |
|---|---|---|
| General metal QC lab | Automatic Vickers tester, camera, software, calibration blocks, report export | Routine HV testing and customer reports |
| Heat treatment shop | Micro Vickers tester, XY stage, case depth software, sample preparation equipment | Carburized, nitrided, and induction-hardened layer testing |
| Welding QC lab | Vickers or Micro Vickers tester, test path software, polished weld cross-section workflow | Weld metal, HAZ, and base metal hardness mapping |
| Coating or surface treatment lab | Low-load Micro Vickers tester, automatic vision software, edge-retention preparation tools | Coating hardness, thin layer testing, and profile reports |
Key Questions Before Requesting A Quotation
To get an accurate quotation, buyers should send detailed testing requirements instead of only asking for an automatic Vickers hardness tester price. The more complete the information, the easier it is to recommend the correct configuration.
What materials will be tested?
What hardness scale and load range are required?
Do you need standard Vickers, Micro Vickers, or both?
What is the sample size, thickness, and surface condition?
Do you need case depth or hardness profile testing?
Do you need manual or motorized XY stage?
Do you need automatic indentation measurement and image storage?
Do customers require PDF reports, Excel data, images, or curves?
Do you already have cutting, mounting, grinding, and polishing equipment?
Do you need installation, training, software support, and calibration blocks?
Conclusion: Buy The Complete Testing Solution, Not Only The Machine
An automatic Vickers hardness tester with vision software can help factories improve testing repeatability, reduce manual reading errors, speed up report generation, and support customer audit requirements. But buyers should confirm the complete configuration before ordering.
The right solution should include suitable load range, clear optical system, reliable camera, useful software functions, stable XY stage, calibration blocks, Vickers indenter, sample fixtures, report export, and sample preparation equipment when needed.
If your factory tests heat-treated parts, weld sections, coatings, case depth samples, tool steel, gears, shafts, fasteners, or precision metal parts, share your samples and testing standards before ordering. A complete recommendation can help avoid wrong configuration, missing accessories, and unstable testing results.
FAQ
What is an automatic Vickers hardness tester?
It is a Vickers hardness testing system that uses camera and software to capture indentation images, measure diagonals, calculate hardness values, and generate reports.
When should buyers choose automatic vision software?
Automatic vision software is useful when the lab needs repeatable indentation measurement, many test points, case depth curves, image records, and customer reports.
Can automatic Vickers testers measure case depth?
Yes, if the system includes suitable low-load Micro Vickers capability, XY stage, and profile software for surface-to-core hardness testing.
Does automatic software replace sample preparation?
No. Good cutting, mounting, grinding, polishing, and cleaning are still required for reliable indentation measurement.
