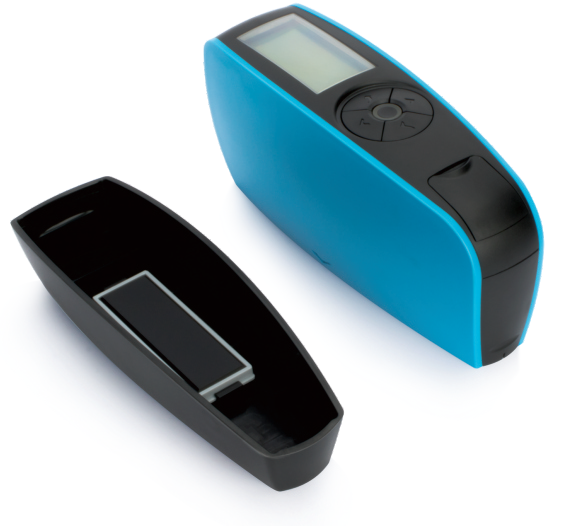

YG60 and YG268 High Precision Gloss Meters by Threenh Technology
Threenh Technology's YG60 and YG268 high precision gloss meters deliver accurate gloss measurement with auto-calibration, large storage, and compliance to ISO2813, GB/T9754, and JJG696 standards. The YG60 features a 60° angle, while the YG268 offers tri-angle (20°/60°/85°) versatility. Ideal for automotive, leather, plastic, metal, stone, and coating industries, they include PC software, multiple modes, and optional accessories like micro printers. Designed for ergonomics, these instruments ensure reliable quality control with easy data management and reporting.
Download
Product Details
Introduction
Threenh Technology, a leading manufacturer in precision instruments, has independently developed the YG60 and YG268 high precision gloss meters with intellectual property rights. These devices are engineered to meet international standards such as ISO2813 and Chinese standard GB/T9754, ensuring high accuracy and reliability for gloss measurement applications. Both models incorporate advanced features like auto-calibration, large data storage, and user-friendly interfaces, making them essential tools for quality assurance across various sectors. The YG60 is optimized for 60° angle measurements, while the YG268 provides multi-angle flexibility with 20°, 60°, and 85° options, catering to diverse customer needs.
Key Features
The gloss meters boast an elegant design that combines aesthetics with ergonomics, ensuring comfortable handling during extended use. Key functionalities include an auto-calibration system that maintains accuracy over time, compliance with JJG696 standard work requirements, and a large storage capacity capable of saving over 35,000 data points. Users benefit from auto power-off settings between 30-120 seconds to conserve energy, and multiple operating modes such as basic, statistic, continuous, and QC modes for versatile applications. Additionally, the devices support PC software for generating quality reports and offer optional accessories like miniature printers and Bluetooth adapters (for YG268) for enhanced functionality without a computer.
Applications
These gloss meters are widely applicable in numerous industries due to their precision and adaptability. They are commonly used in the automotive sector for coating checks
, leather manufacturing for surface quality assessment
, plastic production for consistency checks
, metalworking for finish evaluation
, stone material processing for gloss control
, coating industries for paint quality
, and other fields requiring precise gloss measurement
. This versatility makes them suitable for R&D, production lines, and quality control laboratories.
Technical Specifications
The YG60 model measures at a fixed 60° angle with a range of 0-1000 GU, a division value of 0.1 GU, and a measuring area of 9x15 mm. It offers a measuring time of 0.5 seconds, repeatability of ±0.2 GU (0-100 GU) or ±0.2% GU (100-1000 GU), and accuracy meeting JJG696 standards. Storage is segmented into 35,000 data points across modes, with a 2.3-inch display, dimensions of 160x52x84 mm, and weight of about 300 g. Power options include a dry-cell battery for up to 10,000 measurements or USB charging.
The YG268 model supports three angles: 20° (range 0-2000 GU, area 9x10 mm), 60° (range 0-1000 GU, area 9x15 mm), and 85° (range 0-160 GU, area 5x38 mm). It shares similar specs like 0.5s measuring time, repeatability of ±0.2 GU (0-100 GU) or ±0.2% GU (100-2000 GU), and JJG696 compliance. Both models feature auto power-off, long-time calibration, Chinese/English language support, and USB interface with GQC6 QC software for report printing and extended functions. They operate in 0-40°C temperatures and store in -20-50°C conditions with humidity below 85% RH.
Compliance and Standards
These gloss meters adhere to key international standards, including ISO2813, ASTM523, and GB/T9754, ensuring global acceptability. The auto-calibration function aligns with JJG696 requirements, providing traceability and reliability for industrial use. Regular calibration checks are automated, minimizing user intervention and maintaining precision over long periods.
Accessories and Software
Standard accessories for both models include a USB cable, user manual, calibration plate, and QC software. Optional accessories like miniature printers allow for direct parameter printing without a computer, while the YG268 also offers a Bluetooth adapter for wireless connectivity. The GQC6 software enables detailed quality reports, data analysis, and extended functions, enhancing productivity in various environments.
