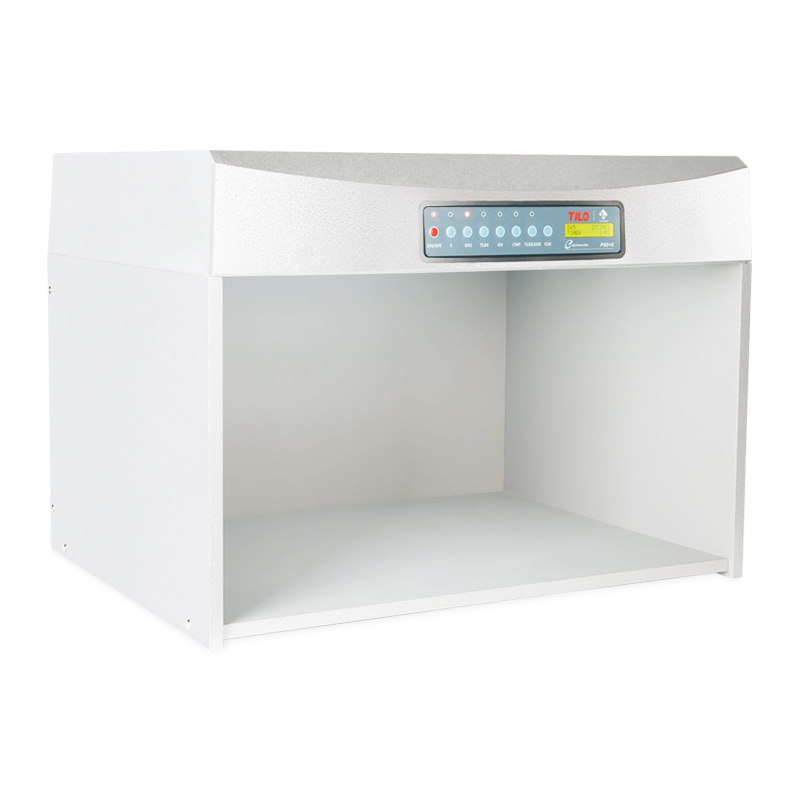

Professional Standard Color Light Box Series (P60, P120, P60+6 Models)
The Standard Color Light Box Series delivers precise color assessment under multiple light sources, including D65, TL84, and UV. It features automatic source switching with metamerism detection, no preheating, and flicker-free operation for reliable evaluations. Energy-efficient with high luminous output, it supports customizable light naming and complies with global standards. Ideal for textiles, toys, and cosmetics, it ensures accurate color consistency across industries. Models like P120 offer expanded space for large products, while all variants provide real-time usage tracking. Perfect for quality control in manufacturing and design.
Product Description
The Professional Standard Color Light Box Series integrates advanced lighting technology to address color deviation challenges in industrial applications. Designed for accuracy and efficiency, this series includes models such as P60(6), P120, and P60+6, catering to diverse operational needs from compact assessments to large-scale product evaluations. By simulating standardized illuminants, it eliminates environmental variables that cause visual misjudgment, making it indispensable for sectors like textiles, printing, and cosmetics.
Applications Across Industries
This light box is widely employed in fields such as textiles, toys, printing and dyeing, plastics, paints, inks, pigments, chemicals, ceramics, footwear, leather, hardware, food, and cosmetics. It enables precise color matching and quality checks by providing consistent, objective light conditions. For instance, in textile production, it ensures fabric colors remain uniform across batches, while in cosmetics, it verifies product shades under various lighting scenarios.
The toy industry benefits from its ability to detect color variations in materials, enhancing safety and appeal.
In pigment and chemical manufacturing, the box aids in formulating colors that meet international standards.
For paints and inks, it facilitates compliance with regional requirements, such as European or American norms.
Key Product Features
Each model boasts a user-friendly interface that displays real-time data, including the usage duration, name, and switching frequency of each light source. Automatic source switching streamlines operations, while the metamerism function identifies color changes under different lights. The system requires no preheating, ensuring instant, flicker-free performance for rapid assessments. Its low energy consumption and heat-free design reduce operational costs and enhance safety. Additionally, the light sources are adaptable—users can modify names or integrate new ones, offering flexibility. The P120 model, for example, provides extra space for bulky items, supporting large-scale inspections.
Technical Specifications
The series incorporates six standard light sources: D65 (artificial daylight), TL84 (European/Asian store light), CWF (American cool white), F (incandescent sunset simulation), UV (ultraviolet for fluorescent detection), and TL83 (European warm white). Parameters vary by model:
P60(6): Internal dimensions 680x508x360mm; weight 27.35kg; uses 18W tubes for most sources, except F (4x40W).

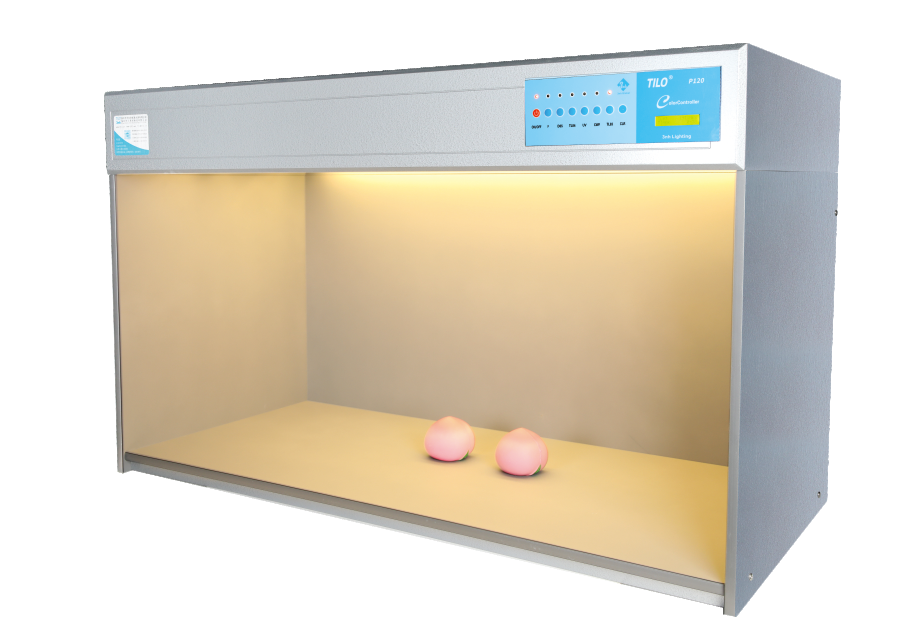

P120: Internal dimensions 1318x622x802mm; weight 60kg; features higher-power 36W tubes and six F lamps for broader coverage.
P60+6: Internal dimensions 693x550x501mm; weight 19.5kg; includes 20W D65 tubes for enhanced brightness.
All models offer optional accessories like a 45-degree stand for angled viewing. The light sources employ Philips or equivalent tubes, such as TL-D series for D65 and BLB for UV, ensuring longevity and compliance with ISO, CE, and RoHS standards.
Light Source Details
Each source serves a specific purpose: D65 replicates average daylight for general color checks; TL84 and TL83 mimic retail lighting in Europe and Asia; CWF aligns with American environments; F simulates evening light for warmth assessments; and UV detects brighteners or fluorescents. This diversity allows comprehensive testing under real-world conditions, critical for global supply chains.
In summary, the Standard Color Light Box Series combines robustness with precision, supporting industries in maintaining color integrity. Its scalable design—from portable P60+6 to spacious P120—makes it a versatile tool for laboratories, factories, and quality assurance teams worldwide.
