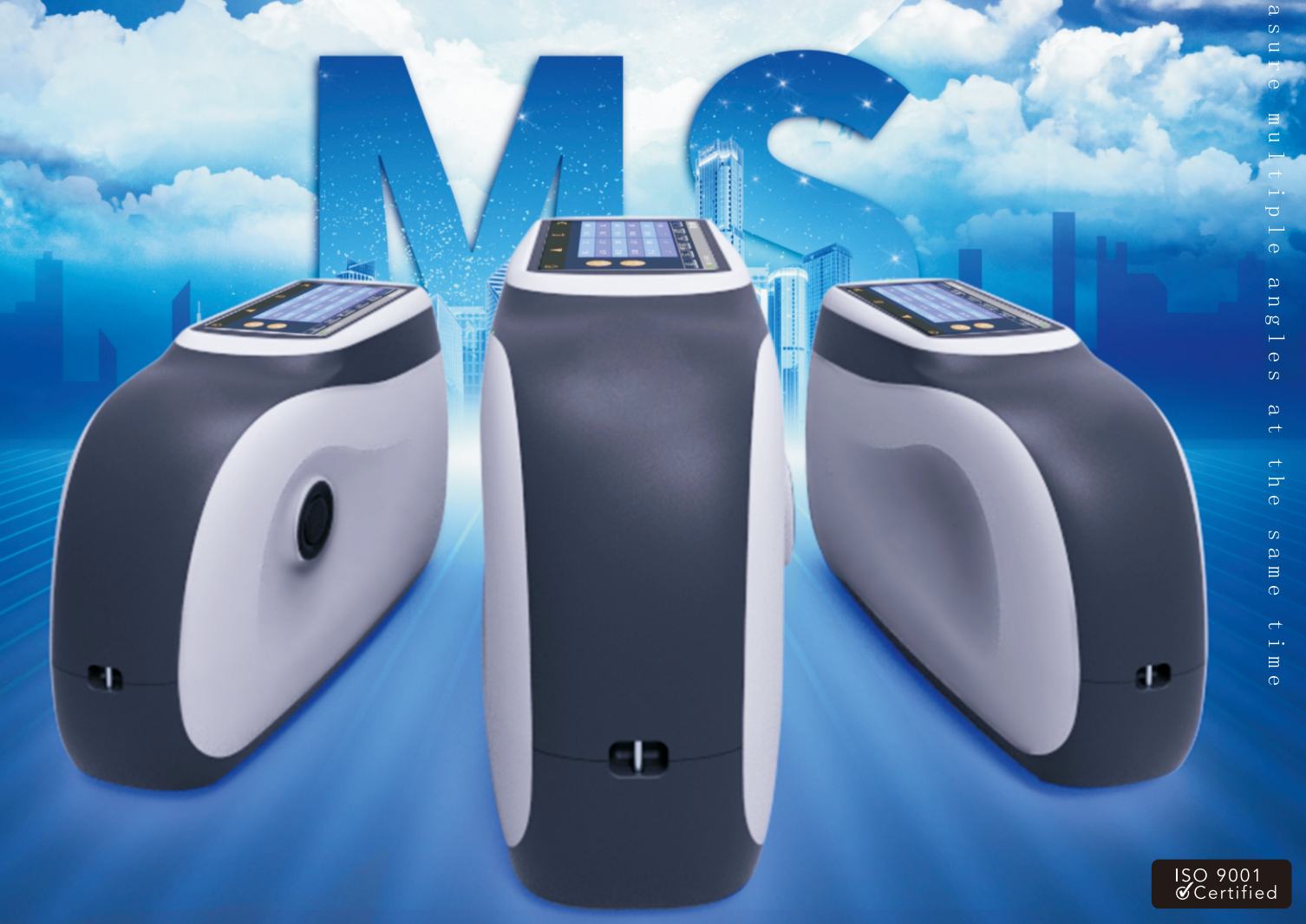

MS3005 Multi-Angle Spectrophotometer
The MS3005 Multi-Angle Spectrophotometer delivers precision color measurement with five integrated angles (45° as 15°, 25°, 45°, 75°, 110°), ideal for metallic, pearlescent, and textured surfaces. It features a 3.5-inch capacitive touchscreen for intuitive data display, a 256-element double CMOS sensor for high resolution, and concave grating technology for accuracy. With full-spectrum LED lighting, Bluetooth/Wi-Fi connectivity, and a color camera for positioning, it ensures repeatability of ΔE*ab ≤ 0.03. Compliant with ASTM, ISO, and DIN standards, it supports quality control in automotive, coatings, plastics, and cosmetics industries, offering lab-grade performance in a portable design.
Product Details
1. Overview
The MS3005 Multi-Angle Spectrophotometer combines industrial-grade hardware with advanced optical systems to provide reliable color analysis for challenging materials. Its five-angle measurement capability allows comprehensive assessment of special-effect surfaces, ensuring consistency across diverse lighting conditions. Designed for efficiency, it supports real-time data transfer and seamless integration with PC software for extended functionality.
2. Key Features with Visual Enhancements
Multi-Angle Measurement System
The MS3005 utilizes five illumination sources and one receiver to simultaneously capture data at multiple angles, enabling detailed analysis of color shifts on curved or textured surfaces. This is critical for industries like automotive coatings where flop effects must be quantified.
User-Friendly Interface
A responsive 3.5-inch touchscreen displays all angle results concurrently, allowing operators to compare data intuitively without toggling between screens. This streamlines workflows in fast-paced production environments.
High-Resolution Sensing
Equipped with a 256-element double array CMOS image sensor, the instrument achieves superior optical resolution, ensuring speed, stability, and consistency in measurements.
Advanced Optical Technology
Blue-light-enhanced full-spectrum LEDs provide uniform illumination without spectrum loss, while concave grating spectrophotometry offers higher resolution for precise color data.
Calibration and Durability
A professional-grade whiteboard maintains surface hardness and optical stability, supporting accurate long-term use.
Connectivity and Ergonomics
An industrial-grade MCU enables Wi-Fi and Bluetooth 5.0 for stable data transfer, and the ergonomic design accommodates varied gripping styles.
Precision Tools
A built-in color camera previews measurement areas, reducing positioning errors and enhancing efficiency.
Comprehensive Data Analysis
The system supports six color spaces (e.g., CIE LAB, LCh) and multiple illuminants, with functions for spectral graphs, pass/fail results, and color deviation analysis.
Software Integration
PC connectivity allows advanced data management and report generation via dedicated software.
3. Technical Specifications Summary
Geometry: 5 angles (45° as 15°–110°)
Standards: ASTM D2244, ISO 7724, DIN 5033, etc.
Light Source: Full-spectrum LED with 5-year lifespan
Accuracy: Repeatability ±0.08%, ΔE*ab ≤ 0.03
Connectivity: USB, Bluetooth, Wi-Fi
Storage: 1,000 standards, 4,000 samples
Battery: 5,000mAh lithium-ion (8-hour operation)
4. Applications
The MS3005 is ideal for color quality control in:
Automotive: Metallic paints and pearlescent finishes
Cosmetics: Pearl-effect pigments and packaging
Plastics: Textured or glossy components
Coatings: Industrial finishes with flop effects
5. Advantages
By integrating multi-angle measurement with user-centric features, the MS3005 reduces subjectivity in color evaluation. Its portability, compliance with global standards, and robust data handling make it a versatile tool for R&D and production lines.
