M60 Standard Color Light Box
The M60 Standard Color Light Box integrates six light sources (D65, TL84, CWF, A, UV, U30), supporting automatic switching and metamerism analysis. It requires no preheating, eliminates flicker, and ensures fast, accurate color evaluation. Features include usage time recording and customizable light source naming, with low energy consumption and high luminous efficiency. Internal dimensions: 712×535×545mm. Ideal for color management in textiles, printing, coatings, plastics, and more, it enables precise color difference detection to prevent human visual errors.
Download
Product Details
1. Product Overview
The M60 Standard Color Light Box is a multi-functional lighting device designed for professional color assessment. By providing a stable, uniform standard light source environment, it meets stringent color consistency requirements across various industries. Certified with ISO9001, CE, and ROHS, it includes six internationally recognized light sources to simulate diverse lighting conditions, ensuring objective and repeatable color evaluation.
2. Core Features
Integrated Multi-Source Lighting & Smart Switching
The M60 combines D65 (international standard artificial daylight), TL84 (European store light), CWF (U.S. cool white fluorescent), U30 (warm white), A light (American window spotlight), and UV (ultraviolet). Users can automatically switch between sources or manually select them, with real-time display of usage duration, names, and switching counts for easy maintenance.
High-Efficiency Optical Performance
Equipped with premium fluorescent lamps, the light box operates instantly without preheating and avoids flickering. Its low-energy design ensures minimal heat generation, while high-efficiency illumination offers shadow-free, uniform lighting for reliable color comparison.
Customizable Functionality
The light source naming feature allows customization based on specific needs. An optional 45° standard viewing stand accommodates varied inspection angles. The UV source specifically detects fluorescent materials, identifying brighteners or fluorescent pigments.
3. Technical Specifications
Light Source Configuration:
D65: 6500K, 2×20W
TL84: 4000K, 1×18W
CWF: 4150K, 1×18W
U30: 3000K, 1×20W
A Light: 2856K, 2×60W
UV: 365nm, 1×18W

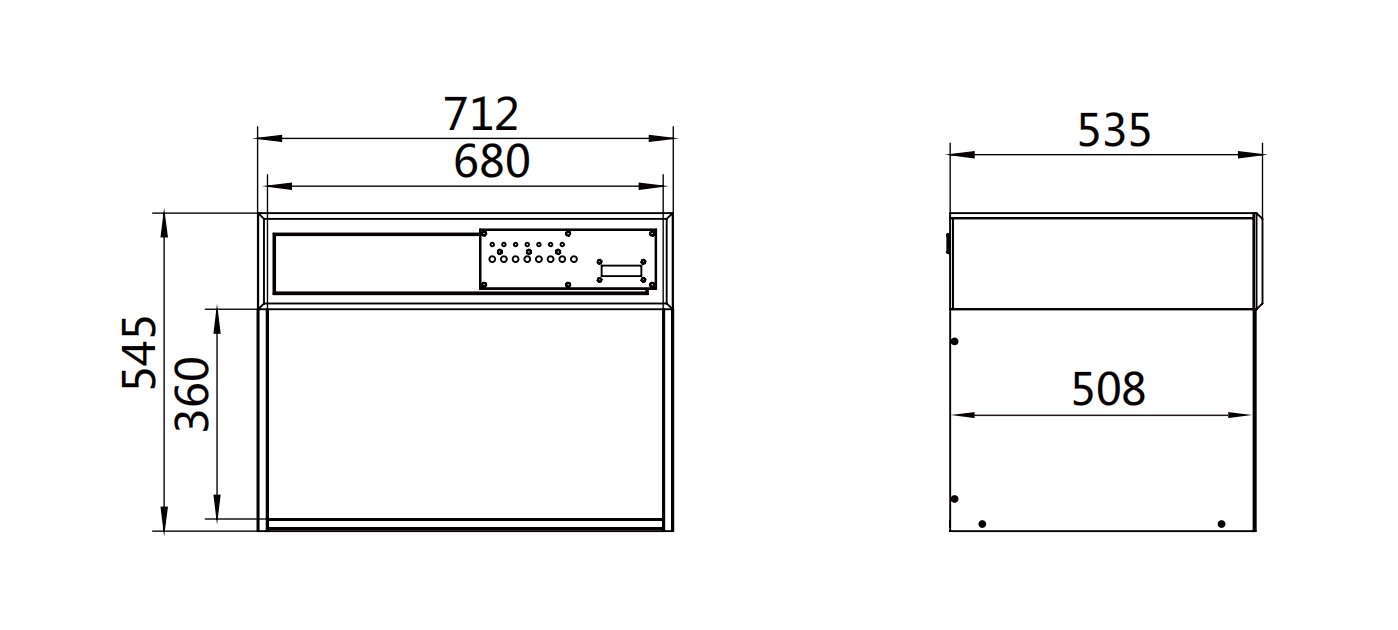

Dimensions & Weight: Internal space 712×535×545mm; weight 27kg; sturdy structure for large samples.
Compliance: Aligns with ASTM, ISO, and other international color assessment standards.
4. Application Industries
The M60 is widely used in textiles, toys, printing/dyeing, plastics, paints, inks, ceramics, footwear, leather, hardware, food, and cosmetics. Example scenarios:
Textiles: Compare fabric color consistency under different lights.
Printing: Check color differences and fluorescent ink effects.
Automotive Paints: Evaluate metallic coatings under varying illumination.
Cosmetics Packaging: Ensure color match between containers and labels.
5. Advantages
By offering a controlled standard lighting environment, the M60 minimizes human error in color judgment caused by inconsistent light conditions. Its compact design and versatile configuration make it suitable for both laboratories and production lines, providing a cost-effective solution for professional color management.
