JH-200 Surface Roughness Testing Platform (Steel Plate Edition)
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Provides stable support for portable roughness testers.
Precision lifting column ensures accurate height adjustment.
Reduces operator error during fine measurement.
Compatible with both domestic and international testers.
Product Description
The JH-200 Surface Roughness Testing Platform (Steel Plate Edition) is one of the main accessories for portable surface roughness testers.
It provides a high-precision measurement base and a lifting column adjustment system, allowing the user to easily position the instrument for stable and accurate measurements.
This platform significantly reduces the difficulty of operation, especially when measuring high-precision components.
It is compatible with a wide range of roughness tester brands, and customized adapters can be provided for special models.
The platform features an electrophoretic coating surface, ensuring corrosion resistance and long service life.
For certain special sensors, this platform is essential to perform complex and precise adjustments during testing.

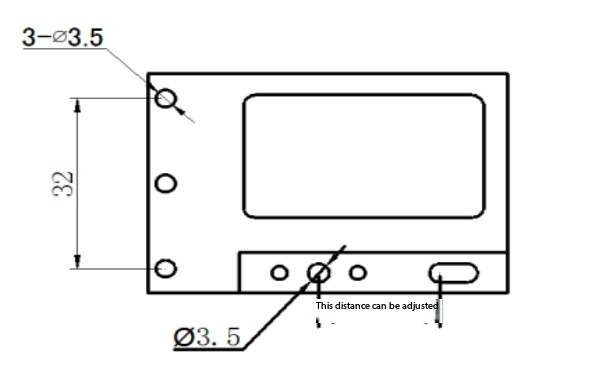

Connecting Plate Dimensions:
Maintenance:
- Clean and rust-proof the unit regularly.
- Do not apply lateral force to move the slide.
When moving the equipment, hold the measuring platform instead of directly lifting the column to prevent loosening and positioning errors.
Technical Parameters:
- Lifting Height: 280±3 mm
- Return Stroke Error: ≤ 1/6 turn of the handwheel.
Measuring Platform Dimensions: 350mm (L) × 180mm (W) × 12mm (H). The platform surface is treated with electrophoretic paint.
Minimal lifting column return error
Smooth and easy column lifting
Accurate and reliable positioning
