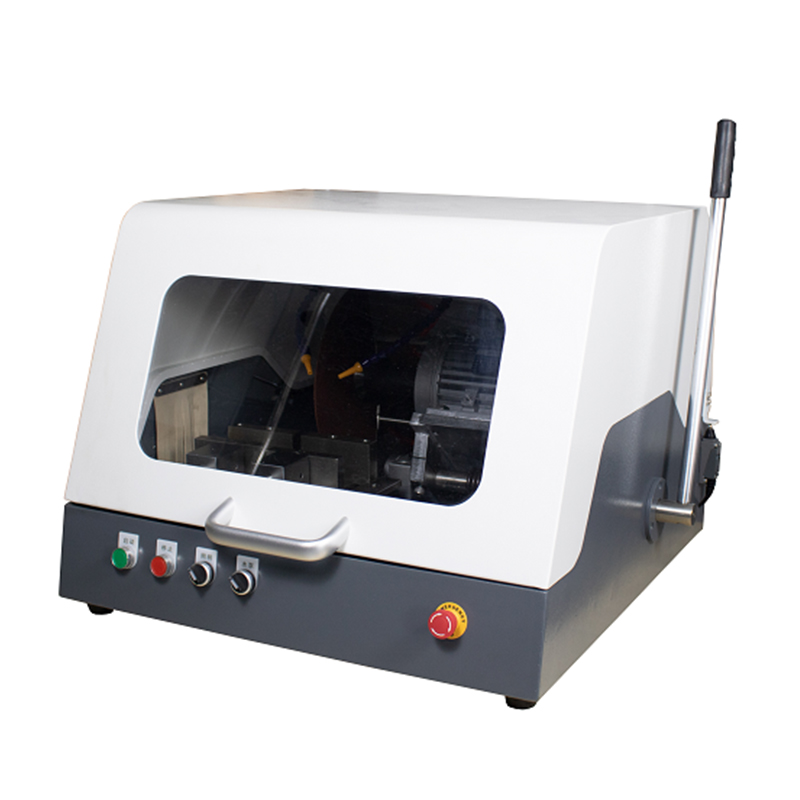

HQG-60/80/100 Metallographic Sample Cutting Machine

Product Description

The HQG-60/80/100 metallographic sample cutting machines are designed for precise and safe sectioning of metallographic specimens during preparation. These models use reliable mechanical structures and wet abrasive cutting to minimize thermal deformation and preserve the true microstructure of the material. All three models feature stable transmission systems, optimized workpiece clamping, and durable alloy components to ensure long-term performance.

The HQG-60 is suitable for medium-size samples with a maximum cutting diameter of φ60 mm.
The HQG-80 provides enhanced capacity with a φ80 mm cutting diameter.
The HQG-100 offers the largest workspace, supporting up to φ100 mm samples, making it ideal for heavy-duty industrial and research applications.

All models adopt a manual Y-feed mechanism, waterproof LED illumination, and an automatic circulating cooling tank to reduce heat impact and improve cutting efficiency. These machines are widely used in factories, laboratories, universities, and metallographic research fields where accurate sample integrity is essential.

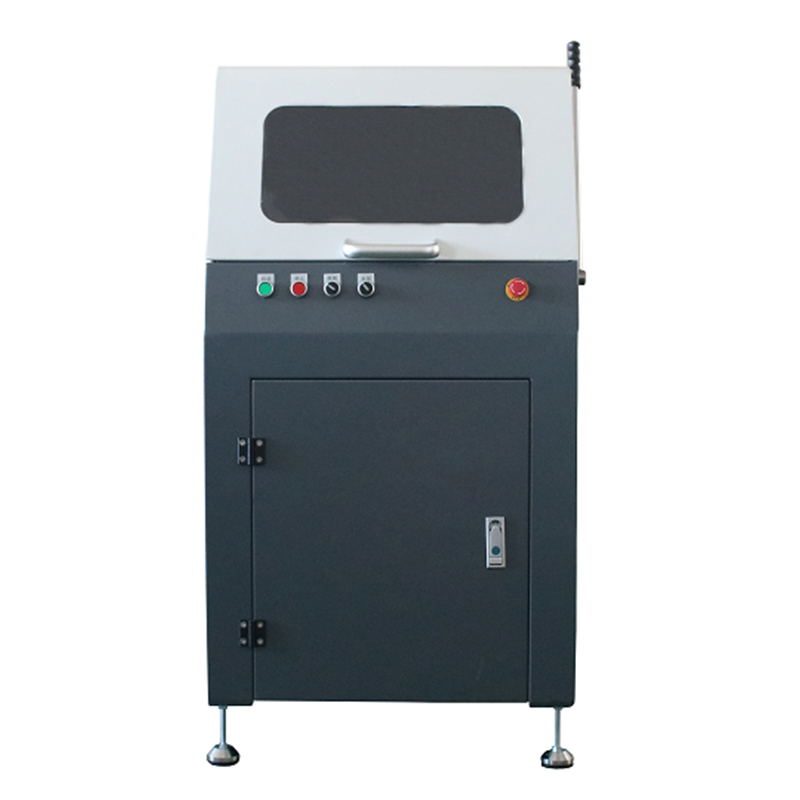

Optional integrated cabinet or separate cabinet configuration

Product Advantages

• High-strength chassis & alloy components
  Ensure long service life and stable operation under continuous cutting conditions.

• Manual Y-axis feed & fixed worktable
  Provides smooth feed control and high cutting accuracy across HQG-60/80/100.

• Fast cutting, stable transmission & low noise
  Each model uses a robust spindle system operating at 2800 r/min for efficient cutting.

• Transparent safety shield + waterproof LED light
  Offers clear visibility of the cutting area while maintaining operator safety.

• Automatic circulating cooling system
  Minimizes heat deformation, prolongs blade life, and improves cutting results.

• Adjustable capacity for different models

1. HQG-60: Max cutting diameter 60 mm

2. HQG-80: Max cutting diameter 80 mm

3. HQG-100: Max cutting diameter 100 mm

• Reliable electrical system (380V 50Hz, 3-phase)
  Ensures stable industrial-grade performance for long-term operation.

• Compact structure with optional integrated or separate cabinet
  Flexible for laboratories with limited space or industrial environments.

Application Range

The HQG-60/80/100 series is widely used in metallographic laboratories, quality-inspection departments, research institutes, universities, steel plants, non-ferrous metals, automotive manufacturing, and material analysis tasks requiring precise microstructure preservation and reliable sample cutting.

Technical Specifications

Configuration List

All three models come with a standard accessory package designed to support immediate operation, routine maintenance, and long-term reliability.
