ECM-100 Advanced Electrochemical Migration Tester
The ECM-100 delivers unparalleled accuracy in electrochemical migration testing with fully independent per-channel measurement (16ms speed), 1-300V seamless voltage, and 700μA current limiting. Its all-in-one design integrates HAST/chamber control, CF card data storage, and automated analysis compliant with JIS/ISO standards. Featuring 40-400 channel scalability, double-shielded cables, and self-calibration, it ensures reliable detection of insulation deterioration for electronics, automotive, and aerospace applications.
Download
Introduction to Electrochemical Migration Testing
Electrochemical migration (ECM) poses critical reliability risks in modern electronics, causing dendrite growth and insulation failures in components like PCBs, solder joints, and conductive layers. The ECM-100 Advanced Electrochemical Migration Tester addresses these challenges with a groundbreaking approach to precision testing. Designed for laboratories and manufacturing facilities, this system combines high-speed measurement, modular scalability, and intuitive operation to meet stringent standards including JIS Z 3190, IPC TM-650, and ISO 9455-17. By simulating real-world conditions—such as humidity, voltage stress, and ionic contamination—the ECM-100 provides actionable data for quality assurance, failure analysis, and material development.
Core Technological Innovations
Independent Multi-Channel Architecture
Unlike conventional testers with shared measurement paths, the ECM-100 employs a fully independent per-channel design. Each channel features a dedicated digital-to-analog converter (DAC) for applied voltage (1–300V range) and a 24-bit delta-sigma ADC for current measurement, achieving 16ms sampling speed across all channels. This isolation prevents cross-talk, ensuring that fault in one channel (e.g., short-circuit or leakage) does not affect others. For example, users can simultaneously test CH1 at 10V (for solder resist validation), CH2 at 15V (conformal coating analysis), and CH3 at 20V (substrate integrity), with zero interference.
High-Side Measurement and Active Guarding
The system utilizes high-side current measurement with double-shielded active guard cables, minimizing noise from external sources. A clamp circuit integrated into each channel suppresses voltage overshoot during transient events, while the 700μA current limit protects samples from dendrite-induced damage. This is critical for testing high-capacitance loads (e.g., 470μF capacitors at 300V) common in power electronics. The active guarding technology—a patented feature—ensures signal integrity even in electrically noisy environments, making ECM-100 suitable for in-line production testing.
Smart Automation and User-Centric Design

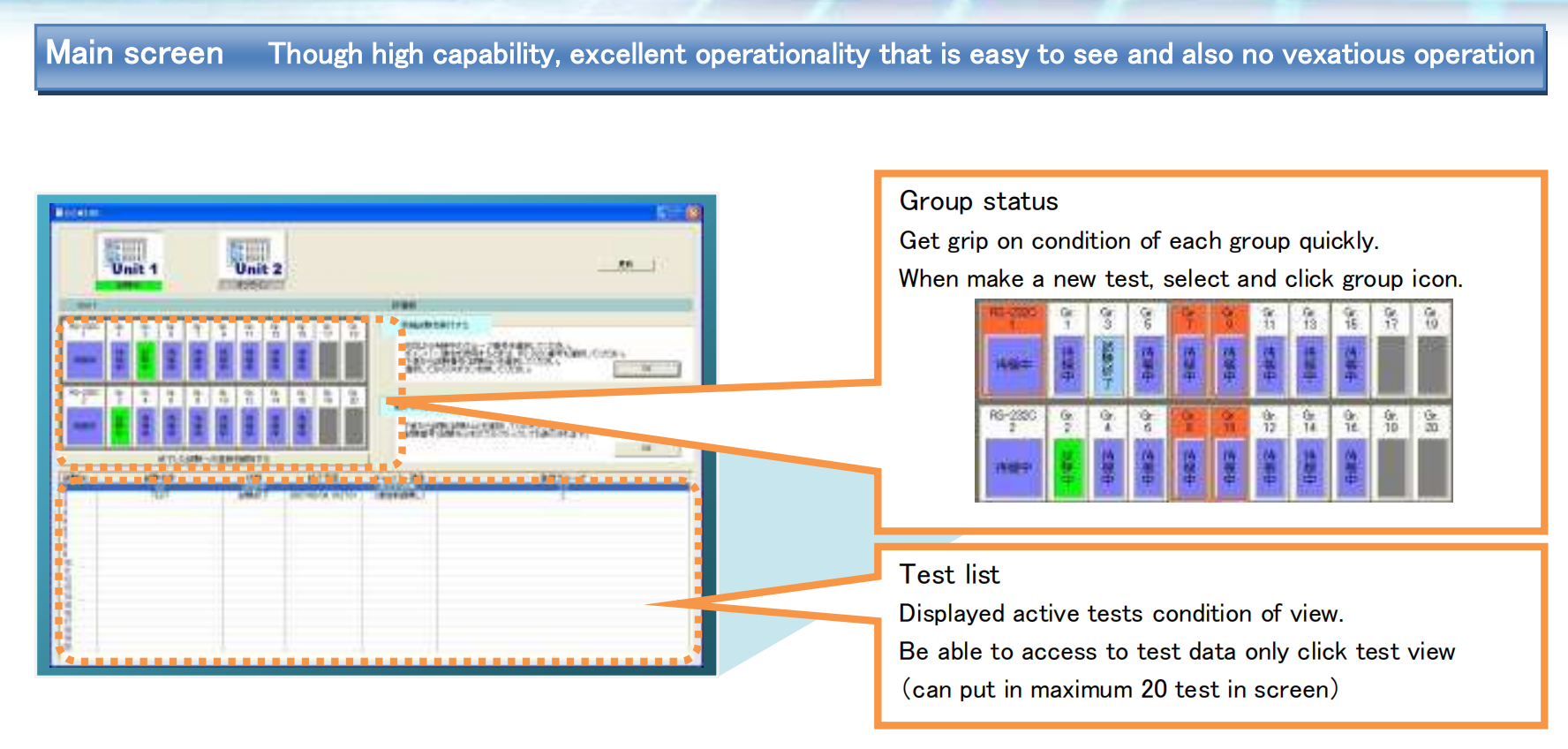

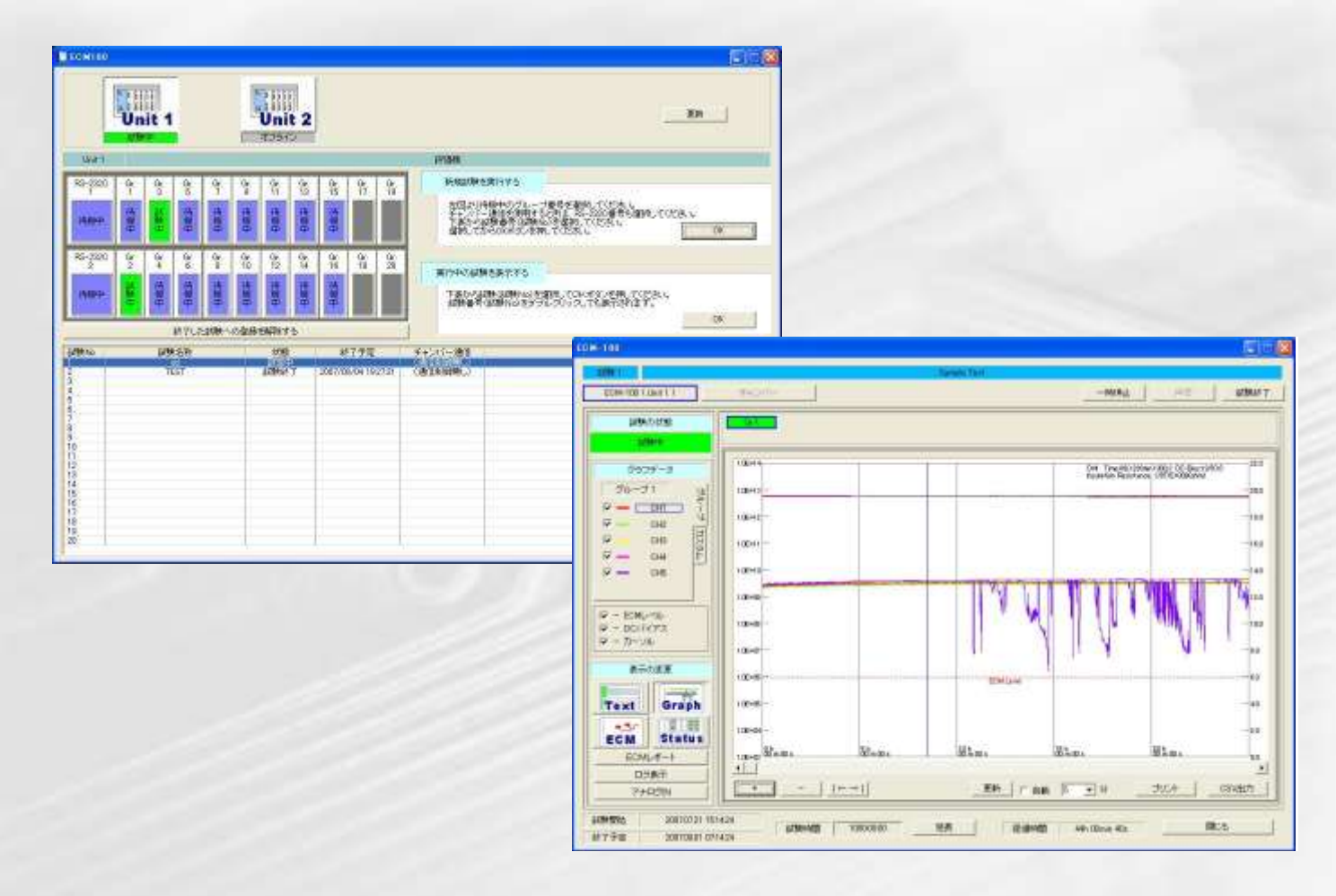

Operational efficiency is enhanced through an all-in-one architecture. The system controls HAST chambers, data logging, and analysis without external computers. A 10-inch touchscreen interface guides users through test setup, with preloaded templates for common standards (e.g., JIS C 3824). Data is stored on industrial-grade CF cards (superior to HDDs in reliability), and built-in UPS support allows continuous operation during brief power outages. For flexibility, the ECM-100 offers 40- to 400-channel configurations, with modular units slotting into 19-inch racks for easy expansion.
Across Industries
Electronics Manufacturing
In PCB production, the ECM-100 detects ion migration in through-holes, solder masks, and halogen-free substrates. It identifies failure precursors—such as copper dendrite formation—under accelerated aging conditions (85°C/85% RH), aligning with JPCA-ET01-09 standards. For IC packaging, the system evaluates underfill insulation and wire-bond integrity, reducing field returns in automotive or consumer electronics.
Automotive and Aerospace
As vehicles adopt 48V systems and EV powertrains, insulation resistance becomes paramount. The tester validates components like battery busbars, sensor connectors, and ignition modules against electrochemical degradation. In aerospace, it certifies conformal coatings on avionics per DO-160 with traceable data for audit compliance.
Materials Development
R&D labs use the ECM-100 to benchmark new materials—e.g., low-loss dielectrics or lead-free solders—by measuring migration thresholds under varying voltage/temperature profiles. The system’s Weibull plot functionality helps predict lifetime reliability, while CSV exports streamline collaboration with CAE tools like COMSOL.
Advantages Over Traditional Methods
Traditional ECM testing relies on manual setups: separate power supplies, multimeters, and environmental chambers. This introduces human error, limits throughput, and struggles with high-impedance measurements (>10 TΩ). The ECM-100 consolidates these steps into a unified workflow:
Speed: 16ms/channel measurement vs. minutes with manual.
Accuracy: ±0.3% voltage accuracy and pA-level current resolution.
Compliance: Auto-generates reports for ISO 9001/IATF 16949 audits.
Safety: Self-check routines validate DC bias and leakage before each test.
Case studies highlight a 60% reduction in test time for a semiconductor client evaluating wafer-level packaging, and a 90% improvement in repeatability for an automotive supplier testing ECU modules.
Technical Specifications Deep Dive
Voltage Ranges: 2 ranges (1.0–30.0V, 30.1–300.0V), settable per channel with 0.1V resolution.
Resistance Measurement: 2 kΩ to 10 TΩ, covering insulation resistance needs from circuits to coatings.

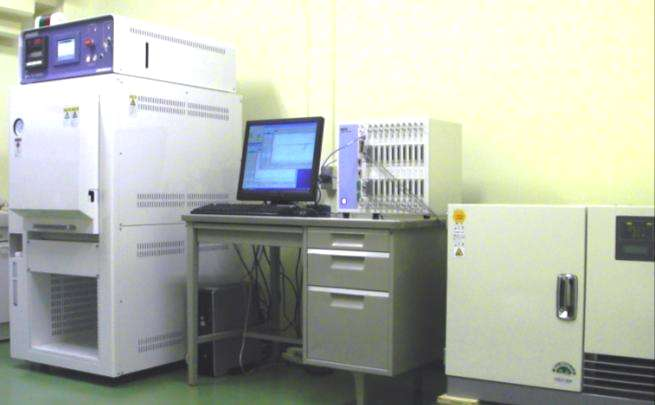

Environmental Integration: RS-232C/analog inputs for HAST chambers analog channels log temperature/humidity.
Data Output: Real-time CSV files with timestamps; optional Weibull analysis for failure rate modeling.
Scalability: Base unit supports 10 channels; expandable to 400 channels via modular racks.
Reliability and Support
The ECM-100 is backed by J-RAS Corporation’s global service network, offering calibration certificates traceable to NIST. Its firmware supports remote updates, while the plug-and-play design allows module replacement without recalibration. Enterprises like Foxconn and Bosch use the system for quarterly validation of supplier components, citing its robustness in 24/7 production environments.
In summary, the ECM-100 redefines electrochemical migration testing by merging laboratory-grade precision with industrial durability. It empowers engineers to preempt failures, accelerate development, and comply with evolving sustainability mandates—all through a system that prioritizes ease of use without compromising on depth.
