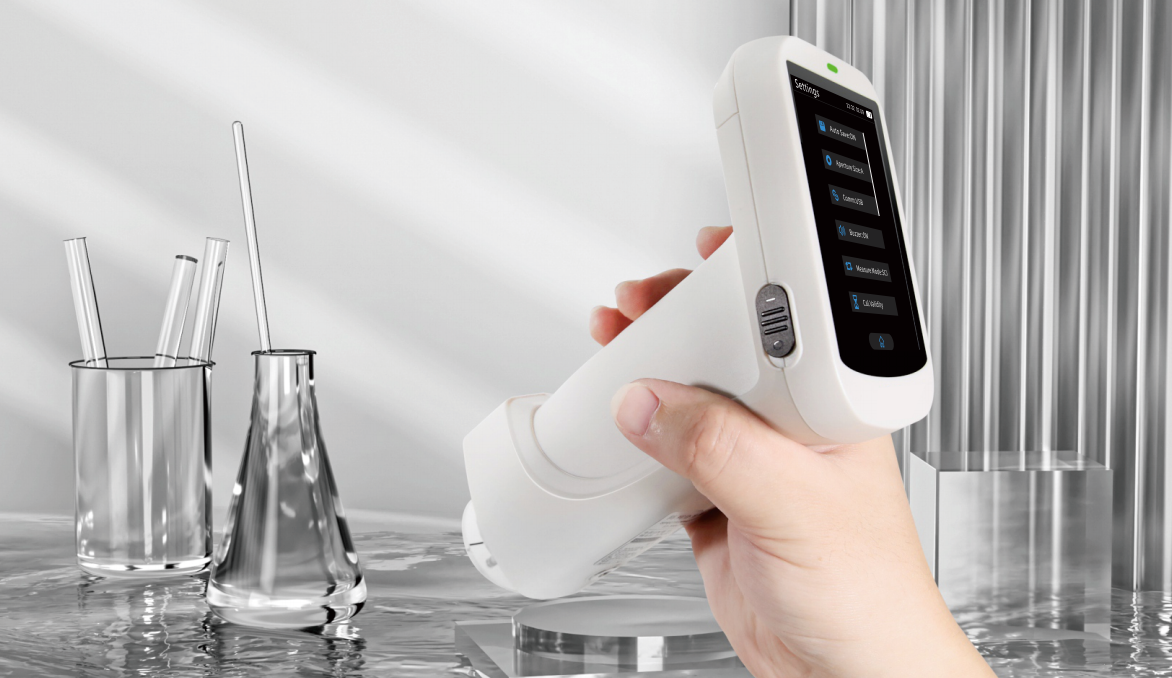

CR10 Plus Spectrophotometer
The CR10 Plus Spectrophotometer delivers precision color measurement with dual-caliber switching (8mm/4mm) for adaptable sample handling. It ensures exceptional accuracy with repeatability ΔEab ≤ 0.05 and inter-instrument difference ΔEab ≤ 0.4, backed by a full-band balanced LED light source (400–700nm) for spectrum integrity. Featuring an intelligent non-contact calibration base and compliance with ISO, ASTM, and CIE standards, it supports diverse industries like printing, textiles, and automotive. The large touchscreen and SQCX software enable seamless data management, real-time analysis, and report generation. Compact and user-friendly, it combines laboratory-grade reliability with field-ready portability for efficient quality control.
Download
CR10 Plus Spectrophotometer
The CR10 Plus Spectrophotometer features dual-caliber switching (8mm and 4mm), offering excellent adaptability, simple measurement, and intuitive display. Equipped with a large-area silicon photodiode array and industrial-grade MCU, it ensures data stability and accuracy with repeatability ΔE*ab ≤ 0.05 and inter-instrument difference ΔE*ab ≤ 0.4.
Key Product Features
Dual Caliber Switching
CR10 Plus supports 8mm and 4mm measurement calibers with optimized algorithms for enhanced accuracy.
High Measurement Accuracy
Accuracy reaches 0.01, meeting most color measurement requirements with precision.
Full-band Balanced LED Light Source
Ensures no spectrum deficiency and accurate results across 400-700nm range.
Intelligent Calibration Base
Non-contact automatic whiteboard verification for reliable calibration.
Function Display
CR10 Plus offers intuitive operation with a large touchscreen. Below are key interface displays:
Test Results Evaluation
Complies with ISO7724-1 and ASTM E1164. The system auto-calculates color difference and deviation, displaying "qualified" or "unqualified" based on set tolerance. Color difference is measured in NBS units:
| NBS Range | Perception |
|---|---|
| 0.00-0.50 | Trace |
| 0.50-1.50 | Slight |
| 1.5-3 | Noticeable |
| 3-6 | Appreciable |
| 6+ | Much |
Supports multiple color spaces including CIE LAB, XYZ, Yxy, LCh, and more for detailed analysis.
Application Industries
Widely used in various industries for color quality control:
Printing and Packaging
Textile Printing and Dyeing
Leather Industry
Ink and Paint
Plastics
Automotive Coating
Cosmetics
Scientific Research
Software Support - SQCX
Connect via USB for extended functionality: real-time data viewing, historical data management, printing, and network-based color matching. Compatible with Windows, Android, iOS, and more.
Technical Parameters
| Parameter | CR-10 Plus | CR-10 |
|---|---|---|
| Optical Geometry | D/8 (diffused illumination, 8-degree viewing angle) | |
| Measurement Repeatability | 0.04 | 0.05 |
| Inter-instrument Error | ΔE*ab ≤ 0.3 | ΔE*ab ≤ 0.4 |
| Measuring Apertures | Dual aperture: Φ8mm/Φ10mm Flat + Φ4mm/Φ5mm Flat | Single aperture: Φ8mm/Φ10mm Flat |
| Data Storage | 500 standard samples, 20,000 samples | 500 standard samples, 10,000 samples |
| Battery Life | 8,500 measurements per charge (8 hours) | |
| Dimensions | 114 × 70 × 208 mm | |
| Weight | Approx. 435g (base excluded) | |
Optional Accessories
Micro Printer: Portable, continuous parameter printing without a computer.
Powder Test Box: Designed for powdered sample measurement.
