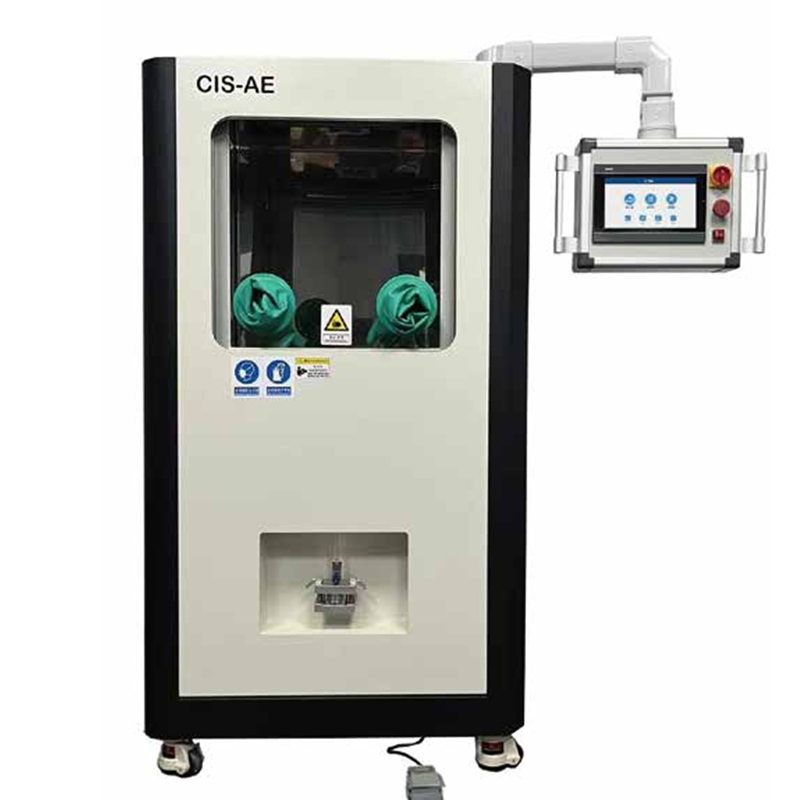

CIS-AE Series Fully Automatic Cleanliness Extraction System

The CIS-AE Series Fully Automatic Cleanliness Extraction Equipment is engineered for precision contaminant extraction in industries demanding strict cleanliness standards (e.g., automotive, electronics, aerospace). Combining automated workflows, intelligent control, and robust design, it streamlines the extraction of particulate matter from components, ensuring compliance with global norms like VDA19 and ISO16232.

Core Technological Advantages

1. Standardized & Automated Extraction

Adhering to VDA19/ISO16232, the system automates critical steps:颗粒萃取 (particle extraction), liquid recovery, and filtration. The process eliminates manual intervention, with a 10-inch HMI touchscreen enabling intuitive programming of pressure (1–5.5Bar), flow rate (1–5.5L/min), and timing (0–10000s). Dual control modes (pressure/flow) cater to regional operational preferences, while 2000-program storage allows quick recall of customized parameters for diverse components.

2. Advanced Filtration & Purification

A multi-layer filtration system ensures purity:

• HEPA Air Filter: 0.3μm precision with 99.995% efficiency, maintaining a clean extraction environment.

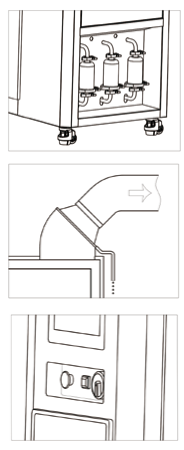

• Liquid Filtration: Pre/post 0.22μm filters + patented triple-series filtration (patent ZL201820951535.0), supporting simultaneous use of 3 filter membranes for enhanced contaminant capture.




• Self-Cleaning Design: Wide-angle nozzles and special-material tubing prevent metal particle interference, with automated inner-wall cleaning (0–10000s settable).




3. Flexible Cleaning Modes

• Pressure Cleaning (CIS-AE-P): Single-station pressure washing for standard components, with a 750×550×800mm chamber (customizable).

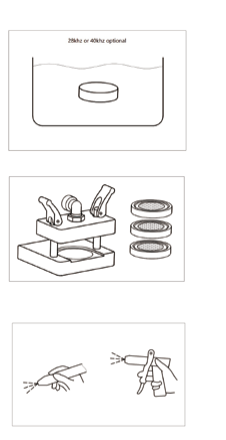

• Ultrasonic-Enhanced Cleaning (CIS-AE-D): Dual-station (pressure + ultrasonic) for complex parts, featuring 28/40kHz dual-frequency ultrasound (300W), 360×240×200mm tank, and adaptive power regulation compliant with VDA19.1.

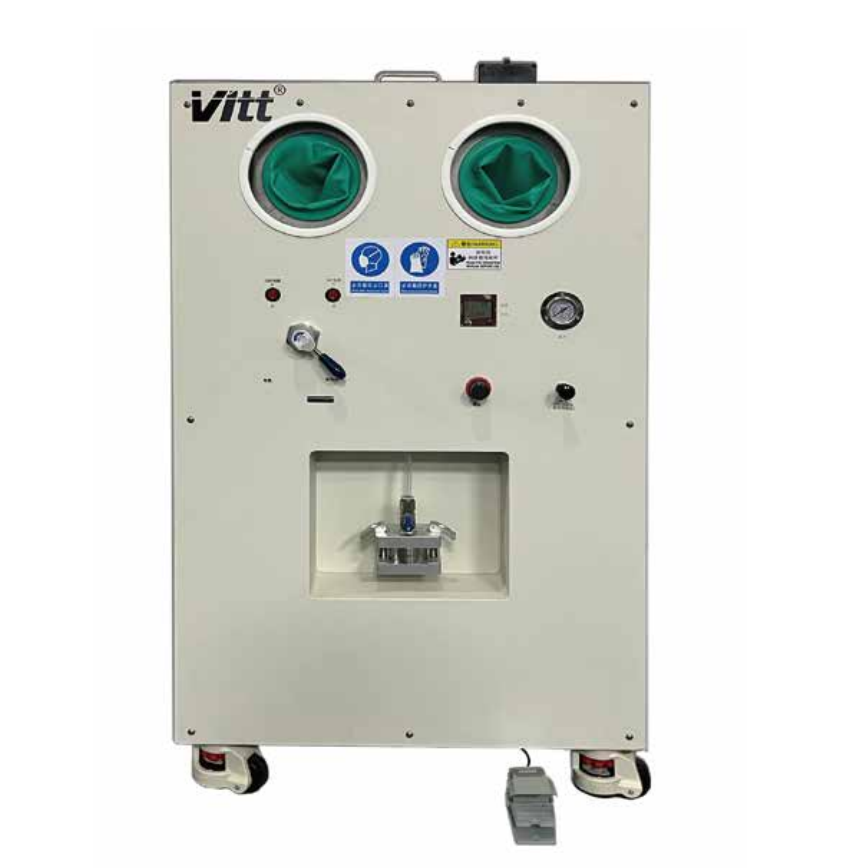

• Compact Automated Model (CIS-AE-S): Lightweight (200kg) with wheels for mobility, 700×500×700mm chamber, and optional 40kHz/300W ultrasound (420×350×200mm tank).




4. Humanized Design & Safety

• Foot Pedal Control: Reduces hand fatigue during prolonged nozzle operation.




• Auto-Alarm System: Notifies users for filter/liquid replacement.




• Safety Features: Hidden control buttons, anti-condensation exhaust ports, and pluggable power bend (prevents wall contact damage).




• Tool-Free Maintenance: Quick-release filter cartridges and modular components simplify upkeep.




5. Intelligent Data Management

Real-time fluid recycling minimizes waste, while the system supports data logging for traceability. Compatibility with lab software enables seamless integration into quality control workflows.

Model Comparison & Selection

• CIS-AE-P (Full-Auto): Pressure-only, 350kg, 1200W, ideal for high-volume standard testing.




• CIS-AE-D (Full-Auto): Pressure + ultrasonic, 400kg, 1500W, for complex parts (e.g., engine components).




• CIS-AE-S (Auto/Semi-Auto): Compact, 200kg, 1200W, with manual safety door for flexible small-batch testing.




•

Note: The series offers full-automatic (CIS-AE-P/D), automatic (CIS-AE-S), and semi-automatic (customizable modes with manual overrides) options to match diverse operational needs.

Applications

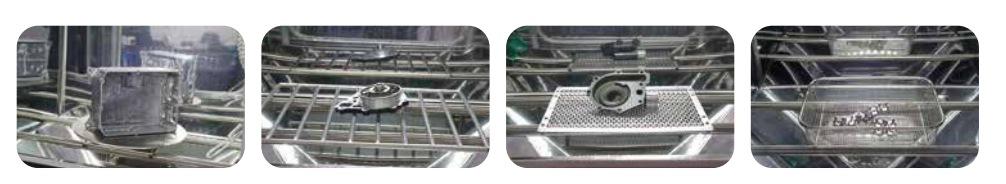

Widely used in automotive (brake systems, fuel injectors), electronics (PCB, semiconductors), and aerospace (hydraulic components) for cleanliness verification, defect analysis, and compliance reporting.
