The Role of Metallographic Press in Sample Preparation for Microscopy
The Role of Metallographic Press in Sample Preparation for Microscopy
Ensuring Sample Integrity and Edge Retention through Encapsulation

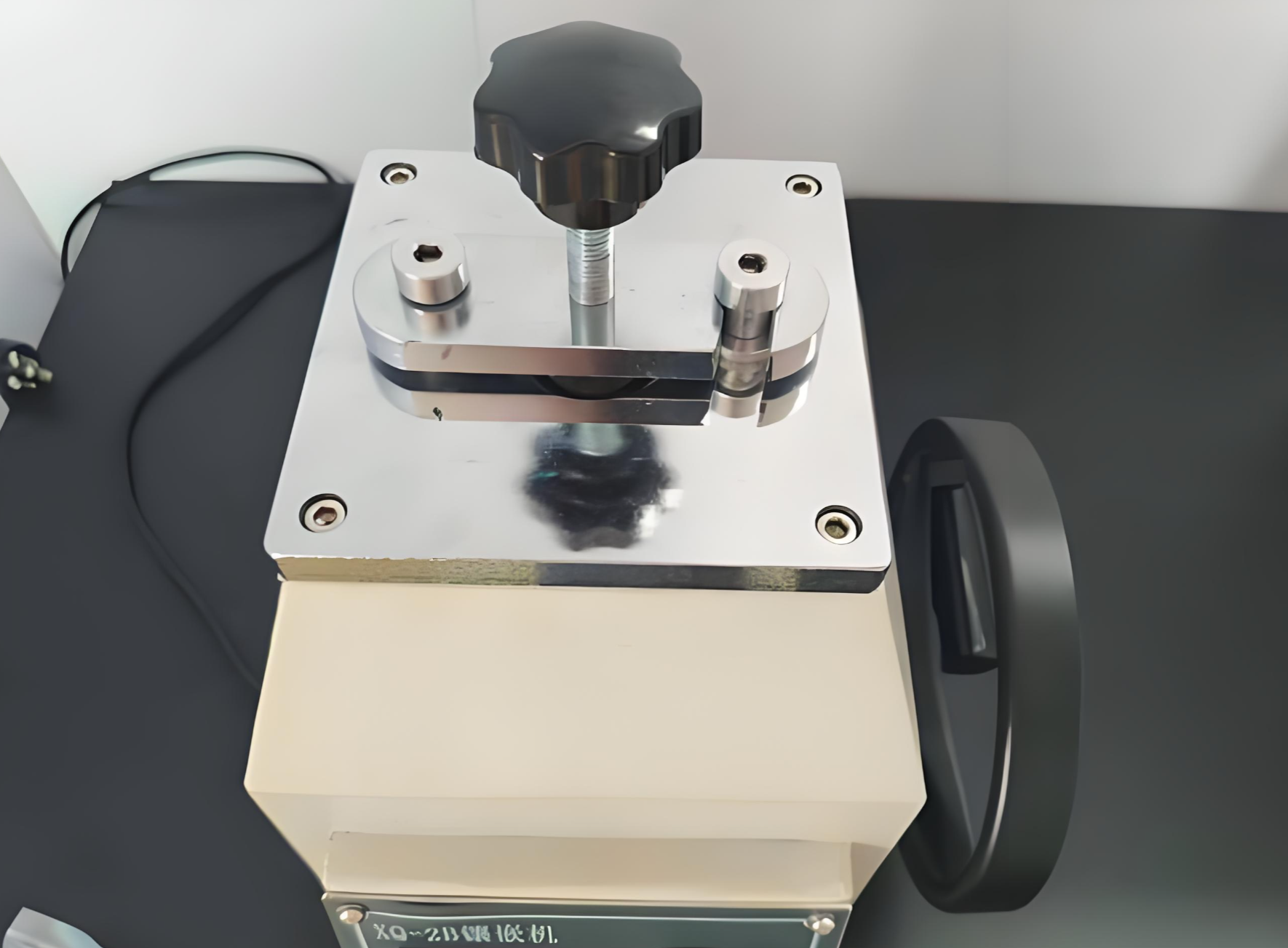

The journey to a flawless microstructural analysis begins long before the sample is placed under a metallurgical microscope. For irregularly shaped, porous, or fragile specimens, obtaining a reliable observation surface is exceptionally challenging. This is where the metallographic mounting press plays an indispensable role. Its primary function is to encapsulate the sample within a hardened thermosetting or thermoplastic mounting resin, creating a standardized, robust puck. This encapsulation process is critical for edge retention, which is paramount for examining surface treatments like coatings, platings, or case-hardened layers. Without proper mounting, the edges of these delicate features can easily round off during grinding and polishing, leading to inaccurate measurements and flawed analysis. By providing physical support, the mounting press ensures that the entire surface, especially the edges, is preserved and can be prepared to a uniform plane. Suzhou Xinhe Measurement Instrument Co., Ltd. offers a range of metallographic mounting presses that are fundamental to any professional laboratory, guaranteeing that the sample's true structure is maintained from the very first step of preparation.
Pressure, Temperature, and Resin Selection

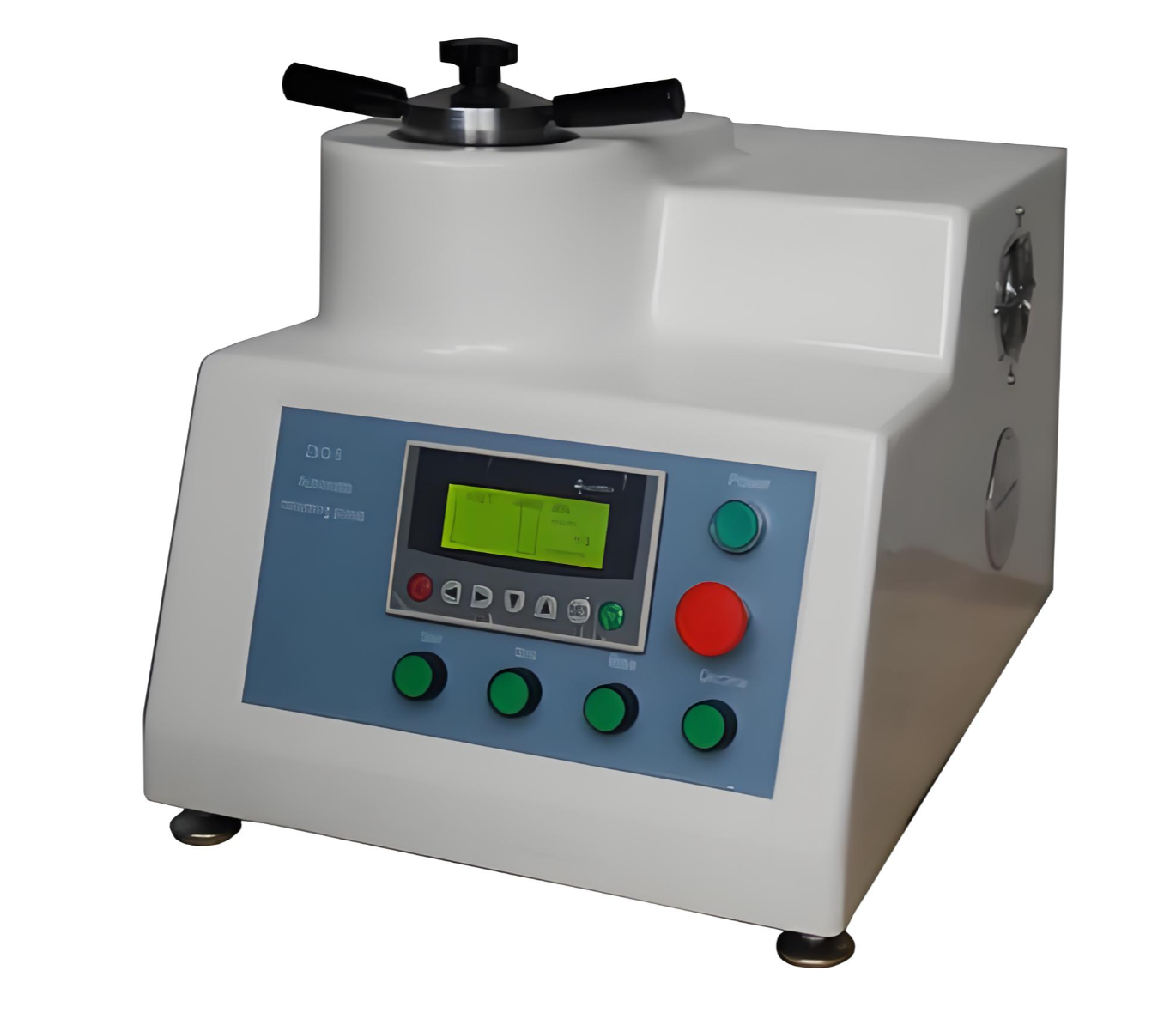

The effectiveness of a metallographic mount is not automatic; it depends on the precise control of the mounting parameters and the correct selection of the mounting resin. Modern metallographic mounting presses are engineered to apply specific levels of heat and pressure to the resin, ensuring complete polymerization and the elimination of voids or porosity that could trap polishing abrasives and obscure the microstructure. The choice of resin is a strategic decision based on the sample's properties. Phenolic resins (thermosetting) are a cost-effective and robust choice for general-purpose mounting of most metals, offering excellent hardness and chemical resistance. For delicate or heat-sensitive materials, such as certain electronic components or plastics, cold mounting using epoxy resins is preferred. This low-exotherm process avoids any potential thermal damage to the sample's microstructure. Transparent epoxy resins are particularly useful when observing the sample from the side or when clarity is needed for certain analyses. Skyline International provides technical support to customers in Vietnam, guiding them in selecting the appropriate press cycle settings and resin type for their specific materials, thereby optimizing the preparation process for superior results.
Enhancing Safety, Traceability, and Laboratory Efficiency
Beyond improving technical outcomes, the metallographic mounting press significantly enhances laboratory safety, sample traceability, and operational efficiency. The encapsulation process securely contains sharp edges and loose particles, protecting technicians from potential injuries during handling. Furthermore, once mounted, samples are much easier and safer to manipulate throughout the subsequent grinding, polishing, and etching stages. The standardized size and shape of the mounted pucks also facilitate consistent clamping in automated grinding and polishing machines, leading to more reproducible results and higher throughput. Crucially, the mount itself becomes a permanent record. Samples can be labeled directly on the resin with unique identifiers, ensuring full traceability from the sample to the final analysis report. This is a critical requirement for ISO 17025 accredited laboratories. Suzhou Xinhe's presses are designed with user-friendly controls and safety features, reflecting their commitment to providing not just instruments, but comprehensive solutions that integrate seamlessly into a modern, efficient, and safe laboratory workflow.
In summary, the metallographic mounting press is far more than a simple sample encapsulation device; it is a foundational pillar of reliable metallographic analysis. By ensuring superior edge retention, enabling optimal resin selection for different materials, and enhancing laboratory safety and efficiency, it directly contributes to the integrity and accuracy of microstructural data. Suzhou Xinhe Measurement Instrument Co., Ltd. and Skyline International provide the essential technology and expertise, empowering laboratories to build their quality control and research on a foundation of perfectly prepared samples.
