The Principle of Non-Destructive Internal Imaging
Scanning Acoustic Microscopy (C-SAM), also known as Acoustic Micro Imaging (AMI), operates on a fundamentally different principle than optical or electron microscopy. It utilizes high-frequency ultrasonic waves to non-destructively probe the internal structure of materials and components. A transducer generates a focused ultrasonic pulse (typically between 10 MHz and 300 MHz) that is coupled into the sample using deionized water. As this sound wave travels through the sample, it encounters interfaces between materials with different acoustic impedance (a property dependent on density and stiffness). At each interface, a portion of the wave is reflected back to the transducer, while the remainder continues deeper. Defects such as delaminations, cracks, or voids act as strong reflectors because they contain air or vacuum, which has a vastly different acoustic impedance than solid materials. By precisely analyzing the time-of-flight and amplitude of these returning echoes, C-SAM can generate detailed, cross-sectional images (C-scans) that reveal the exact location and size of hidden flaws without causing any damage to the sample. This makes it an indispensable tool for inspecting encapsulated structures like semiconductor packages.
Unmasking Critical Defects in Die-Attach and Packaging
The die-attach layer—the material that bonds the semiconductor die to the substrate or lead frame—is critical for mechanical stability, thermal management, and electrical performance. Defects in this layer are a leading cause of device failure. C-SAM is uniquely capable of detecting these flaws with high resolution and reliability. Key defects identified include delamination(separation at the die-to-attach or attach-to-substrate interface), which disrupts heat dissipation and can lead to thermal runaway; voids(air pockets trapped within the attach material), which reduce the effective contact area, impairing thermal conduction and causing localized hot spots; and crackswithin the die or the attach material itself, often resulting from thermal cycling or mechanical stress. By providing a clear image of the internal bond integrity, C-SAM allows manufacturers to qualify material processes, monitor production quality, and perform failure analysis. It is the gold standard for ensuring the reliability of power semiconductors, advanced packages (e.g., BGA, QFN), and other devices where structural integrity is paramount for longevity and function.
Integrating C-SAM into a Robust Quality Assurance Workflow

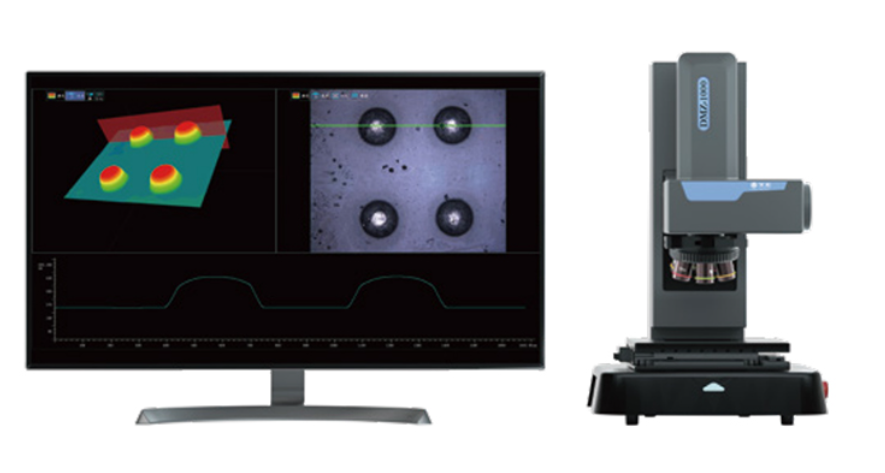

The true value of C-SAM is realized when it is strategically integrated into the quality assurance and reliability engineering workflow. Its application spans the entire product lifecycle. During Research & Development, it is used to validate new die-attach materials, bonding processes, and package designs, providing rapid feedback for optimization. In Incoming Quality Control (IQC), it can screen external suppliers' materials to prevent defective components from entering the production line. For Process Quality Control, it serves as a statistical process control tool, where periodic sampling of production units helps detect process drift or contamination early. Finally, in Failure Analysis, C-SAM is the critical first step to non-destructively locate the root cause of a failure before proceeding to destructive physical analysis (DPA), such as cross-sectioning. Modern C-SAM systems from providers like Skyline International feature advanced automation, high-throughput scanning capabilities, and sophisticated software for quantitative analysis (e.g., void percentage calculation), making them suitable for both high-volume production environments and detailed laboratory investigation. This integration transforms C-SAM from a mere diagnostic tool into a proactive pillar of a comprehensive quality management system.
Ensuring Reliability from the Inside Out
In conclusion, Scanning Acoustic Microscopy (C-SAM) is an unparalleled non-destructive testing method for ensuring the structural integrity of semiconductor devices and advanced electronic packages. By leveraging high-frequency ultrasound to image internal interfaces, it uniquely detects critical, hidden defects in the die-attach layer and other structures that are invisible to other inspection techniques. Its ability to identify delamination, voids, and cracks before they lead to field failures makes it a cornerstone of modern quality assurance and reliability testing. As electronic devices become more powerful and complex, the role of C-SAM in validating manufacturing processes, screening for defects, and diagnosing failures will only grow in importance, solidifying its status as an essential technology for building reliable electronics from the inside out
