Rockwell, Brinell, Vickers And Micro Vickers Tester Package For A New QC Laboratory
A new industrial QC laboratory may need more than one hardness tester. Rockwell, Brinell, Vickers, and Micro Vickers testers cover different materials, sample sizes, hardness ranges, and inspection purposes. A complete package should include the right machines, calibration blocks, indenters, fixtures, vision software, report export, sample preparation equipment, consumables, training, and after-sales support.
Rockwell Tester
For fast HRC and HRB checks on heat-treated steel, tools, molds, shafts, and machined parts.
Brinell Tester
For castings, forgings, aluminum castings, bronze parts, large samples, and coarse structures.
Vickers Tester
For precision samples, weld sections, polished parts, tool steel, and customer reports.
Micro Vickers Tester
For case depth, nitrided layers, coatings, thin layers, small parts, and hardness profiles.
Why A New QC Laboratory Needs A Complete Hardness Testing Package
A new QC laboratory often serves several production or inspection needs at the same time. One factory may need to test heat-treated steel parts, castings, forgings, weld samples, aluminum alloy parts, copper alloy parts, tool steel, coatings, gears, shafts, bearings, fasteners, and precision machined components. These parts cannot always be inspected with one hardness testing method.
Rockwell testing is fast and practical for routine HRC checks. Brinell testing is suitable for castings, forgings, and larger non-uniform structures. Vickers testing is useful for polished samples, weld sections, and precision measurements. Micro Vickers testing is required when the lab needs case depth curves, thin layer hardness, coating hardness, or small indentation testing.
A complete package helps the lab avoid missing equipment, wrong method selection, and repeated purchases. Instead of buying one machine first and adding accessories later, buyers should plan the full testing workflow from sample preparation to report export.

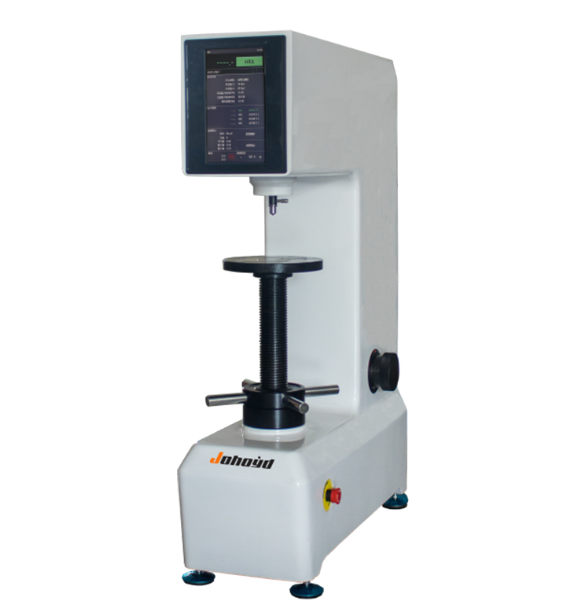

1. Rockwell Hardness Tester For Fast Production QC
A Rockwell hardness tester is usually the first machine in many industrial QC labs. It is widely used for heat-treated steel, quenched and tempered parts, tool steel, mold components, shafts, gears, bearing parts, fasteners, and machined metal components. For many heat-treated steel parts, HRC is the most common inspection scale.
Buyers should confirm whether the lab needs manual, digital, or motorized Rockwell testing. A digital Rockwell tester is often a practical choice for daily batch inspection because it provides clear readings and can reduce manual record mistakes.
| Rockwell Configuration | Recommended Use | Package Checkpoint |
|---|---|---|
| Digital Rockwell tester | Daily HRC and HRB inspection | Confirm scales, display, test force, and data output if required |
| Diamond cone indenter | HRC testing on hardened steel | Include spare indenter if daily workload is high |
| HRC and HRB calibration blocks | Daily verification | Choose blocks close to working hardness ranges |
| Flat anvil and V anvil | Flat blocks, shafts, pins, rollers | Confirm fixtures for real sample shapes |
2. Brinell Hardness Tester For Castings, Forgings And Large Parts
A Brinell hardness tester is important when the lab inspects cast iron, steel castings, ductile iron, aluminum castings, bronze bushings, forged shafts, forged blocks, valve bodies, pump housings, and other large or non-uniform parts. The larger Brinell indentation provides a more representative hardness value for coarse structures.
For a new QC lab, buyers should confirm load range, ball diameter, sample height, throat depth, worktable capacity, HBW calibration blocks, and whether manual optical reading or digital indentation measurement is required.
Brinell package should include:
Brinell hardness tester with suitable load range.
Required Brinell ball indenter and ball diameter.
HBW calibration blocks close to the working hardness range.
Optical microscope or digital indentation measurement system.
Large worktable or sample support if heavy parts are tested.
Report export function if customer documents are required.

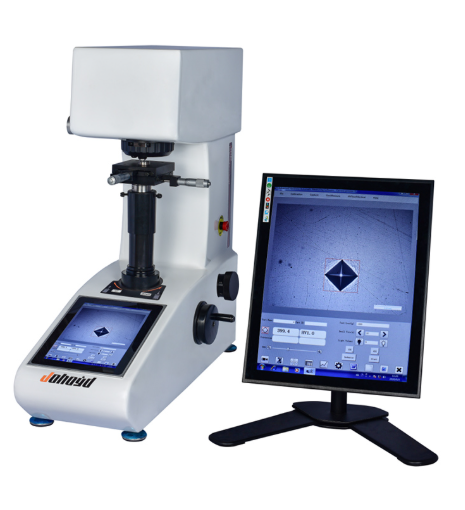

3. Vickers Hardness Tester For Precision Samples And Weld Sections
A Vickers hardness tester is useful for precision metal samples, polished parts, thin sections, tool steel, weld samples, surface-treated parts, and laboratory reports. Compared with Rockwell and Brinell testing, Vickers testing can work with smaller test areas and a wide hardness range when the sample is prepared properly.
For a new QC lab, buyers should check optical system quality, test force range, Vickers indenter, HV calibration blocks, camera option, software measurement, and report export. If the lab needs image-based reports, a Vickers tester with vision software is recommended.
| Vickers Application | Why It Fits | Configuration Need |
|---|---|---|
| Weld cross-sections | Can compare weld metal, HAZ, and base metal | Test path software and polished sample preparation |
| Tool steel and mold components | Suitable for precise polished test areas | HV blocks, stable stage, and image measurement if needed |
| Thin parts and small areas | Smaller indentation than Brinell or Rockwell | Correct load selection and good surface preparation |
| Customer report samples | Image and data can support traceability | Camera, software, PDF and Excel export |

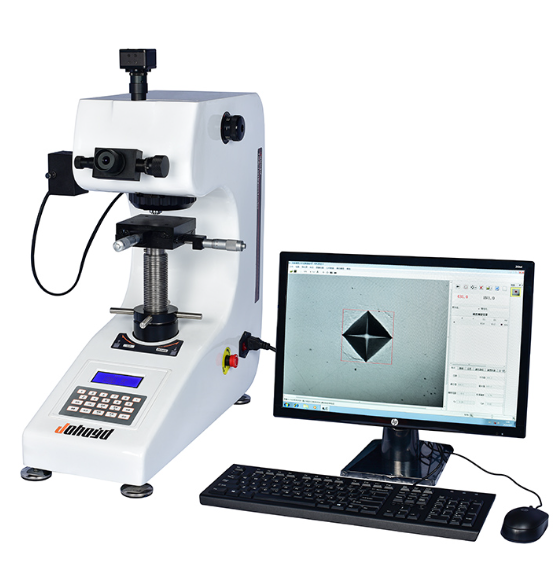

4. Micro Vickers Tester For Case Depth, Coatings And Thin Layers
A Micro Vickers hardness tester is essential when the lab needs to test carburized layers, nitrided layers, induction-hardened zones, coating hardness, weld sections, small precision parts, and surface-to-core hardness profiles. It uses smaller loads and smaller indentations, making it suitable for detailed hardness distribution.
For case depth testing, the package should include Micro Vickers tester, low-load capability, XY stage, vision software, case depth curve function, Micro HV calibration blocks, Vickers indenter, sample holders, and proper metallographic sample preparation equipment.
Micro Vickers package should include:
Low-load Micro Vickers hardness tester.
Micro HV calibration blocks.
Vickers diamond indenter and objective lenses.
Manual or motorized XY stage.
Camera and automatic indentation measurement software.
Case depth curve and hardness profile report function.
Sample holders for mounted cross-sections.
Cutting, mounting, grinding, polishing, and microscope equipment when needed.
5. Sample Preparation Equipment For A Complete QC Lab
A new QC lab should not only prepare hardness testers. If the lab performs Vickers, Micro Vickers, case depth, weld hardness, coating hardness, or metallographic inspection, sample preparation equipment is necessary. Poor sample preparation can cause unclear indentations and unstable hardness values.
A complete lab package may include metallographic cutting machine, hot mounting press or cold mounting tools, grinding and polishing machine, metallurgical microscope, consumables, sample holders, and cleaning tools.
| Preparation Equipment | Purpose | Needed For |
|---|---|---|
| Metallographic cutting machine | Cuts samples with controlled damage | Case depth, weld sections, coating sections |
| Mounting press | Supports small and irregular samples | Micro Vickers, coatings, thin layers, small parts |
| Grinding and polishing machine | Creates flat, polished surfaces | Vickers, Micro Vickers, metallographic analysis |
| Metallurgical microscope | Checks structure, layer, weld zone, and preparation quality | Advanced QC reports and test path confirmation |
6. Recommended Complete Package For A New QC Laboratory
The exact package should be selected according to the buyer’s materials, parts, standards, testing volume, and report requirements. The table below shows a practical configuration for a new industrial QC laboratory.
| Package Item | Recommended Configuration | Main Purpose |
|---|---|---|
| Rockwell tester | Digital Rockwell tester with HRC/HRB scales | Fast routine hardness testing for steel parts |
| Brinell tester | Brinell tester with HBW blocks and digital measurement option | Castings, forgings, and large non-uniform parts |
| Vickers tester | Vickers tester with optical system and report software option | Precision samples, weld sections, and polished parts |
| Micro Vickers tester | Micro Vickers tester with XY stage and case depth software | Thin layers, coatings, and hardness profile testing |
| Calibration blocks and indenters | HRC, HRB, HBW, HV, Micro HV blocks and required indenters | Daily verification and traceable testing |
| Sample preparation | Cutting, mounting, grinding-polishing, microscope, consumables | Cross-section testing and metallographic inspection |
Key Questions Before Requesting A Complete Package Quotation
To recommend the right QC lab package, suppliers need to understand the buyer’s real testing needs. Buyers should prepare the following information before requesting a quotation.
What materials will be tested: steel, cast iron, aluminum alloy, copper alloy, coating, tool steel, or weld samples?
What parts will be tested: gears, shafts, bearings, fasteners, molds, castings, forgings, or precision parts?
Which hardness methods are required: Rockwell, Brinell, Vickers, Micro Vickers, or all of them?
What hardness scales and expected ranges are needed?
What is the maximum sample size, weight, and test location?
Do customers require reports, images, curves, or calibration records?
Do you need manual, digital, or automatic measurement?
Do you need case depth testing or hardness profile curves?
Do you need metallographic sample preparation equipment?
Do you need installation guidance, training, warranty, and spare parts support?
Conclusion: Build The QC Lab Around Real Testing Scenarios
A new QC laboratory should not select hardness testers only by machine name or price. Rockwell, Brinell, Vickers, and Micro Vickers testers each solve different testing problems. A complete package should match the factory’s materials, sample sizes, inspection standards, reporting needs, and future quality control requirements.
For a practical industrial QC lab, buyers should consider testers, calibration blocks, indenters, fixtures, software, report export, sample preparation equipment, consumables, training, and after-sales support together. This helps avoid missing accessories and makes the lab ready for real inspection after installation.
If your company is building a new QC laboratory, send your material list, sample photos, hardness methods, report requirements, and daily testing volume before requesting a quotation. A complete package recommendation can help you build a more reliable and scalable hardness testing workflow.
FAQ
Does a new QC lab need all four hardness testers?
Not always. The lab should select Rockwell, Brinell, Vickers, and Micro Vickers testers according to materials, sample types, testing standards, and report requirements.
Which tester should a heat treatment lab choose first?
A digital Rockwell tester is often the first choice for routine HRC inspection. If case depth testing is required, a Micro Vickers tester and sample preparation equipment should also be considered.
Why include sample preparation equipment in the package?
Vickers, Micro Vickers, case depth, weld hardness, and coating hardness testing often require cut, mounted, ground, and polished samples for reliable results.
What should be included in a complete QC lab quotation?
The quotation should include tester models, scales, load ranges, calibration blocks, indenters, fixtures, software, sample preparation equipment, consumables, training, warranty, and support.
Need A Complete Hardness Testing Package For A New QC Lab?
Send your materials, sample photos, part sizes, hardness methods, report requirements, daily testing volume, and lab setup plan. We can help recommend Rockwell, Brinell, Vickers, Micro Vickers testers, calibration blocks, indenters, fixtures, software, sample preparation equipment, and complete QC laboratory packages.
