Automatic Hardness Testing Software For Reports, Indentation Images And Case Depth Curves
Automatic hardness testing software helps industrial QC labs improve measurement repeatability, save indentation images, record test points, generate hardness reports, export data, and create case depth curves for Vickers, Micro Vickers, Brinell, weld hardness, coating hardness, and heat treatment inspection. Before ordering, buyers should confirm software functions, camera compatibility, report formats, data storage, calibration records, and whether the system fits their testing workflow.
Image Measurement
Software can measure Vickers diagonals or Brinell indentation diameters from captured images.
Report Export
PDF and Excel reports help QC labs provide clear customer-facing inspection records.
Case Depth Curves
Micro Vickers profile software can show hardness changes from surface to core.
Traceability
Sample ID, batch number, operator, calibration record, and images improve audit readiness.
Why Hardness Testing Software Matters In Industrial QC Labs
Many factories still record hardness results manually. This may be acceptable for simple internal checks, but it becomes a problem when the lab needs repeated Vickers measurement, Micro Vickers case depth testing, Brinell indentation measurement, customer reports, or batch traceability. Manual measurement and handwritten records can create operator differences, reporting mistakes, and weak proof during customer audits.

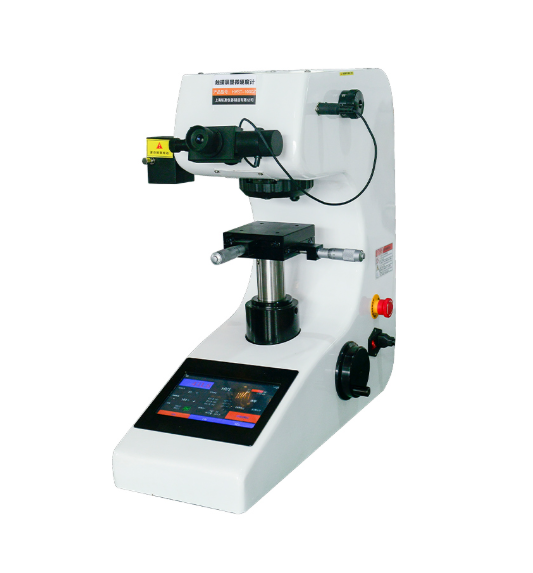

Automatic hardness testing software connects the tester, camera, optical system, sample stage, measurement data, and report workflow. It can capture indentation images, calculate hardness values, save test point positions, generate curves, and export reports. For industrial buyers, this software is not only a convenience feature. It directly affects result consistency and report quality.
For heat treatment shops, gear manufacturers, shaft suppliers, bearing plants, casting and forging factories, welding QC labs, coating inspection labs, tool steel users, and precision machining suppliers, software can make hardness testing easier to review, repeat, and prove.
1. Indentation Image Capture And Measurement
The first function buyers should confirm is indentation image capture and measurement. For Vickers and Micro Vickers testing, the software should measure the two diagonal lengths of the diamond-shaped indentation. For Brinell testing, it should measure the indentation diameter. This reduces manual reading differences and helps create image-based records.
Image quality is important. The software result depends on camera resolution, optical magnification, lighting, sample surface quality, and indentation clarity. Buyers should ask whether the supplier can show real indentation images from similar samples before confirming the configuration.
| Testing Method | Software Measurement Need | Buyer Checkpoint |
|---|---|---|
| Vickers | Measure two indentation diagonals and calculate HV value | Confirm image clarity, diagonal measurement, and report export |
| Micro Vickers | Measure small indentations on polished cross-sections | Confirm low-load image quality and sample preparation requirement |
| Brinell | Measure indentation diameter and calculate HBW value | Confirm digital diameter measurement and image storage |
| Case depth testing | Measure many Micro Vickers points from surface to core | Confirm point spacing, coordinates, curve generation, and export function |
2. Hardness Reports For Customers And Internal QC
A good software system should not only display a hardness value. It should help the lab create usable reports. For customer-facing reports, the software should include sample information, material grade, batch number, testing method, scale, load, test location, hardness values, calibration record, operator, date, and result judgment.
Many buyers need PDF or Excel export so that hardness results can be attached to inspection reports, shipment documents, supplier quality files, or internal batch records. If the factory serves demanding customers, report format becomes an important part of the software evaluation.
Useful report functions include:
Sample name, part number, drawing number, and batch number.
Material grade, heat treatment condition, and test standard.
Testing method, scale, force, and test position.
Hardness values, average value, minimum value, and maximum value.
Indentation images and test point records.
Calibration block information and machine ID.
Operator, inspection date, and final judgment.
PDF, Excel, or image export for customer documentation.
3. Case Depth Curves For Heat-Treated Parts
Case depth curve generation is one of the most important software functions for Micro Vickers testing. For carburized, nitrided, carbonitrided, induction-hardened, coated, or surface-treated parts, the lab may need to measure hardness values from the surface toward the core. The software should convert these values into a clear hardness profile curve.
A case depth report should show test point distance, hardness value, profile curve, effective case depth result if required, sample information, and test condition. This helps heat treatment shops and industrial buyers confirm whether the hardened layer meets the required depth and hardness gradient.
| Application | Software Function Needed | Report Benefit |
|---|---|---|
| Carburized gears | Surface-to-core Micro HV profile curve | Shows effective case depth and core transition |
| Nitrided shafts | Low-load indentation records and curve generation | Shows thin layer hardness distribution |
| Induction-hardened tracks | Multi-point hardness path and coordinate record | Confirms hardened zone depth and transition area |
| Coated or surface-treated parts | Small indentation image storage and layer profile data | Supports coating or surface treatment quality review |
4. Test Point Coordinates And XY Stage Integration
For Micro Vickers case depth testing, weld hardness testing, and coating cross-section testing, the software should record where each indentation is placed. If the system is connected with a manual or motorized XY stage, it can help control point spacing and improve the repeatability of hardness paths.
This is especially useful when multiple samples must be tested with the same pattern. For example, a heat treatment lab may need the same surface-to-core profile on several gear samples. A welding QC lab may need a repeatable path across weld metal, heat-affected zone, and base metal.
XY stage and software functions to confirm:
Manual or motorized XY stage compatibility.
Test point coordinate recording.
Point spacing control for case depth profiles.
Test path setup for weld sections and coating layers.
Ability to repeat the same test pattern on multiple samples.
Integration with report export and hardness profile curves.
5. Calibration Records And Data Traceability
Industrial buyers often ask whether the hardness tester was verified before testing. A useful software system should help record calibration block values, verification results, machine ID, operator, and inspection date. This is important for customer audits and quality disputes.
Traceability is especially valuable for batch inspection. A complete software record should connect hardness values with sample ID, material batch, heat treatment batch, test location, measurement image, calibration record, and report number.
| Traceability Item | Why It Matters | Software Checkpoint |
|---|---|---|
| Calibration record | Shows the tester was verified before inspection | Can calibration block values and results be saved? |
| Indentation image | Provides visual proof of measurement quality | Can each image be linked to its hardness value? |
| Sample and batch ID | Connects the result to production or shipment records | Can sample information be entered and exported? |
| Operator and date | Supports internal review and customer audit | Can reports show operator, time, and machine ID? |
6. What Buyers Should Confirm Before Ordering Software
Hardness testing software can vary greatly between suppliers. Some systems only display and store basic values. Others support automatic indentation measurement, image storage, case depth curves, report templates, database management, and software-controlled stages. Buyers should confirm the exact software package before comparing prices.
| Software Item | Basic Configuration | Advanced Configuration |
|---|---|---|
| Measurement | Manual or assisted measurement | Automatic image measurement and value calculation |
| Report export | Basic data output | PDF, Excel, images, curves, and customized report layout |
| Case depth | Values recorded separately | Hardness profile curve and effective case depth calculation |
| Stage control | Manual point movement | Coordinate recording or motorized XY stage integration |
Key Questions Before Requesting A Quotation
To get a suitable software and machine configuration, buyers should explain how the hardness data will be used after testing.
Which hardness method will you use: Brinell, Vickers, Micro Vickers, or another method?
Do you need automatic indentation measurement?
Do you need indentation image storage for each test point?
Do you need PDF, Excel, or customized report export?
Do you need case depth curves or surface-to-core hardness profiles?
Do you need test point coordinates and XY stage integration?
Do customers require calibration records in the report?
How many samples and test points are measured per day?
Do multiple operators need separate records?
Do you need software training, remote support, and upgrade service?
Conclusion: Software Turns Hardness Testing Into A Traceable QC System
Automatic hardness testing software helps factories move beyond simple hardness values. It supports image-based measurement, report export, case depth curves, calibration records, sample traceability, and customer audit documentation.
For basic internal testing, simple data output may be enough. For Vickers, Micro Vickers, Brinell, case depth, weld hardness, coating hardness, and customer-facing reports, automatic vision software can improve repeatability, efficiency, and documentation quality.
If your factory needs hardness testing reports, indentation images, case depth curves, or digital QC records, confirm the software functions before comparing machine prices. The right software package can make the entire hardness testing workflow more reliable and easier to manage.
FAQ
What does automatic hardness testing software do?
It can capture indentation images, measure indentations, calculate hardness values, store data, generate reports, and create hardness profile curves when supported.
Which hardness tests need image measurement software?
Vickers, Micro Vickers, and Brinell testing benefit strongly because they require optical indentation measurement.
Can software generate case depth curves?
Yes, if the system supports Micro Vickers profile testing, point distance records, and hardness curve generation.
Is software necessary for Rockwell hardness testing?
Not always. Basic Rockwell testing may only need digital values, but data output and report functions are useful for batch records and customer reports.
