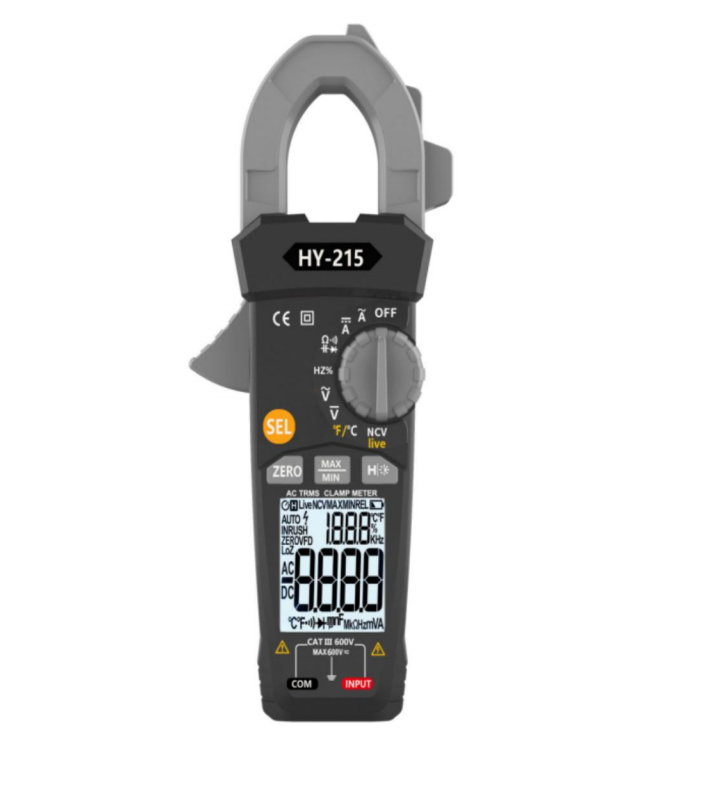

YOURTEST HY-202 & HY-215 AC Digital Clamp Meters
The YOURTEST HY-202 & HY-215 AC Digital Clamp Meters deliver precision and versatility for electrical testing. Both models feature a 3999-count LCD, supporting DC/AC voltage (0.5V–600V, ±0.8% reading + 3 digits), AC current (6A/60A/600A, ±3% reading + 10 digits), resistance, and capacitance measurements. The HY-202 adds advanced functions: wide-range frequency (0–10MHz) and temperature (-30°C–1000°C) detection, ideal for industrial diagnostics.
Table 1: Technical Specifications Comparison
Model | Function | Range | Accuracy |
|---|---|---|---|
HY-202 | DC Voltage | 0.5V–600V | ±0.8% of reading + 3 digits |
AC Voltage | 0.5V–600V | ±0.8% of reading + 3 digits | |
AC Current | 6A/60A/600A | ±3% of reading + 10 digits | |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/60MΩ | ±1.2% of reading + 3 digits | |
Capacitance | 60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±4% of reading + 3 digits (first 5 ranges); | |
Frequency (via A terminal) | 10Hz–1kHz | ±1.5% of reading + 5 digits | |
Frequency (direct) | 0–10MHz | ±1.5% of reading + 5 digits | |
Temperature | -30°C–1000°C | ±5% of reading + 3 digits | |
HY-215 | DC Voltage | 0.5V–600V | ±0.8% of reading + 3 digits |
AC Voltage | 0.5V–600V | ±0.8% of reading + 3 digits | |
AC Current | 6A/60A/600A | ±3% of reading + 10 digits | |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/60MΩ | ±1.2% of reading + 3 digits | |
Capacitance | 60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±4% of reading + 3 digits (first 5 ranges); | |
Frequency (via A terminal) | 10Hz–1kHz | ±1.5% of reading + 5 digits |
Table 2: Features & Basic Parameters
Category | Details |
|---|---|
Common Features | - Display: 3999-count LCD |
HY-202 Unique | - Additional Functions: Frequency (0–10MHz), Temperature (-30°C–1000°C) |
Basic Parameters | - Power Supply: 3×1.5V AAA Batteries |
Product Highlights
The YOURTEST HY-202 & HY-215 AC Digital Clamp Meters deliver precision and versatility for electrical testing. Both models feature a 3999-count LCD, supporting DC/AC voltage (0.5V–600V, ±0.8% reading + 3 digits), AC current (6A/60A/600A, ±3% reading + 10 digits), resistance, and capacitance measurements. The HY-202 adds advanced functions: wide-range frequency (0–10MHz) and temperature (-30°C–1000°C) detection, ideal for industrial diagnostics.
Key highlights include non-contact NCV/EF electric field measurement, LIVE wire identification, data hold, backlight, and auto power-off for user convenience. Their compact design (200×71×30mm, 250g) with a 30mm jaw diameter ensures portability for fieldwork. Powered by 3×AAA batteries, both models offer long runtime and low power consumption. With CE-compliant safety and 40-unit carton packaging, they suit electricians, technicians, and DIY users needing reliable, multifunctional clamp meters for troubleshooting circuits, motors, and appliances.
We also have this product. Please contact us if needed.
