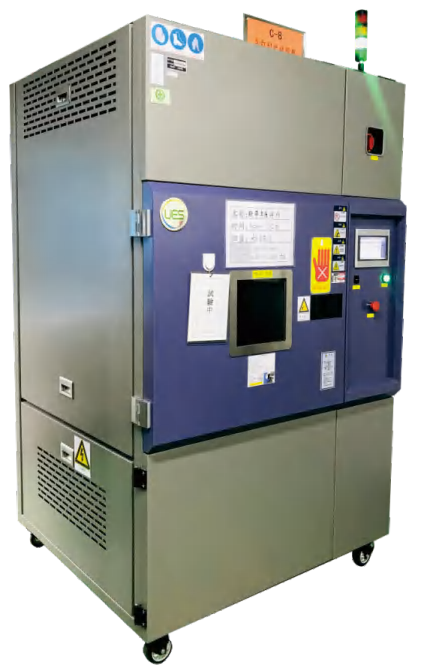

Xenon Arc Aging Test Chamber

Product Features:

• The test chamber has an advanced and reasonable structure. It adopts an advanced balanced temperature - humidity control system and dynamic PI + water vapor partial pressure control, with extremely high precision. The product is eco - friendly and energy - saving.




• Ventilation cooling device: The temperature ventilation cooling system of the test chamber is automatically controlled by a temperature controller.




• Spraying system: The spraying system of the equipment consists of a water pump, time relay, nozzles, etc., and the spraying period is adjustable.




• The control bottom - plate thermometer uses wireless transmission technology, effectively improving control accuracy.




• Fiber optic transmission is used to measure the radiation intensity of the xenon lamp, avoiding measurement value errors caused by temperature.




• The test rack rotates around the light source at a speed of 1r/min, and a black panel thermometer (BP) or black standard thermometer is installed on the test rack.




• Timing device: To record the working time of each test, a timer is set on the operation panel to control the equipment time, and the equipment will automatically shut down when the timing ends.




• Protection device: To ensure the normal operation of the xenon arc lamp without damage, the ignition circuit of the xenon arc lamp is interlocked with the cooling system (the xenon arc lamp cannot be ignited when the air - cooling system is not working). When a cooling system failure or abnormal operation occurs during operation, the xenon lamp will automatically go out, and all protection facilities on the machine will stop working.




• Core electrical components all adopt first - line imported well - known brands.




•

Product Data

100 - word Highlights of the Xenon Arc Aging Test Chamber

This xenon arc aging test chamber excels with advanced technology and strict compliance. Its balanced temp - humidity control ensures high - precision testing. Wireless - transmitted bottom - plate thermometers and fiber - optic radiation measurement eliminate errors. It’s eco - friendly, energy - saving, and features interlocked safety systems. Customizable sizes meet diverse needs, while first - line imported components guarantee reliability. It seamlessly meets GB, ASTM, ISO standards, making it ideal for material weather resistance evaluation.

800 - word Product Introduction to the Xenon Arc Aging Test Chamber

The xenon arc aging test chamber is a state - of - the - art solution for simulating and accelerating material weathering. By leveraging a long - arc xenon lamp, it replicates natural aging factors (sunlight, humidity, temperature) to rapidly generate test results mirroring real - world conditions. It’s vital for assessing the weather resistance of plastics, rubber, coatings, textiles, and more, while fully complying with standards like GB/T16422 - 2, ASTM D529, and ISO4892 - 2.

1. Innovative Design & Precision Control

Its advanced structure integrates a balanced temperature - humidity control system with dynamic PI and water vapor partial pressure control, ensuring ultra - precise testing. This system stabilizes chamber conditions to mimic diverse climates. Plus, the eco - friendly, energy - saving design cuts environmental impact and operational costs.

The ventilation cooling system, regulated by a temperature controller, efficiently manages heat during testing, preventing overheating. The spraying system (pump, time relay, nozzles) offers adjustable cycles, simulating rain for moisture - related degradation tests.

2. Intelligent Monitoring & Safety

Accuracy is enhanced via wireless bottom - plate thermometers (eliminating wired - error risks) and fiber - optic radiation measurement (avoiding temperature - induced inaccuracies). The rotating test rack (1r/min) ensures uniform sample exposure, while a built - in timer automates test timing and shutdowns.

Safety is non - negotiable: The xenon lamp’s ignition circuit is interlocked with the cooling system (no ignition without cooling). If cooling fails mid - test, the lamp shuts off, and all protections activate—safeguarding equipment and samples. Core components are from top global brands, ensuring long - term reliability.

3. Customization & Versatility

The chamber adapts to all testing needs:

• Working chamber size: Customizable to fit sample volumes.




• Temperature range: RT + 10℃–70℃ (blackboard: 55–95℃), covering wide material aging ranges.




• Humidity control: (50 ± 5)% (daylight sim.) to (70–95)% (dark condensation), testing dry/humid durability.




• Xenon lamp power: 3.0KW (air - cooled) or 6.0KW (water - cooled), full solar spectrum.




• Radiation intensity: (350–850nm) 550W/m²–1100W/m², with monitoring at 340nm/420nm/300–400nm.




• Other specs: 1r/min rack speed, adjustable shutter/water spray cycles, 78–127kPa atomizing pressure, and a 255nm - blocking filter (90%+ transmittance at 400–800nm). Powered by AC 380V/50Hz (≤11KW), it delivers 0.63m² of efficient radiation.




In short, the xenon arc aging test chamber blends innovation, precision, and customization. For R&D labs developing weather - resistant materials or QA teams ensuring product durability, it’s the ultimate tool for accurate, efficient weathering evaluation—driving industry - leading product resilience.
