Voltage Tester Pen (Models: HY-100 & HY-101)
  • Voltage Tester Pen (Models: HY-100 & HY-101)
  • Voltage Tester Pen (Models: HY-100 & HY-101)

Voltage Tester Pen (Models: HY-100 & HY-101)

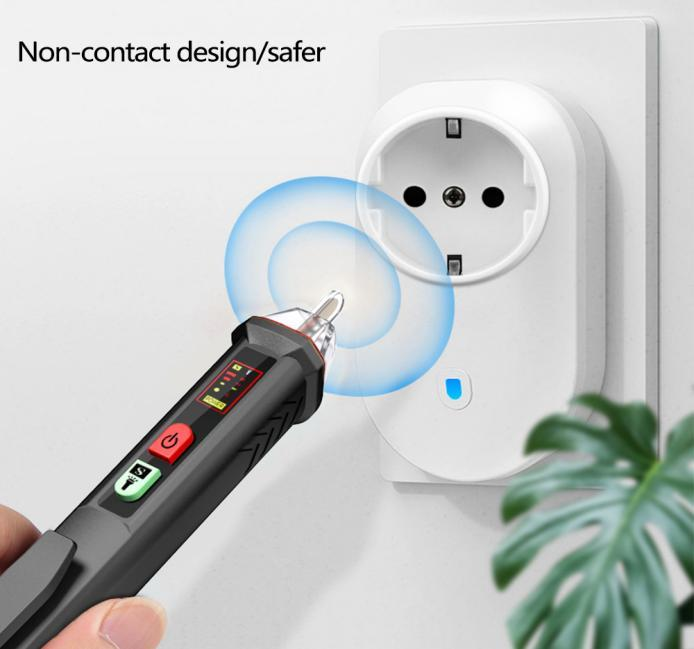

Non - contact design for safety, detects 12 - 1000V AC with sound - light alarm & LED light; Dual models (HY - 100 LED display / HY - 101 large - screen display) meet different needs.

Voltage Tester Pen (Models: HY-100 & HY-101)

Our Voltage Tester Pens (HY - 100 & HY - 101) are professional tools for electrical detection. With non - contact design, they ensure safety by avoiding direct contact during use. They can detect AC voltage from 12V to 1000V (50Hz - 60Hz) and use sound - light alarms to remind of live wires. The built - in LED flashlight works in dark environments.

For different usage scenarios, there are two models: HY - 100 has an LED digital display for NCV indication, while HY - 101 adopts a large - screen digital display for better readability. Both support neutral/live wire identification by signal strength and have two NCV sensitivity modes. They are powered by 2×1.5V 7 - number batteries, weigh about 45g, and measure 150×20×20mm. Each carton holds 150 pieces. With CE certifications, they meet strict industry safety standards.

Model: HY - 100 (Voltage Detector Pen)

Technical Specifications

Details

AC Voltage

Approximately 12V–1000V

Frequency

50HZ–60HZ

Alarm Mode

Sound + Light + Alarm

Flashlight

LED Lighting

Auto Power - Off/Battery Low Indicator

AUTO

Neutral/Live Wire Identification

Determined by signal strength (stronger = live wire)

NCV Sensitivity

Two Modes (High/Low)

NCV Indication

LED Digital Display

Safety Rating

CE CATIII 1000V / CATIV 600V

Basic Parameters

Details

Power Supply

2×1.5V 7 - number Batteries

Dimensions

150×20×20mm

Weight

Approximately 45g

Carton Quantity

150 units per carton

Carton Dimensions

49×34×19.5CM

Model: HY - 100 (Voltage Detector Pen)

Technical Specifications

Details

AC Voltage

Approximately 12V–1000V

Frequency

50HZ–60HZ

Alarm Mode

Sound + Light + Alarm

Flashlight

LED Lighting

Auto Power - Off/Battery Low Indicator

AUTO

Neutral/Live Wire Identification

Determined by signal strength (stronger = live wire)

NCV Sensitivity

Two Modes (High/Low)

NCV Indication

Large - Screen Digital Display

Safety Rating

CE CATIII 1000V / CATIV 600V



Model: HY - 101 (Voltage Detector Pen)

Basic Parameters

Details

Power Supply

2×1.5V 7 - number Batteries

Dimensions

150×20×20mm

Weight

Approximately 45g

Carton Quantity

150 units per carton

Carton Dimensions

49×34×19.5CM


voltage tester pen, non - contact voltage detector, HY - 100 voltage pen, HY - 101 voltage detector, AC voltage tester, LED light voltage pen, electrical safety tool, household electrical tester, professional voltage detector
